Simpson Anchors | SKU:
CBH2.37X5.5C-KT
Simpson Strong-Tie CBH2.37X5.5C-KT (2-3/8" x 5-1/2") Concealed Joist-to-Column Hanger Kit
$119.10
Unit price
/
Unavailable
Description
Description

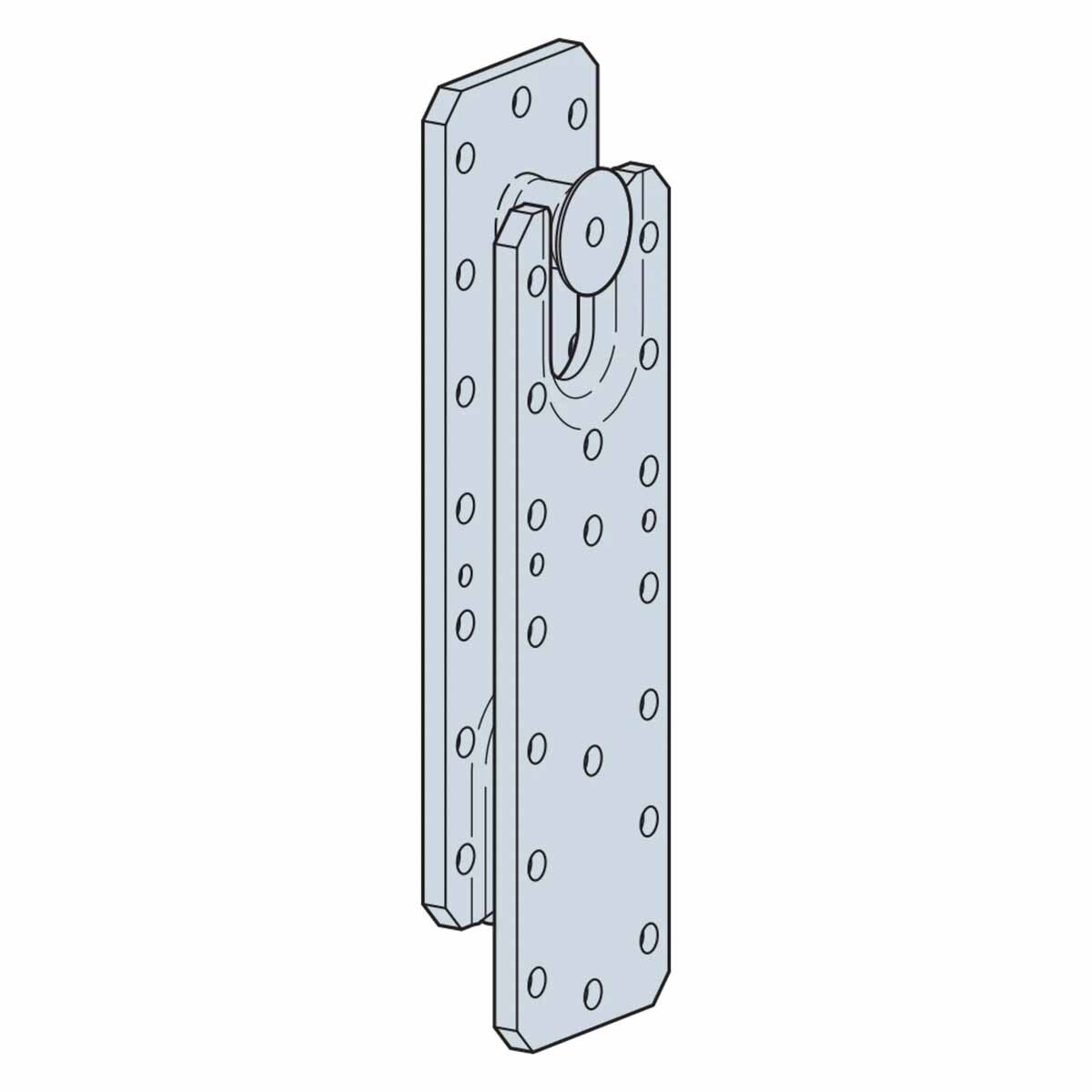

Simpson Strong-Tie CBH2.37X5.5C-KT Description
The CBH2.37X5.5C-KT is a concealed beam hanger kit designed for heavy-duty, hidden wood-to-wood connections in mass timber applications. It ensures a clean, modern finish with no visible hardware, ideal for exposed timber framing.
Simpson Strong-Tie CBH2.37X5.5C-KT Includes

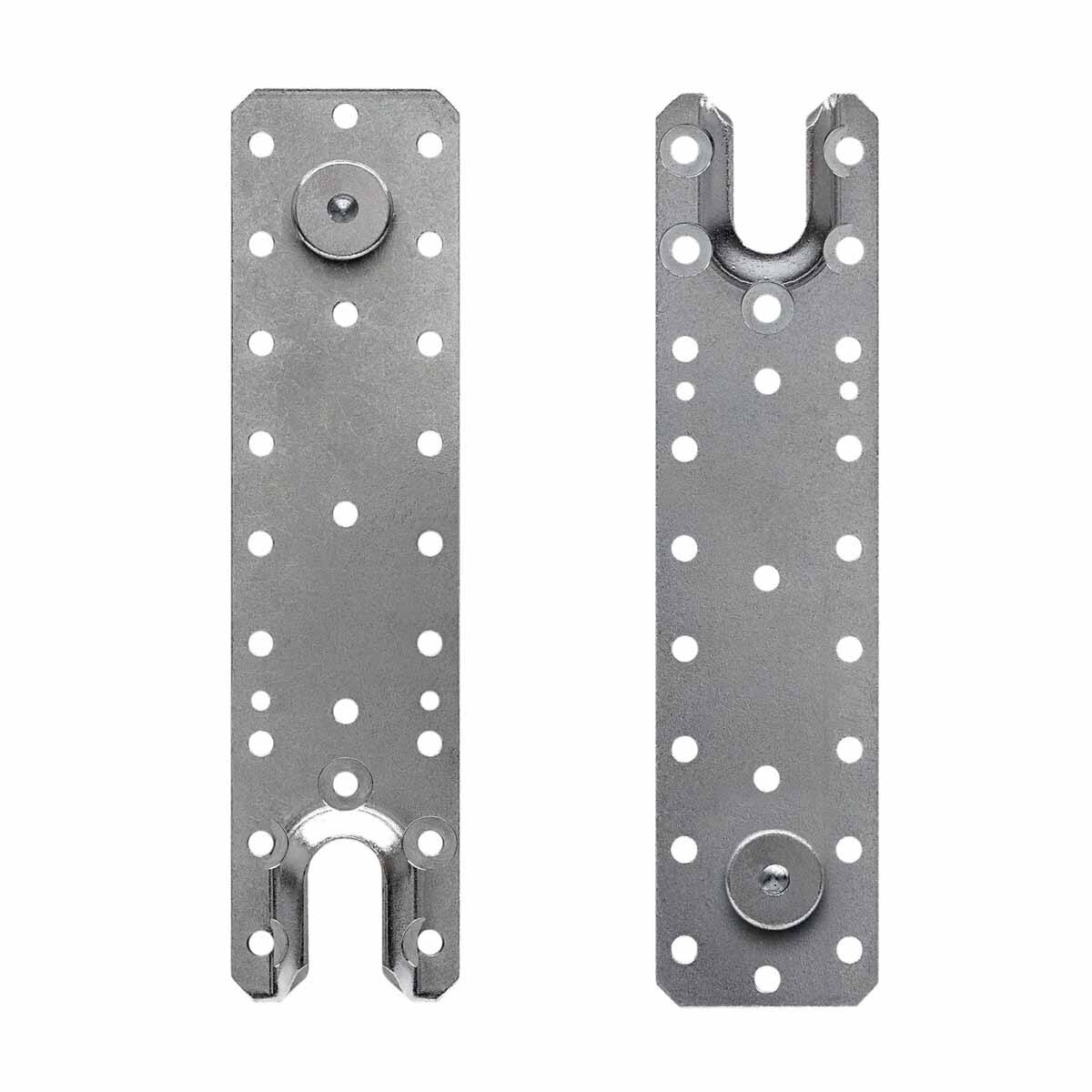

- (2) CBH2.37X5.5C-KT Concealed Beam Hanger Backplates

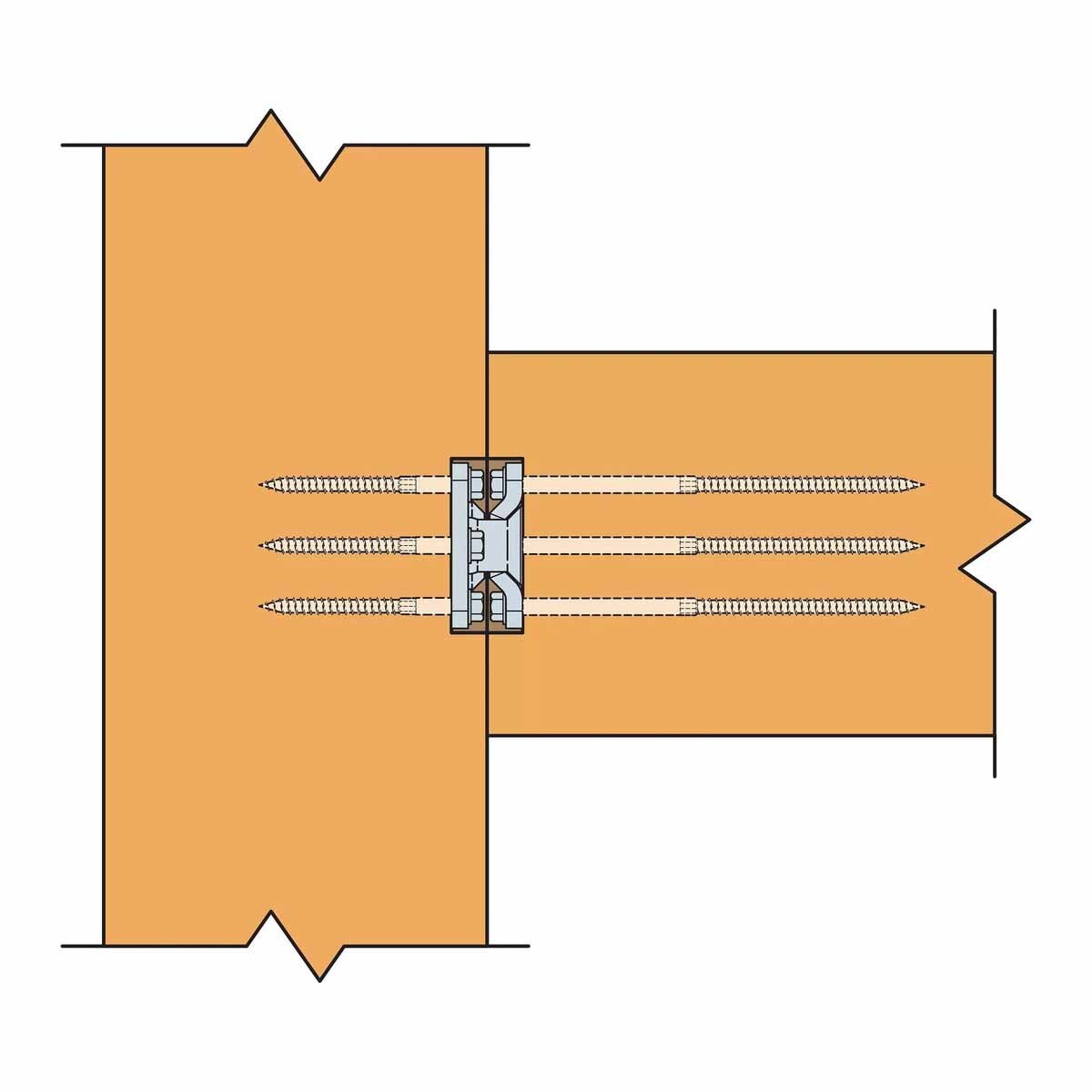

- (26) SDS25600 1/4" x 6" Strong-Tie SDS25600 Heavy-Duty Connector Screws
Simpson Strong-Tie CBH2.37X5.5C-KT Features
- Code-listed per ICC-ESR-2552
- Concealed for architectural aesthetics and fire-rated performance
- Multiple router options to suit jobsite needs
- +/- 1/32" beam length tolerance on each end enables easier installation
- 1-hr and 2-hr fire resistance ratings per ASTM E119
- Seismic deformation compatibility
Simpson Strong-Tie CBH2.37X5.5C-KT Applications

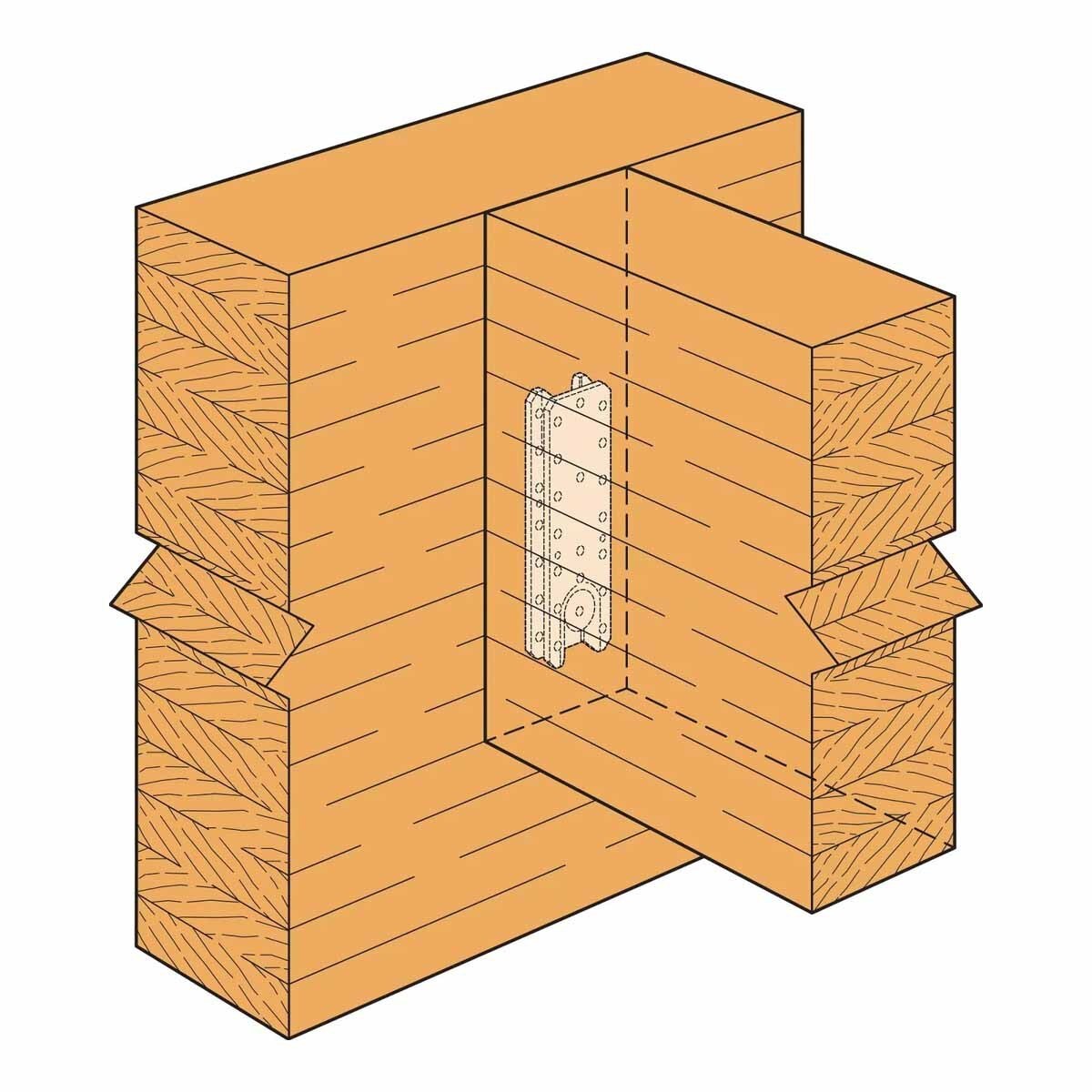

- Concealed beam-to-column or beam-to-beam connections
- Mass timber structures and architectural wood framing
- Projects requiring hidden, high-load timber joints

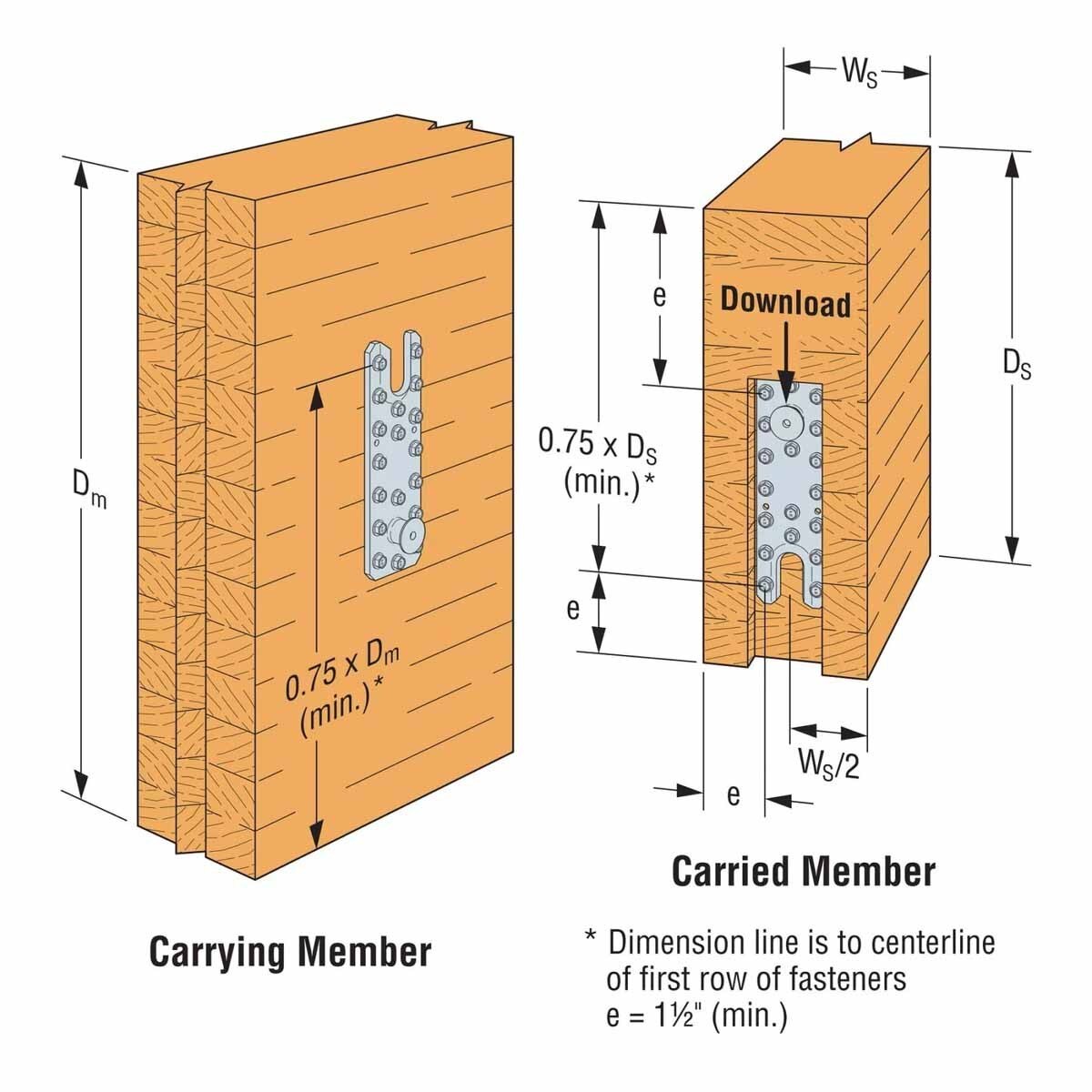

Simpson Strong-Tie CBH2.37X5.5C-KT Installation Overview
- Ensure beams and columns are clean, square-cut, and dry.
- Recess areas for the hanger plates per project specifications.
- Align and interlock the members so the stud fits securely into the slotted plate.
- Confirm full seating and alignment before moving forward.
Simpson Strong-Tie CBH2.37X5.5C-KT Specifications
| Material | 3 ga. Carbon Steel |
| Finish | Electro-Galvanized |
| Width | 2-3/8" |
| Length | 5-1/2" |
| Fasteners required | Includes- (26) SDS25600 Screws |
| For Treated Lumber | No |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
