Simpson Anchors | SKU:
CBH2.37X7.63B-KT
Simpson Strong-Tie CBH2.37X7.63B-KT (2-3/8" x 7-5/8") Concealed Joist-to-Beam Hanger Kit for Engineered Wood, Electrogalvanized
$141.12
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie CBH2.37X7.63B-KT Description

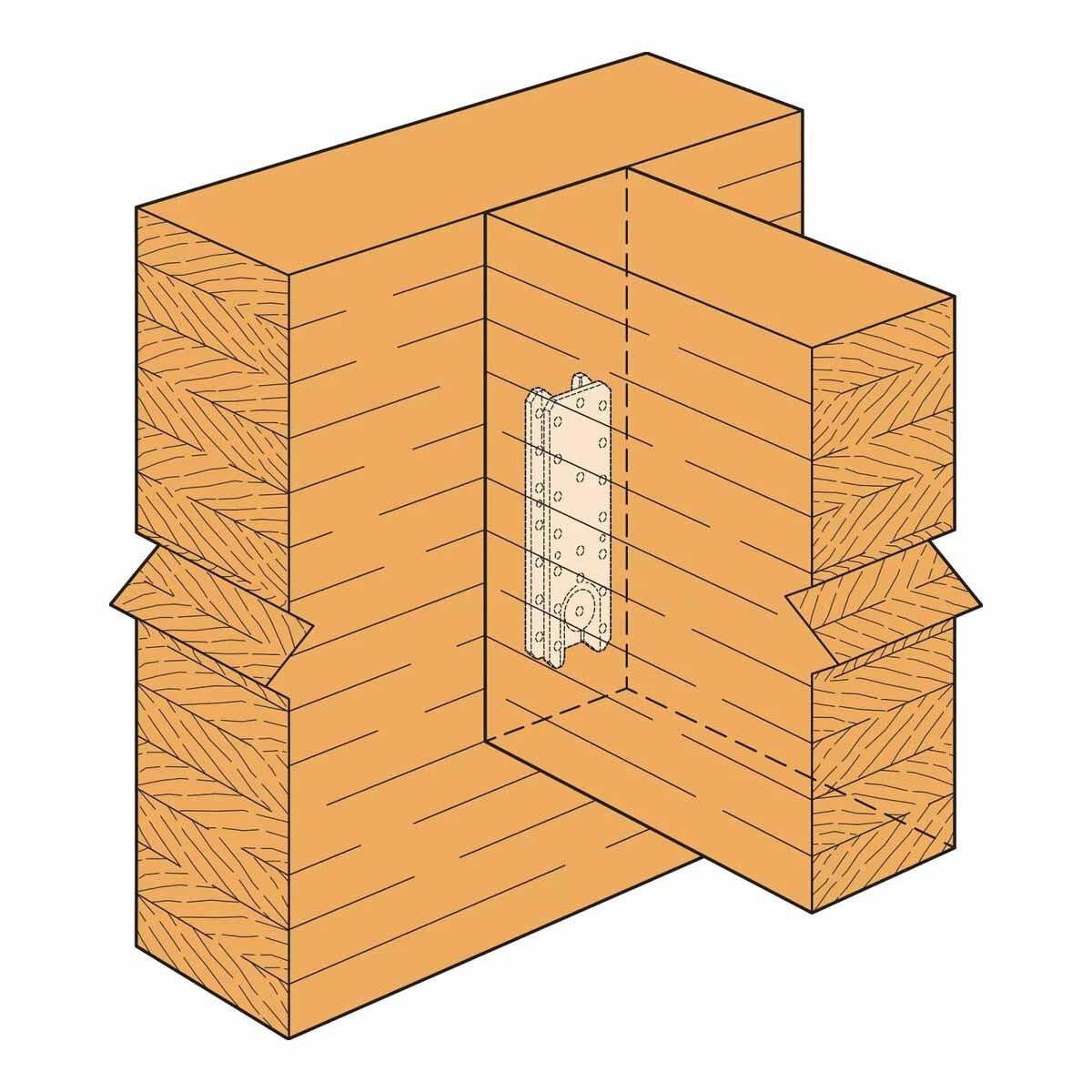

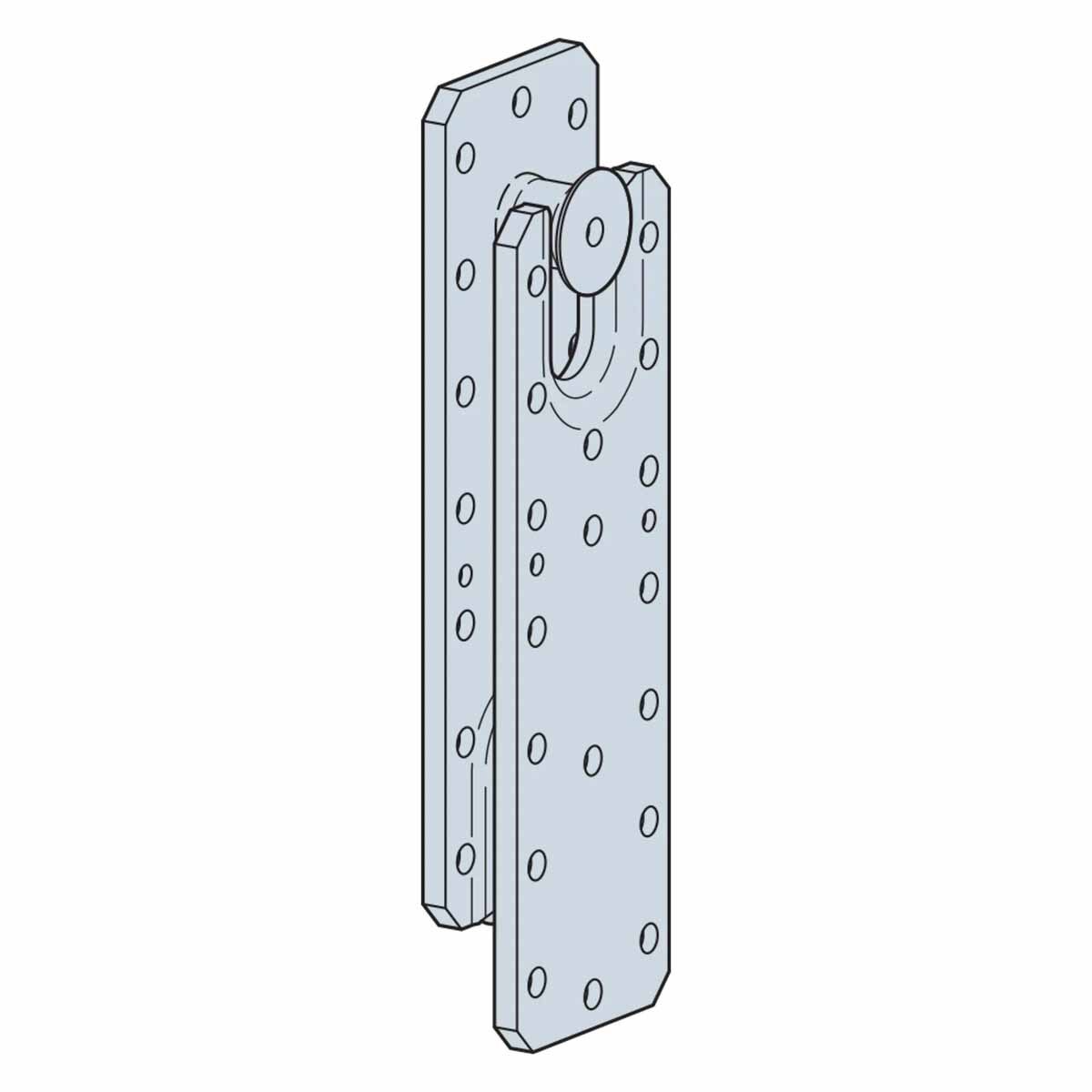

The CBH2.37X7.63B-KT is a concealed beam hanger kit designed for engineered wood applications, providing strong, hidden connections while maintaining aesthetic appeal.
Simpson Strong-Tie CBH2.37X7.63B-KT Includes

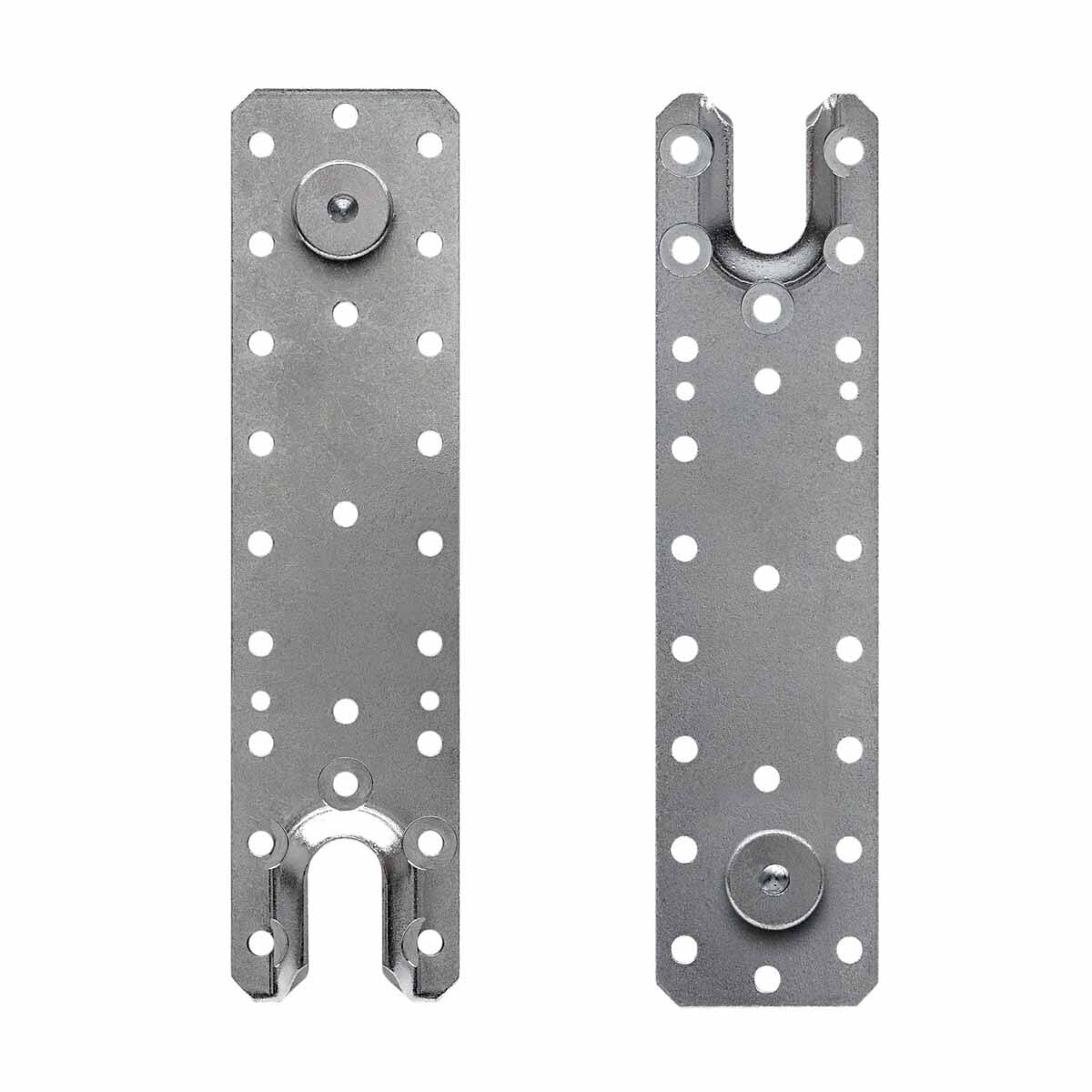

- (2) Backplates
- (18) SDS25300 screws
- (18) SDS25600 screws
Simpson Strong-Tie CBH2.37X7.63B-KT Features
- Concealed design for aesthetic appeal
- High load capacity for robust performance
- Comprehensive kit with all necessary components
- Electro-galvanized finish for durability
Simpson Strong-Tie CBH2.37X7.63B-KT Applications
- Engineered wood structures
- Mass timber construction
- Architectural projects emphasizing exposed wood aesthetics

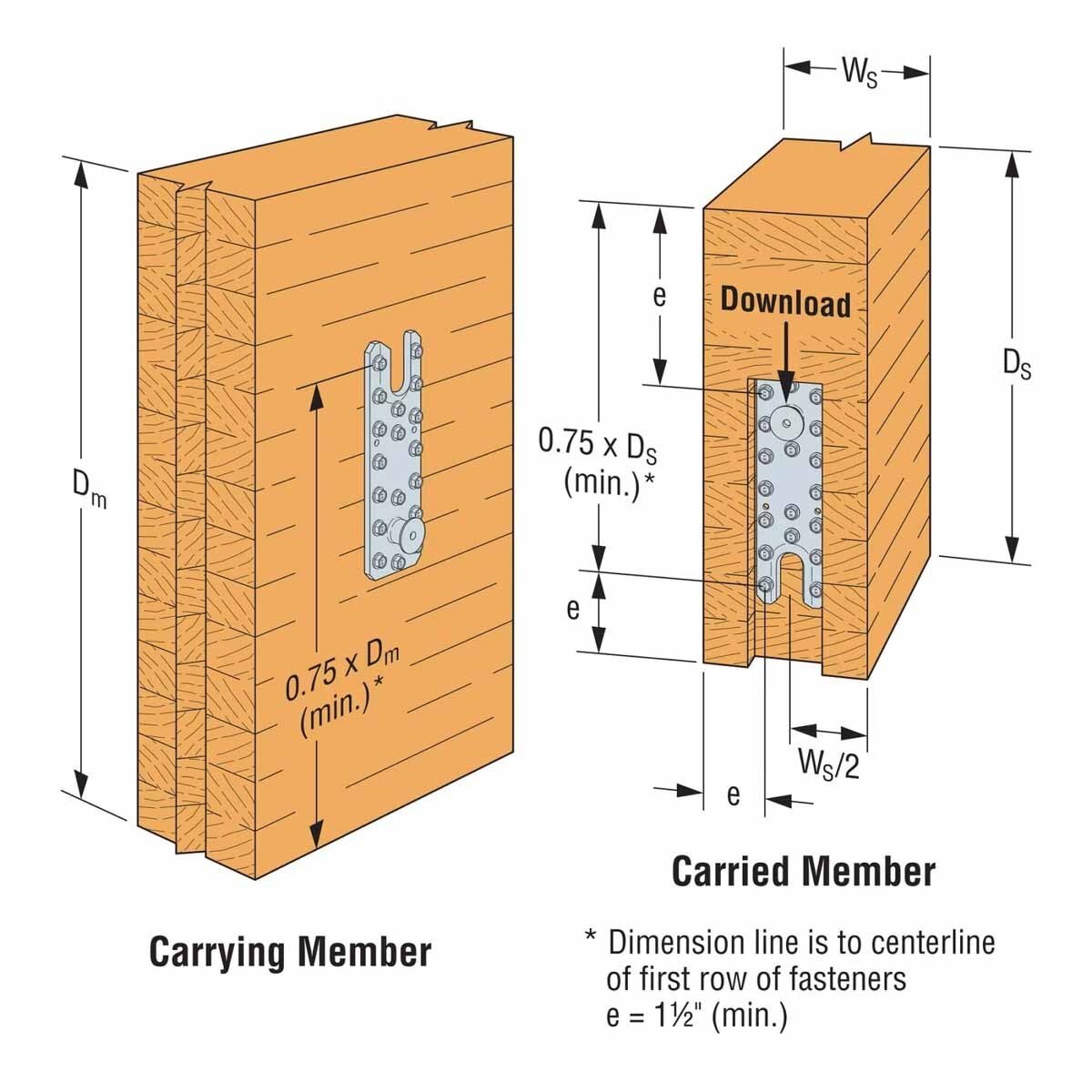

Simpson Strong-Tie CBH2.37X7.63B-KT Installation Overview
- Ensure wood members are accurately cut and clean.
- Align the hanger body on the beam end and mark fastener locations.

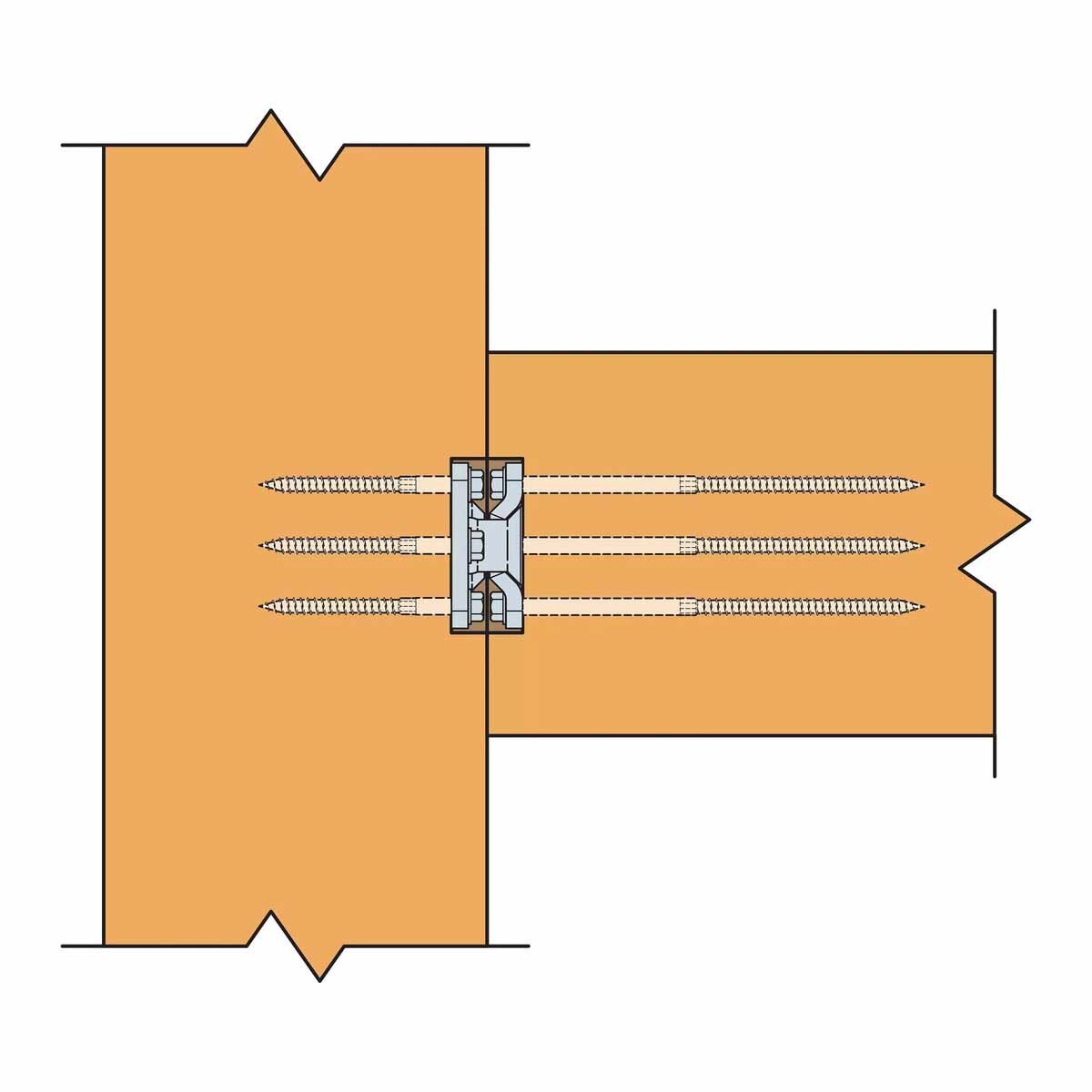

- Attach the hanger using the provided screws, ensuring correct depth.
- Position the beam with the attached hanger onto the supporting member.
Simpson Strong-Tie CBH2.37X7.63B-KT Specifications
| Material | Carbon Steel |
| Finish | Electro-Galvanized |
| Width | 2-3/8" |
| Length | 7-5/8" |
| Fasteners Required | Includes- (18) SDS25300 & (18) SDS25600 Screws |
| For Treated Lumber | No |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
