Simpson Anchors | SKU:
CBH2.37X7.63H-KT
Simpson Strong-Tie CBH2.37X7.63H-KT (2-3/8" x 7-5/8") Concealed Joist to Beam/Column Hanger - Hot-Dip Galvanized
$112.89
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie CBH2.37X7.63H-KT Description

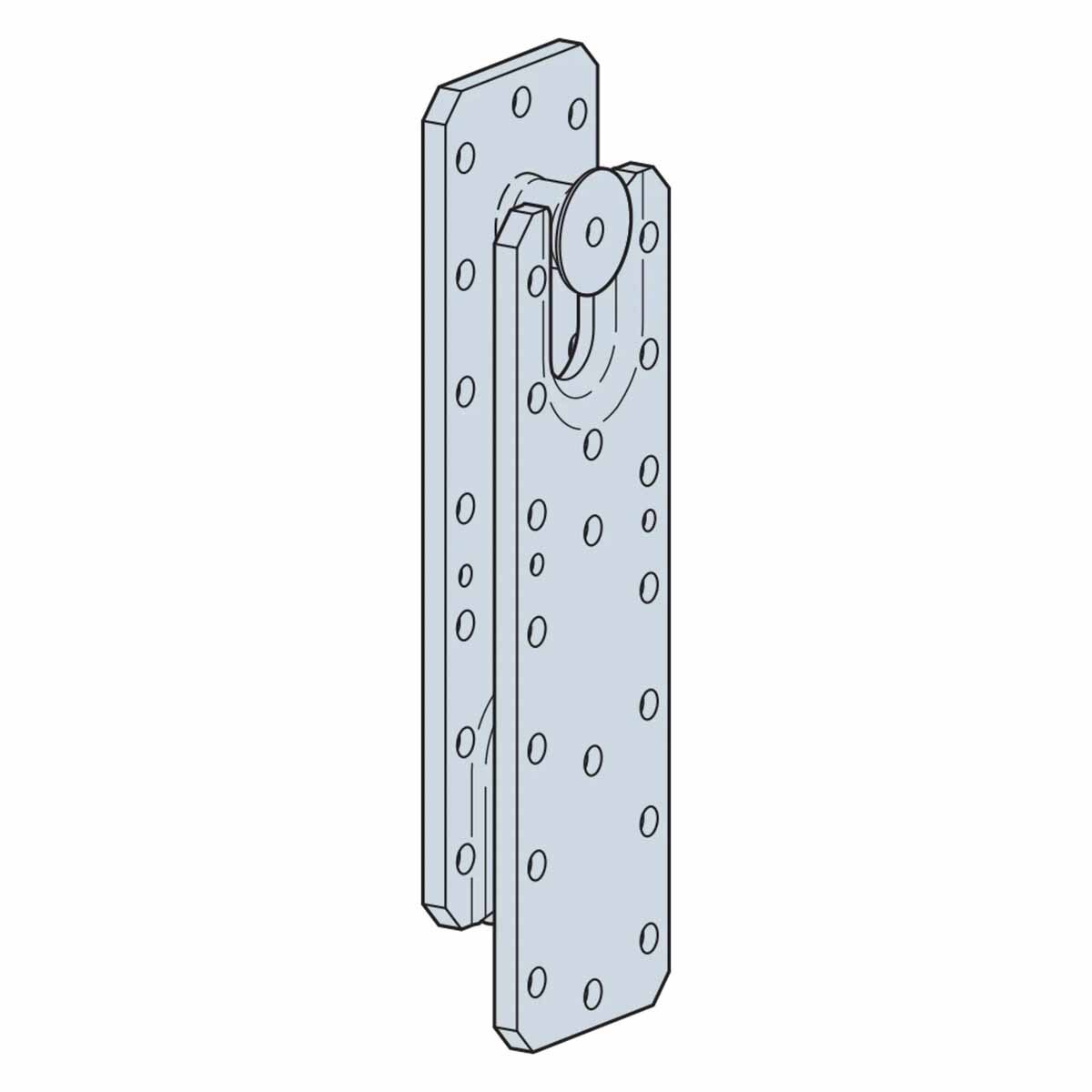

The CBH2.37X7.63H-KT is a concealed beam hanger kit designed for heavy-duty, hidden wood-to-wood connections in mass timber applications.
Simpson Strong-Tie CBH2.37X7.63H-KT Includes

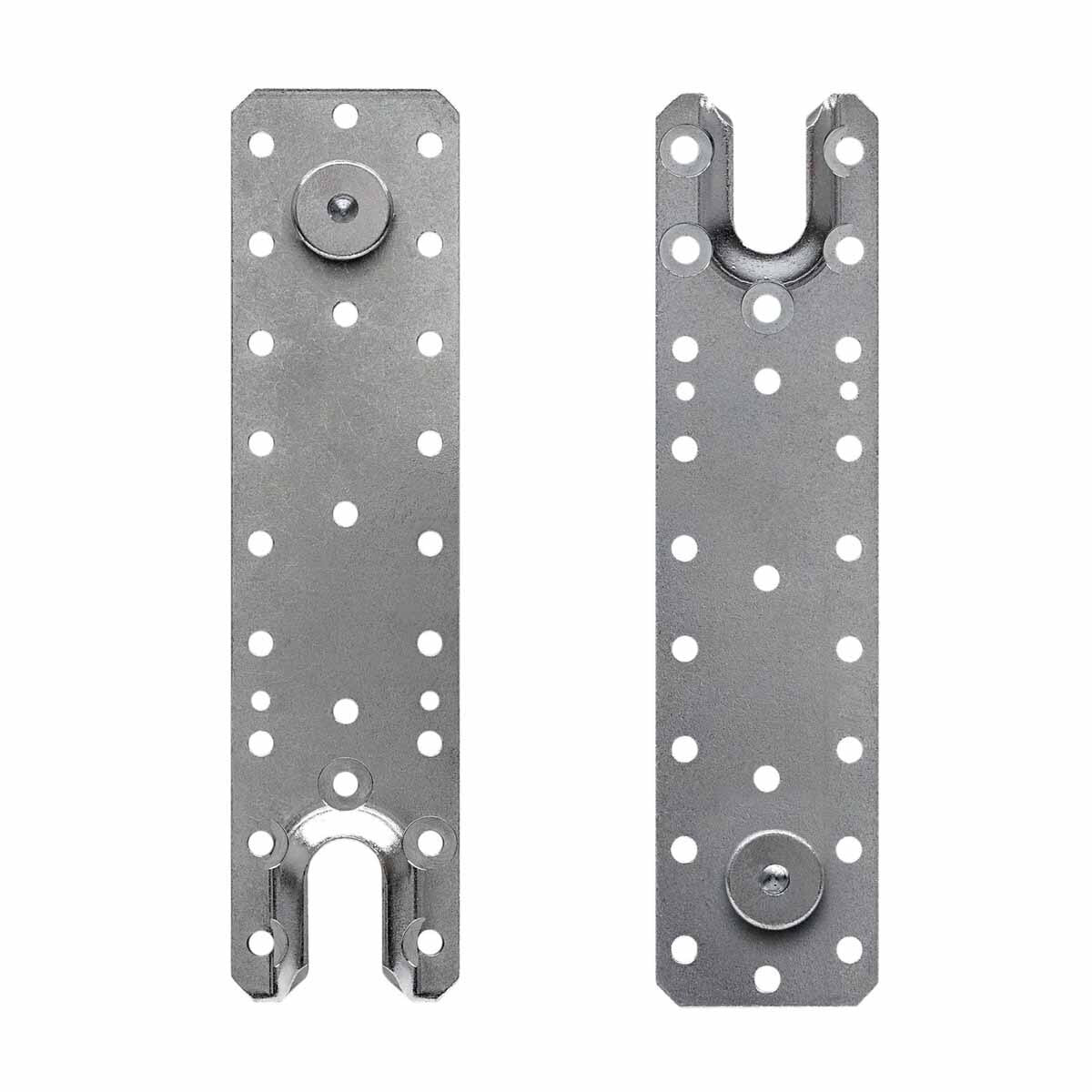

- (2) CBH2.37X7.63H-KT Concealed Beam Hanger Backplates
Simpson Strong-Tie CBH2.37X7.63H-KT Features
- Hidden Connection: Maintains clean, uninterrupted timber surfaces
- High Load Performance: Code-listed under ICC-ES ESR-2552
- Precision Alignment: Allows for ±1/32" beam length tolerance
- Heavy-Duty Steel: Manufactured from 3-gauge galvanized steel for structural strength
Simpson Strong-Tie CBH2.37X7.63H-KT Applications

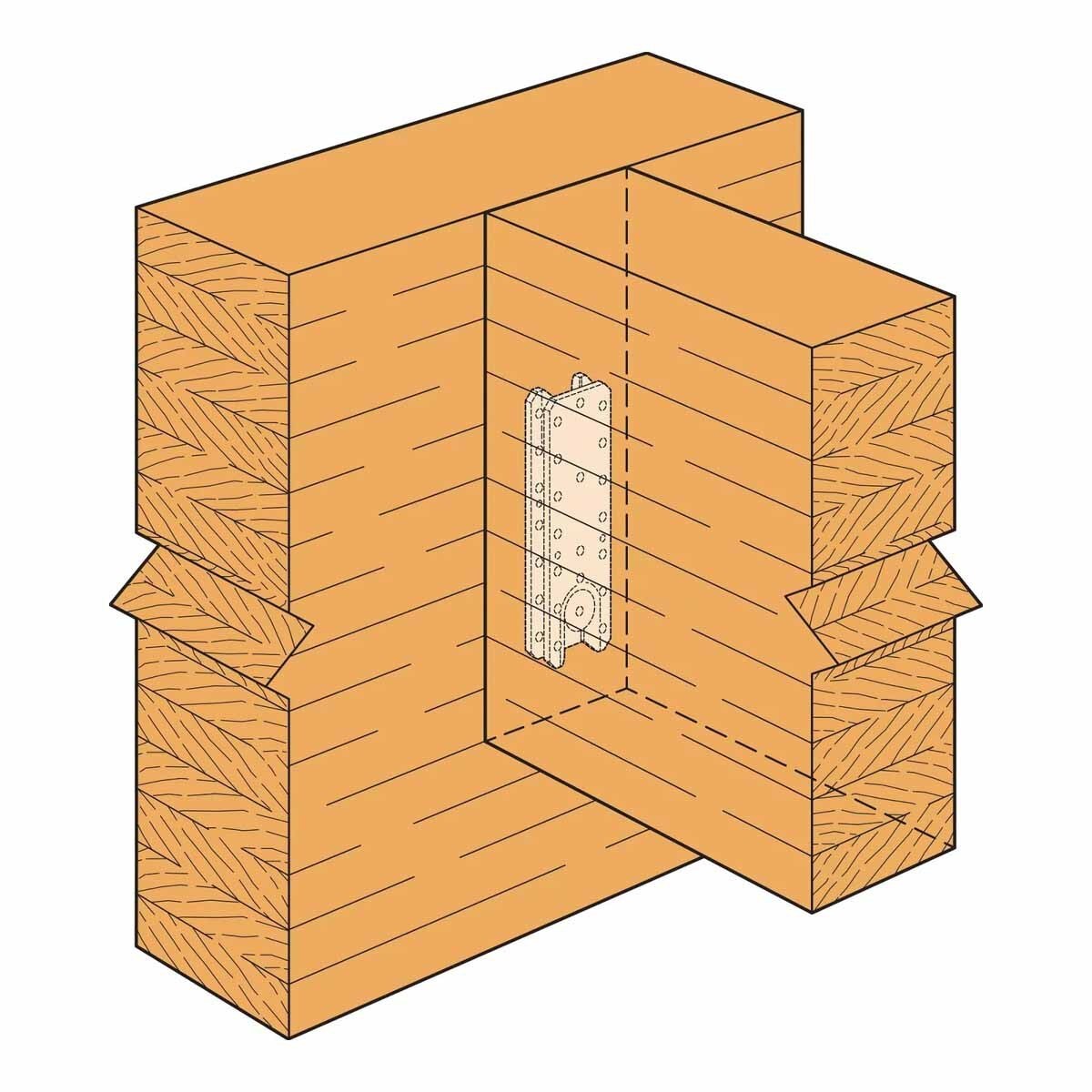

- Concealed beam-to-column or beam-to-beam connections
- Mass timber structures and architectural wood framing
- Projects requiring hidden, high-load timber joints
Simpson Strong-Tie CBH2.37X7.63H-KT Installation Overview
- Prepare Members: Ensure beams and columns are clean, square-cut, and dry.

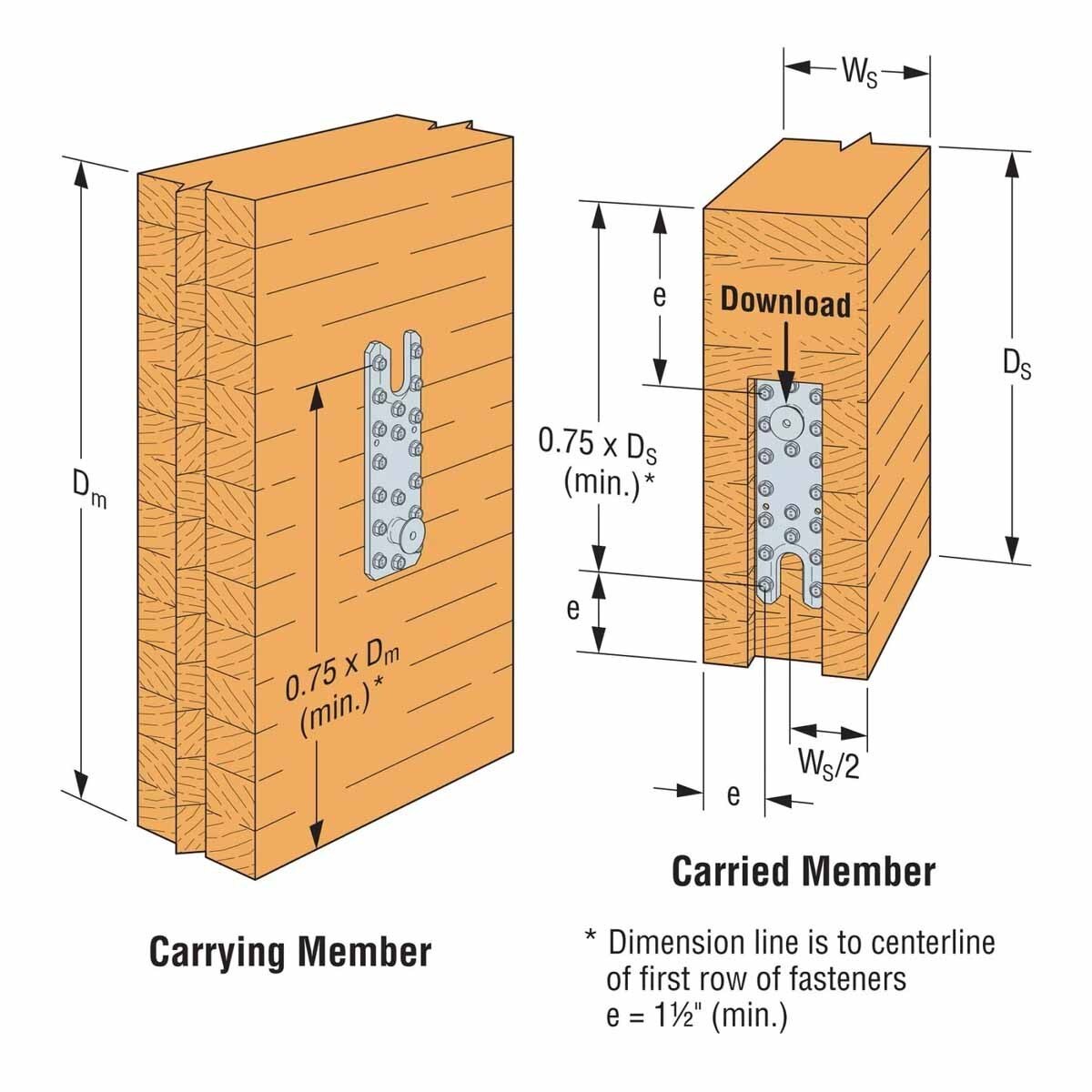

- Routing (if needed): Recess areas for the hanger plates per project specifications.

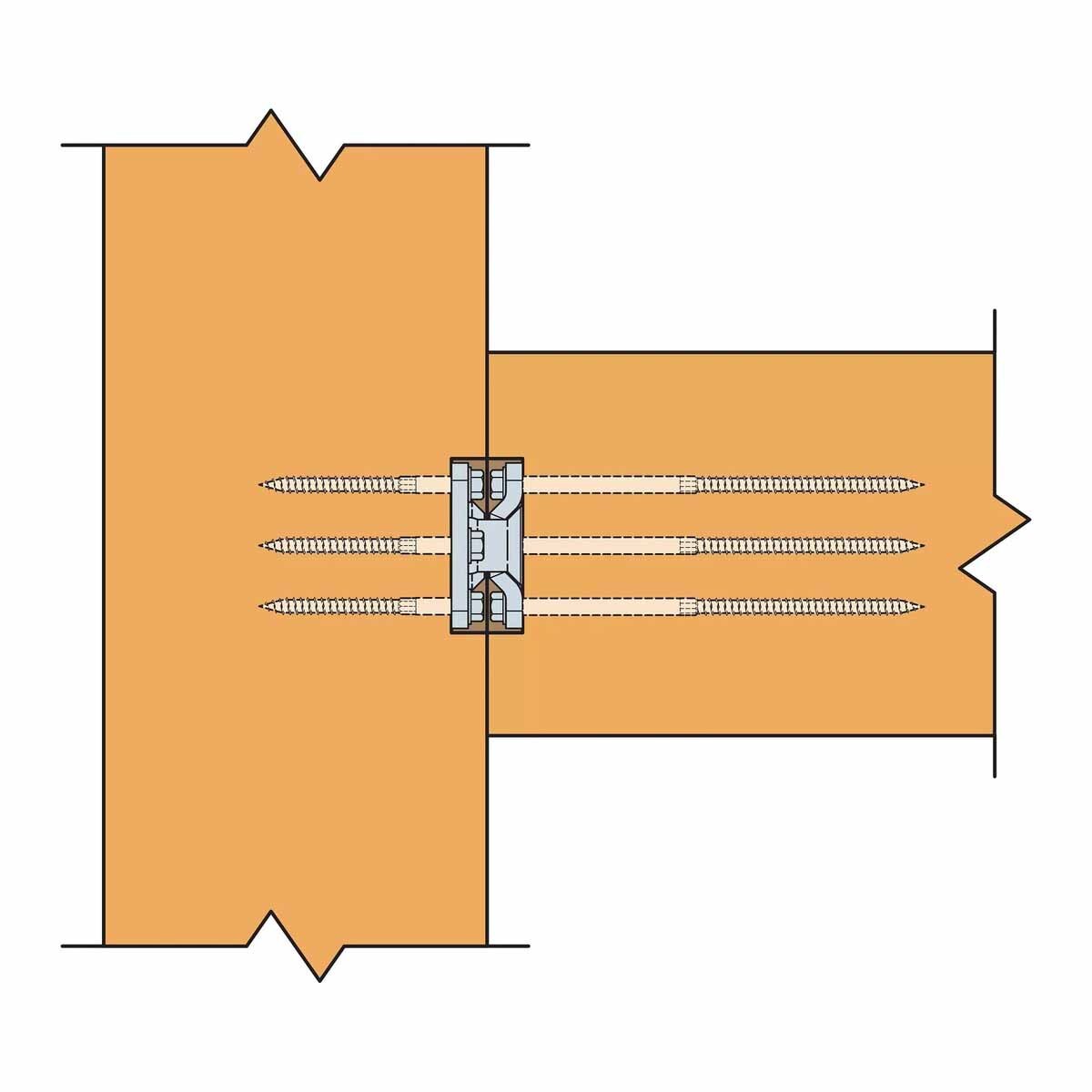

- Join Components: Align and interlock the members so the stud fits securely into the slotted plate.
- Inspect Fit: Confirm full seating and alignment before moving forward.
Simpson Strong-Tie CBH2.37X7.63H-KT Specifications
| Finish | Hot Dip Galvanized |
| Length | 7-5/8" |
| Material | Carbon Steel |
| Fasteners required | See Guide Document |
| For Treated Lumber | No |
| Manufacturer name | Simpson Strong-Tie |
| Width | 2-3/8" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
