Simpson Anchors | SKU:
CBH2.37X9.75B-KT
Simpson Strong-Tie CBH2.37X9.75B-KT (2-3/8" x 9-3/4") Concealed Joist-to-Beam Hanger Kit for Mass Timber Connections
Free Shipping
$205.58
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie CBH2.37X9.75B-KT Description
The CBH2.37X9.75B-KT is a concealed beam hanger kit designed for heavy-duty, hidden wood-to-wood connections in mass timber applications.
Simpson Strong-Tie CBH2.37X9.75B-KT Includes

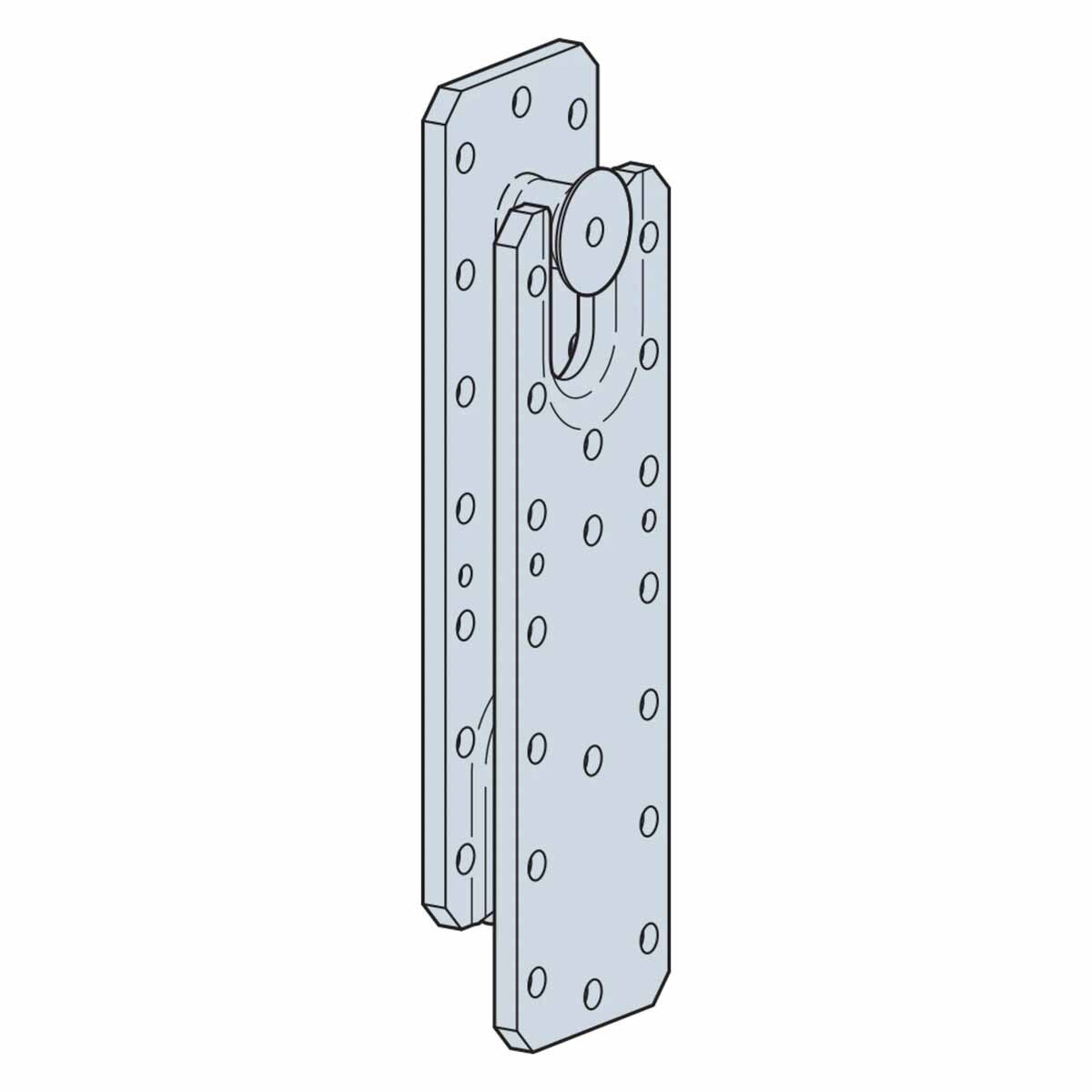

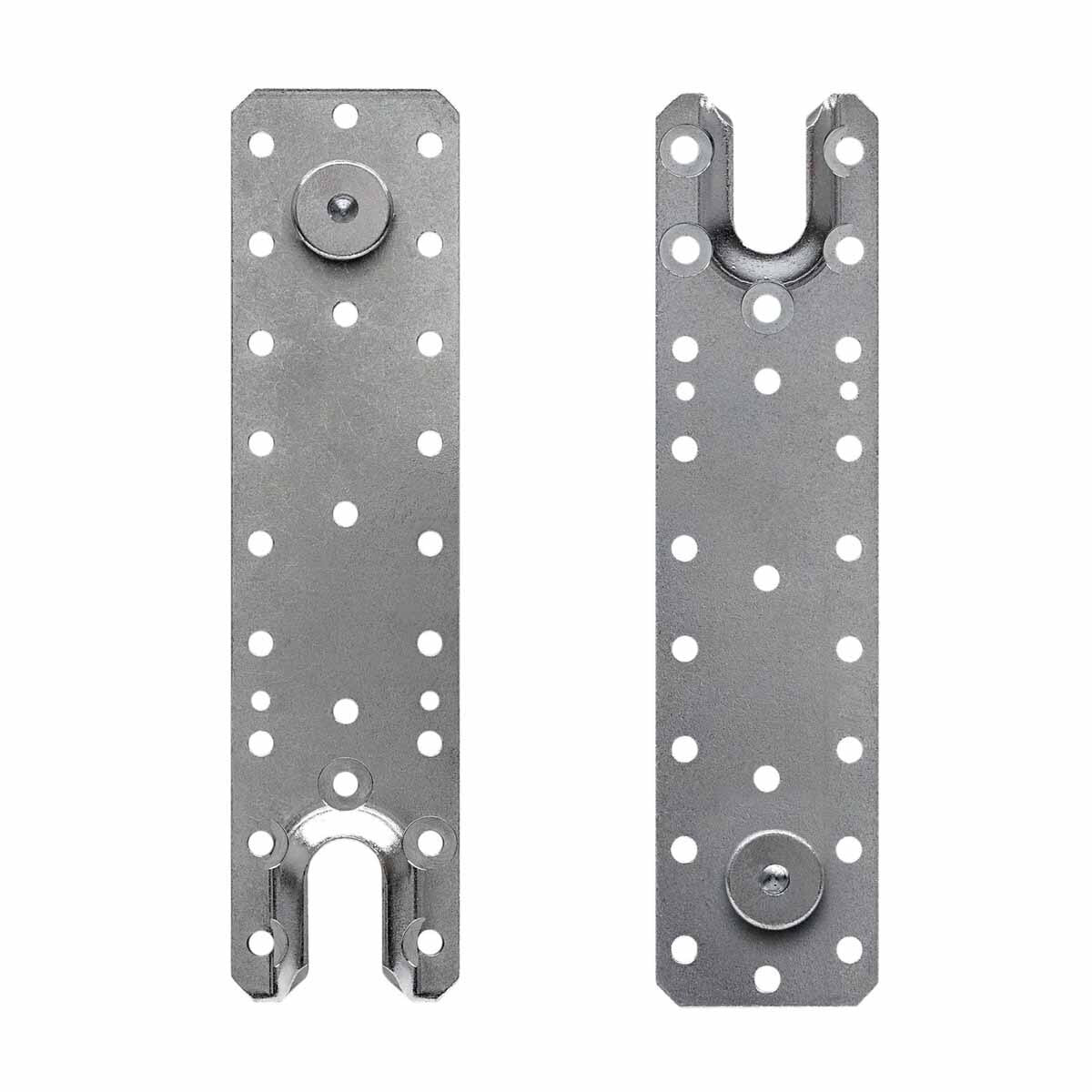

- (2) CBH2.37X9.75B Concealed Beam Hanger Backplates
- (23) SDS25300 1/4" x 3" Strong-Tie SDS25300 Heavy-Duty Connector Screws
- (23) SDS25600 1/4" x 6" Strong-Tie SDS25600 Heavy-Duty Connector Screws
Simpson Strong-Tie CBH2.37X9.75B-KT Features
- Hidden Connection: Maintains clean, uninterrupted timber surfaces
- High Load Performance: Code-listed under ICC-ES ESR-2552
- Precision Alignment: Allows for ±1/32" beam length tolerance
- Heavy-Duty Steel: Manufactured from 3-gauge galvanized steel for structural strength
Simpson Strong-Tie CBH2.37X9.75B-KT Applications

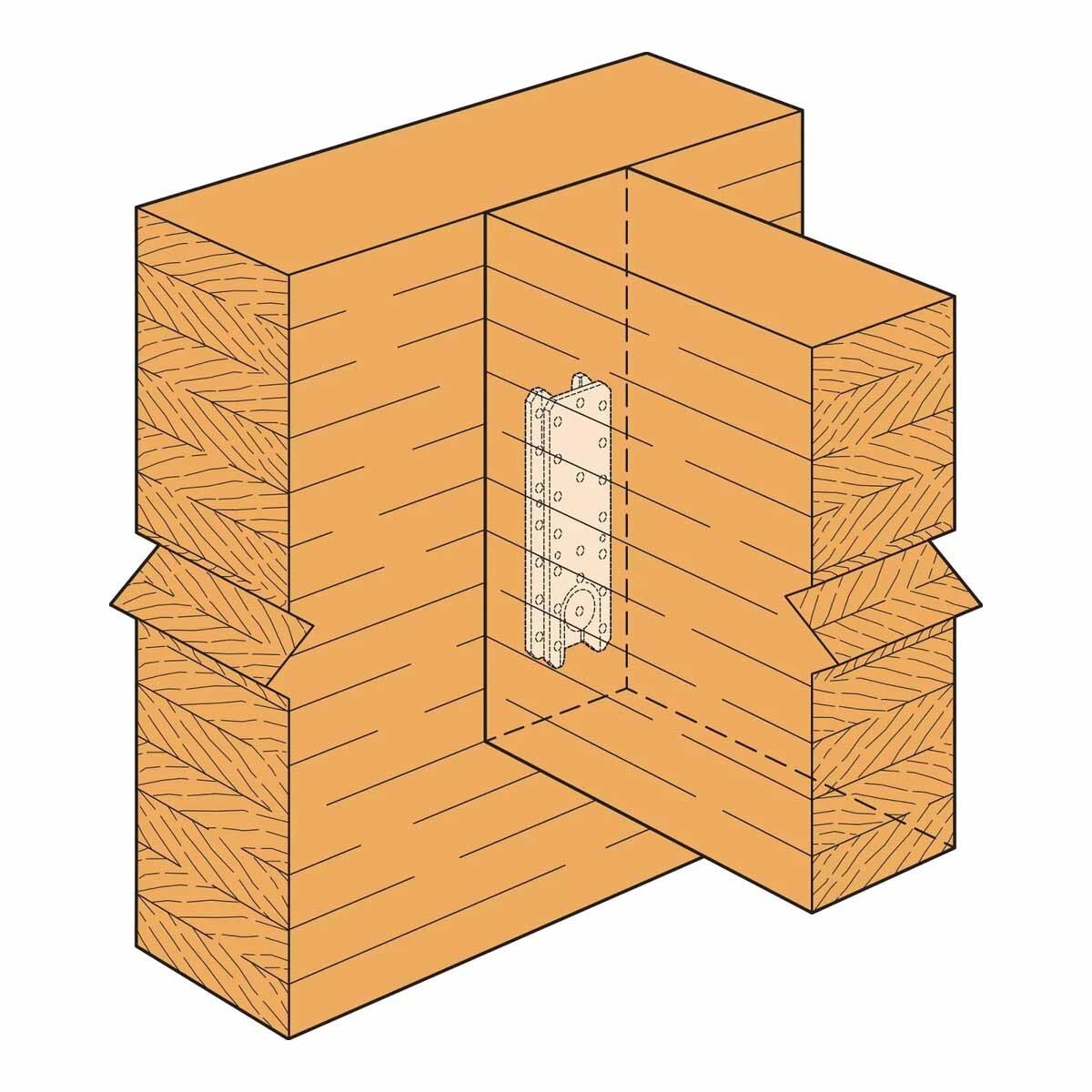

- Concealed beam-to-column or beam-to-beam connections
- Mass timber structures and architectural wood framing
- Projects requiring hidden, high-load timber joints

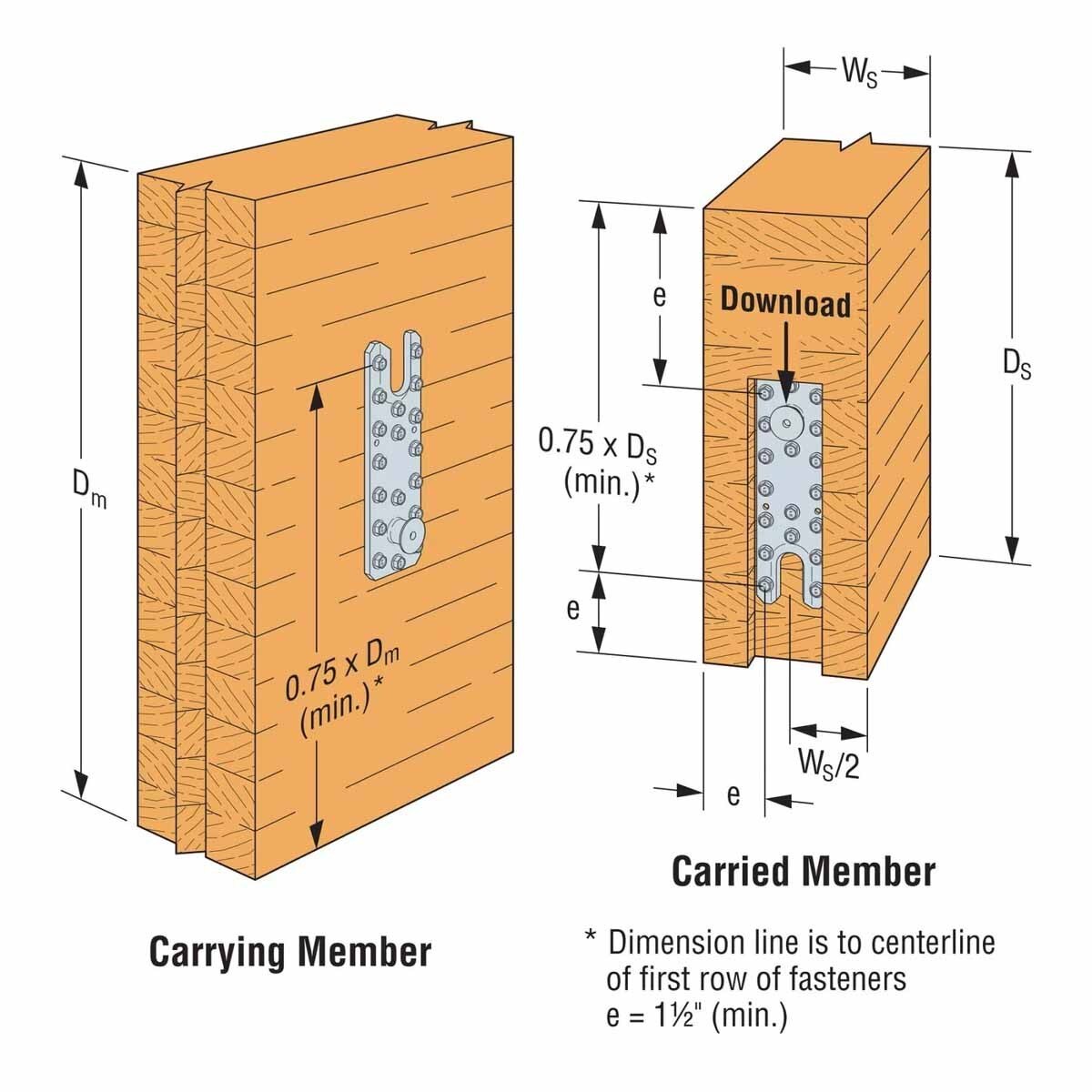

Simpson Strong-Tie CBH2.37X9.75B-KT Installation Overview
- Prepare Members: Ensure beams and columns are clean, square-cut, and dry.
- Routing (if needed): Recess areas for the hanger plates per project specifications.

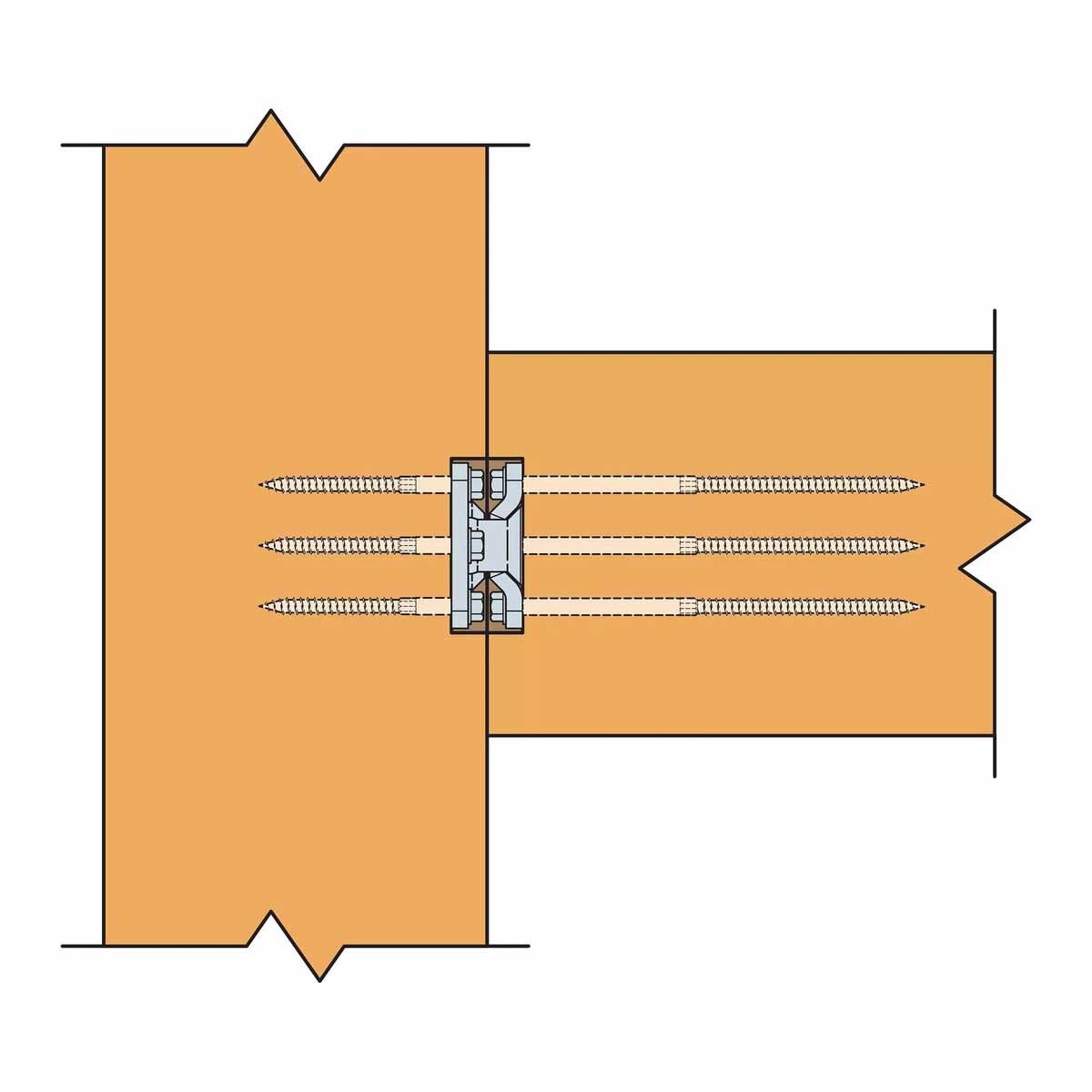

- Secure Plates: Attach each plate to the timber using the included SDS screws.
- Join Components: Align and interlock the members so the stud fits securely into the slotted plate.
- Inspect Fit: Confirm full seating and alignment before moving forward.
Simpson Strong-Tie CBH2.37X9.75B-KT Specifications
| Finish | Electro-Galvanized |
| Length | 9-3/4" |
| Material | Carbon Steel |
| Fasteners required | Includes- (23) SDS25300 & (23) SDS25600 Screws |
| For Treated Lumber | No |
| Width | 2-3/8" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
