Simpson Anchors | SKU:
CBH2.37X9.75C-KT
Simpson Strong-Tie CBH2.37X9.75C-KT (2-3/8" x 9-3/4") Concealed Joist-to-Column Hanger Kit for Mass Timber Construction
Free Shipping
$239.25
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie CBH2.37X9.75C-KT Description
The Simpson CBH2.37X9.75C-KT is a high-performance concealed beam hanger kit engineered for mass timber construction, providing a clean, hidden wood-to-wood connection between beams and columns.
Simpson Strong-Tie CBH2.37X9.75C-KT Includes

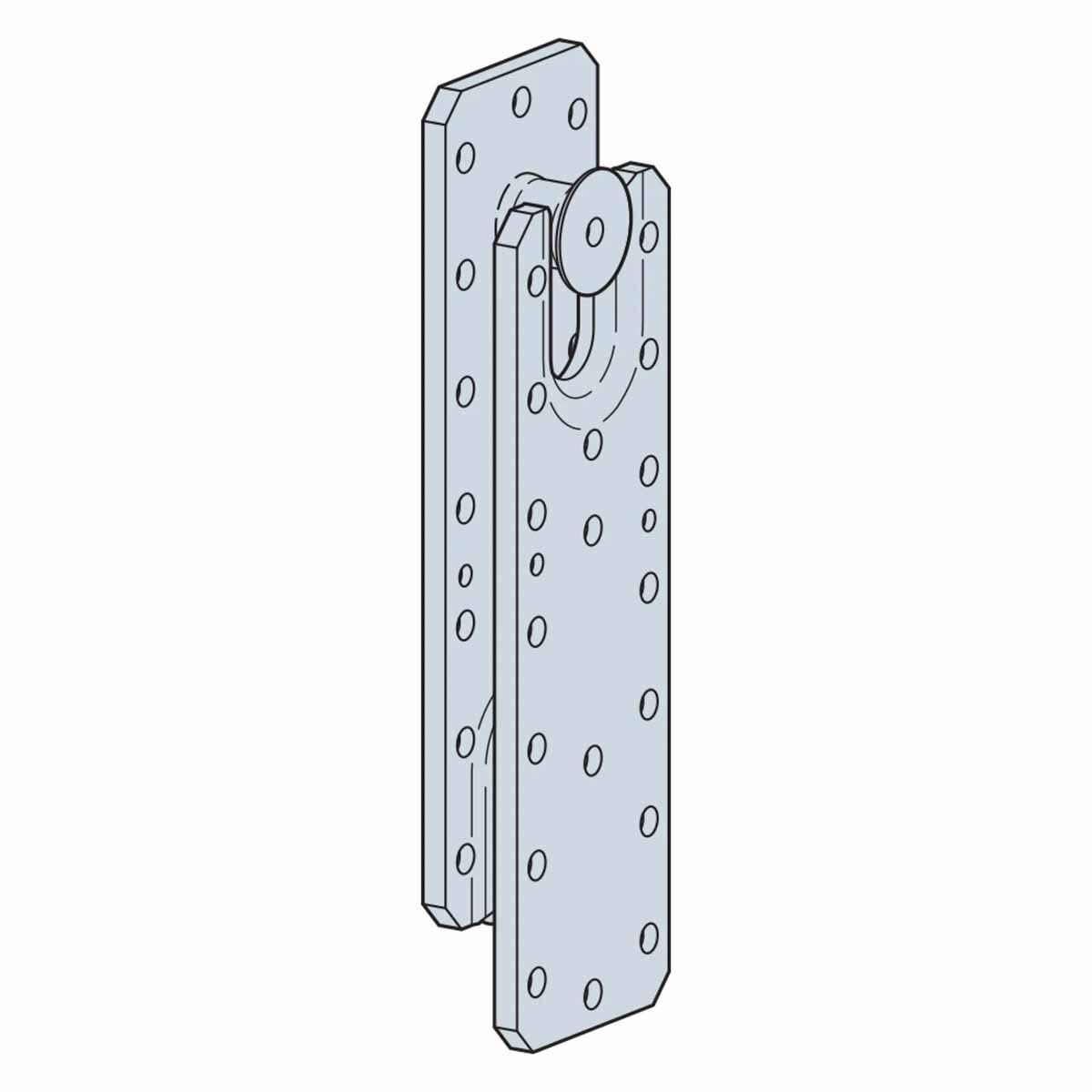

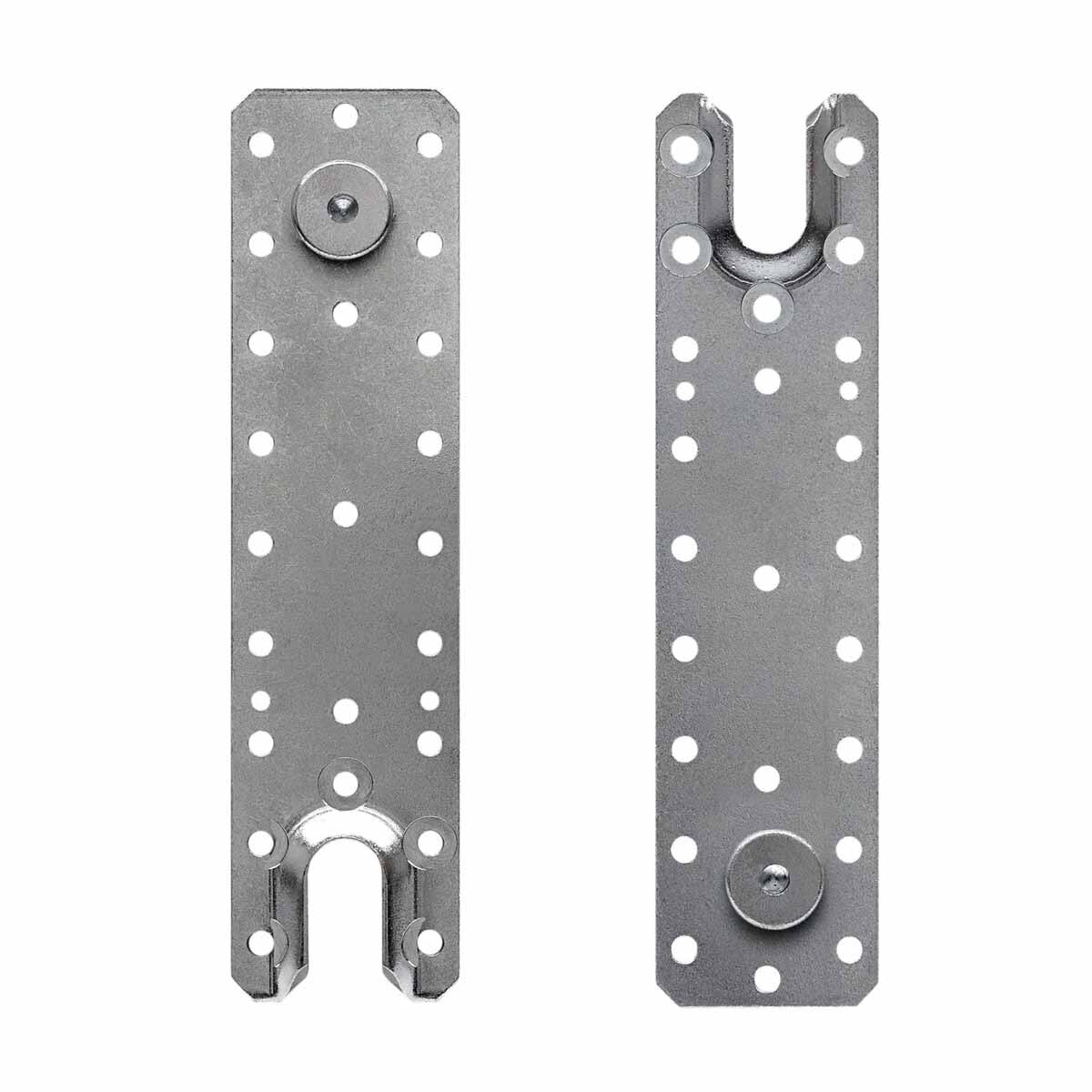

- (2) CBH2.37X9.75C Concealed Beam Hanger Backplates
- (46) SDS25600 1/4" x 6" Strong-Tie SDS25600 Heavy-Duty Connector Screws
Simpson Strong-Tie CBH2.37X9.75C-KT Features
- Concealed Wood-to-Wood Connection: Enhances the finished appearance of timber structures
- High Load Capacity: Code-listed per ICC-ES ESR-2552 for dependable performance
- Fire Resistance: Designed for fire-rated assemblies with concealed placement
- Precision Fit: Beam length tolerance of ±1/32" supports ease of installation
Simpson Strong-Tie CBH2.37X9.75C-KT Applications

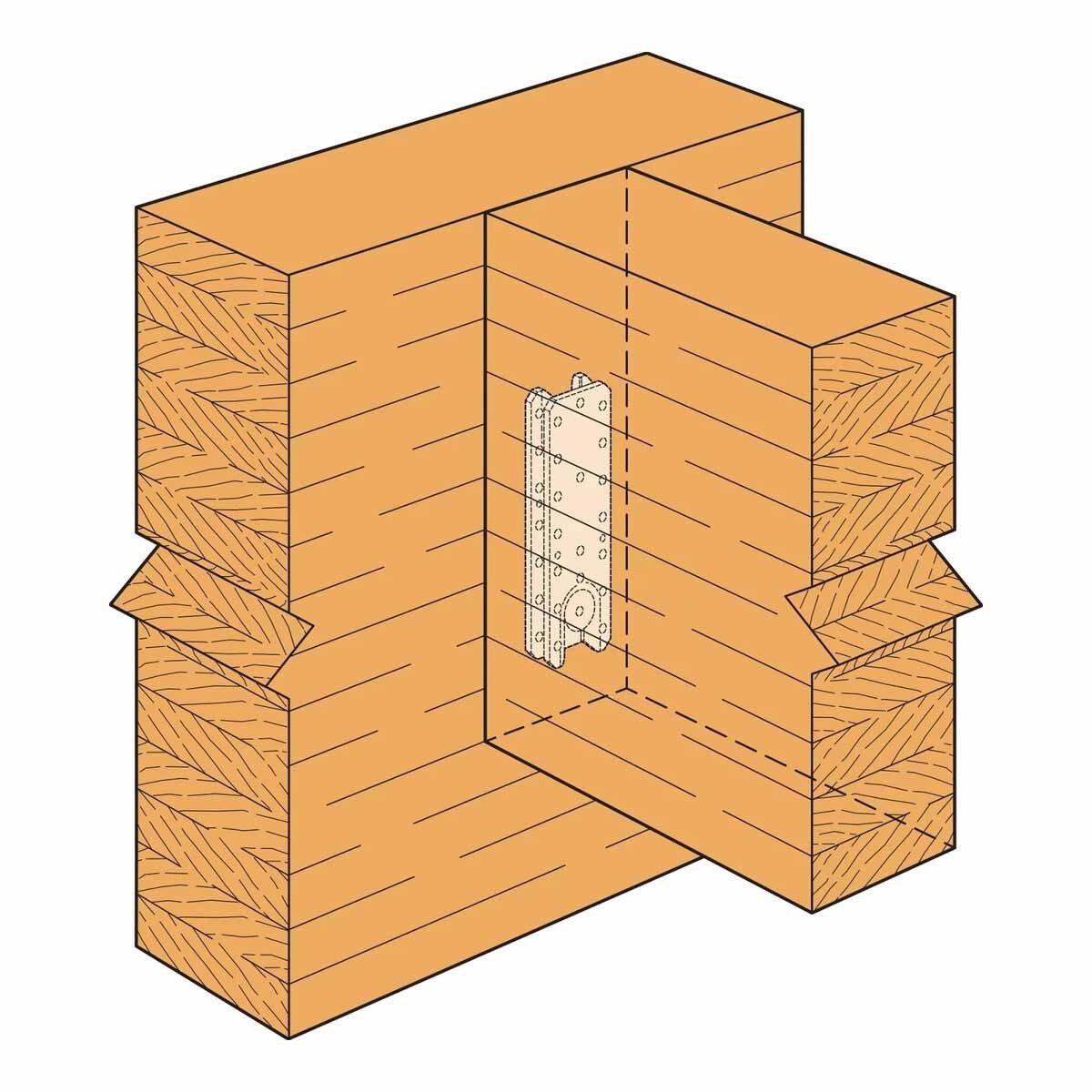

- Mass timber construction requiring concealed beam-to-column connections
- Architectural builds where aesthetics and structural capacity are critical
- Fire-rated timber designs and exposed wood framing

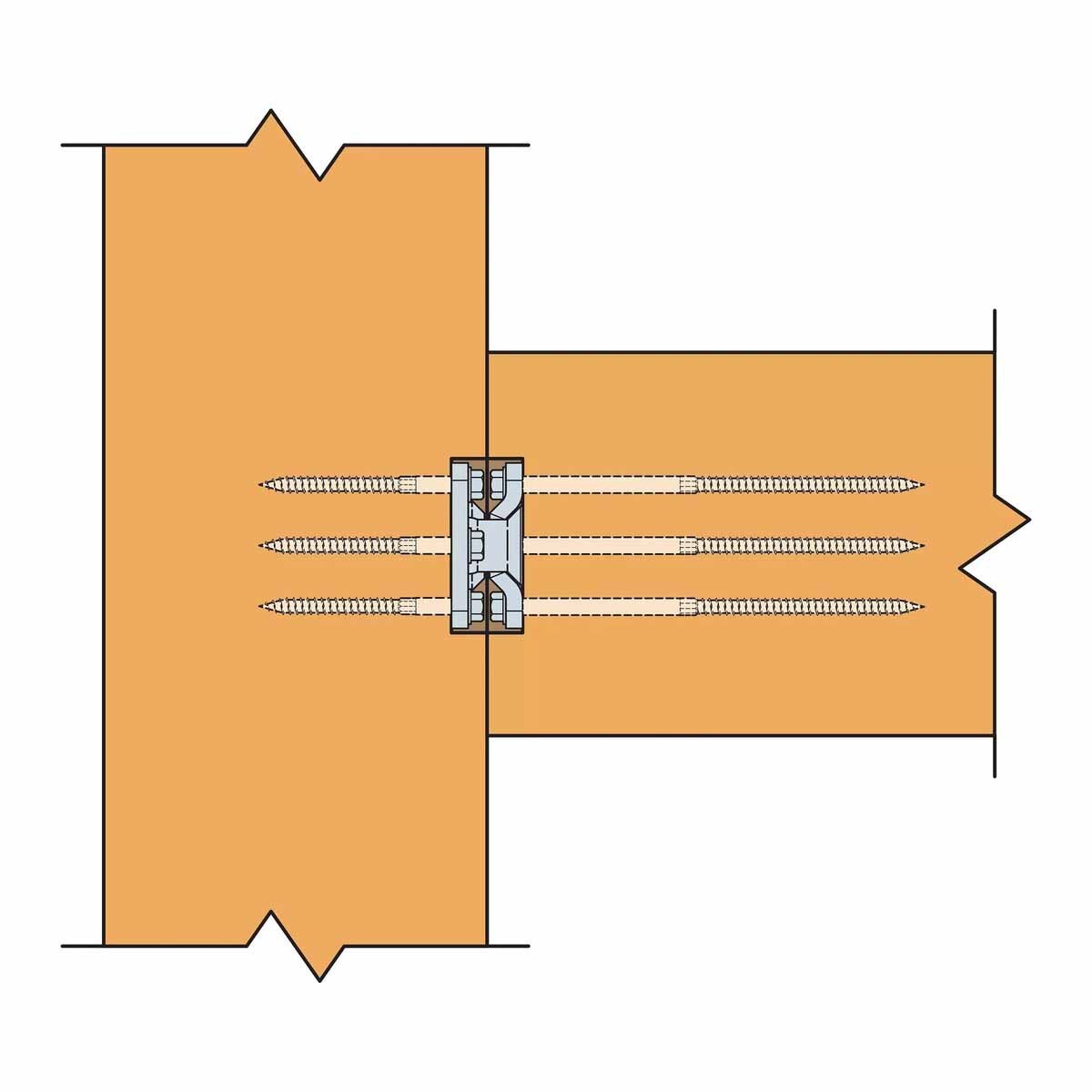

Simpson Strong-Tie CBH2.37X9.75C-KT Installation Overview

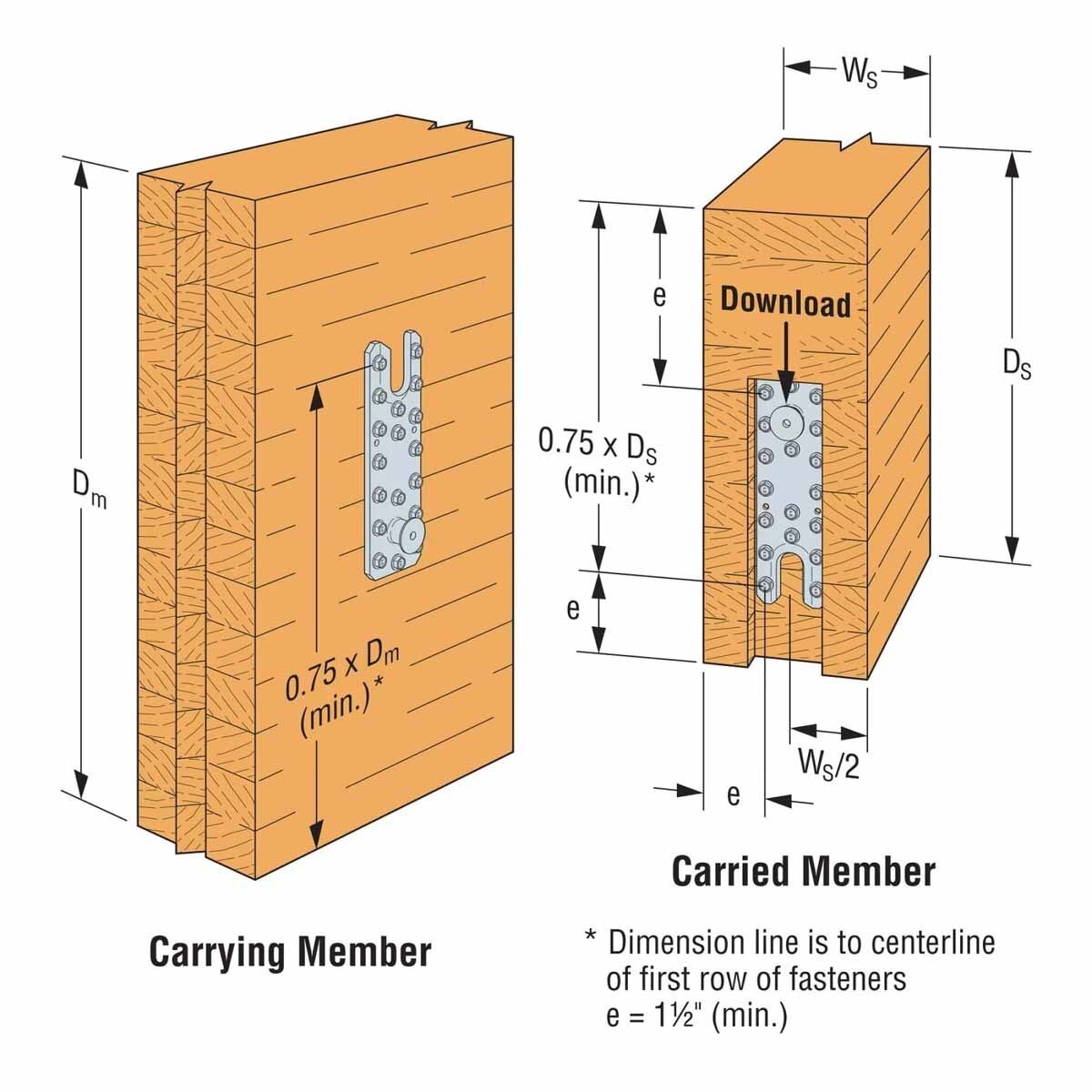

- Prepare: Inspect and route the beam and column members according to specifications
- Install: Mount each plate using the provided Strong-Drive SDS screws—welded stud side on one member, slotted side on the other
- Assemble: At the jobsite, join the two members by inserting the stud into the slot
- Secure: Confirm full engagement and alignment per design requirements
Simpson Strong-Tie CBH2.37X9.75C-KT Specifications
| Finish | Electro-Galvanized |
| Length | 9-3/4" |
| Material | Carbon Steel |
| Fasteners required | Includes - (46) SDS25600 Screws |
| For Treated Lumber | No |
| Manufacturer name | Simpson Strong-Tie |
| Width | 2-3/8" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
