Simpson Anchors | SKU:
CBH2.37X9.75H-KT
Simpson Strong-Tie CBH2.37X9.75H-KT (2-3/8" x 9-3/4") Concealed Beam Hanger Kit - Hot-Dip Galvanized
$175.29
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie CBH2.37X9.75H-KT Description

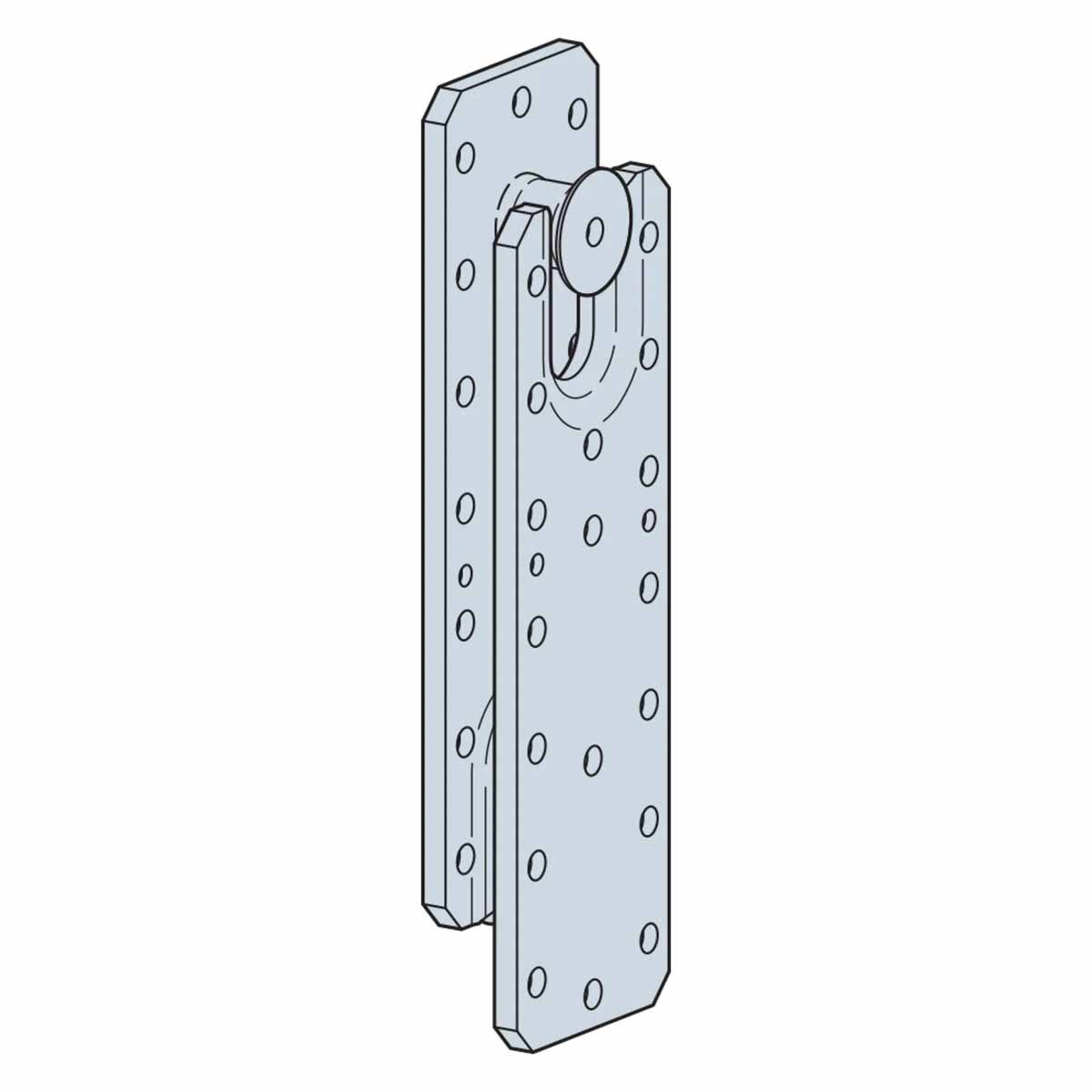

The Simpson CBH2.37X9.75H-KT is a high-performance concealed beam hanger kit designed for wood-to-wood connections in mass timber applications.
Simpson Strong-Tie CBH2.37X9.75H-KT Includes

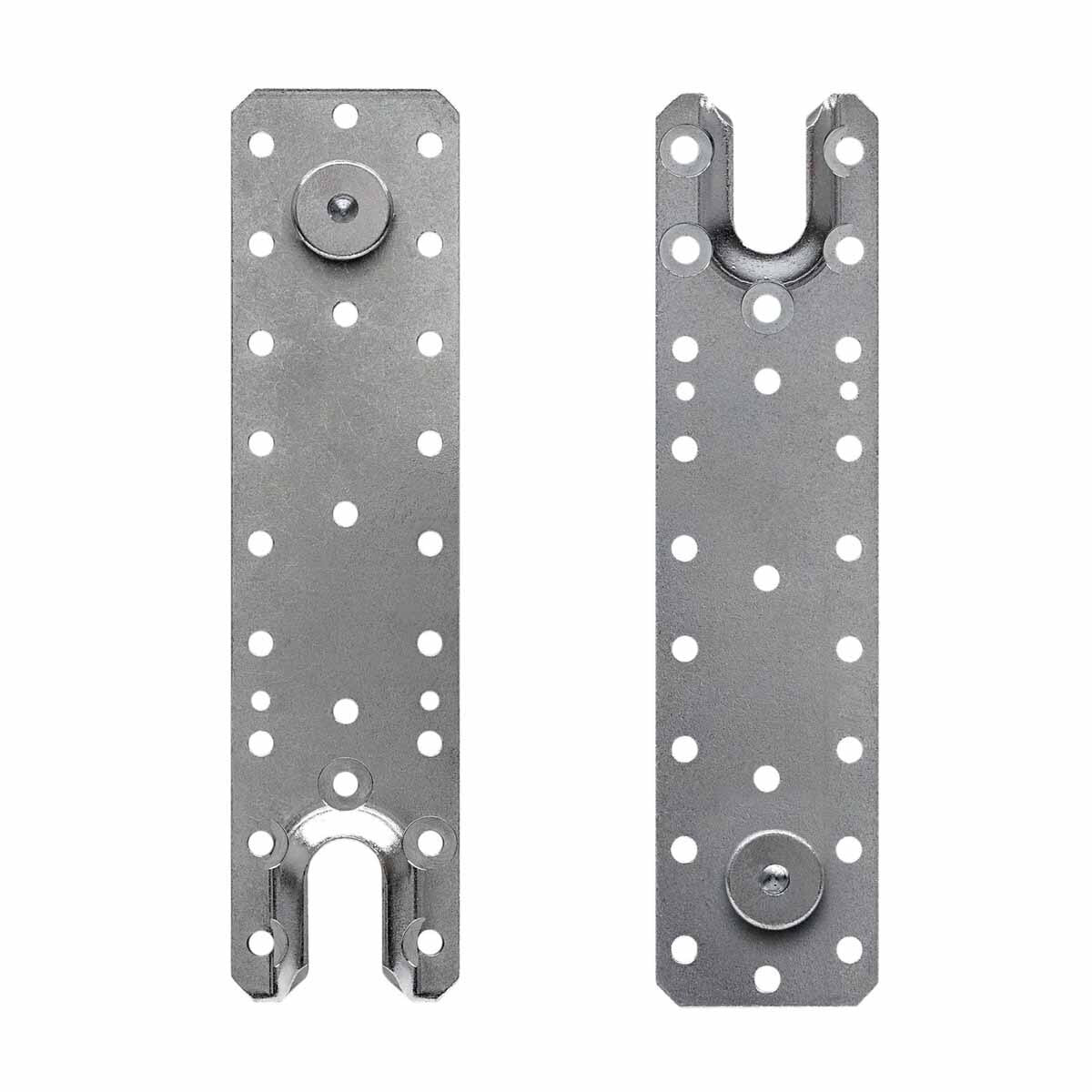

- (2) CBH2.37X9.75H Concealed Beam Hanger Backplates
Simpson Strong-Tie CBH2.37X9.75H-KT Features
- Concealed Hardware: Provides hidden wood-to-wood connections for a clean finish
- High Load Capacity: Engineered for demanding structural requirements
- Fire-Resistant Configuration: Concealed within timber for enhanced fire resistance
- Precision Fit: Designed for CNC-machined glulam and other engineered wood members
Simpson Strong-Tie CBH2.37X9.75H-KT Applications
- Mass timber construction projects requiring concealed connections
- Architectural builds emphasizing both aesthetics and structural strength

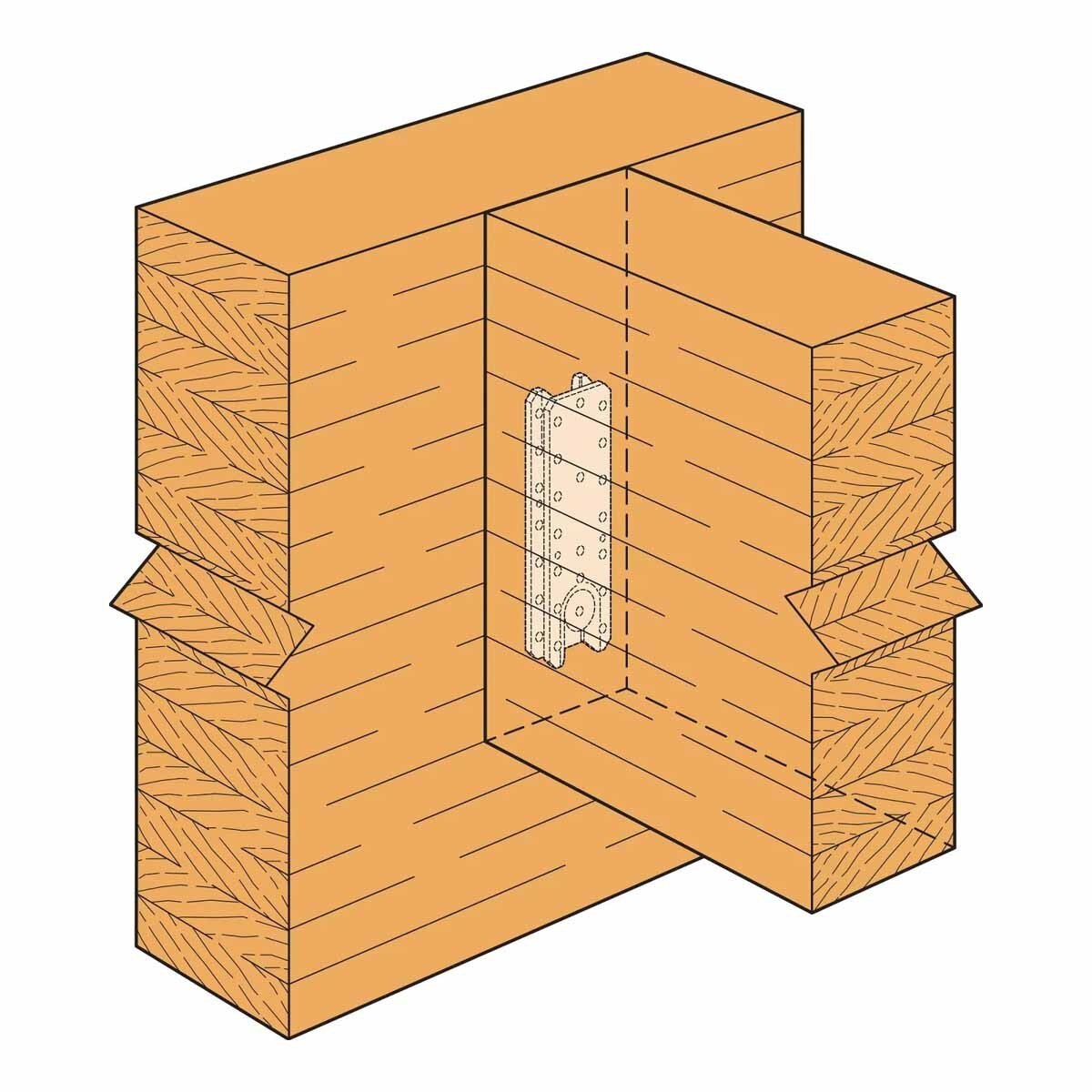

- Beam-to-column or beam-to-beam concealed joint systems

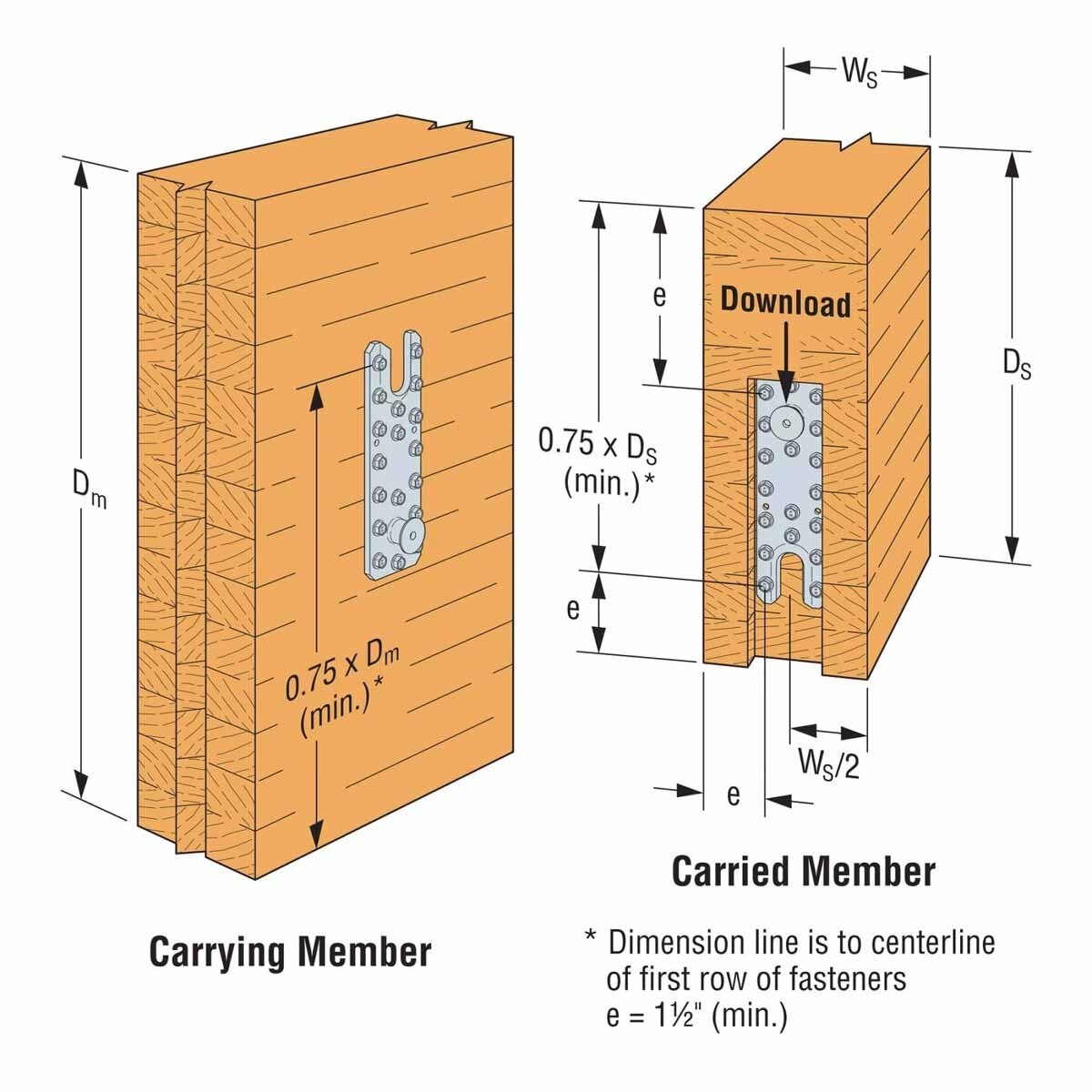

Simpson Strong-Tie CBH2.37X9.75H-KT Installation Overview
- Prep the Timber: CNC-machine both beam and column members to fit the CBH hardware.

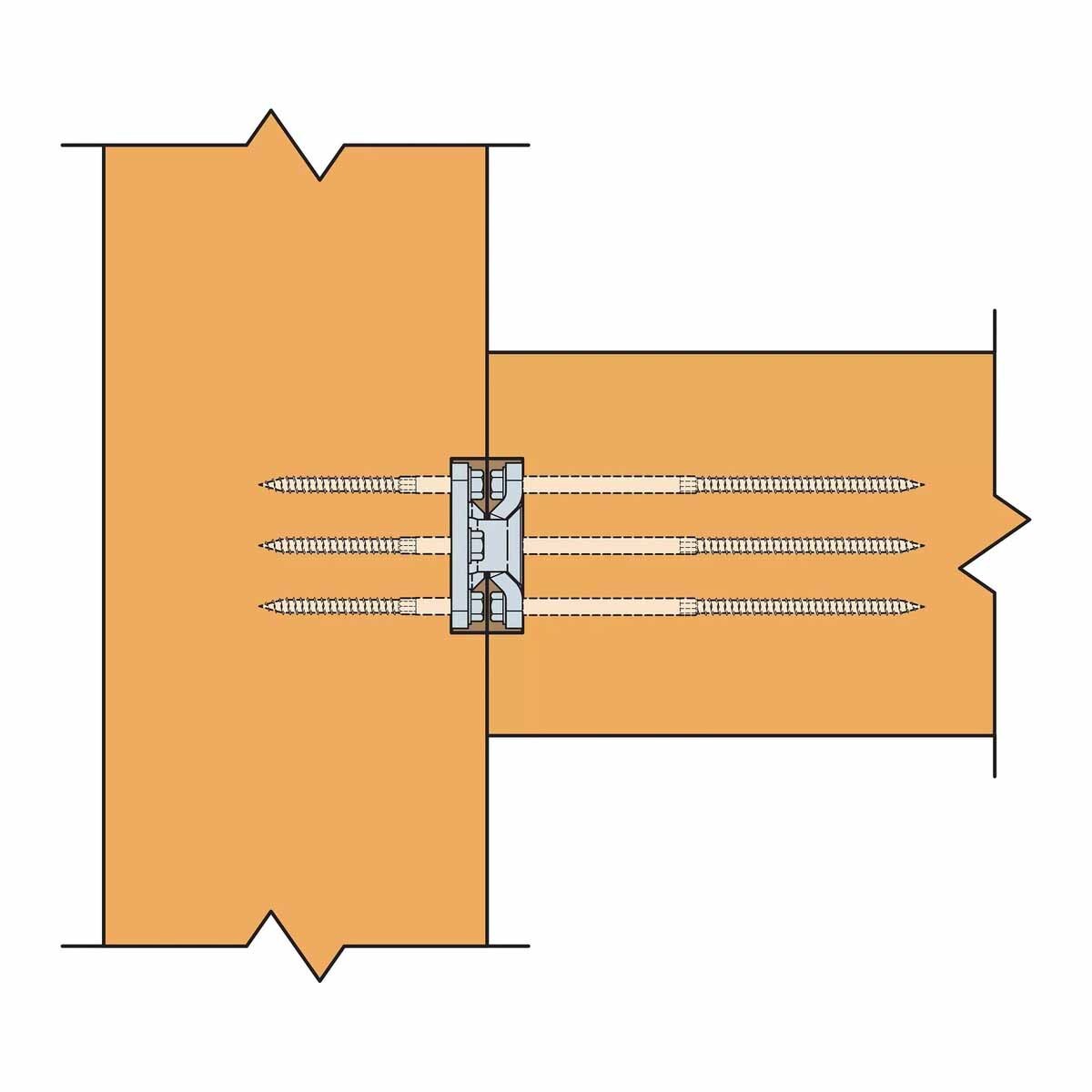

- Install Hanger Plates: Fasten each plate to the beam and column using included SDS screws.
- Mate Components: Slide the studded plate into the slotted plate at the jobsite to lock into place.
- Check Alignment: Confirm a tight fit and secure connection per engineering specs.
Simpson Strong-Tie CBH2.37X9.75H-KT Specifications
| Finish | Hot Dip Galvanized |
| Length | 9-3/4" |
| Material | Carbon Steel |
| Fasteners required | Not Included - See Guide Document |
| For Treated Lumber | No |
| Manufacturer name | Simpson Strong-Tie |
| Width | 2-3/8" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
