Simpson Anchors | SKU:
CBS44HDG

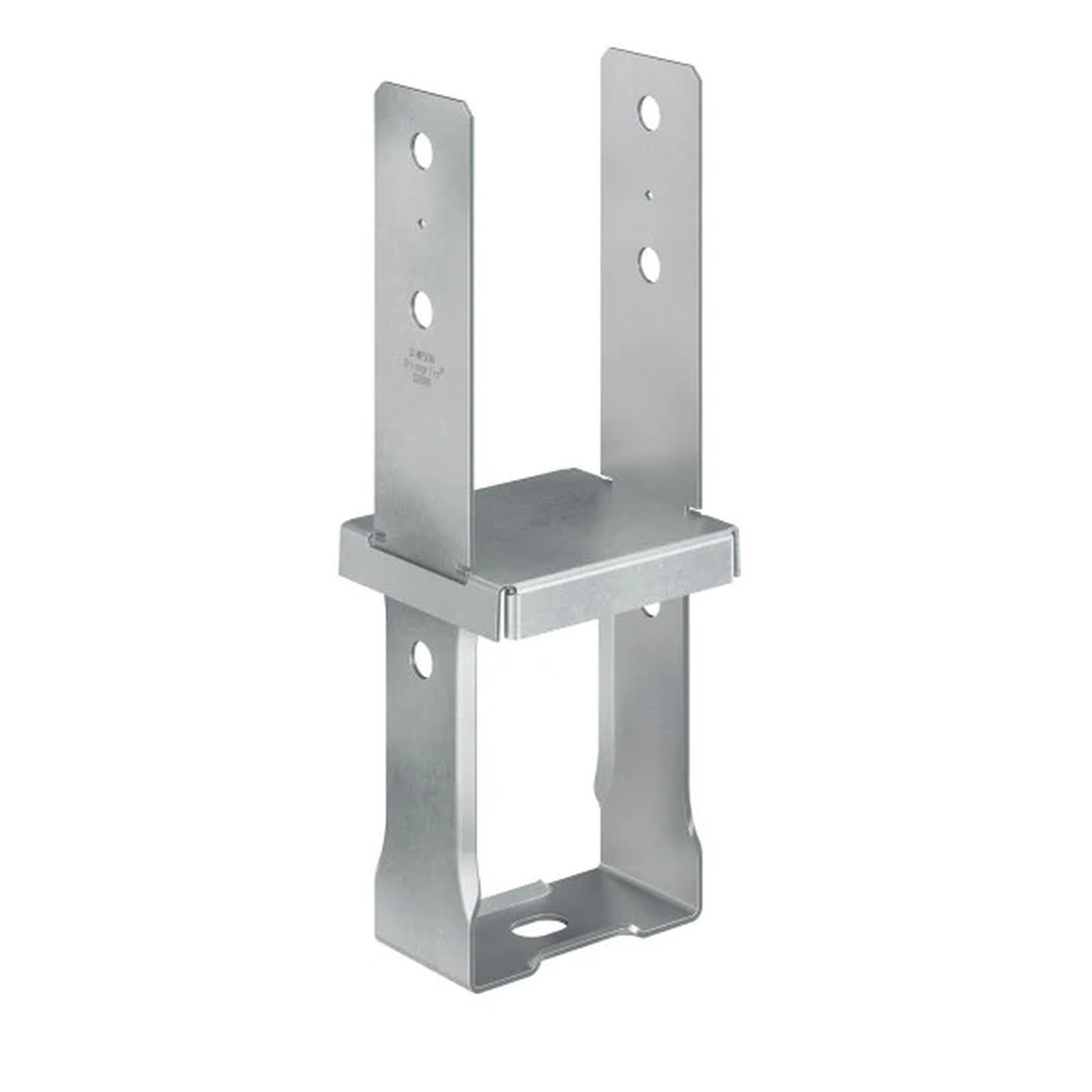

Simpson Strong-Tie CBS44HDG Column Base Standoff HDG for 4x4 Posts
$59.45
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie CBS44HDG Description
The CBS44HDG Column Base from Simpson Strong-Tie is a hot-dipped galvanized connector designed to secure 4x4 posts to concrete foundations, ensuring stability and durability in construction projects.
Simpson Strong-Tie CBS44HDG Includes
- (1) CBS44HDG Column Base
Simpson Strong-Tie CBS44HDG Features
- Hot-dipped galvanized finish for corrosion resistance
- Designed for 4x4 posts or columns
- Heavy-gauge steel construction for durability
- 1-inch standoff to meet building code requirements
- Cast-in-place or wet-set installation
Simpson Strong-Tie CBS44HDG Applications
- Securing 4x4 posts to concrete foundations
- Providing structural stability in construction projects
- Use in outdoor or basement installations

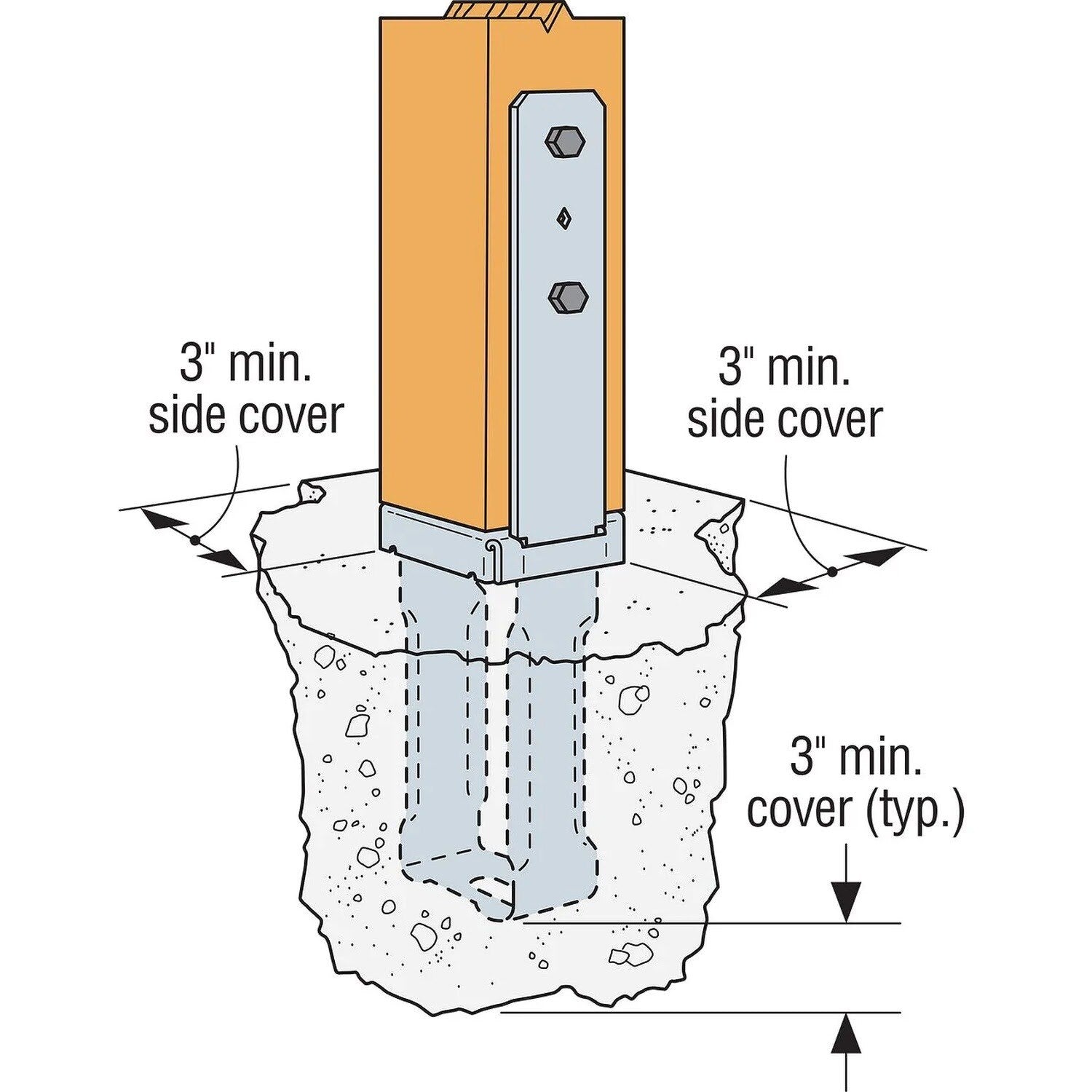

Simpson Strong-Tie CBS44HDG Installation Overview
- Prepare the concrete foundation for installation.
- Position the CBS44HDG Column Base in the desired location.
- Secure the base using the specified bolts (2) 5/8".
- Ensure the post is properly seated and aligned.

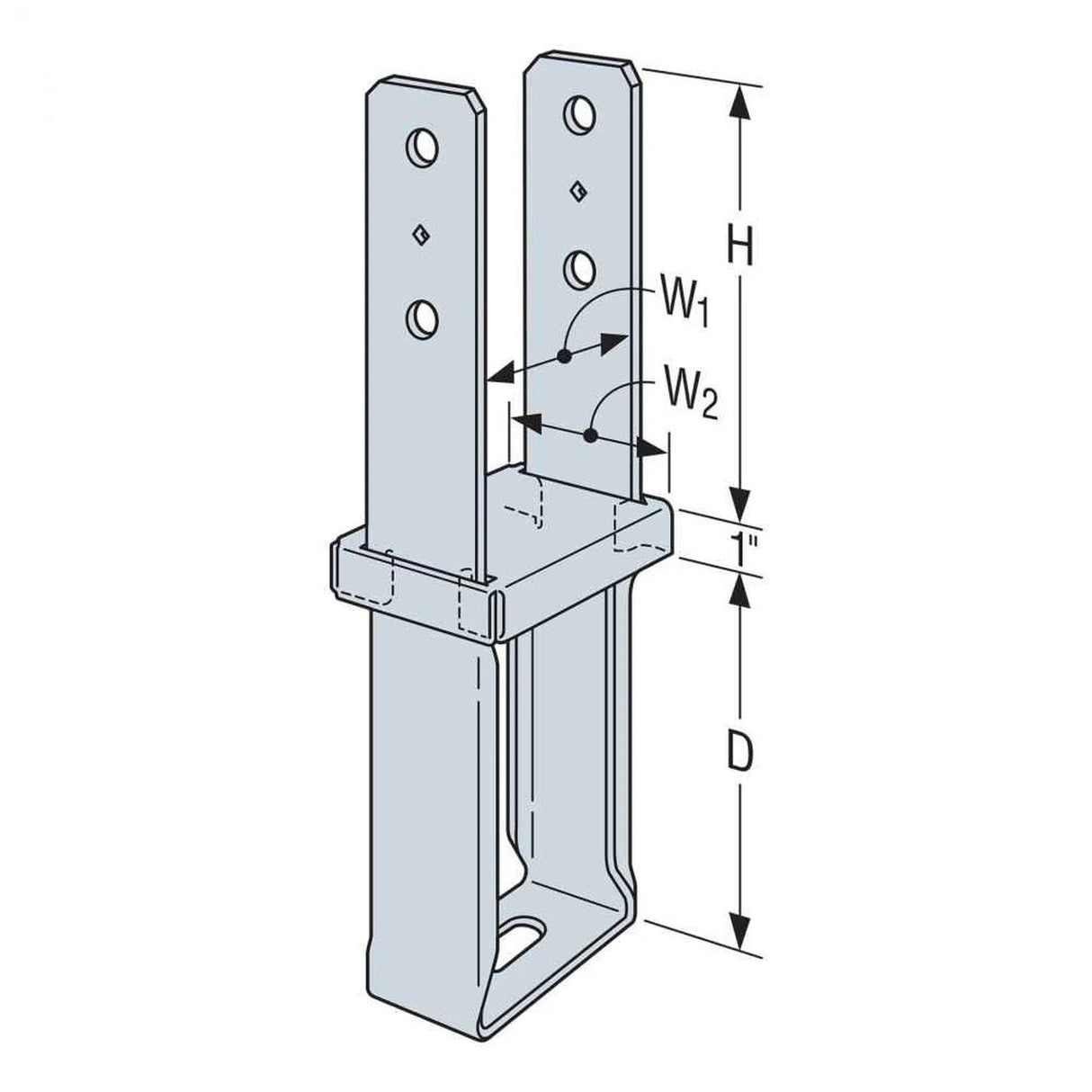

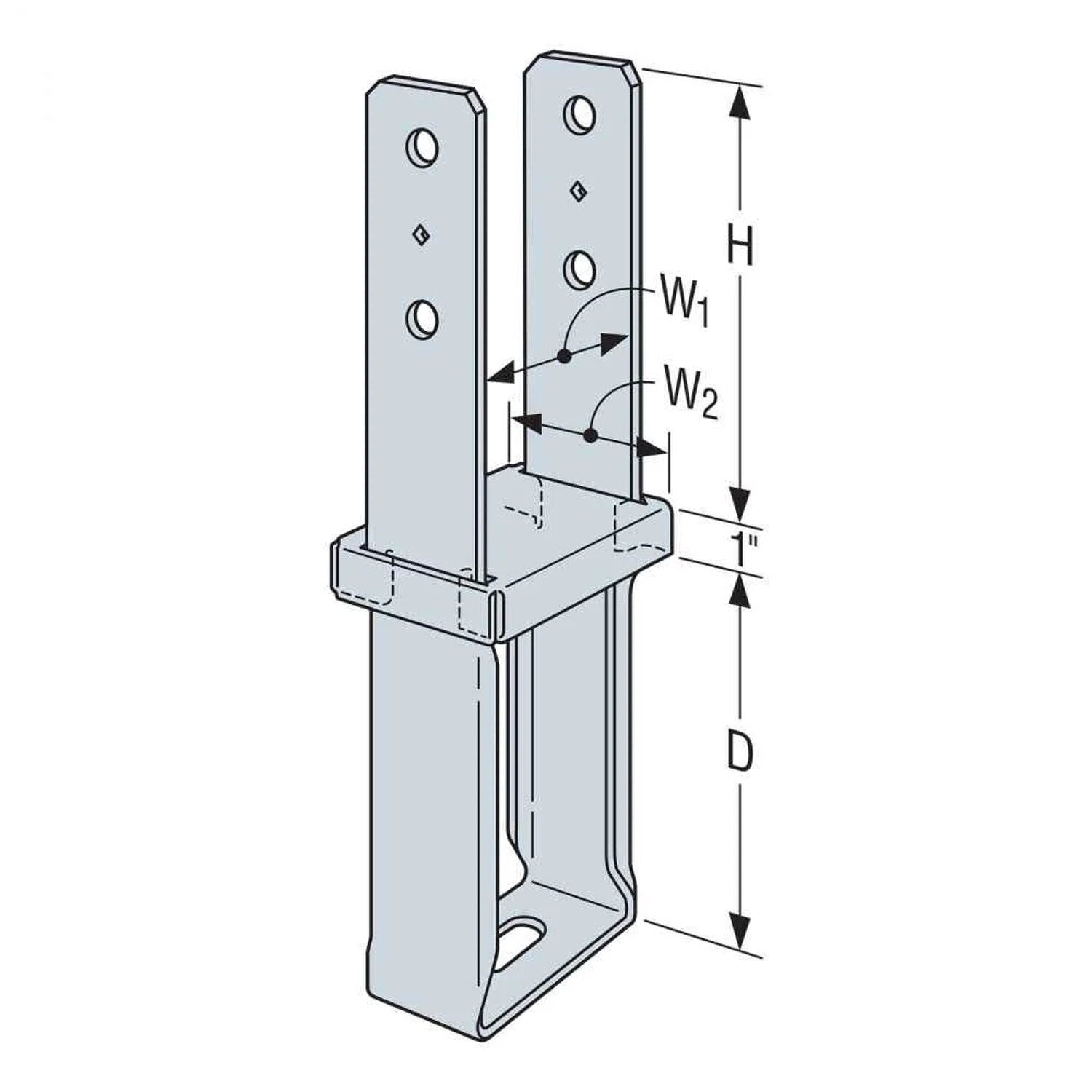

Simpson Strong-Tie CBS44HDG Specifications
| Finish | Hot Dip Galvanized |
| Material | Heavy Gauge Steel |
| Column size | 4X4 |
| Depth | 7-1/8" |
| Fasteners required | Bolts - (2) 5/8" |
| For Treated Lumber | Yes |
| Manufacturer name | Simpson Strong-Tie |
| Post size | 4x4 |
