Simpson Strong-Tie CBS66 (6" x 6") CB/CBS Galvanized Column Base Installation Guide
$55.06
$80.46
Unit price
/
Unavailable
NOTE: This item is ineligible for free shipping
Description
Description

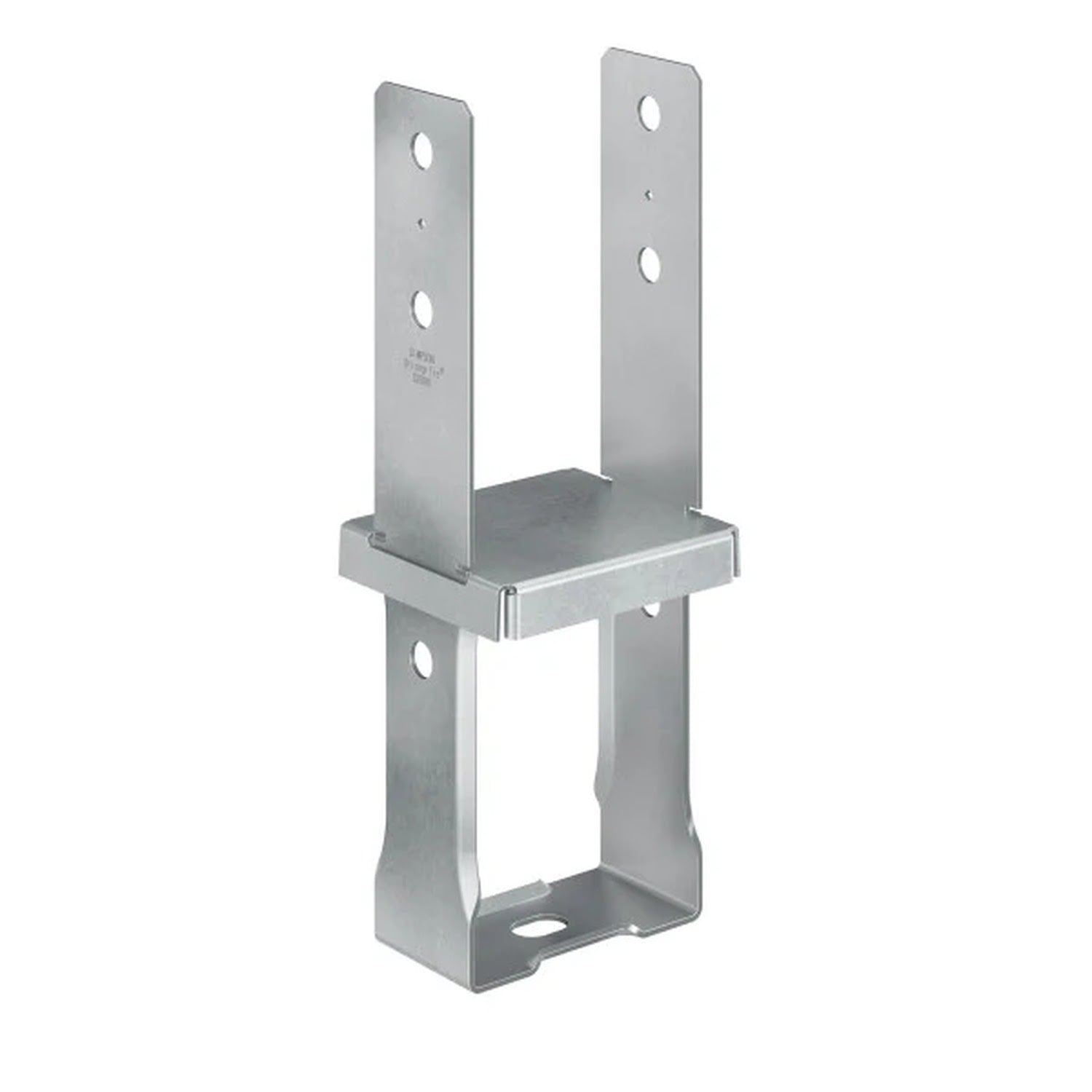

Simpson CBS66 Description
The CBS66 Column Base enhances the strength and stability of your construction projects, connecting 6x6 posts to concrete foundations.
Simpson CBS66 Includes
- (1) Galvanized Standoff Column Base for 6x6
Simpson CBS66 Features
- Designed to connect columns or posts to concrete foundations
- Provides a 1" standoff to meet building codes
- Made from heavy-gauge steel for durability
- Finished with G90 Galvanized coating
- Transmits structural stresses to the foundation
Simpson CBS66 Applications
- Connecting 6x6 posts or columns to concrete foundations
- Structural support for basements or outdoor installations
- Use in construction projects requiring durable column bases

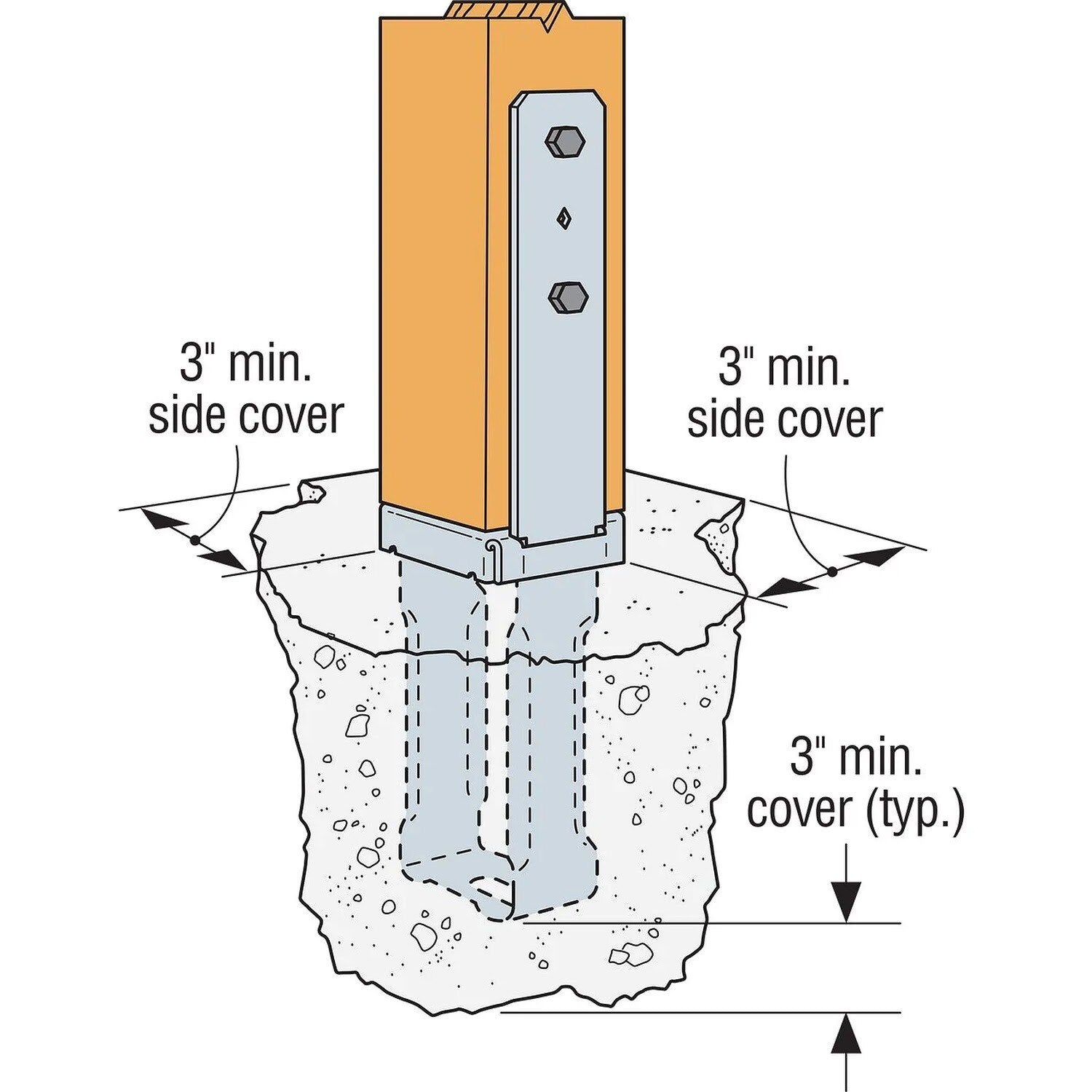

Simpson CBS66 Installation Overview
- Cast-in-place or wet-set the column base into concrete
- Ensure proper alignment with the 6x6 post or column
- Secure using specified bolts (2) 5/8"

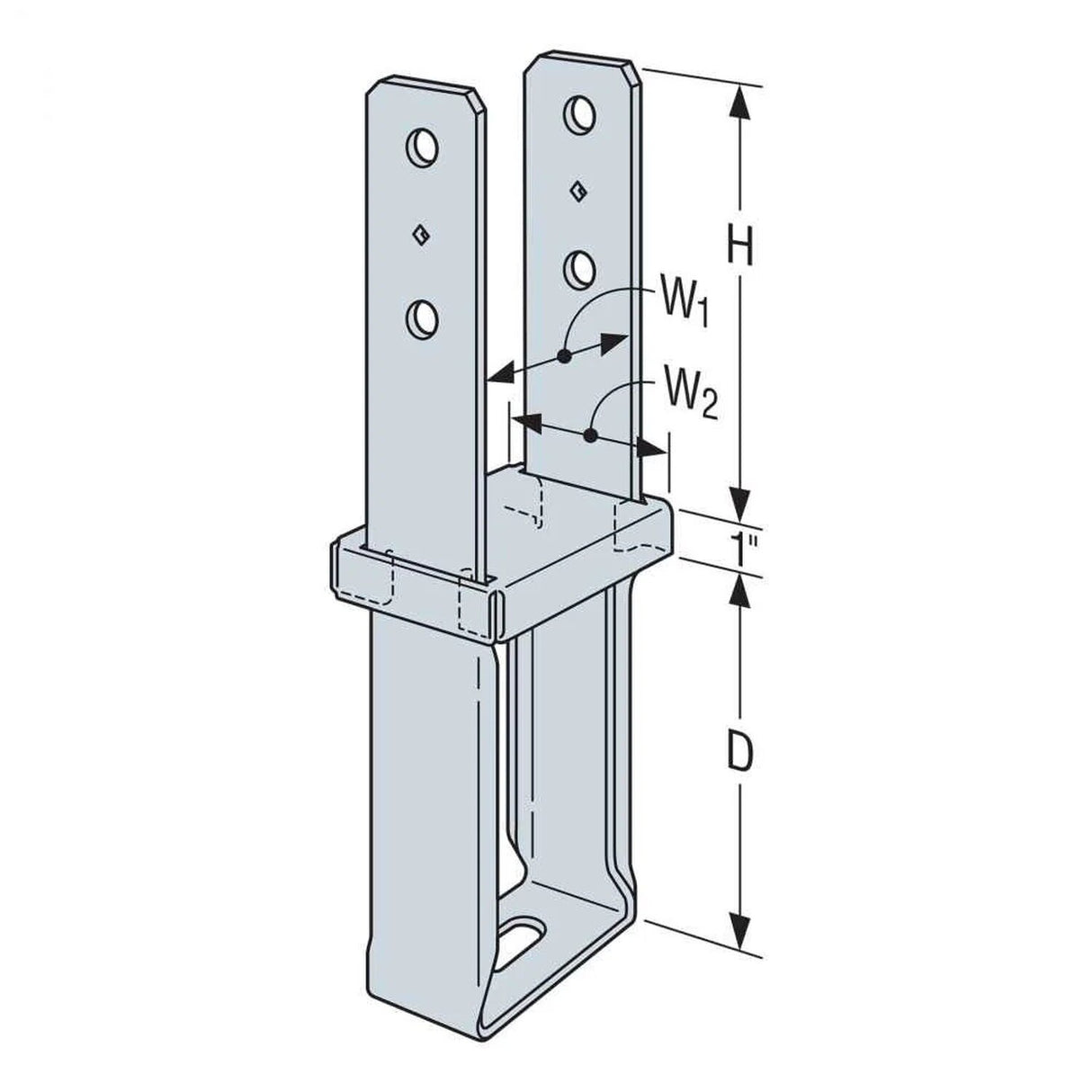

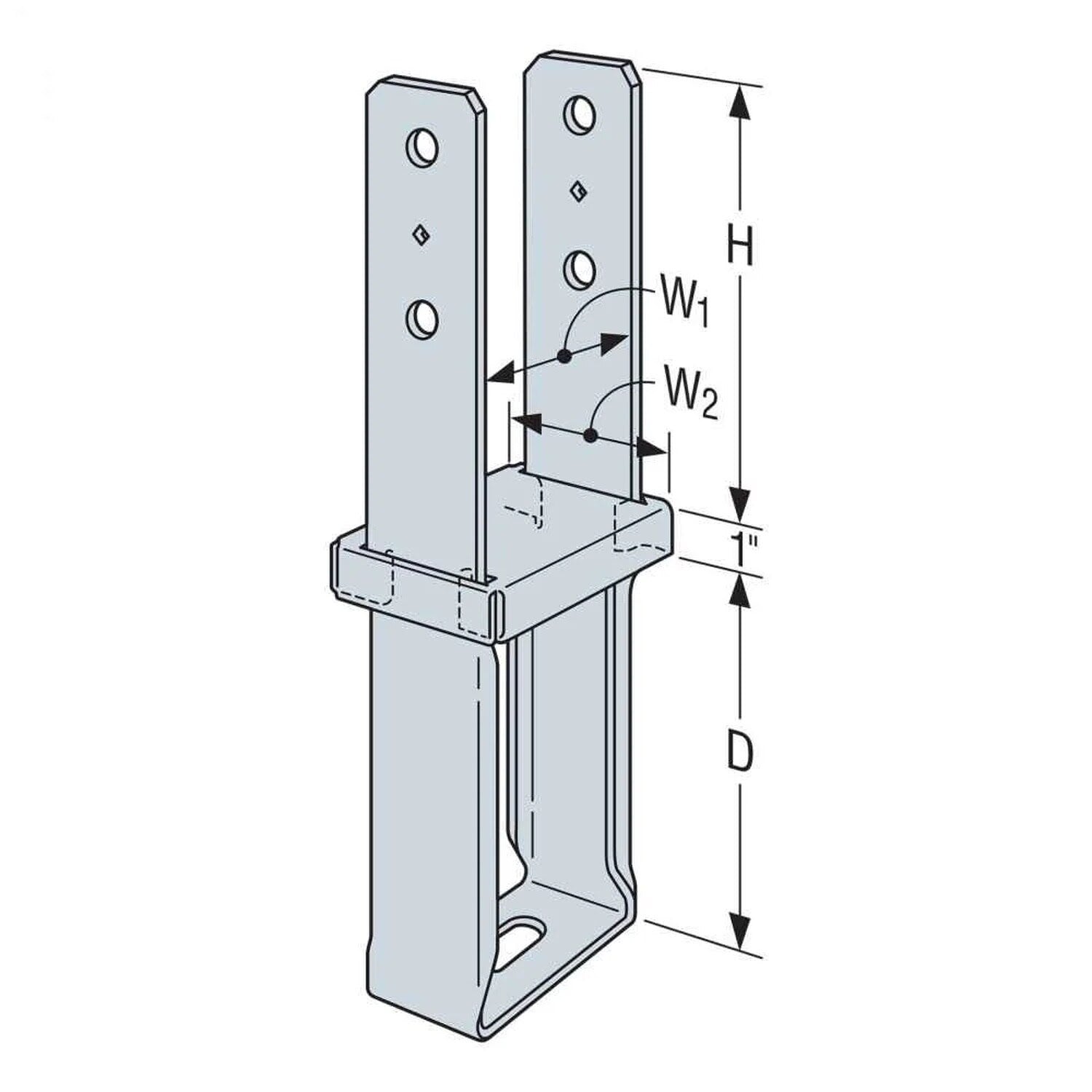

Simpson CBS66 Specifications
| Finish | G90 Galvanized |
| Material | Heavy Gauge Steel |
| Column size | 6X6 |
| Depth | 6-7/8" |
| Fasteners required | Bolts - (2) 5/8" |
| For Treated Lumber | No |
| Post size | 6x6 |
NOTE: Ensure the column base is cast-in-place or wet-set in concrete to meet code requirements.
