Simpson Anchors | SKU:
CBS66HDG
Simpson Strong-Tie CBS66HDG (6" x 6") CB/CBS HDG Column Base Installation Guide
$84.31
Unit price
/
Unavailable
Description
Description

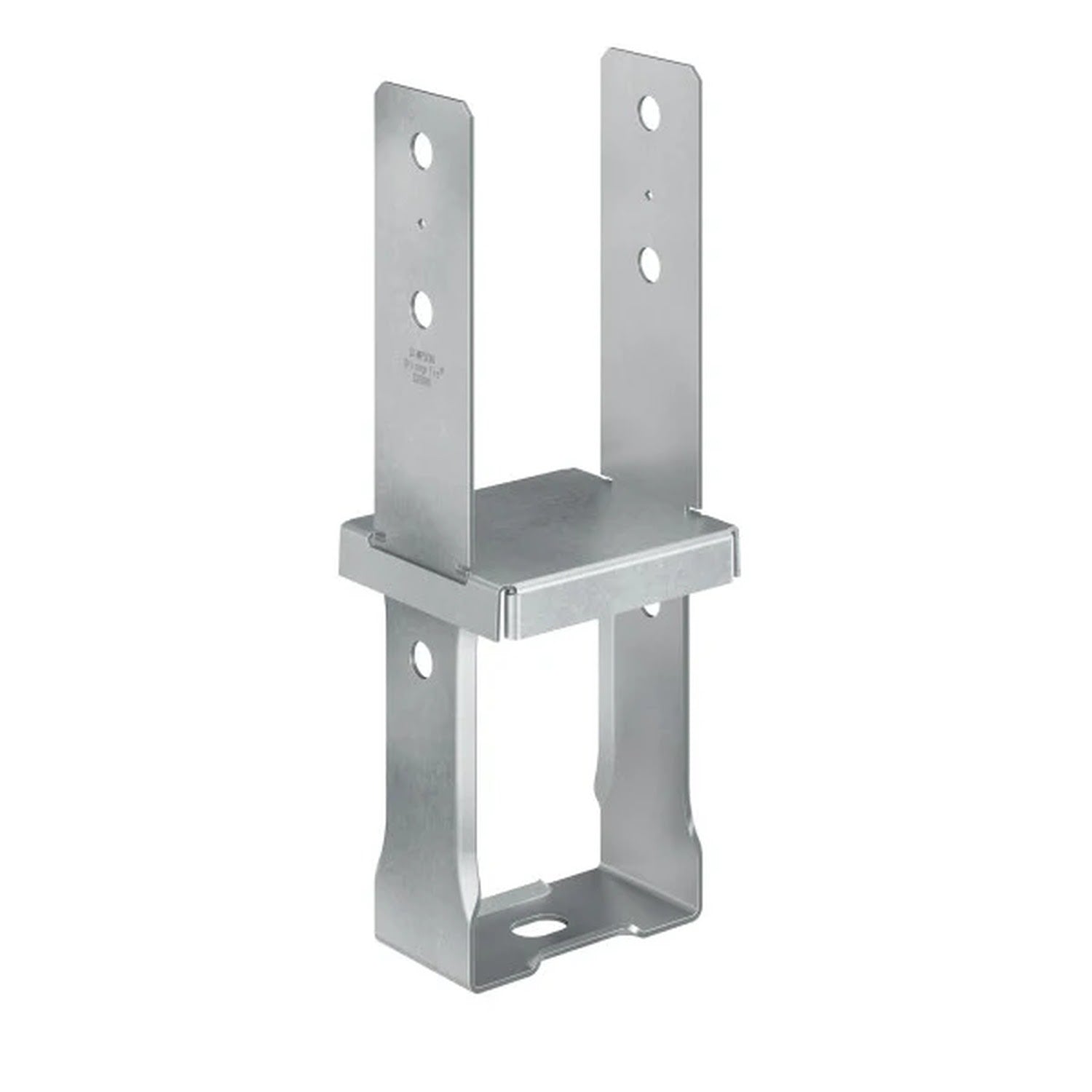

Simpson Strong-Tie CBS66HDG Description
The CBS66HDG Column Base Standoff by Simpson Strong-Tie is designed to connect 6x6 posts to concrete foundations, providing a 1" standoff to meet building codes and ensuring structural stability.
Simpson Strong-Tie CBS66HDG Includes
- (1) 6 x 6 Column Base Standoff HDG
Simpson Strong-Tie CBS66HDG Features
- Designed to connect columns or posts to concrete foundations
- Provides a 1" standoff to meet building codes
- Made from heavy-gauge steel for durability
- Hot Dip Galvanized finish for corrosion resistance
- Compatible with 6x6 posts or columns
Simpson Strong-Tie CBS66HDG Applications
- Connecting 6x6 posts to concrete foundations
- Providing structural stability in construction projects
- Meeting building code requirements for standoff height
Simpson Strong-Tie CBS66HDG Installation Overview

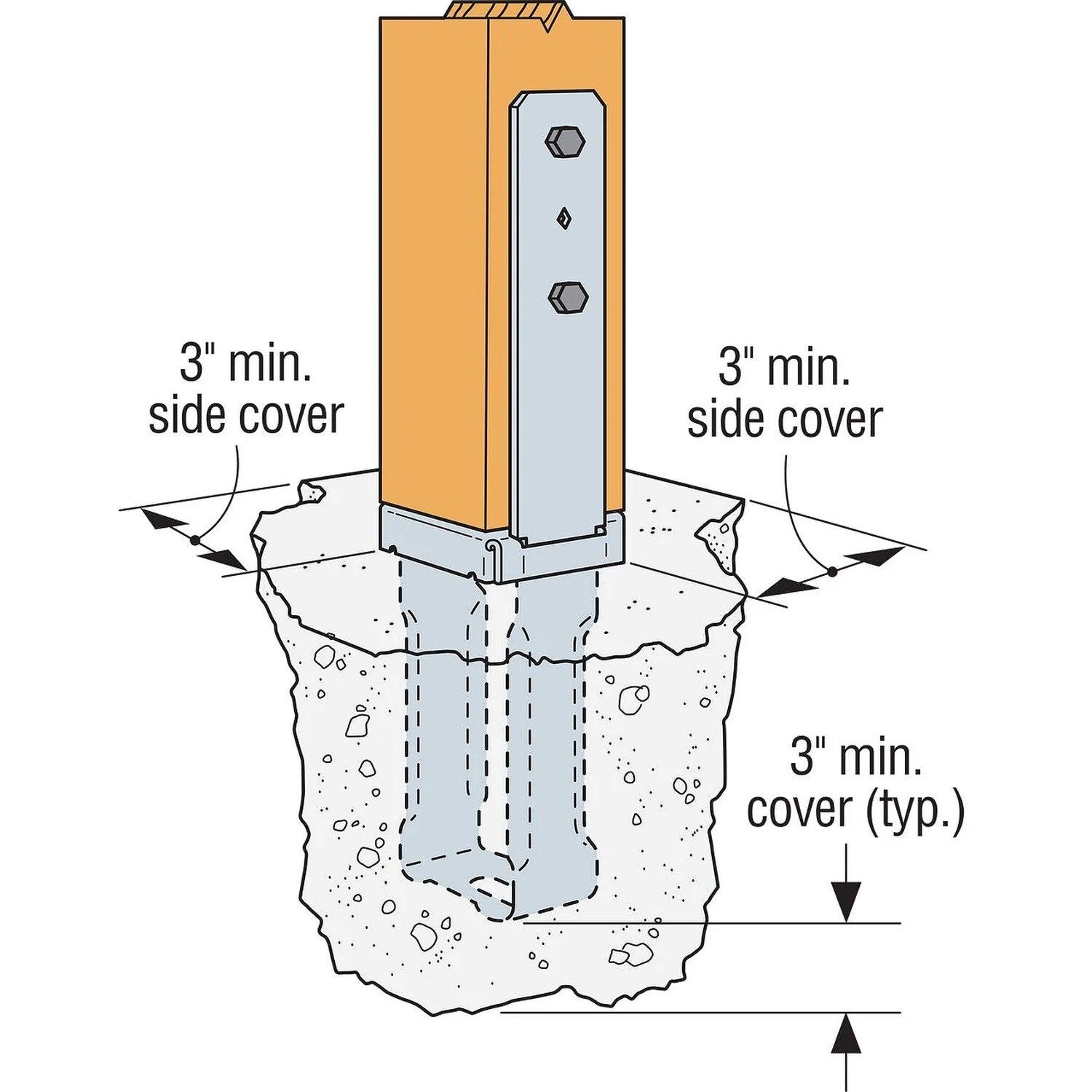

- Cast-in-place or wet-set the base into concrete
- Ensure proper alignment with the post or column
- Secure using the specified bolts

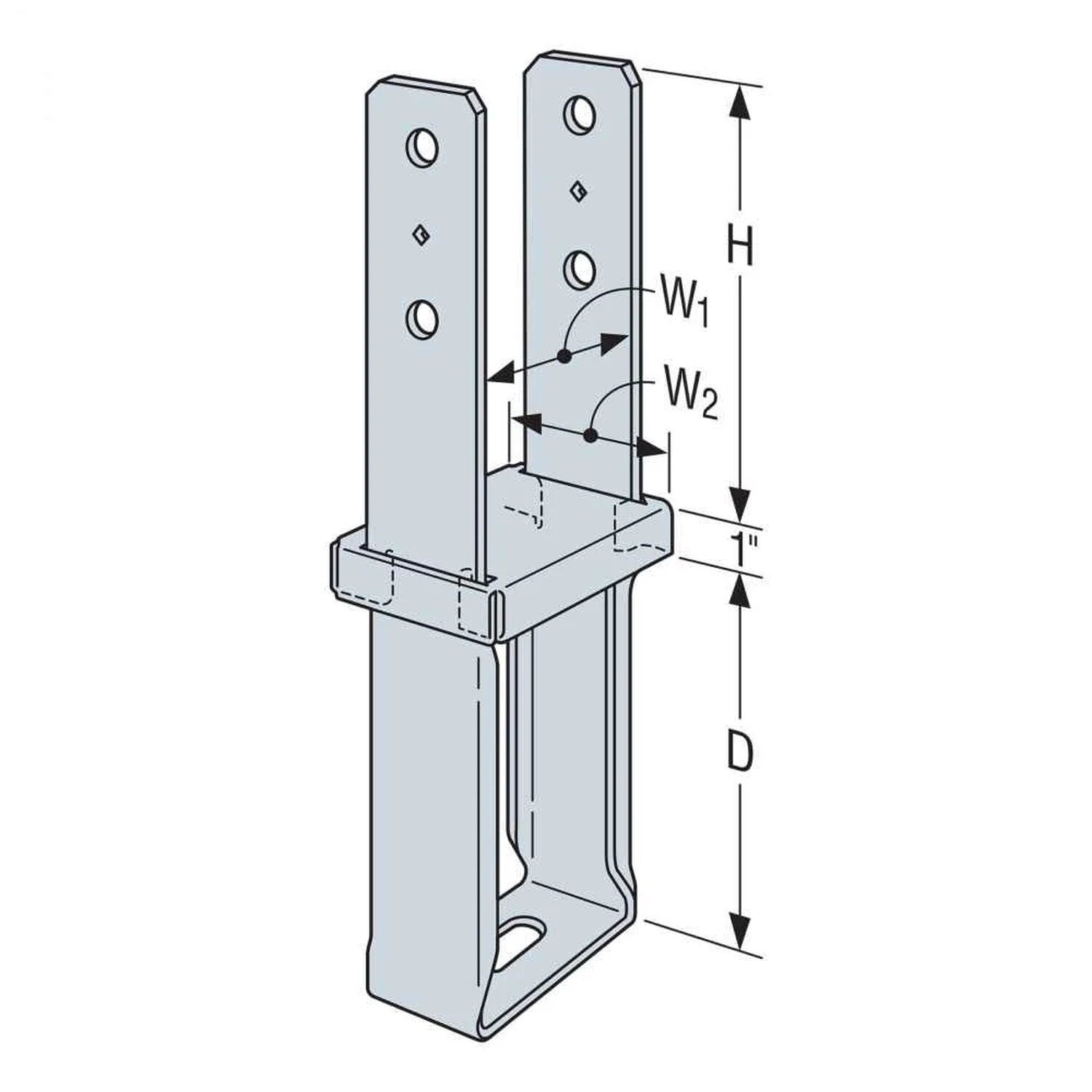

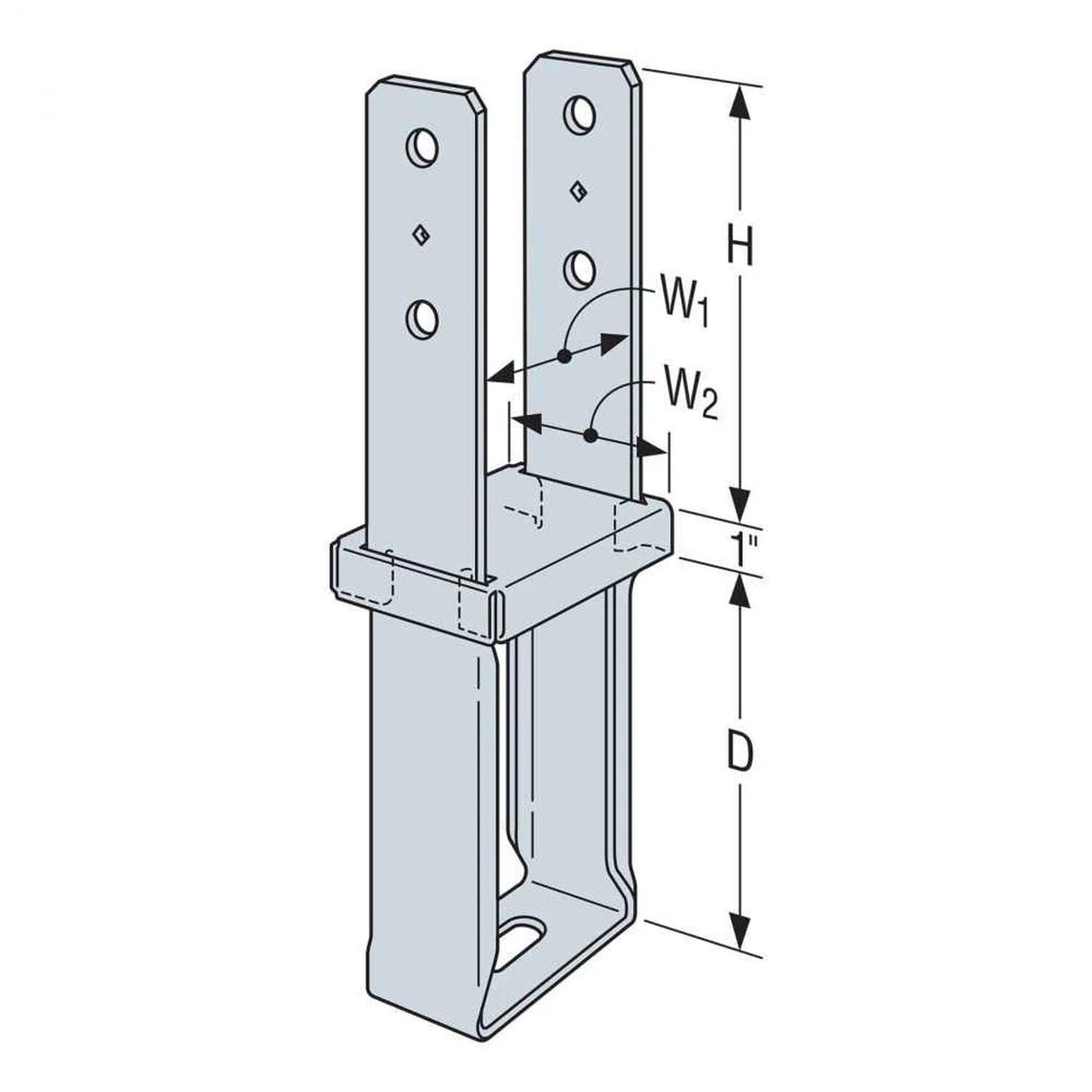

Simpson Strong-Tie CBS66HDG Specifications
| Finish | Hot Dip Galvanized |
| Material | Heavy Gauge Steel |
| Column size | 6X6 |
| Depth | 6-7/8" |
| Fasteners required | Bolts - (2) 5/8" |
| For Treated Lumber | Yes |
| Post size | 6x6 |
