Simpson Anchors | SKU:
CBSTQ46Z-SDS2

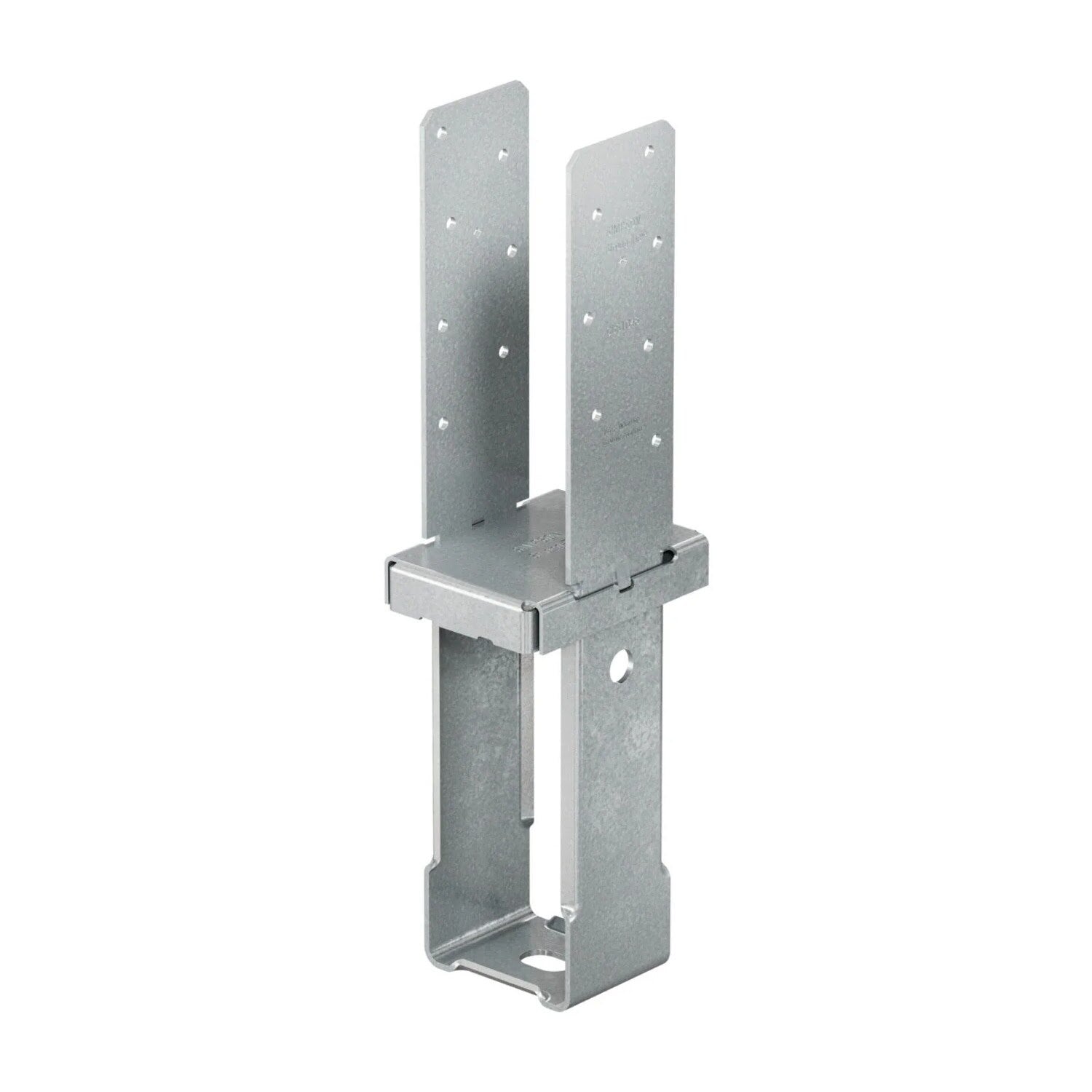

Simpson Strong-Tie CBSTQ46Z-SDS2 (8-11/16") Quick-Install Column Base with ZMAX Finish
$58.15
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie CBSTQ46Z-SDS2 Description
The Simpson Strong-Tie CBSTQ46Z-SDS2 is a durable column base with ZMAX coating, designed for anchoring wood columns to concrete in exposed environments.

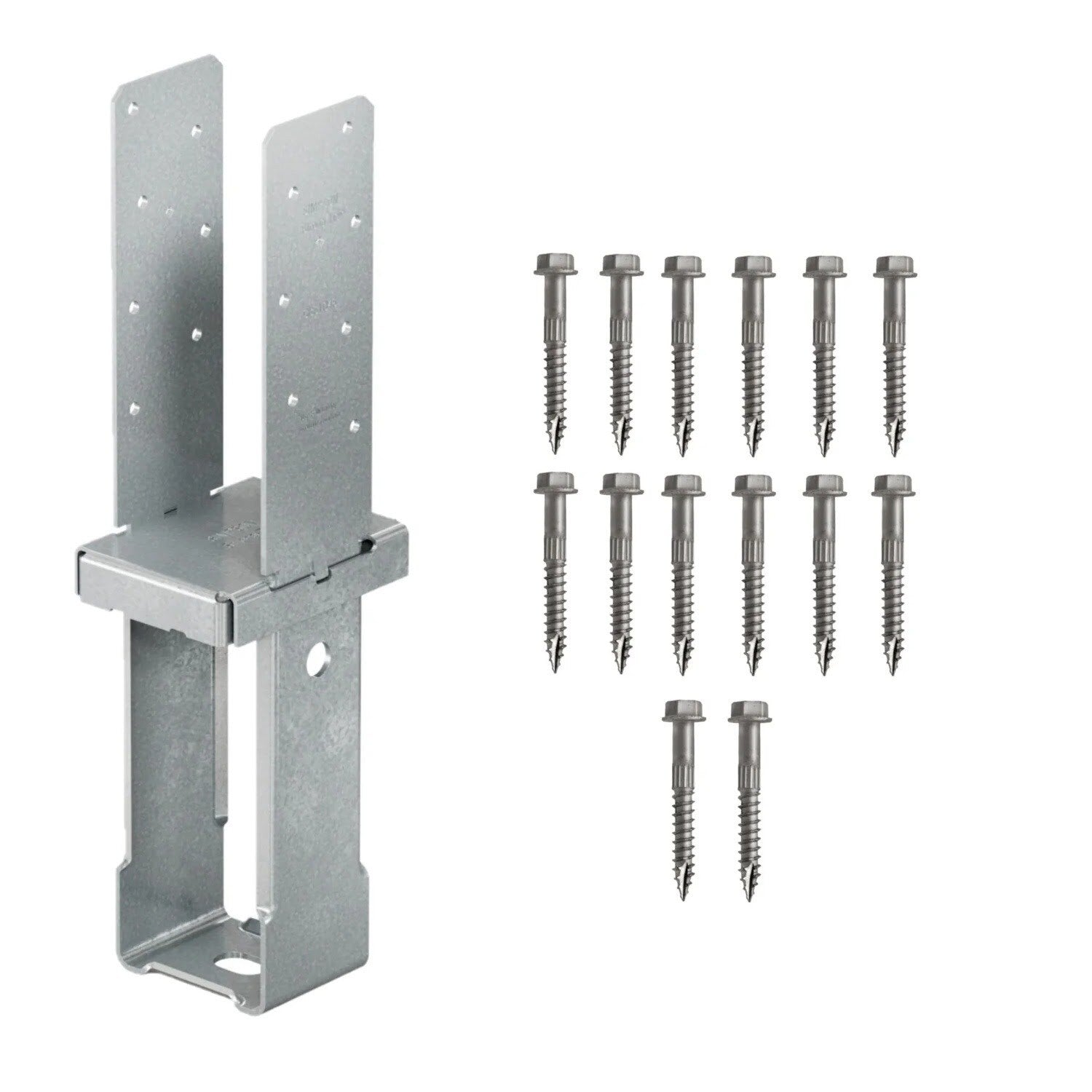

Simpson Strong-Tie CBSTQ46Z-SDS2 Includes
- (1) CBSTQ46Z Column Base
- (14) 1/4" X 2" Strong-Drive SDS Heavy-Duty Connector Screws
Simpson Strong-Tie CBSTQ46Z-SDS2 Features
- ZMAX Finish: Heavy-duty galvanized coating for outdoor and high-moisture environments.
- Elevated Post Support: Integrated standoff to prevent rot and water damage.
- High Load Capacity: Engineered for strong download performance.
- Easy Install: Simplifies anchoring wood columns to concrete.
Simpson Strong-Tie CBSTQ46Z-SDS2 Applications
- Deck Posts and Porch Columns: Provides corrosion-resistant support for vertical framing.
- Outdoor Structures: Suitable for pergolas, gazebos, and freestanding patio structures.
- Exposed Residential Connections: Ideal for treated wood meeting concrete in weather-exposed settings.

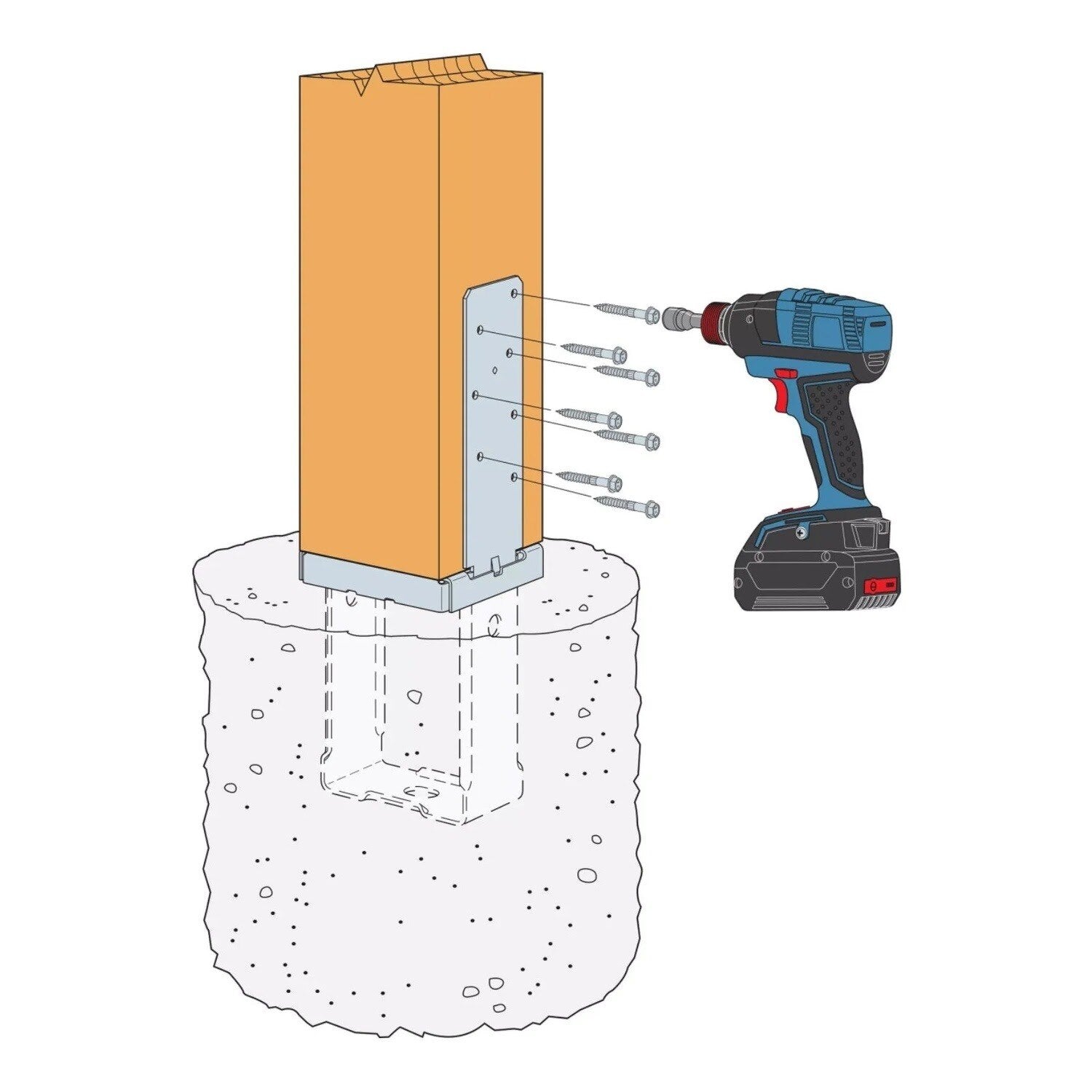

Simpson Strong-Tie CBSTQ46Z-SDS2 Installation Overview
- Prep the Surface: Ensure the concrete pad or footing is clean, flat, and fully cured.
- Anchor the Base: Fasten the CBSTQ ZMAX column base using approved concrete anchors.
- Set the Post: Secure the wood post with recommended Simpson fasteners.
Simpson Strong-Tie CBSTQ46Z-SDS2 Specifications
| Finish | ZMAX |
| Material | Carbon Steel |
| Depth | 7-13/16" |
| Fasteners required | (14) 1/4" X 2" Strong-Drive SDS Heavy-Duty Connector Screws (included) |
| Height | 8-11/16" |
| Thickness | Base: 12 Gauge; Strap: 10 Gauge |
| Width | W1: 3-9/16"; W2: 5-5/16" |
