Simpson Anchors | SKU:
CBSTQ66-SDS2HDG
Simpson Strong-Tie CBSTQ66-SDS2HDG (8-3/4") Quick-Install Column Base w/ SDS Screws - Hot Dip Galvanized
$108.07
Unit price
/
Unavailable
Description
Description

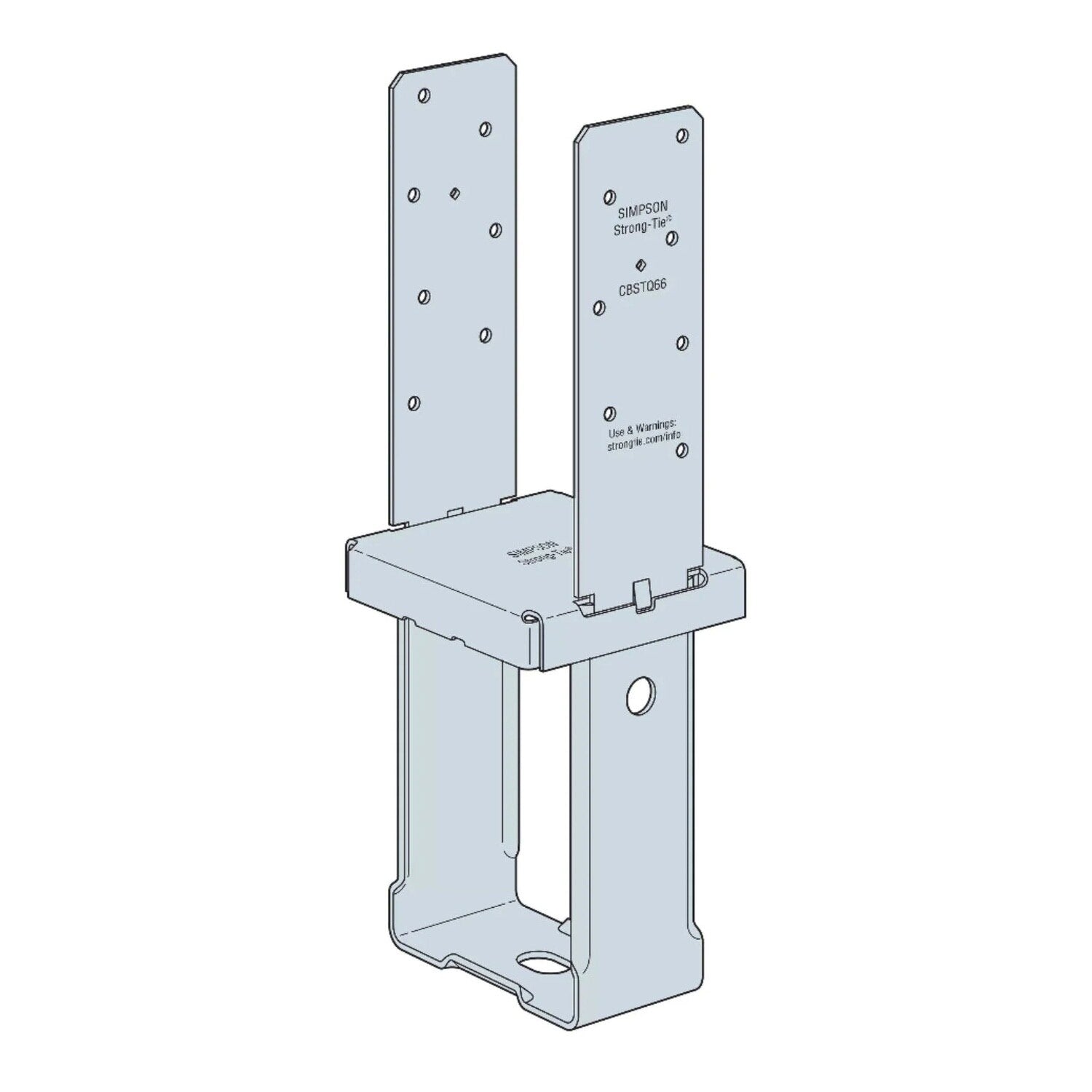

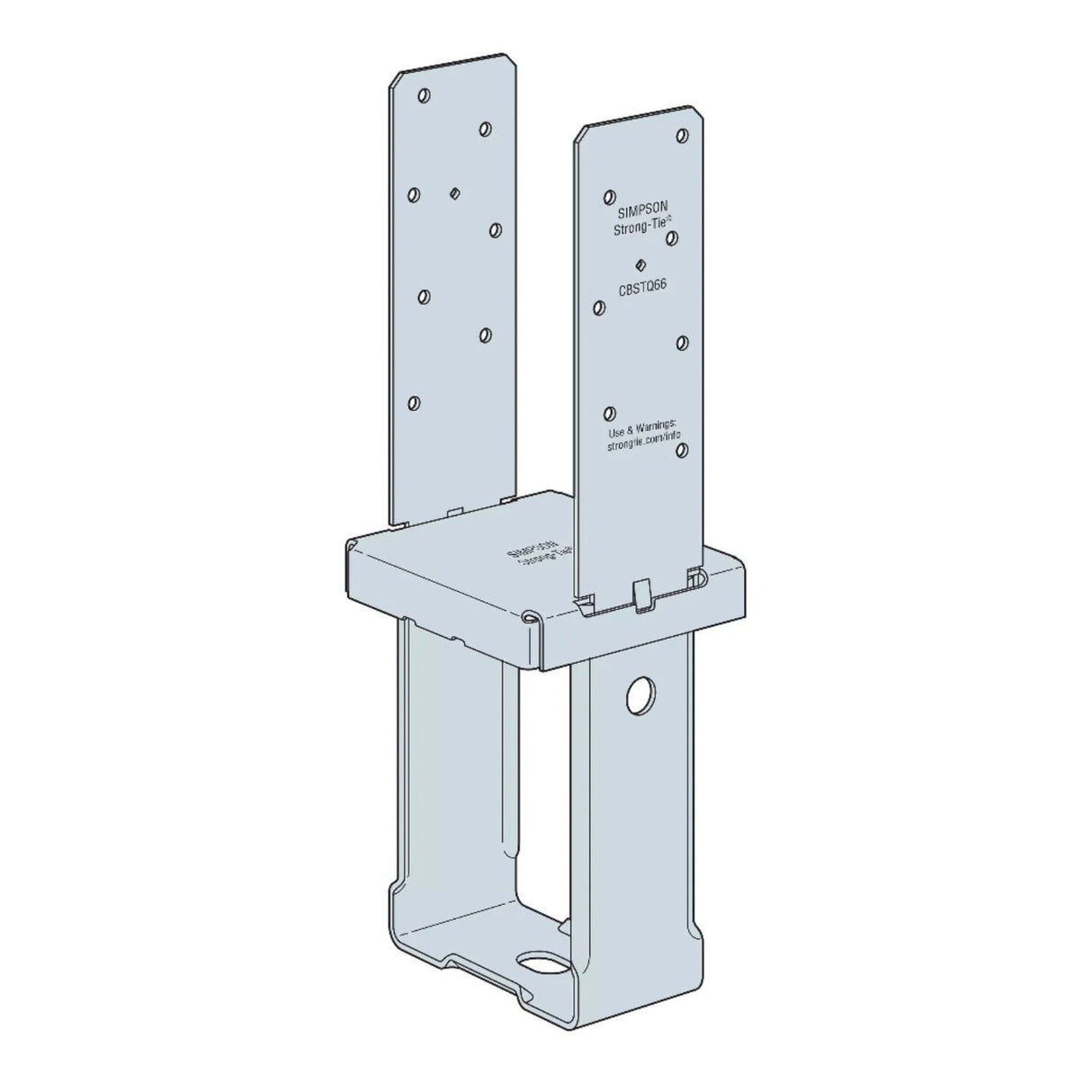

Simpson Strong-Tie CBSTQ66-SDS2HDG Description
The Simpson Strong-Tie CBSTQ66-SDS2HDG is a hot-dip galvanized column base designed for connecting wood posts to concrete, offering corrosion resistance and durability for outdoor applications.

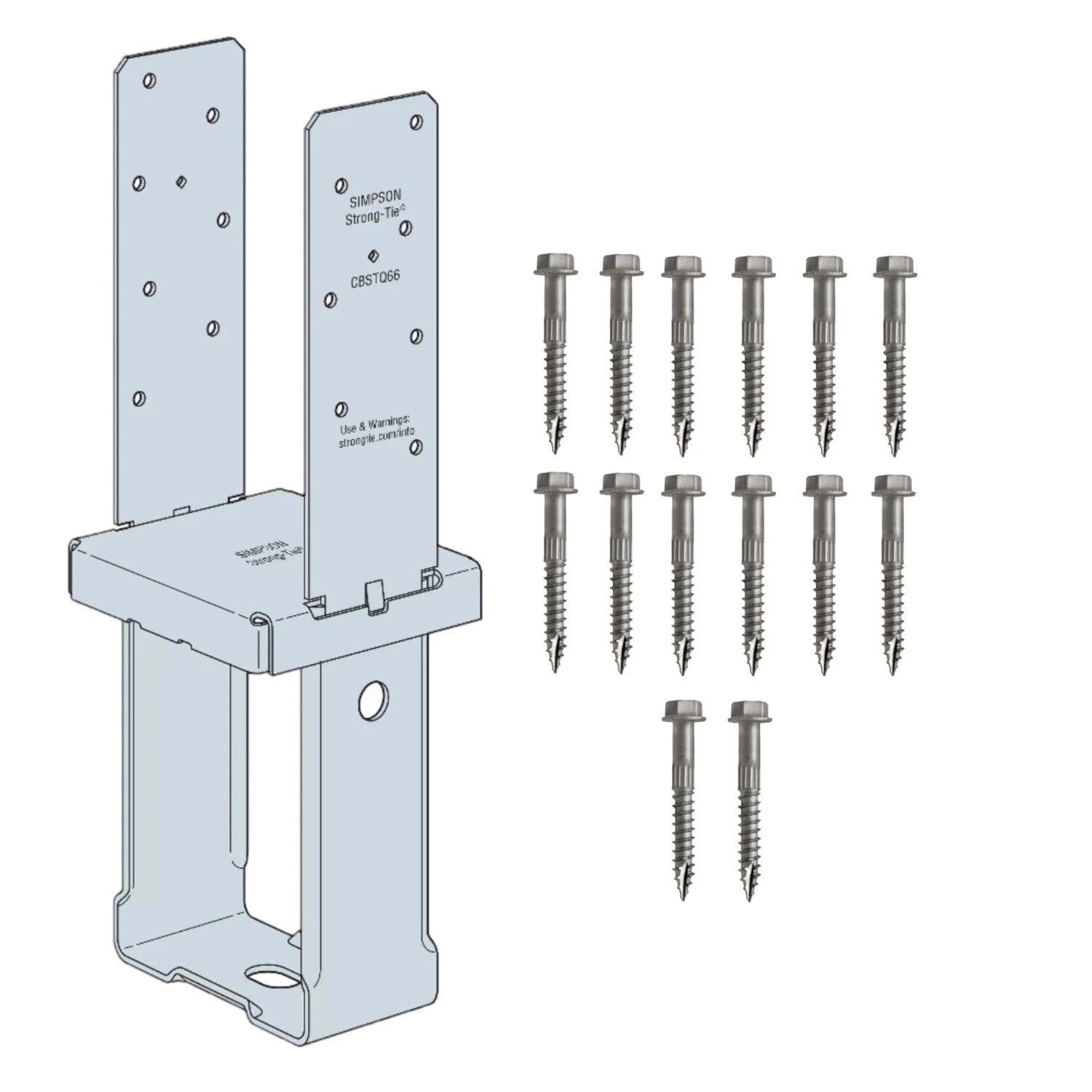

Simpson Strong-Tie CBSTQ66-SDS2HDG Includes
- (1) Quick-Install Column Base
- (14) 1/4" X 2" Strong-Drive SDS Heavy-Duty Connector Screws
Simpson Strong-Tie CBSTQ66-SDS2HDG Features
- Hot-Dip Galvanized Finish: Heavy-duty zinc coating resists corrosion in wet or exposed environments.
- Increased Load Capacity: Engineered for higher download strength compared to earlier designs.
- Reliable Standoff: Provides the required 1" standoff to help prevent moisture-related decay in wood posts.
- Quick Installation: Installs fast with anchor bolts and SDS screws—no special tools needed.
Simpson Strong-Tie CBSTQ66-SDS2HDG Applications
- Decks, porches, and pergolas exposed to weather
- Wood columns in contact with concrete or near grade
- Outdoor structures in coastal or high-moisture regions
- Light commercial applications needing corrosion resistance

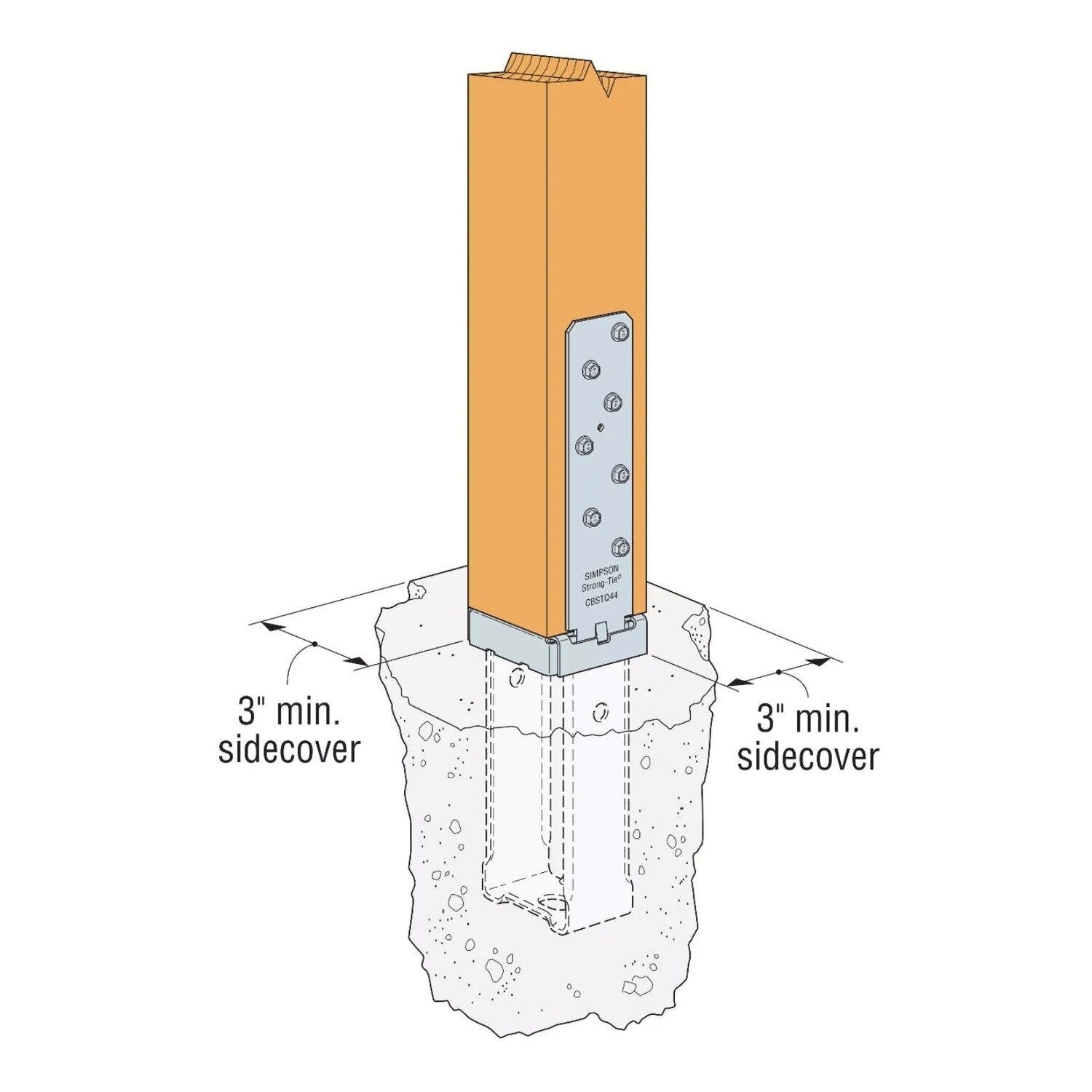

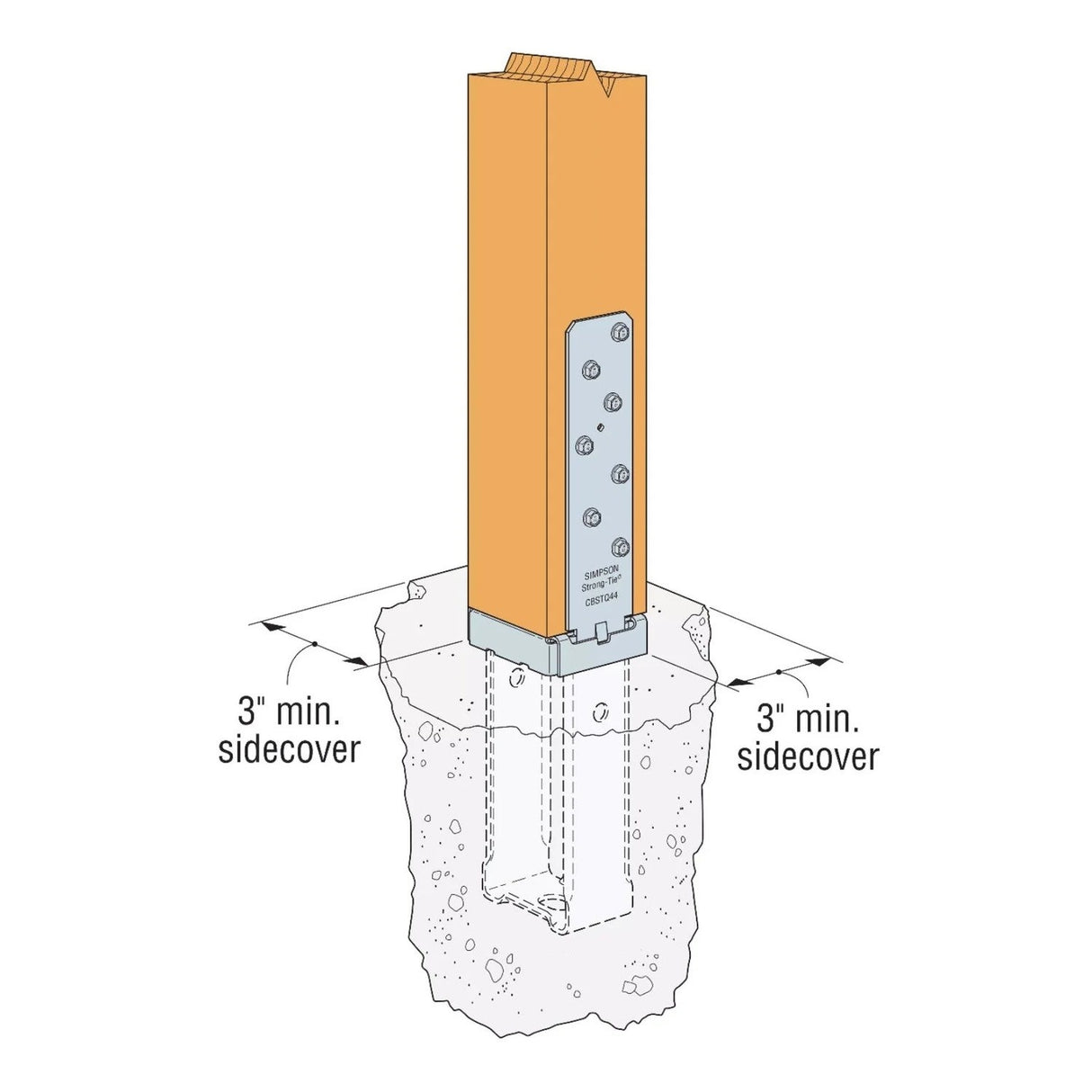

Simpson Strong-Tie CBSTQ66-SDS2HDG Installation Overview
- Prep Your Surface: Start with cured, clean concrete.
- Anchor the Base: Secure the CBSTQ to concrete using approved anchor bolts.

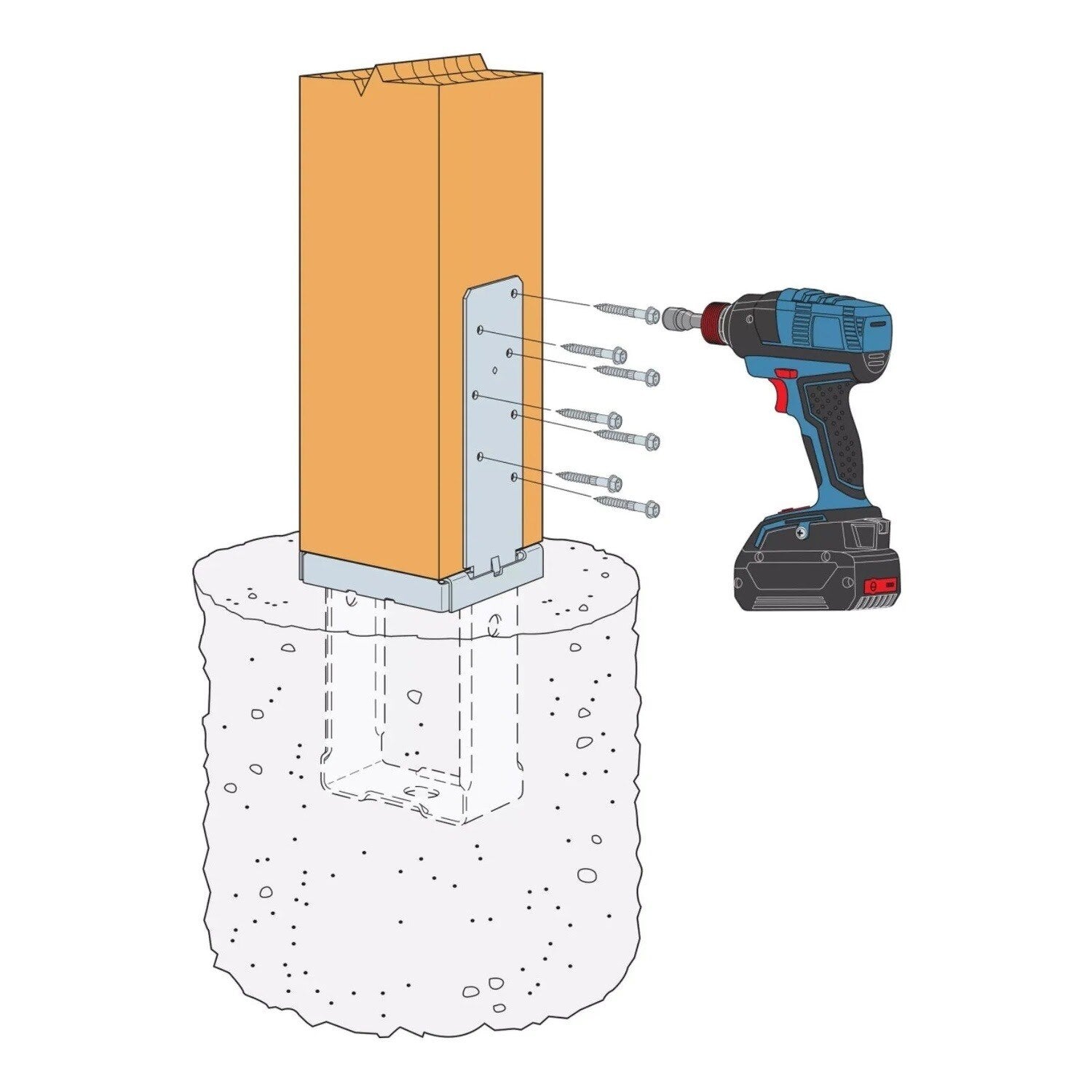

- Attach the Post: Position your column and fasten it with Strong-Drive SDS screws through the pre-punched holes.
Simpson Strong-Tie CBSTQ66-SDS2HDG Specifications
| Finish | Hot Dip Galvanized |
| Material | Carbon Steel |
| Depth | 6-7/8" |
| Fasteners required | (14) 1/4" X 2" Strong-Drive SDS Heavy-Duty Connector Screws (included) |
| Height | 8-3/4" |
| Manufacturer name | Simpson Strong-Tie |
| Thickness | Base: 12 Gauge; Strap: 10 Gauge |
| Width | W1: 5-1/2"; W2: 5-1/2" |
