Simpson Anchors | SKU:
CBSTQ66Z-SDS2
Simpson Strong-Tie CBSTQ66Z-SDS2 (8-3/4") Quick-Install Column Base w/ SDS Screws - ZMAX Finish
$73.58
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie CBSTQ66Z-SDS2 Description

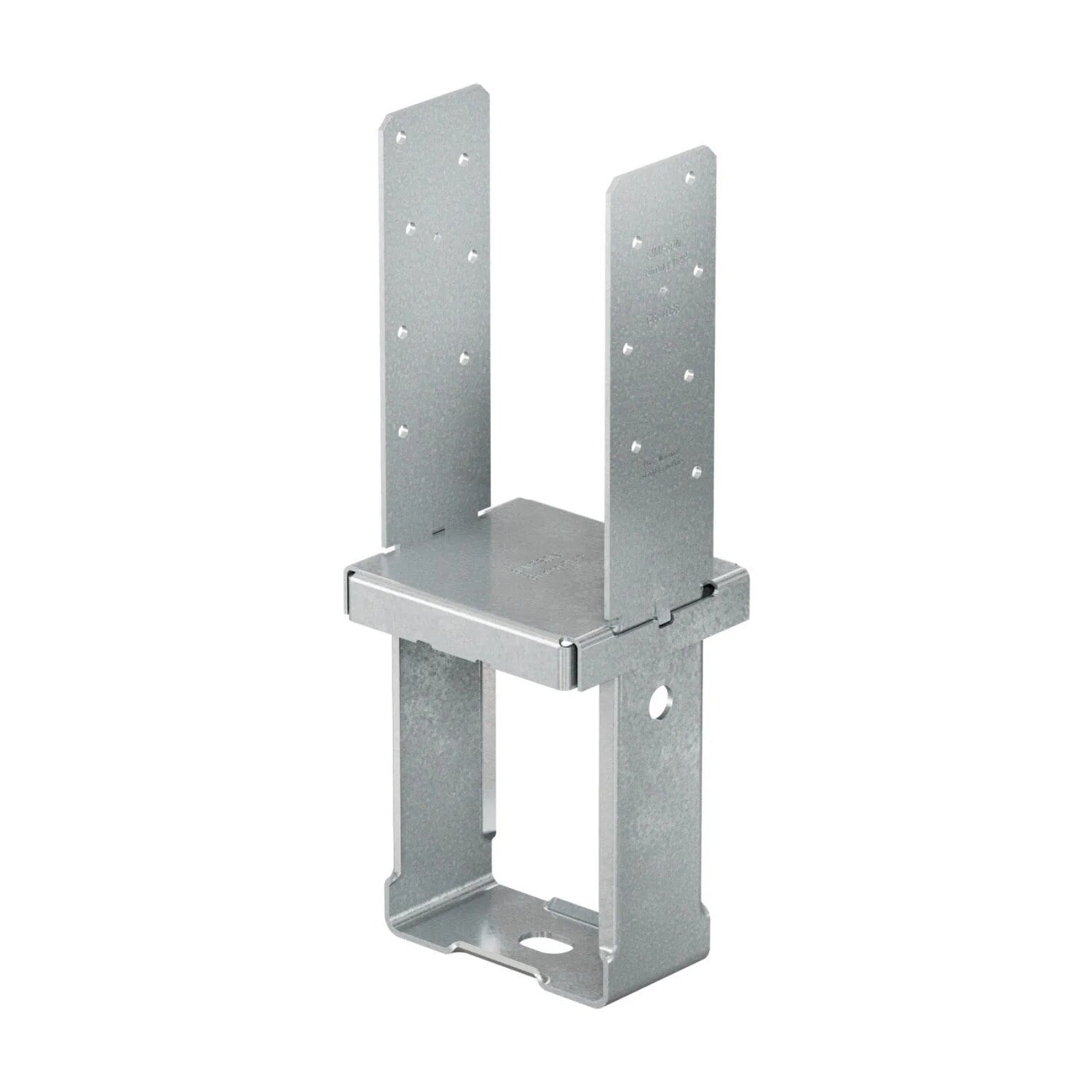

The Simpson Strong-Tie CBSTQ66Z-SDS2 Quick-Install Column Base with ZMAX coating is designed for anchoring wood columns to concrete, providing structural support and corrosion resistance.

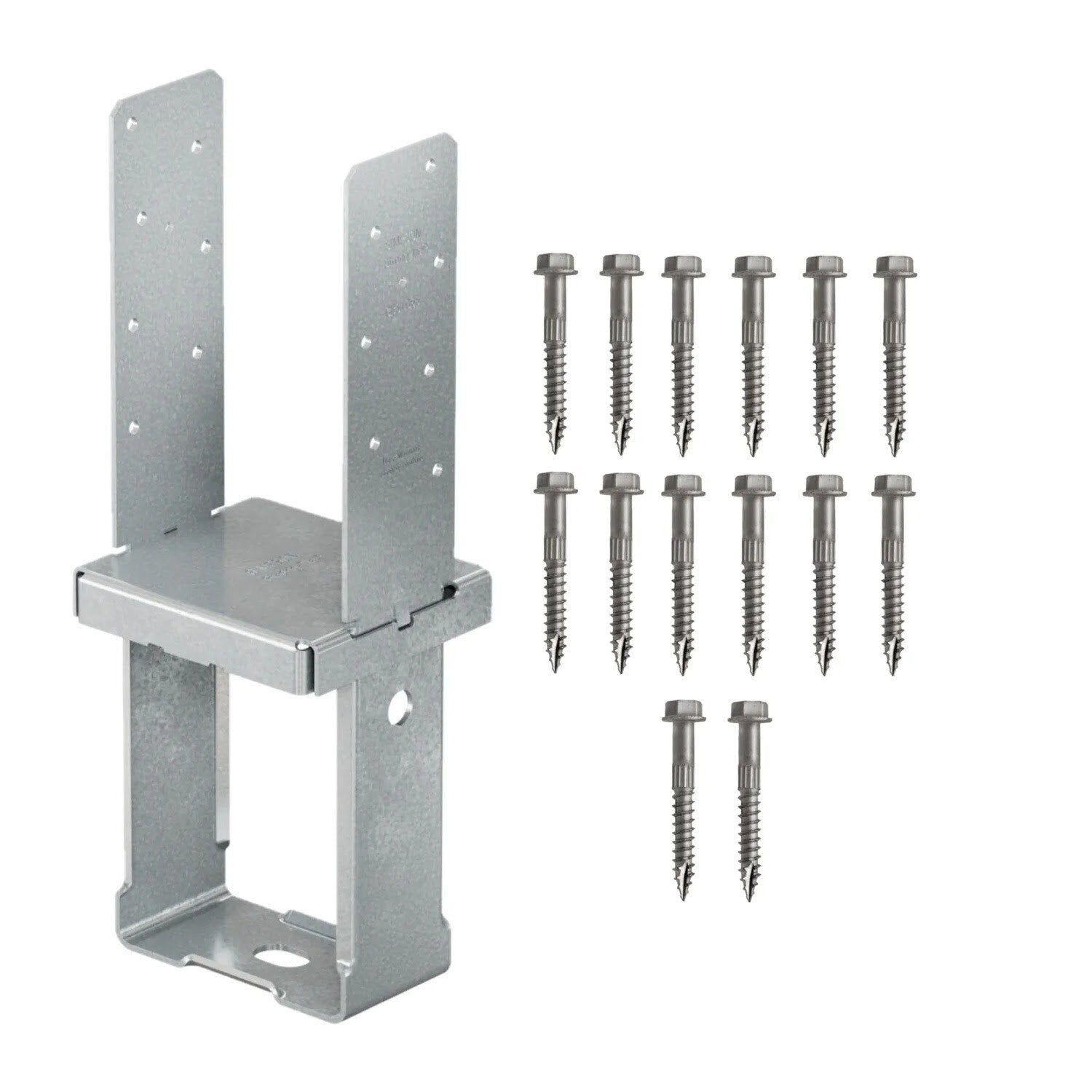

Simpson Strong-Tie CBSTQ66Z-SDS2 Includes
- (1) CBSTQ66Z Column Base
- (14) 1/4" X 2" Strong-Drive SDS Heavy-Duty Connector Screws
Simpson Strong-Tie CBSTQ66Z-SDS2 Features
- ZMAX Finish: Heavy-duty galvanized coating for outdoor and high-moisture environments.
- Elevated Post Support: Integrated standoff prevents rot and water damage.
- High Load Capacity: Engineered for stronger download performance.
- Easy Install: Simplifies anchoring wood columns to concrete.
Simpson Strong-Tie CBSTQ66Z-SDS2 Applications
- Deck Posts and Porch Columns: Provides corrosion-resistant support for vertical framing.
- Outdoor Structures: Suitable for pergolas, gazebos, and freestanding patio structures.
- Exposed Residential Connections: Ideal for treated wood meeting concrete in weather-exposed settings.

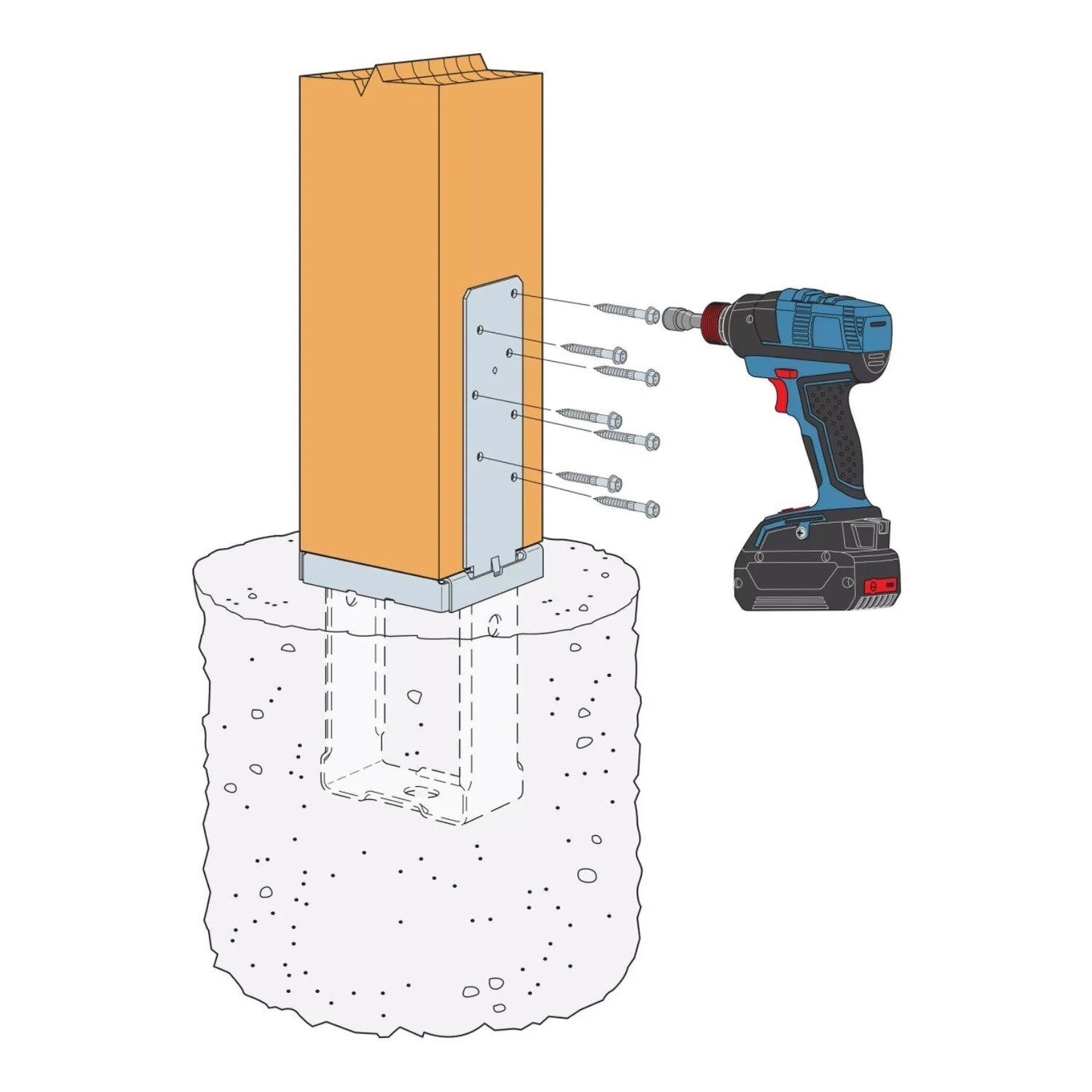

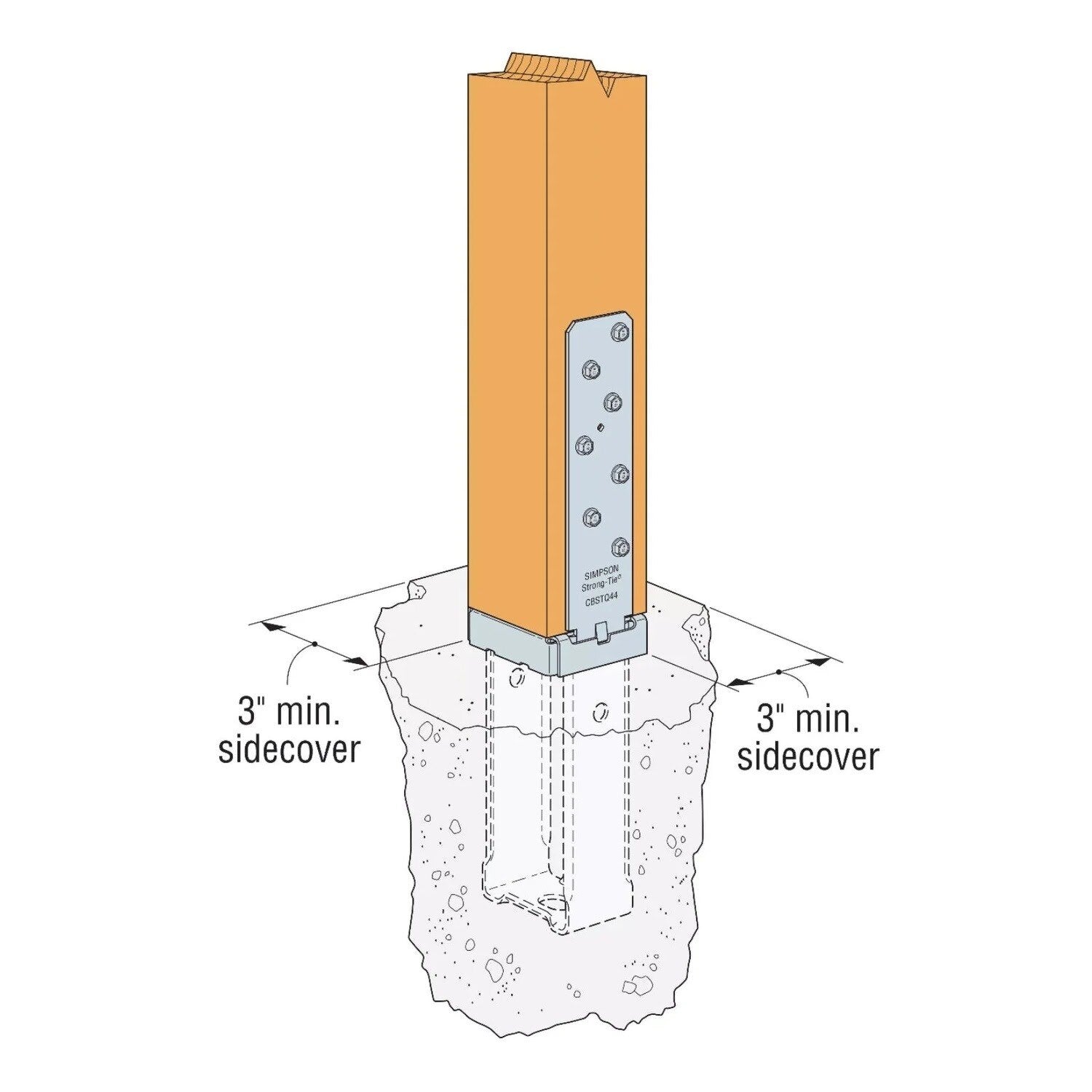

Simpson Strong-Tie CBSTQ66Z-SDS2 Installation Overview
- Prep the Surface: Ensure the concrete pad or footing is clean, flat, and fully cured.
- Anchor the Base: Fasten the column base using approved concrete anchors.
- Set the Post: Secure the wood post with recommended Simpson fasteners.
Simpson Strong-Tie CBSTQ66Z-SDS2 Specifications
| Finish | ZMAX |
| Material | Carbon Steel |
| Depth | 6-7/8" |
| Fasteners required | (14) 1/4" X 2" Strong-Drive SDS Heavy-Duty Connector Screws (included) |
| Height | 8-3/4" |
| Manufacturer name | Simpson Strong-Tie |
| Thickness | Base: 12 Gauge; Strap: 10 Gauge |
| Width | W1: 5-1/2"; W2: 5-1/2" |
