Simpson Anchors | SKU:
CBSTQ66Z

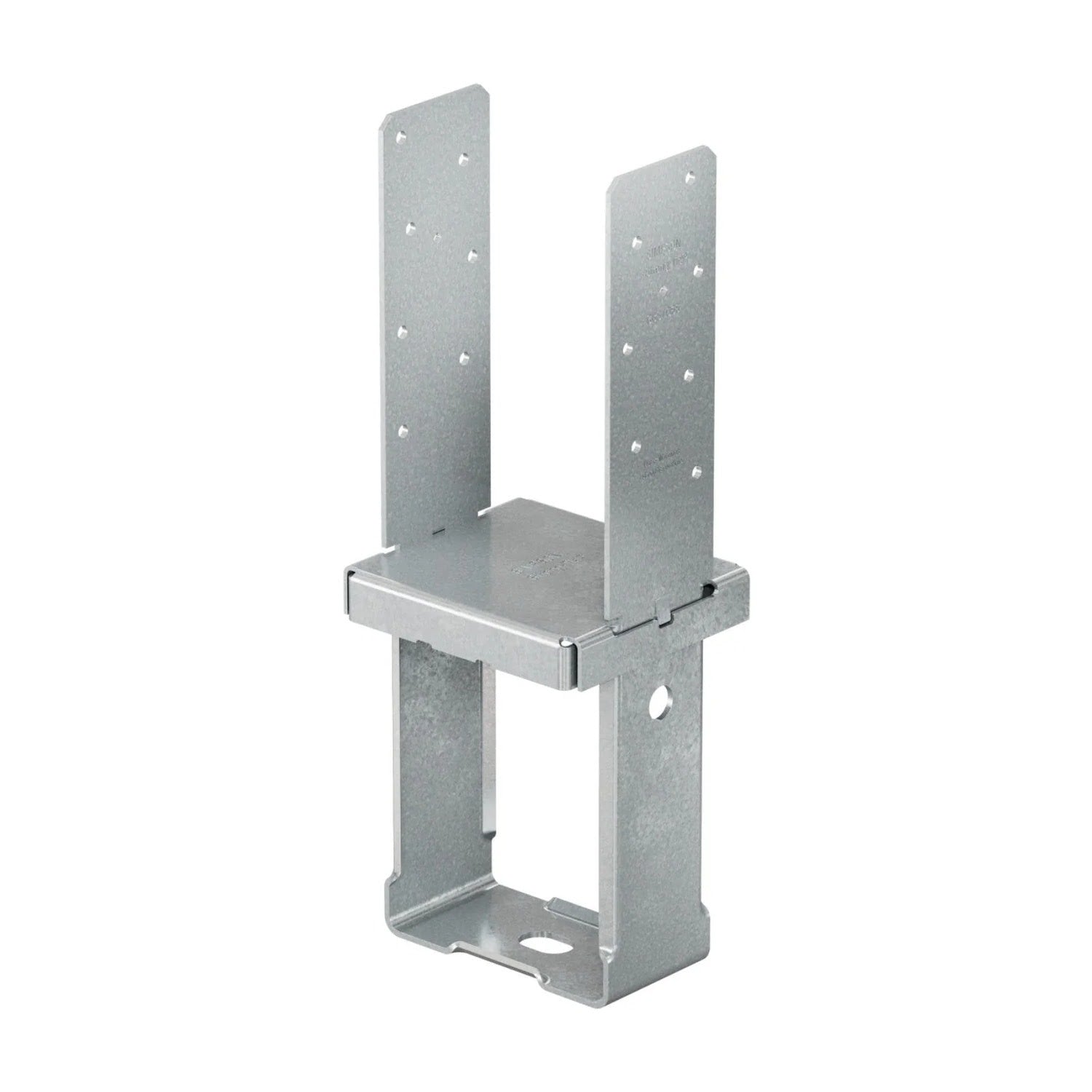

Simpson Strong-Tie CBSTQ66Z (8-3/4") Quick-Install Column Base - ZMAX Finish
$88.80
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie CBSTQ66Z Description
The Simpson Strong-Tie CBSTQ66Z Quick-Install Column Base with ZMAX coating is designed for anchoring wood columns to concrete, offering durability and corrosion resistance in exposed environments.
Simpson Strong-Tie CBSTQ66Z Includes
- (1) CBSTQ66Z Quick-Install Column Base
Simpson Strong-Tie CBSTQ66Z Features
- ZMAX Finish: Heavy-duty galvanized coating for outdoor and high-moisture environments.
- Elevated Post Support: Integrated standoff to prevent rot and water damage.
- High Load Capacity: Engineered for strong structural connections.
- Easy Install: Simplifies anchoring wood columns to concrete.
Simpson Strong-Tie CBSTQ66Z Applications
- Deck Posts and Porch Columns: Provides corrosion-resistant support for vertical framing.
- Outdoor Structures: Suitable for pergolas, gazebos, and freestanding patio structures.
- Exposed Residential Connections: Ideal for treated wood meeting concrete in weather-exposed settings.

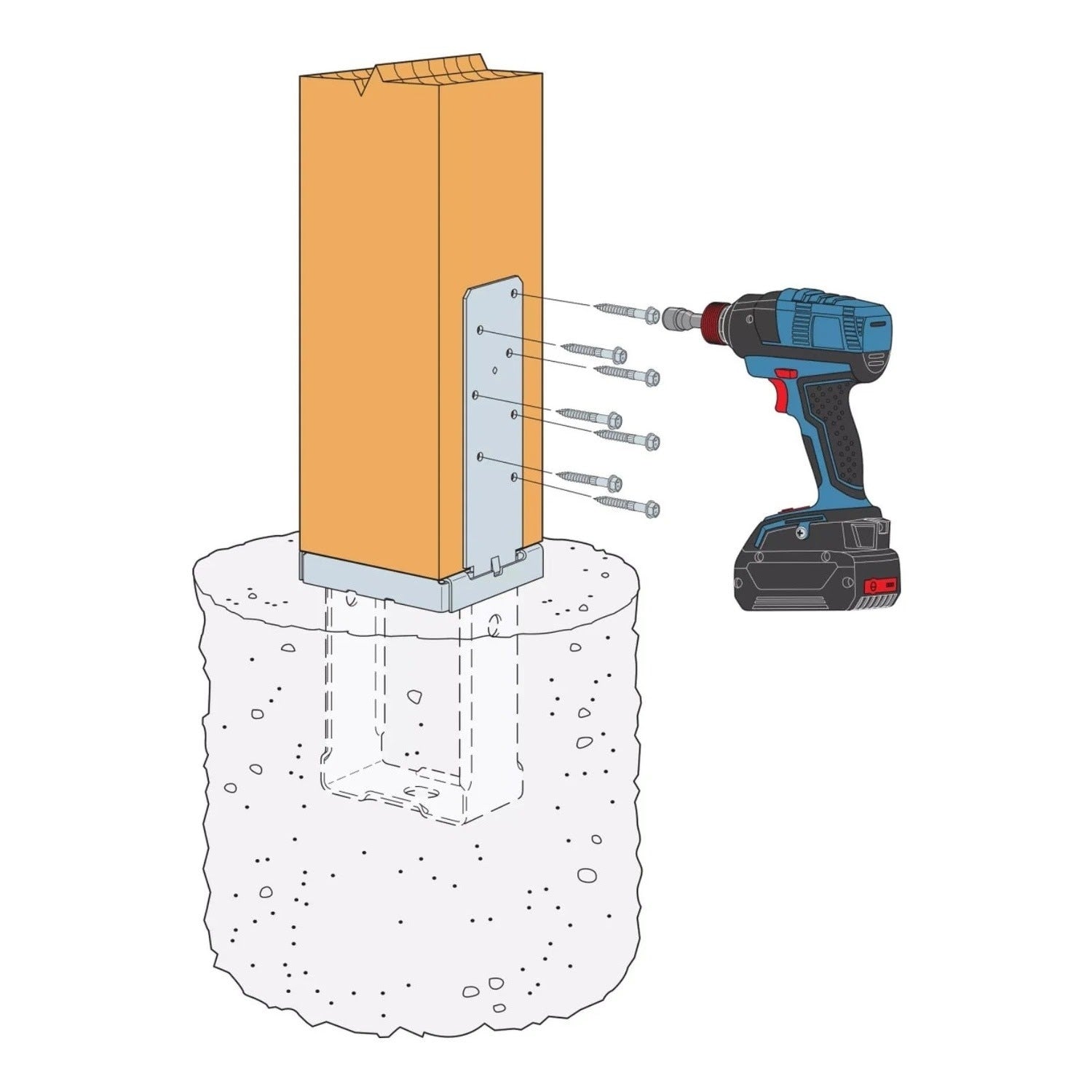

Simpson Strong-Tie CBSTQ66Z Installation Overview
- Prep the Surface: Ensure the concrete pad or footing is clean, flat, and fully cured.
- Anchor the Base: Fasten the CBSTQ ZMAX column base using approved concrete anchors.
- Set the Post: Secure the wood post with recommended Simpson fasteners.
Simpson Strong-Tie CBSTQ66Z Specifications
| Finish | ZMAX |
| Material | Carbon Steel |
| Depth | 6-7/8" |
| Fasteners required | (14) 1/4" X 2" Strong-Drive SDS Heavy-Duty Connector Screws |
| Height | 8-3/4" |
| Thickness | Base: 12 Gauge; Strap: 10 Gauge |
| Width | W1: 5-1/2"; W2: 5-1/2" |
