Simpson Anchors | SKU:
CBT4Z-KT
Simpson Strong-Tie CBT4Z-KT (14 in) Concealed Beam Tie Pin ZMAX
$54.56
Unit price
/
Unavailable
Description
Description
Simpson CBT4Z-KT Description

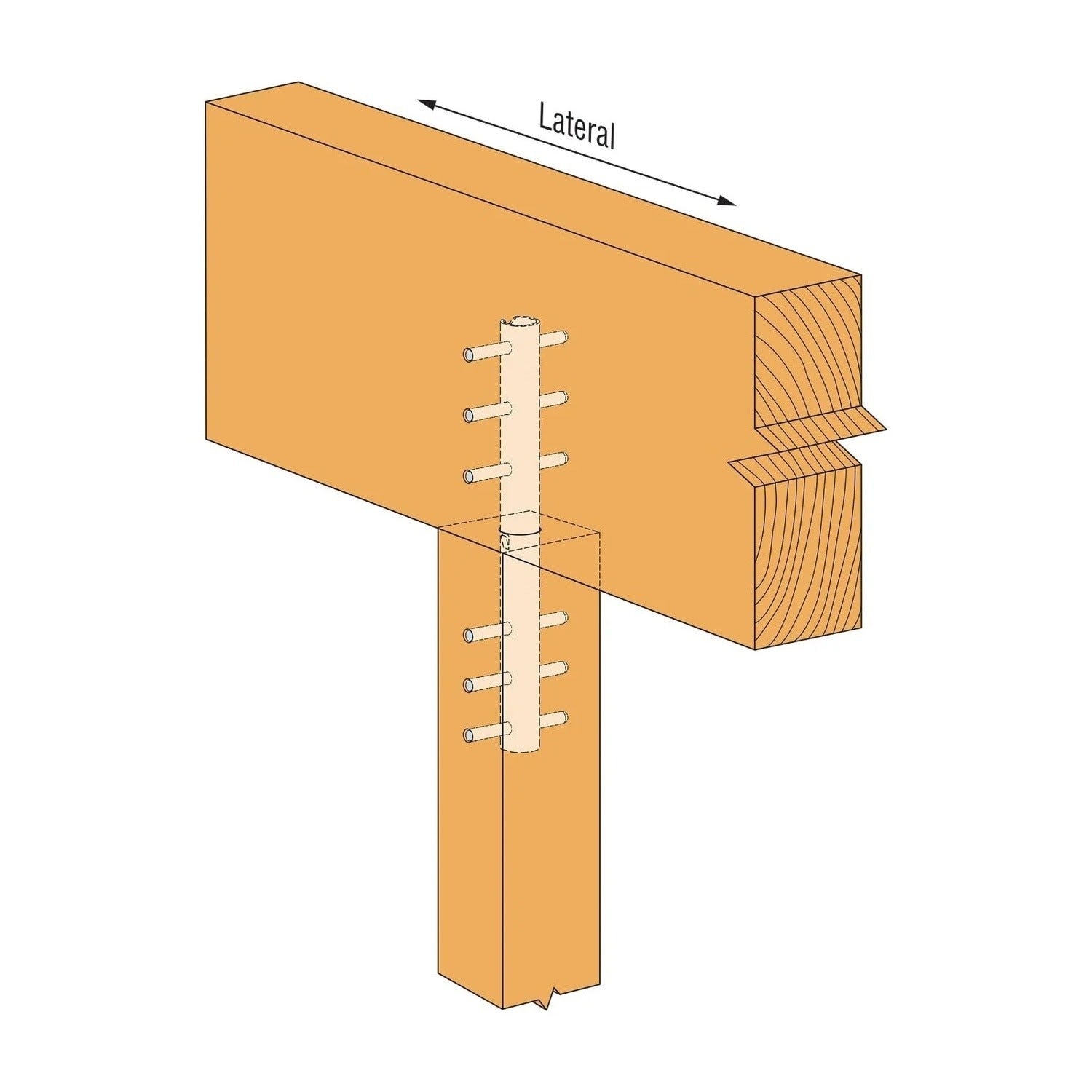

The CBT4Z Concealed Beam Tie provides a strong and visually appealing connection for 6x6 post and beam structures, featuring a ZMAX finish for corrosion resistance.

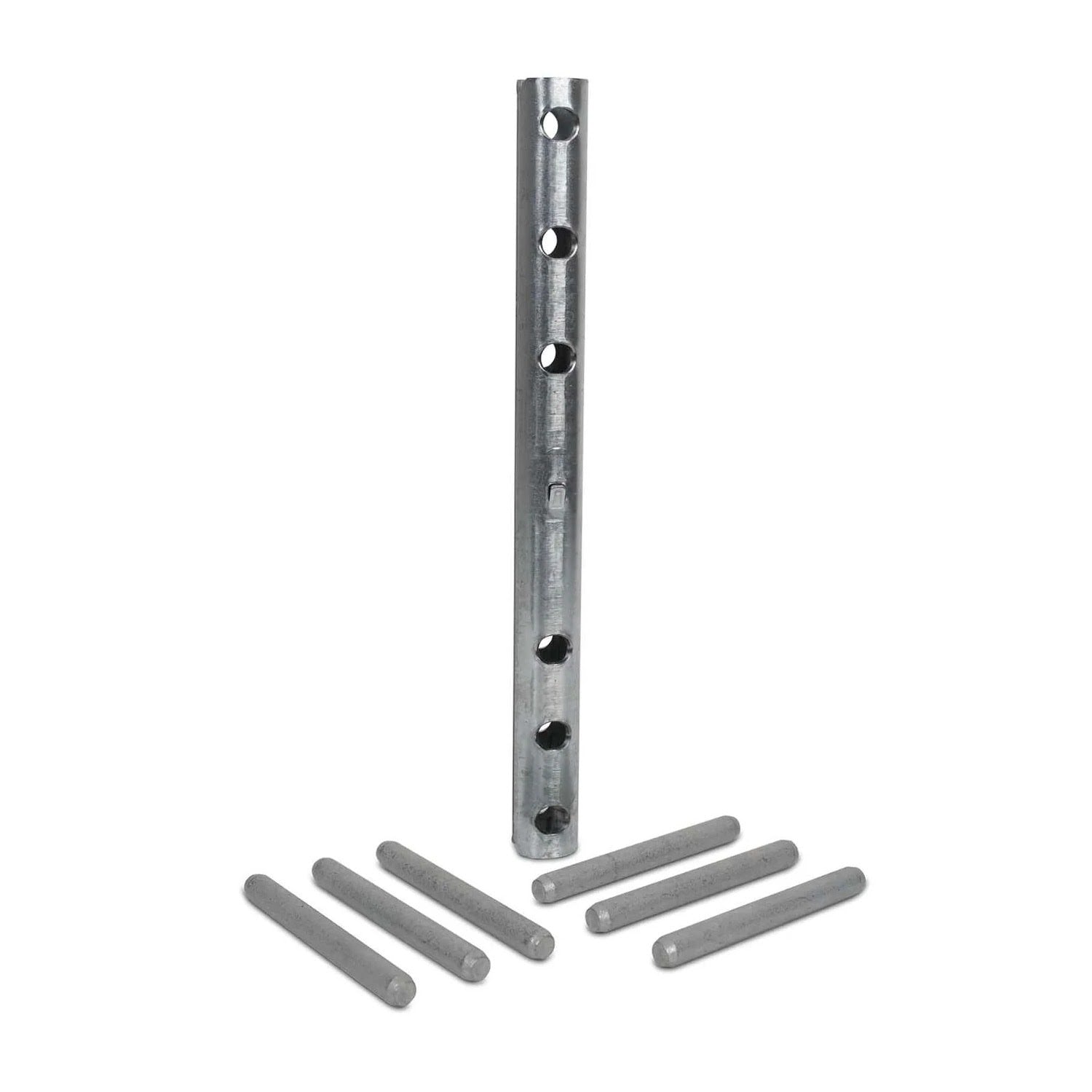

Simpson CBT4Z-KT Includes
- (1) Concealed Beam Tie ZMAX
- (6) 1/2 in. x 4-3/4 in. dowels
Simpson CBT4Z-KT Features
- Flattened sides assist installer while using the CBTZ as a template
- Locator tabs provide proper dimensional layout
- Required dowel pins included
- Orientation markings distinguish which end installs into the post and which end goes into the beam
Simpson CBT4Z-KT Applications
- Framing — Wood

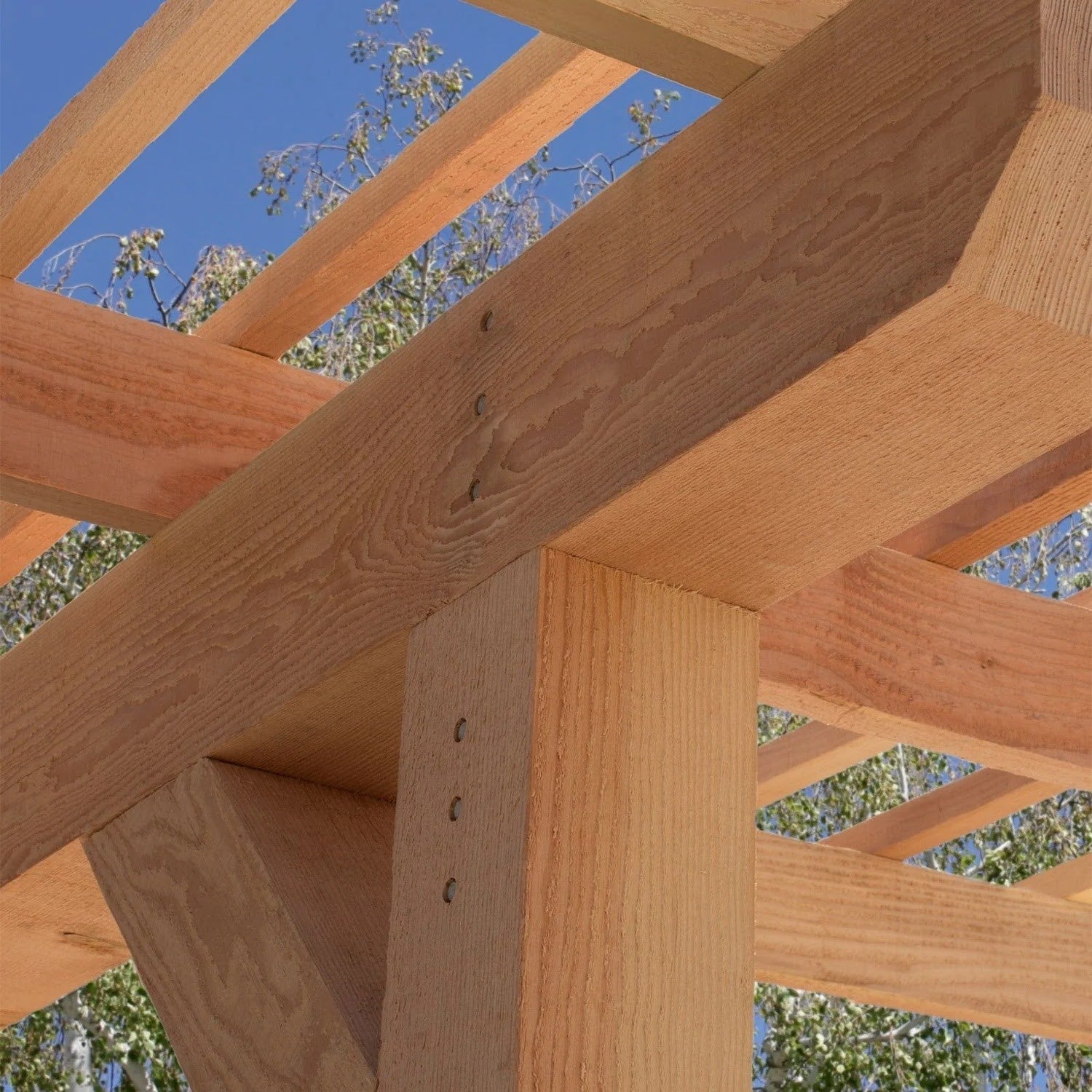

- Post-to-beam connections in decks and other wood structures
- Concealed structural connections for aesthetic appeal
Simpson CBT4Z-KT Installation Overview
- Use all specified fasteners as per guidelines
- Install 1/2" dowels included in the package
- Ensure proper orientation using markings on the tie
- Refer to technical bulletin for detailed instructions
Simpson CBT4Z-KT Specifications
| Material | 12 gauge |
| Finish | ZMAX coating |
| Post Size | 6x6 |
| Beam Size | 6x8 |
| Weight | 3.0 lb |
NOTE: Ensure all specified fasteners are used to achieve published load values
