Simpson Anchors | SKU:
CC3 1/4-6

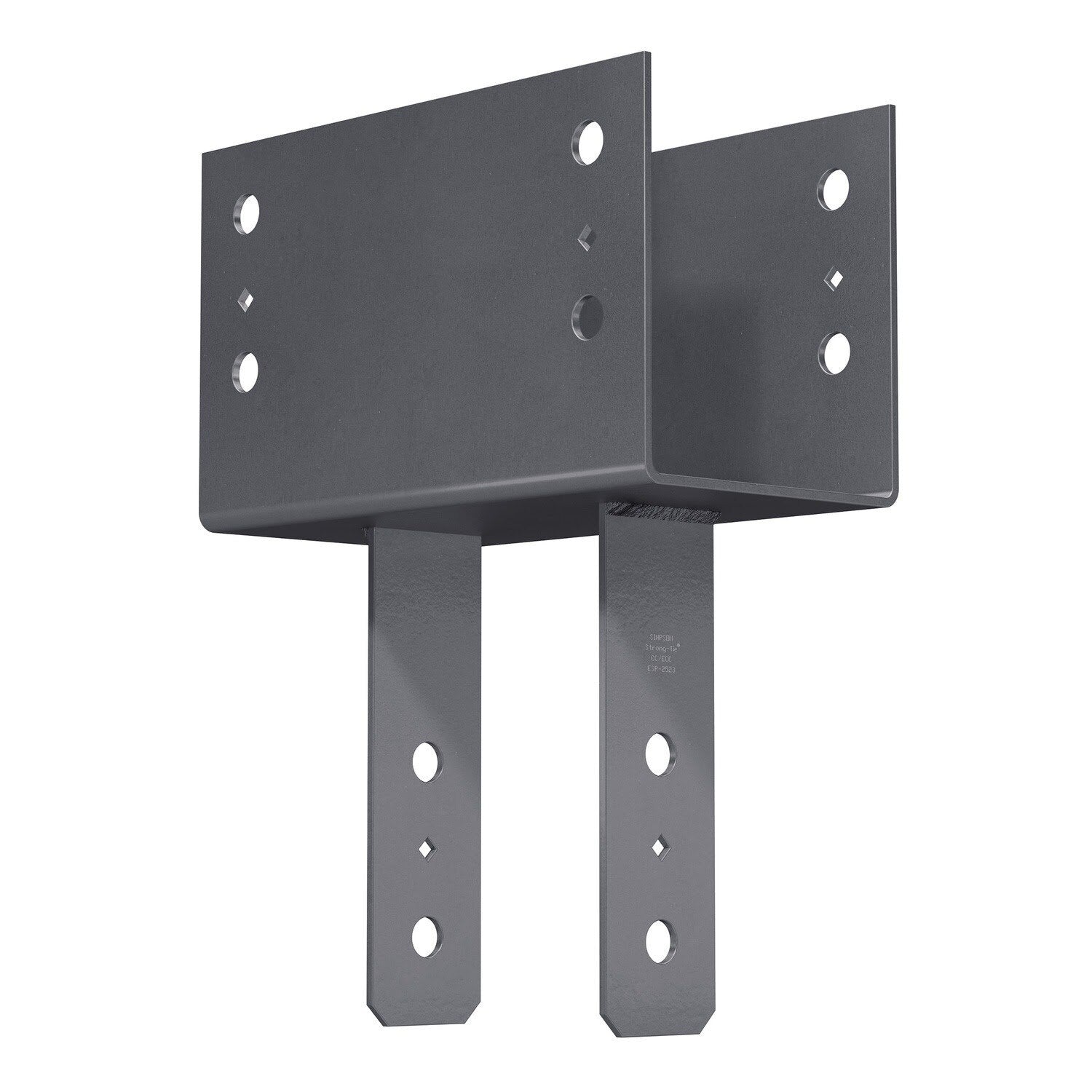

Simpson Strong-Tie CC3 1/4-6 CC (3-1/8" Beam, 6x Post) Column Cap
$122.32
$178.74
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie CC3 1/4-6 Description
The Simpson CC3 1/4-6 Column Cap provides a high-capacity connection for 3-1/8" beams and 6x posts, ensuring strength and stability in wood construction.
Simpson Strong-Tie CC3 1/4-6 Includes
- (1) CC3 1/4-6 Column Cap
Simpson Strong-Tie CC3 1/4-6 Features
- Provides strong column-to-beam connection
- Made from heavy-gauge steel for durability
- Available in Black Powder Coat or Gray Paint finishes
- Certified welds for strength and loading
- Designed for 3-1/8" beams and 6x posts
Simpson Strong-Tie CC3 1/4-6 Applications

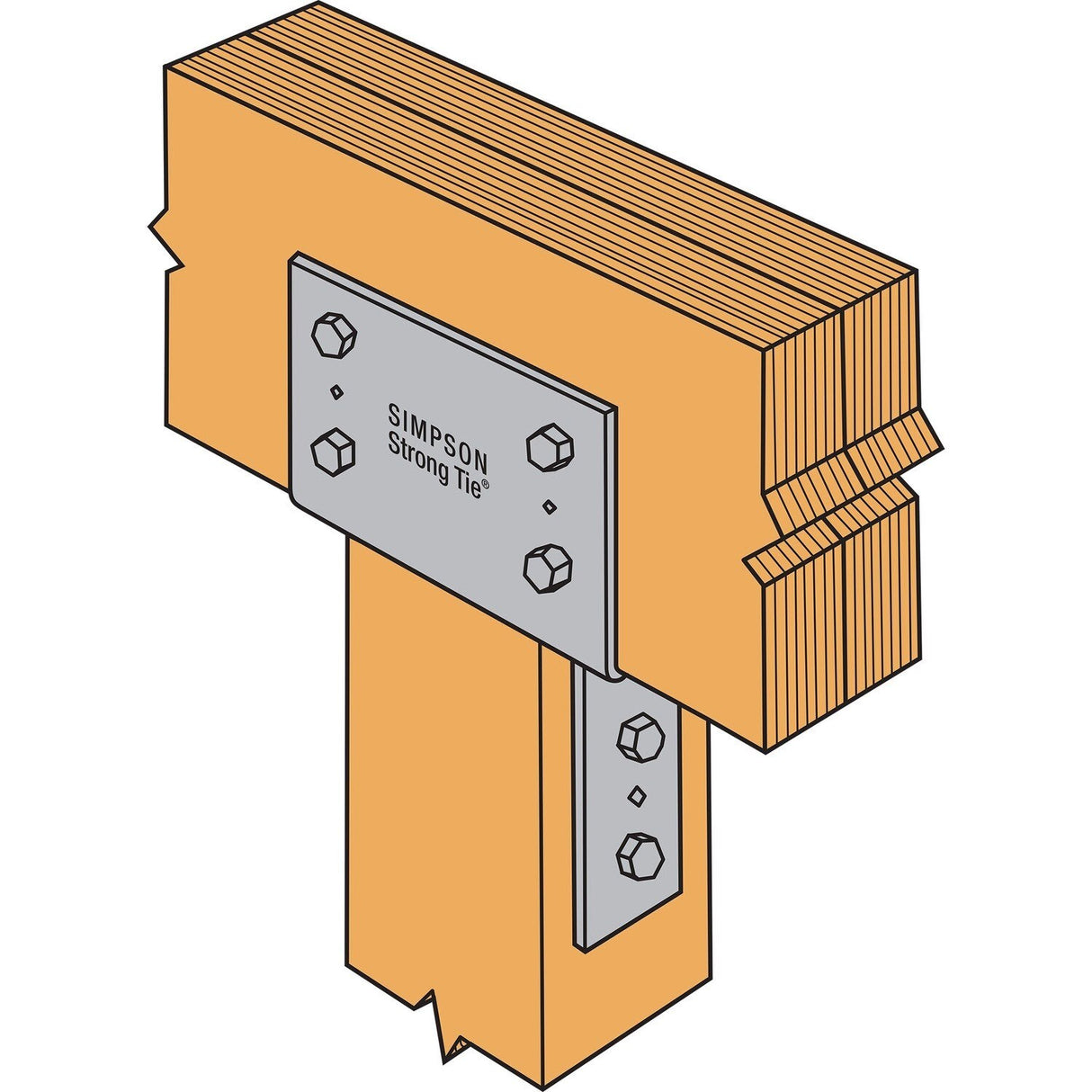

- Wood construction requiring column-to-beam connections
- Projects needing enhanced load distribution and stability
Simpson Strong-Tie CC3 1/4-6 Installation Overview
- Use all specified fasteners.
- Ensure bolt holes are sized correctly as per NDS guidelines.
- Contact engineered wood manufacturers for non-standard connections.

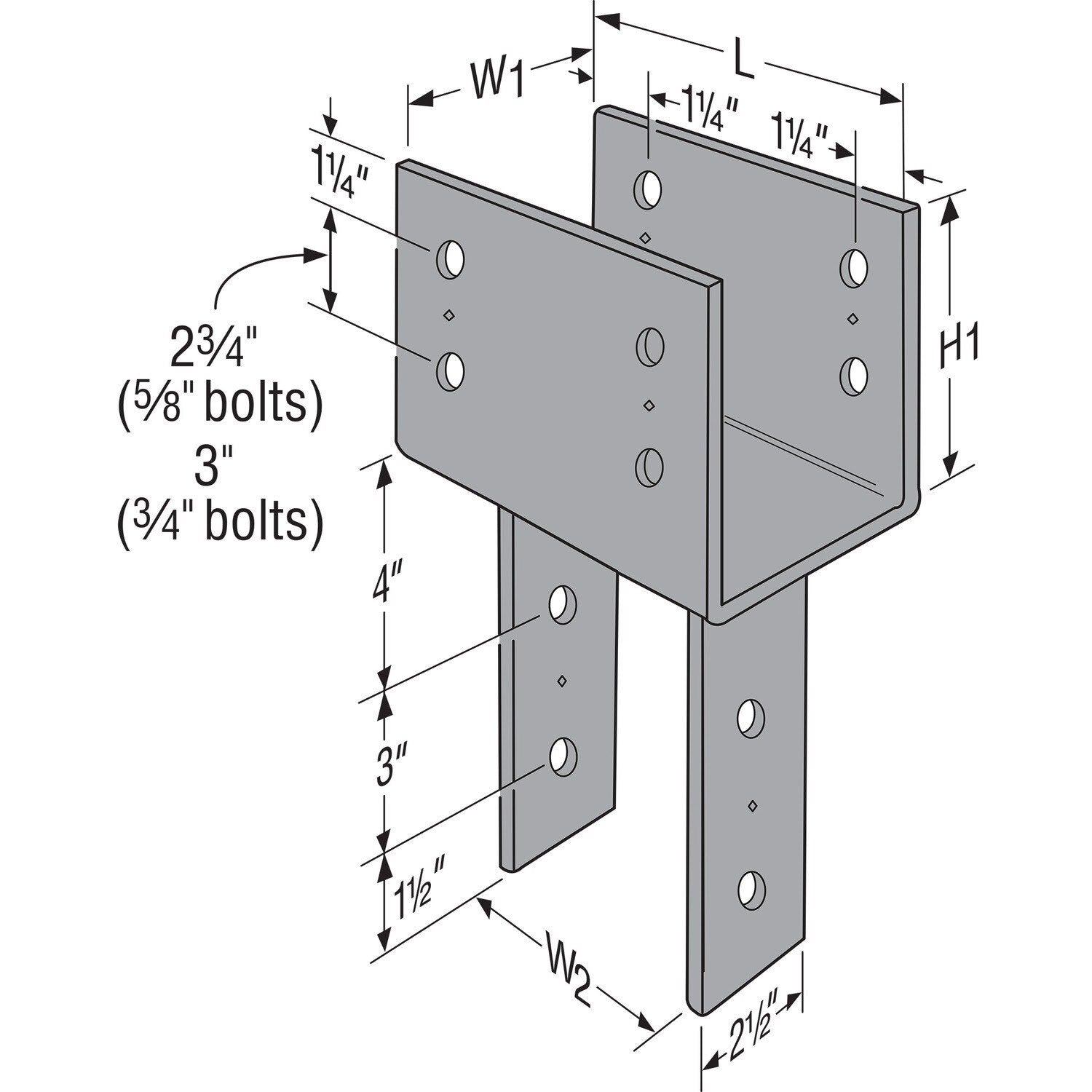

Simpson Strong-Tie CC3 1/4-6 Specifications
| Finish | Black Powder Coat or Gray Paint |
| Material | Heavy Gauge Steel |
| Beam size | 3-1/8" |
| Post size | 6x |
| Thickness | 7 Gauge |
| Fasteners required | Beam - (4) 5/8" Machine Bolts, Post - (2) 5/8" Machine Bolts |
| For Treated Lumber | No |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
