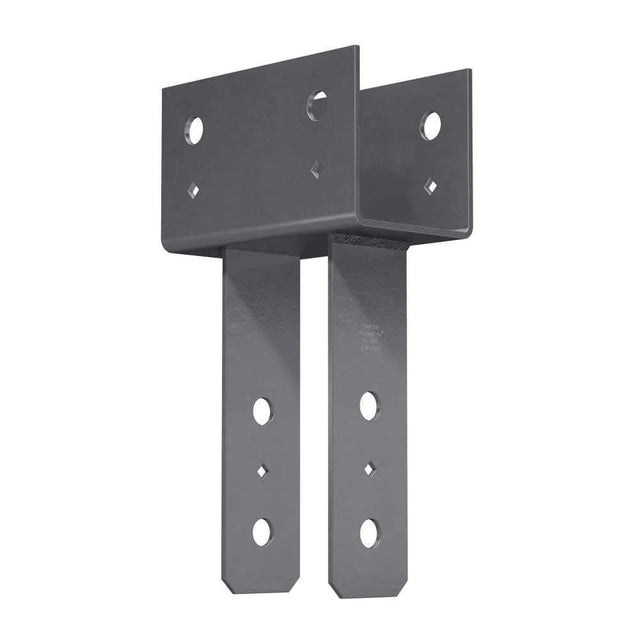

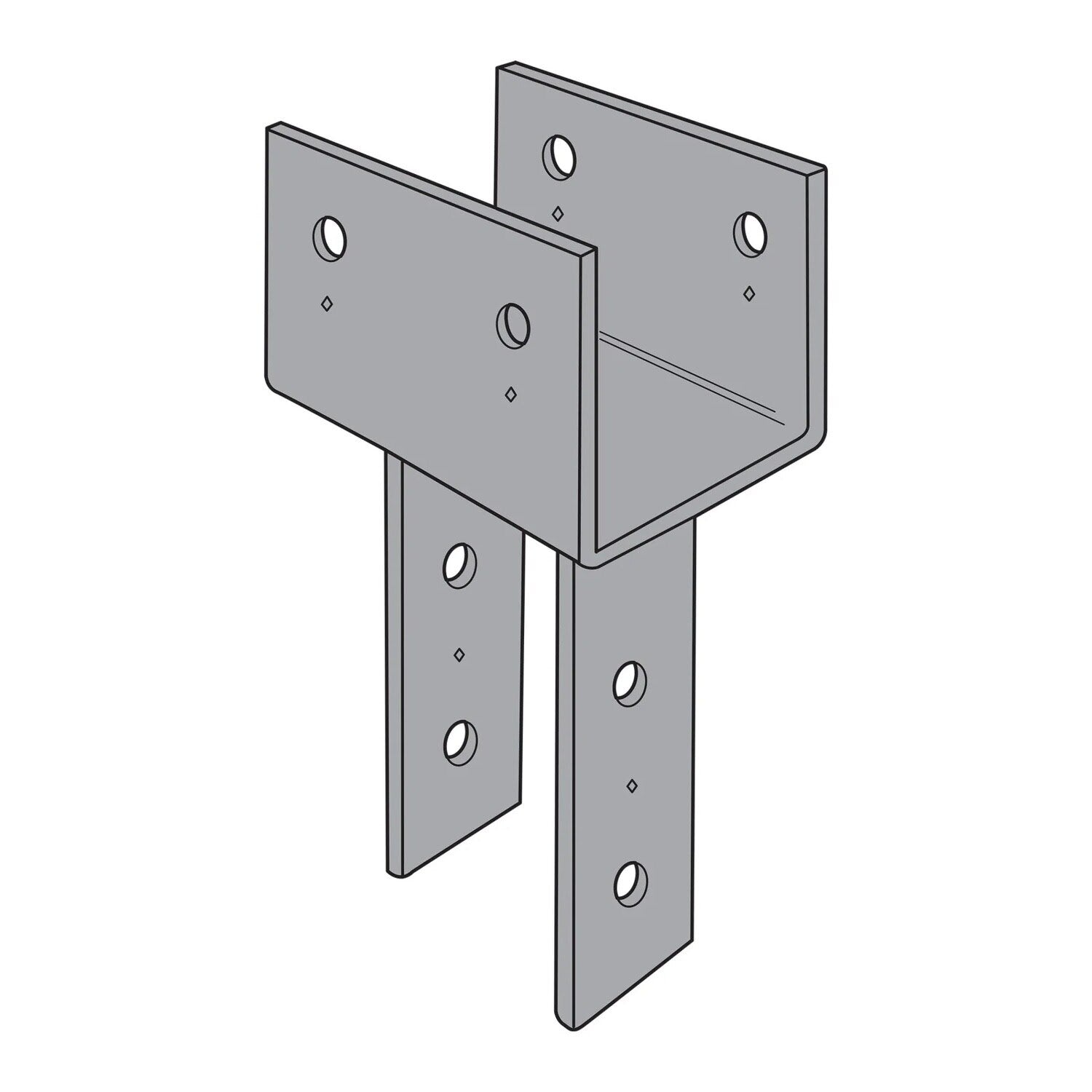

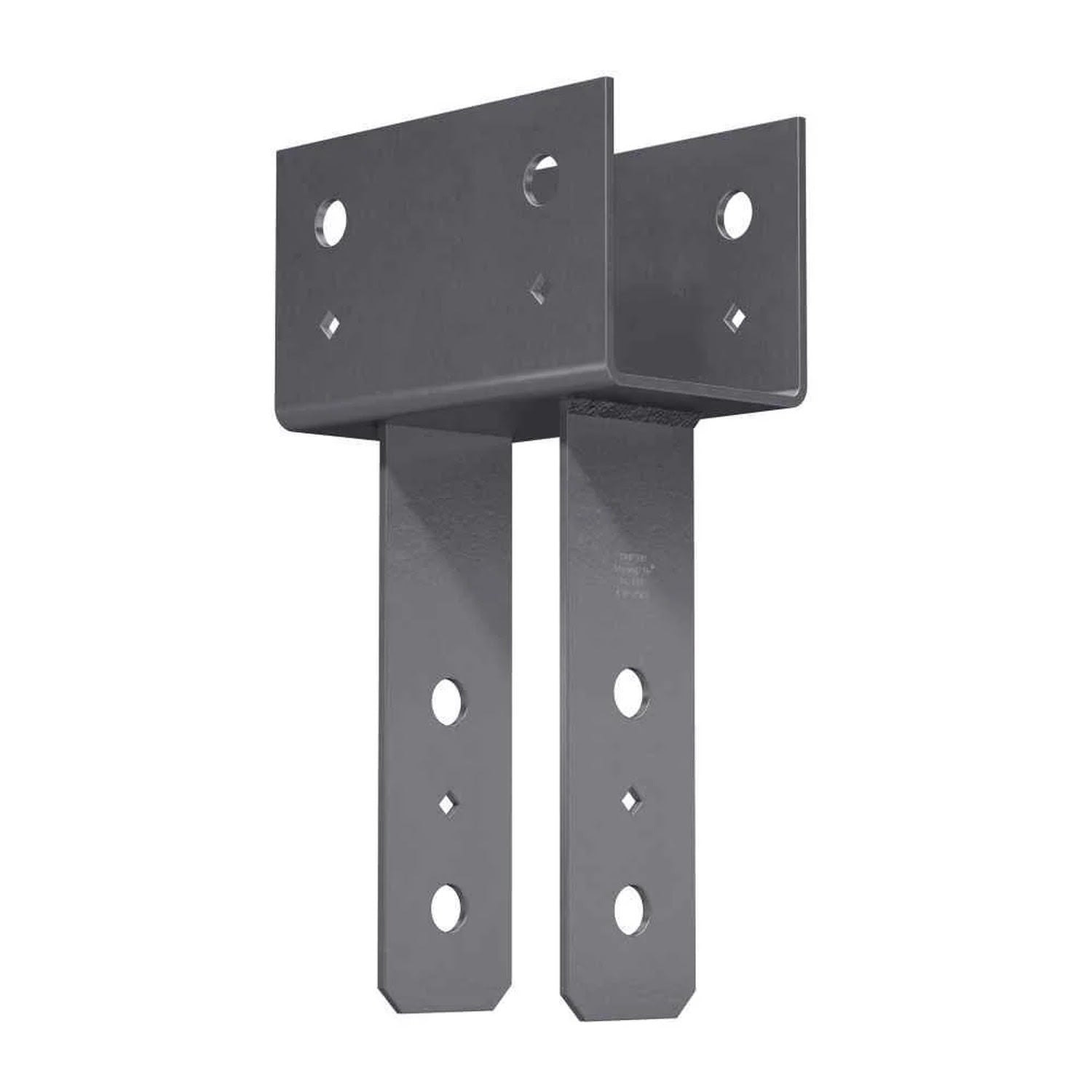

Simpson Strong-Tie CC44 Description
The Simpson CC44 Column Cap enhances the strength and stability of your construction projects, providing a durable column-to-beam connection for wood construction.
Simpson Strong-Tie CC44 Includes
- (1) Simpson CC44 Column Cap
Simpson Strong-Tie CC44 Features
- Provides strong column-to-beam connection
- Extended column seat area for better load distribution
- Made from heavy-gauge steel for durability
- Gray paint finish for added protection
- Certified welds for increased strength and loading
- Diamond holes for temporary fastening during installation
- Bolt spacing meets NDS code requirements
Simpson Strong-Tie CC44 Applications
- Wood construction requiring column-to-beam connections
- Projects needing enhanced load distribution and stability
- Construction in areas with earthquake or wind loading

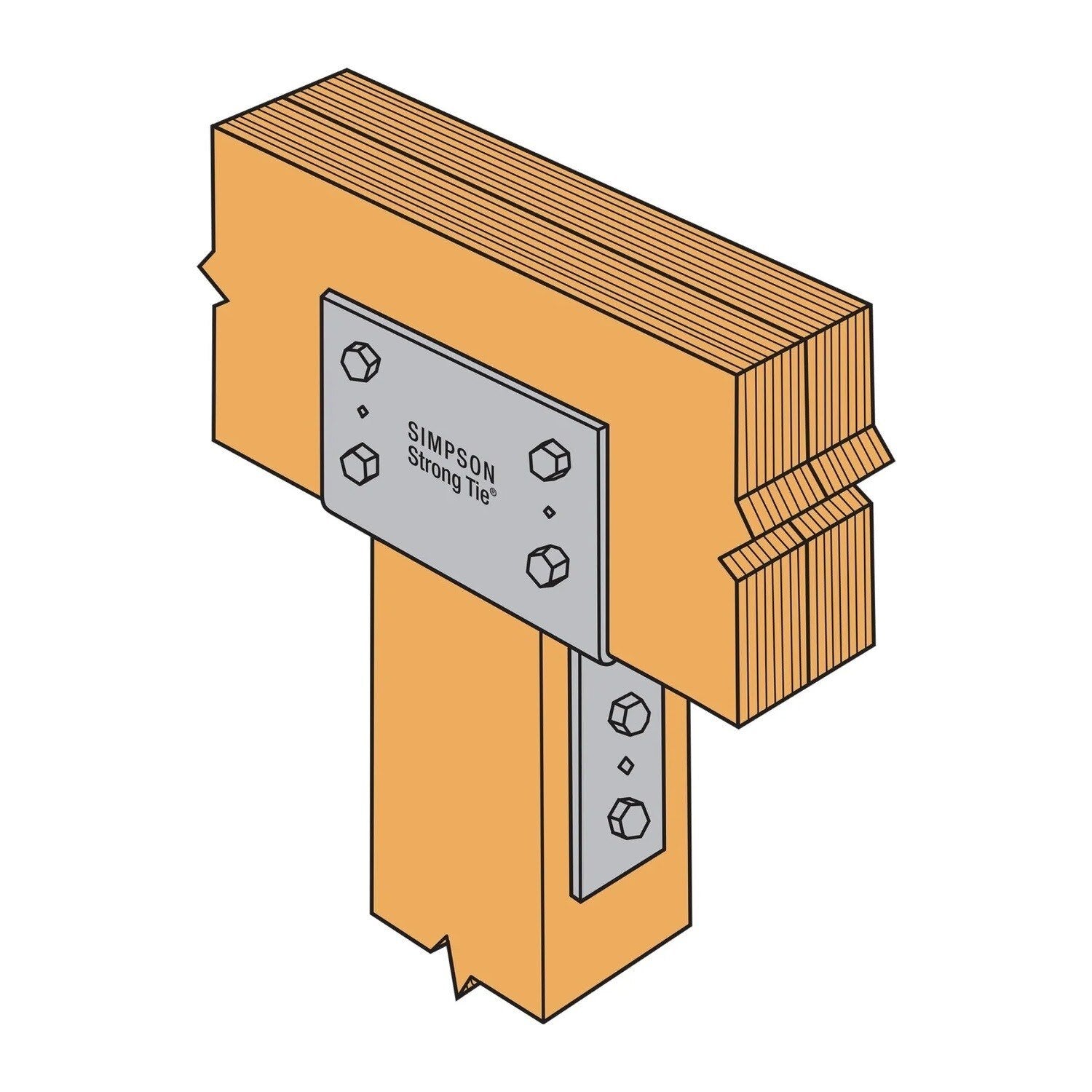

Simpson Strong-Tie CC44 Installation Overview
- Align the column cap with the 4x post and beam
- Secure temporarily using the diamond holes
- Fasten using the specified bolts for beam and post
- Ensure bolt spacing complies with NDS code requirements
Simpson Strong-Tie CC44 Specifications
| Finish | Gray Paint |
| Material | Heavy Gauge Steel |
| Beam size | 4x |
| Fasteners required | Beam - (2) 5/8" Machine Bolts, Post - (2) 5/8" Machine Bolts |
| For Treated Lumber | No |
| Post size | 4x |
| Thickness | 7 Gauge |
Toolup Part # :
248652
