Simpson Anchors | SKU:
CC44ROT

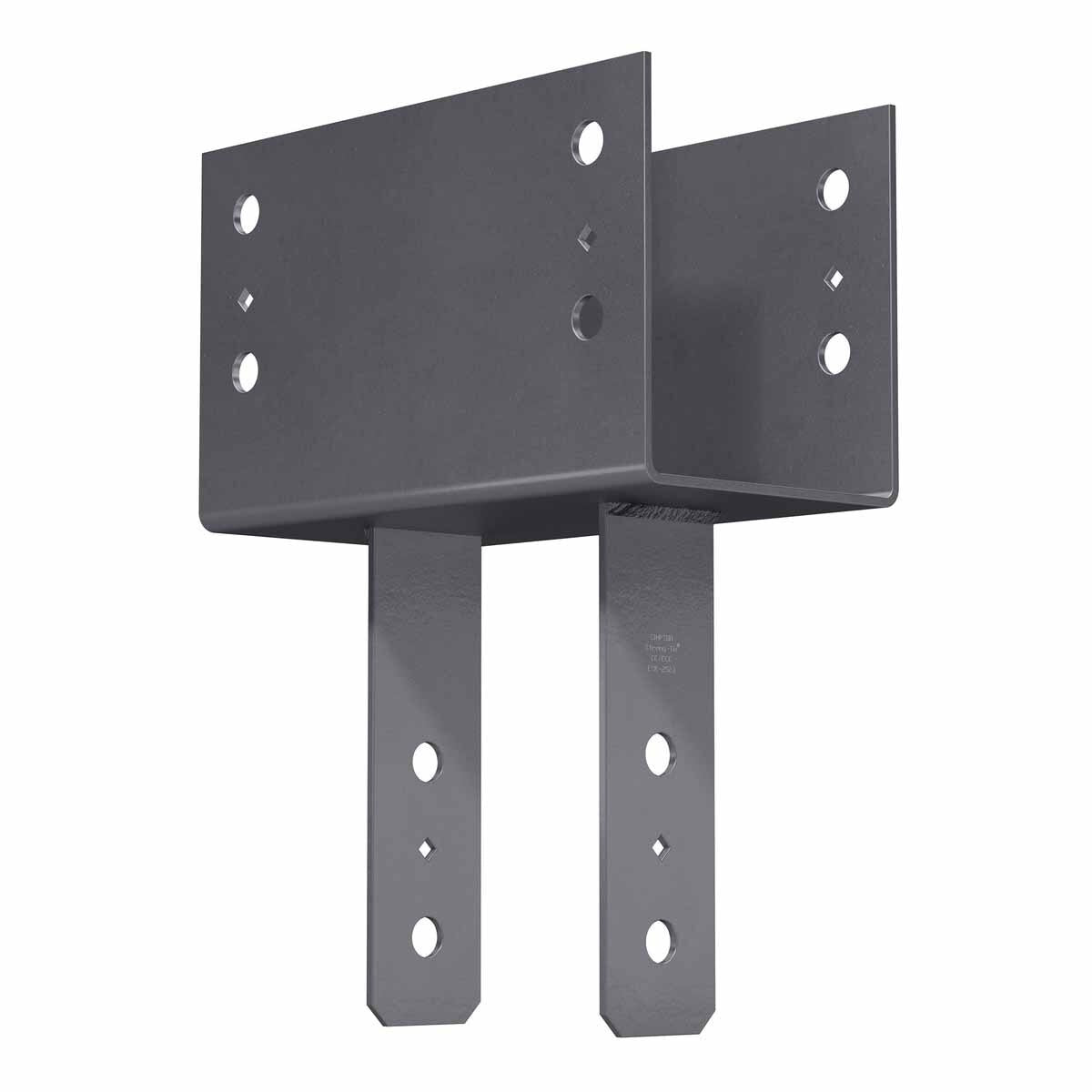

Simpson Strong-Tie CC44ROT Column Cap for 4x Beam and 4x Post, Gray Paint, Heavy Gauge Steel
$70.58
$101.50
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie CC44ROT Description
The Simpson CC44ROT Column Cap enhances the strength and stability of your construction projects, providing a durable and reliable column-to-beam connection.
Simpson Strong-Tie CC44ROT Includes
- (1) Column Cap
Simpson Strong-Tie CC44ROT Features
- Provides strong column-to-beam connection
- Extended area of the column seat for additional surface area of bearing
- Made from heavy gauge steel for durability
- Finished with gray paint coating
- Certified welds for strength and loading
- Increased uplift loads for earthquake or wind loading
- Diamond holes for temporary fastening during installation
- Bolt spacing meets NDS code requirements
Simpson Strong-Tie CC44ROT Applications

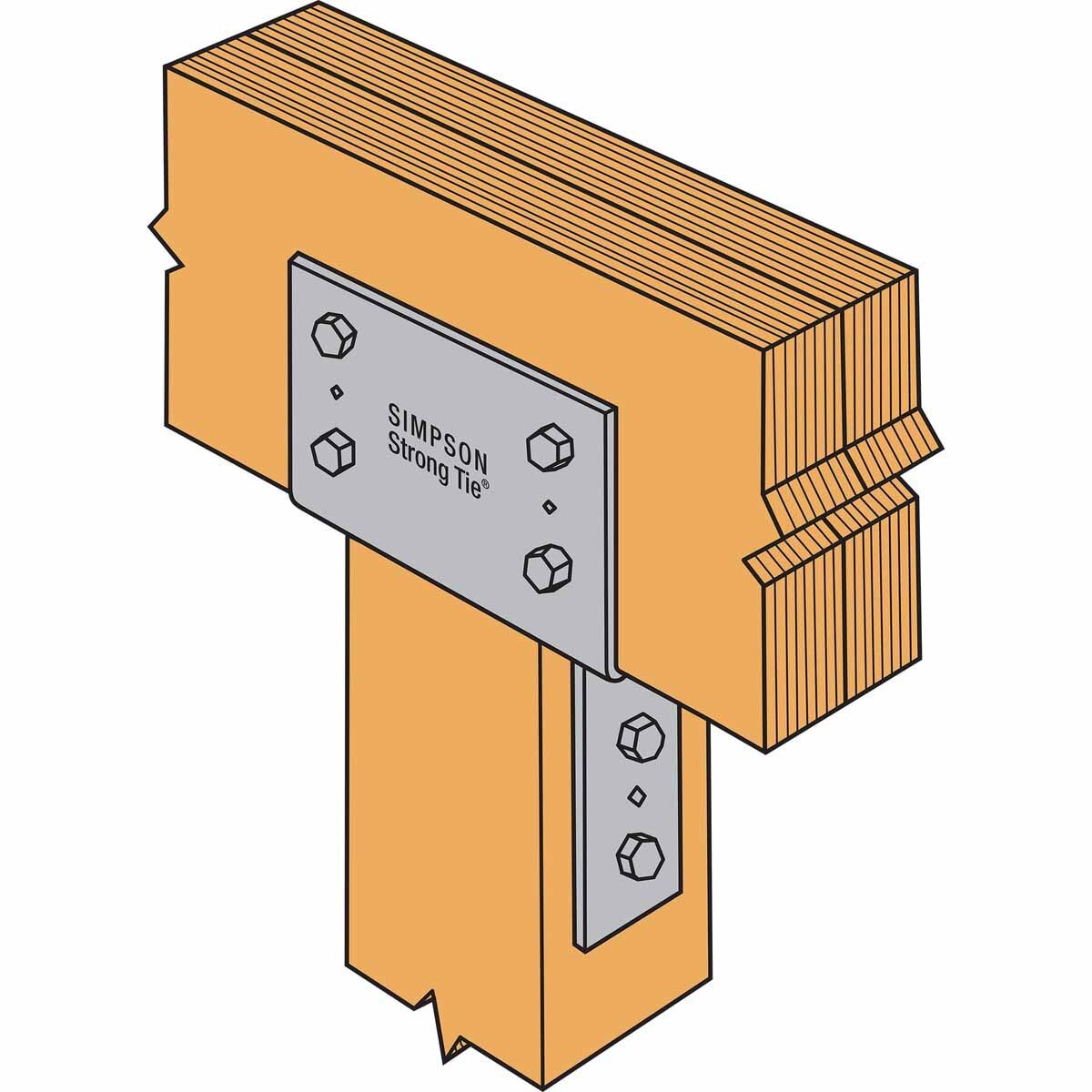

- Column-to-beam connections in wood construction
- Projects requiring enhanced load distribution and stability
Simpson Strong-Tie CC44ROT Installation Overview
- Align the column cap with the beam and post
- Secure using the specified bolts as per the guidelines
- Ensure proper alignment and fastening for optimal performance

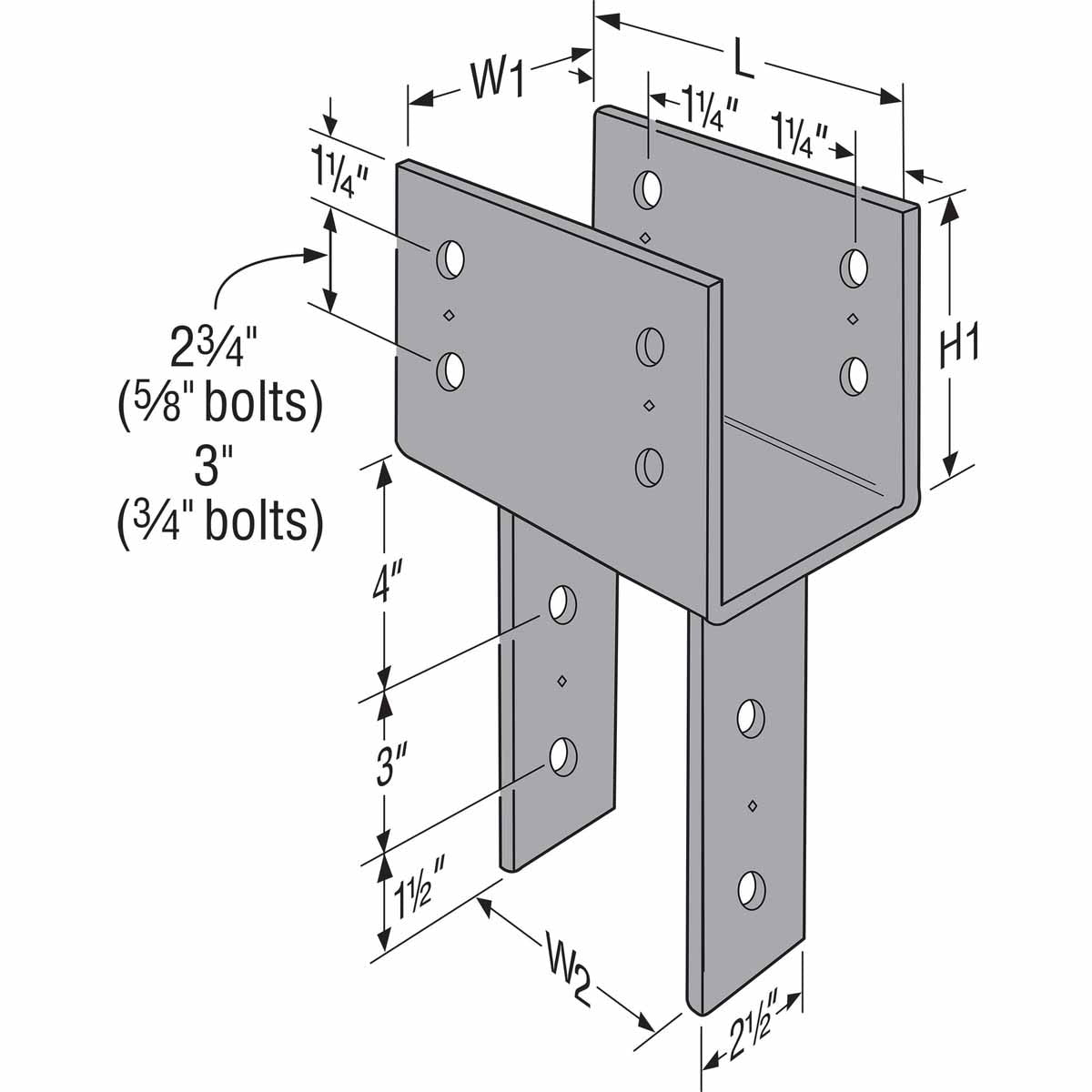

Simpson Strong-Tie CC44ROT Specifications
| Finish | Gray Paint |
| Length | 7" |
| Material | Heavy Gauge Steel |
| Beam size | 4x |
| Fasteners required | Size 5/8" Bolts - Beam - (2); Post (2) |
| Height | 4" |
| Post size | 4x |
| Quantity | 1 |
| Thickness | 7 Gauge |
| Width | 3-5/8" |
NOTE: This item is made to order and is non-returnable.
