Simpson Anchors | SKU:
CC44TC

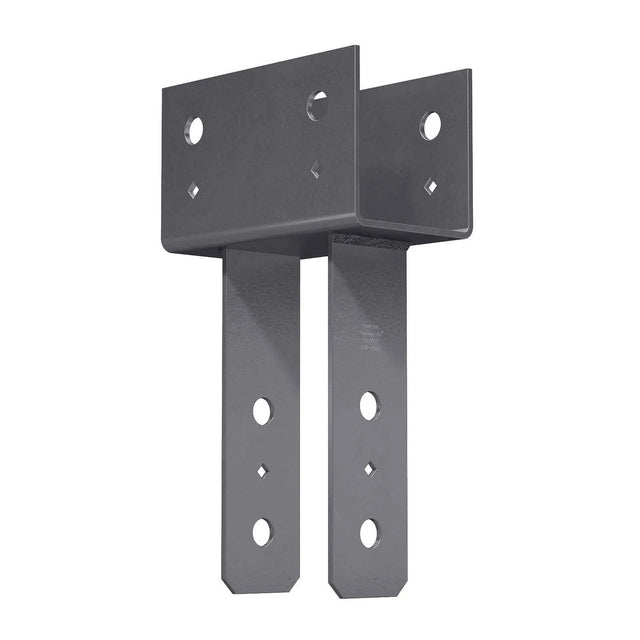

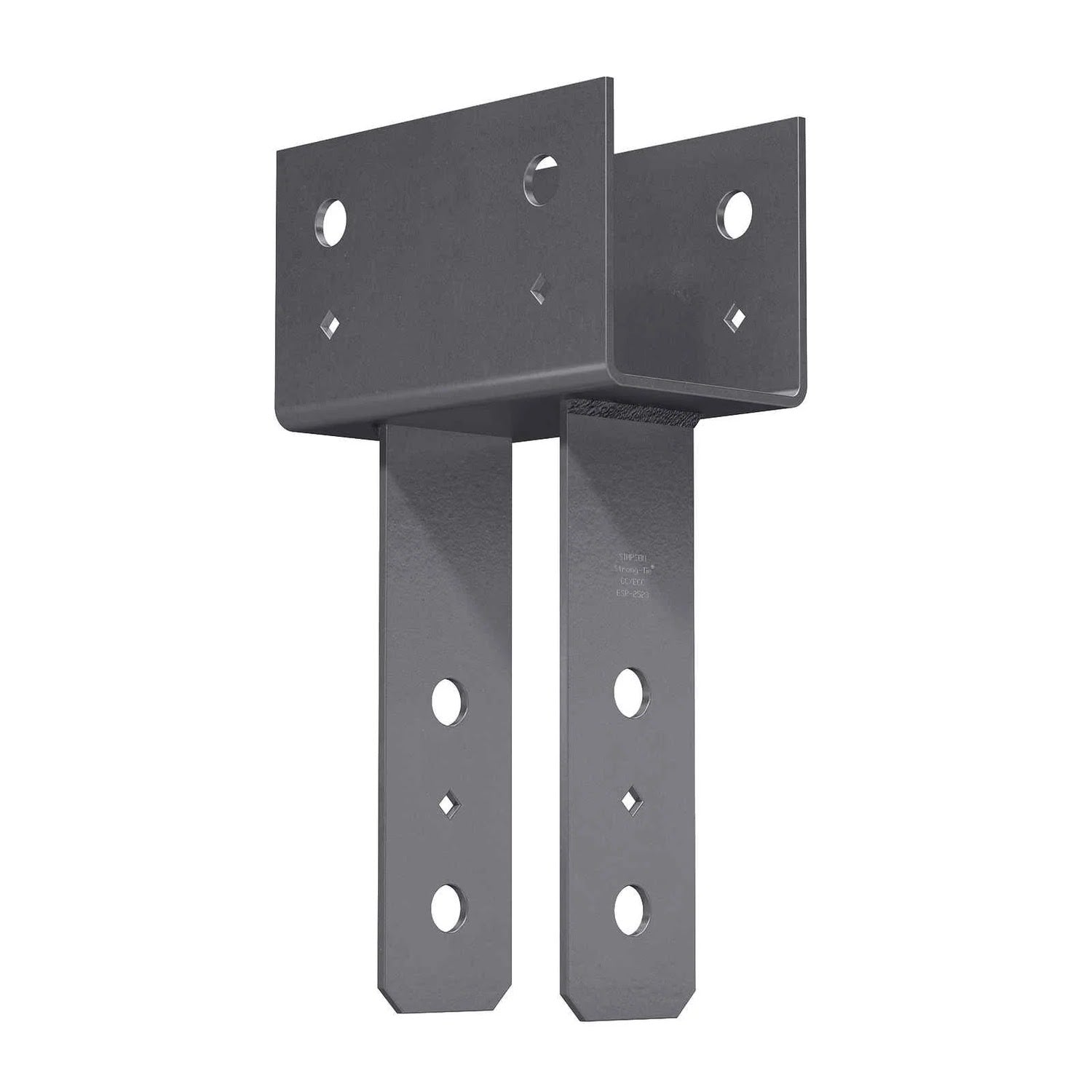

Simpson Strong-Tie CC44TC Heavy-Gauge Steel Column Cap for 4x Beam and 4x Post, Gray Paint
$109.16
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie CC44TC Description
The Simpson CC44TC Column Cap enhances the strength and stability of your construction projects, providing a durable column-to-beam connection.
Simpson Strong-Tie CC44TC Includes
- (1) Heavy-Gauge Steel Column Cap
Simpson Strong-Tie CC44TC Features
- Provides strong column-to-beam connection
- Extended area of the column seat for additional surface area of bearing
- Made from heavy-gauge steel for durability
- Finished with gray paint coating
- Certified welds for strength and loading
- Increased uplift loads for earthquake or wind loading
- Features diamond holes for temporary fastening during installation
- Bolt spacing meets NDS code requirements
Simpson Strong-Tie CC44TC Applications
- Column-to-beam connections in wood construction
- Use with 4x posts or columns
- Suitable for earthquake or wind loading scenarios
Simpson Strong-Tie CC44TC Installation Overview
- Align the column cap with the beam and post
- Secure temporarily using the diamond holes
- Fasten with size 5/8" bolts as specified
Simpson Strong-Tie CC44TC Specifications
| Finish | Gray Paint |
| Length | 7" |
| Material | Heavy Gauge Steel |
| Beam size | 4x |
| Fasteners required | Size 5/8" Bolts - Beam - (2); Post (2) |
| Height | 4" |
| Post size | 4x |
| Quantity | 1 |
| Thickness | 7 Gauge |
| Width | 3-5/8" |
NOTE: This item is made to order and is non-returnable.
