Simpson Anchors | SKU:
CC46
Simpson Strong-Tie CC46 Column Cap for 4x Beam and 6x Post
$100.92
$149.87
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie CC46 Description

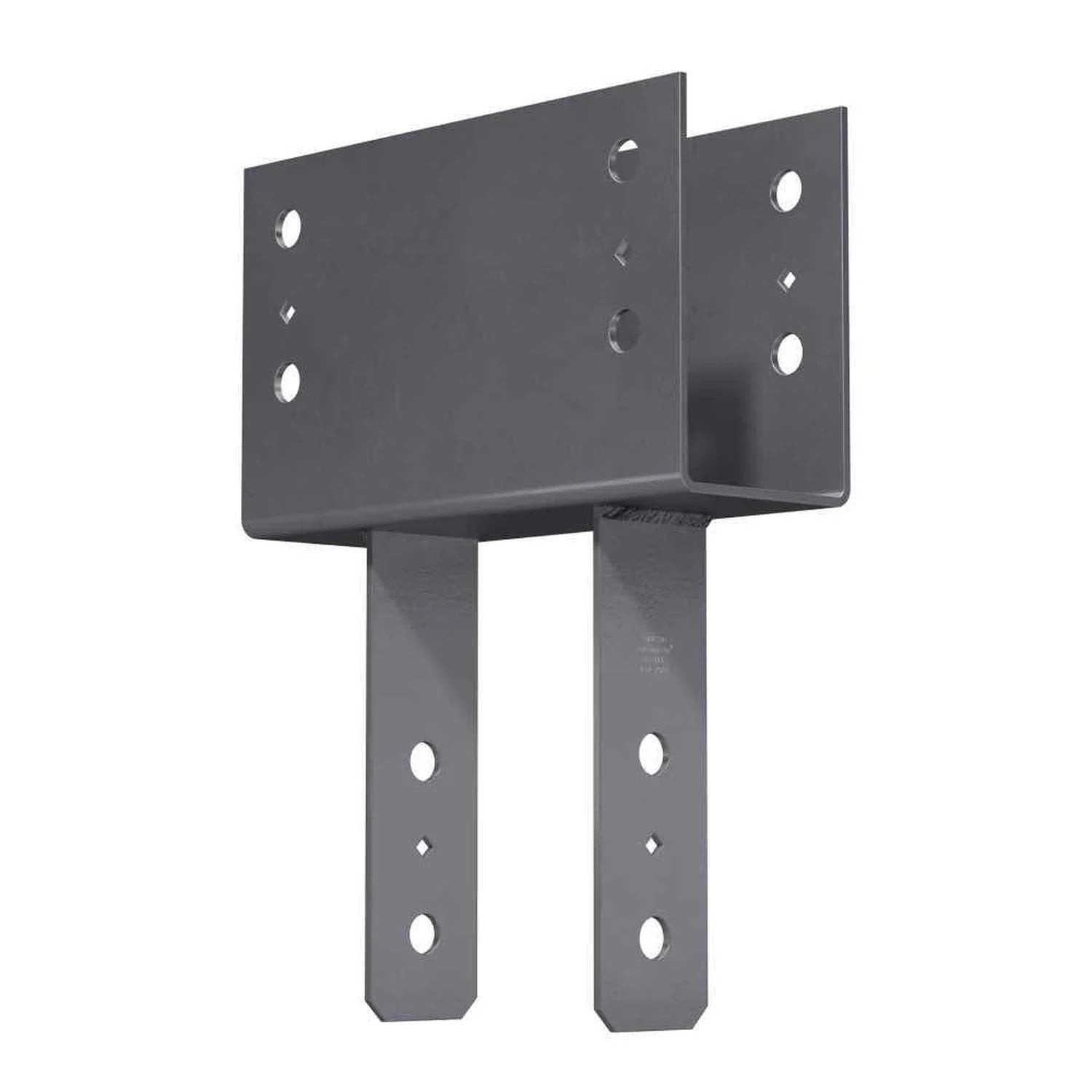

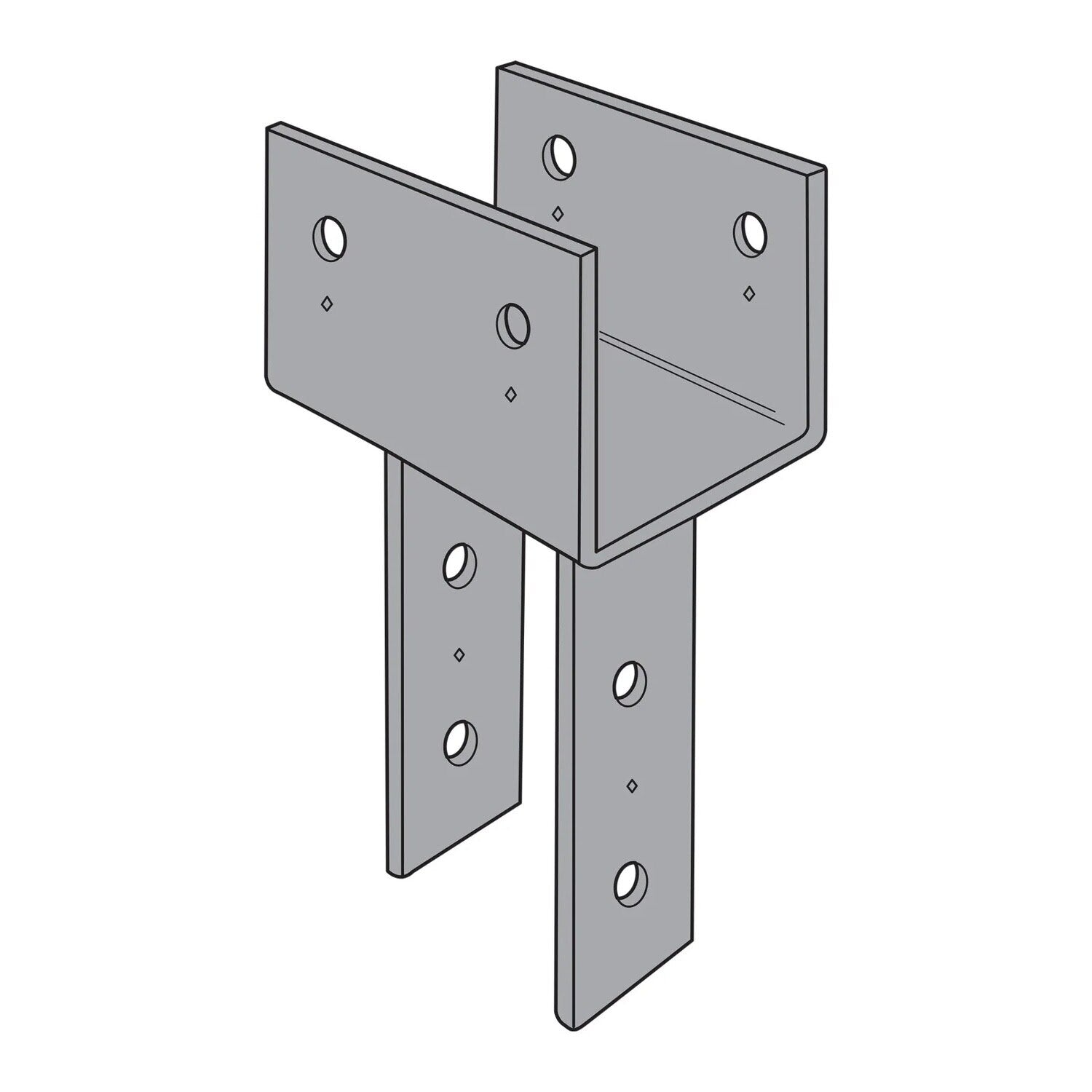

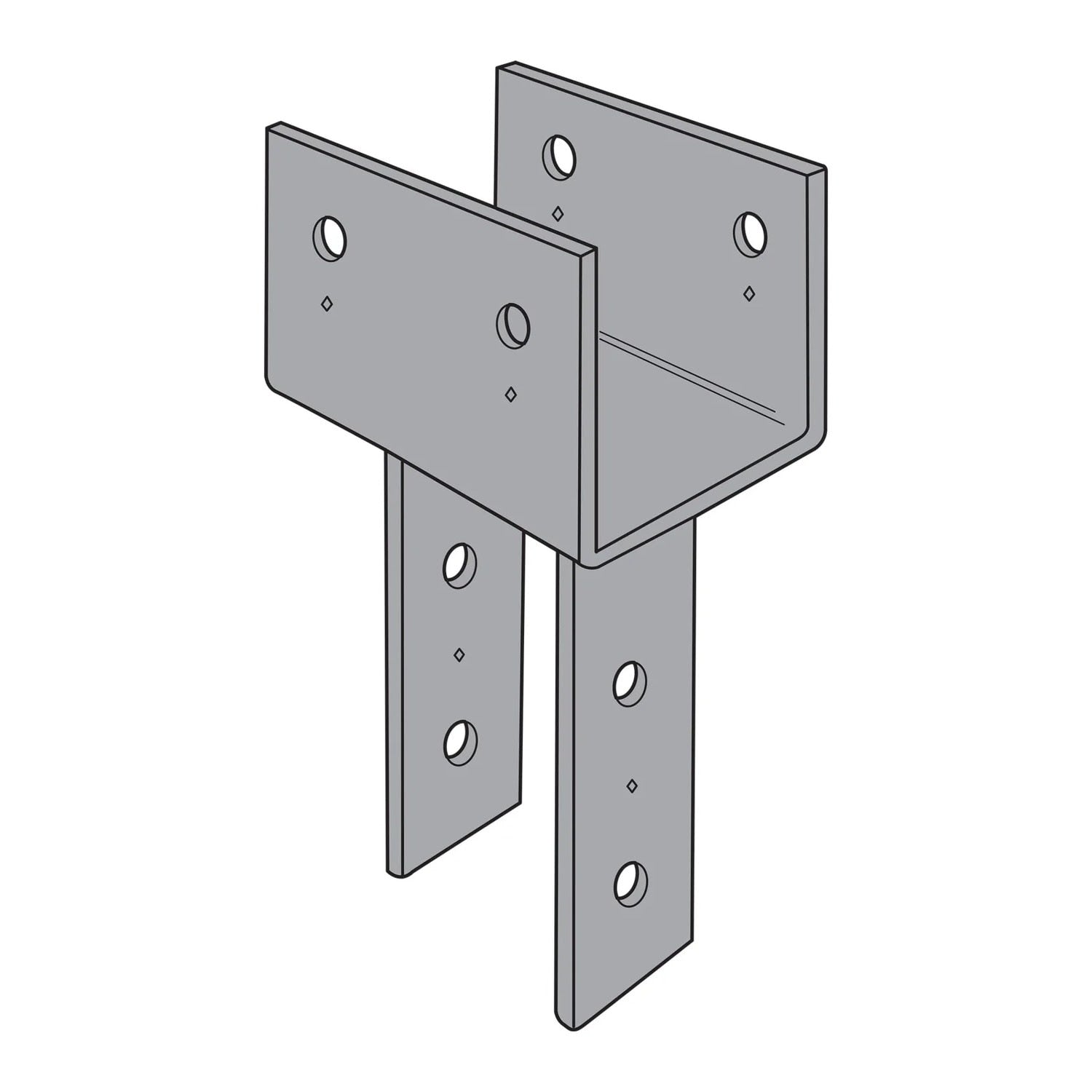

The Simpson Strong-Tie CC46 Column Cap provides a secure connection between a 4x4 post and a 6x beam, featuring a durable gray paint finish and heavy-duty steel construction for structural stability.
Simpson Strong-Tie CC46 Includes
- (1) CC46 Column Cap
Simpson Strong-Tie CC46 Features
- Precision-formed for accurate post-to-beam alignment
- Durable gray paint finish for corrosion resistance
- Heavy-gauge steel construction supports high structural loads
- Pre-punched holes for fast installation with structural connectors
- Designed for use with 4x4 posts and 6x beams
Simpson Strong-Tie CC46 Applications
- Wood decks
- Covered patios
- Pergolas
- Outdoor shelters
- Residential and light commercial framing

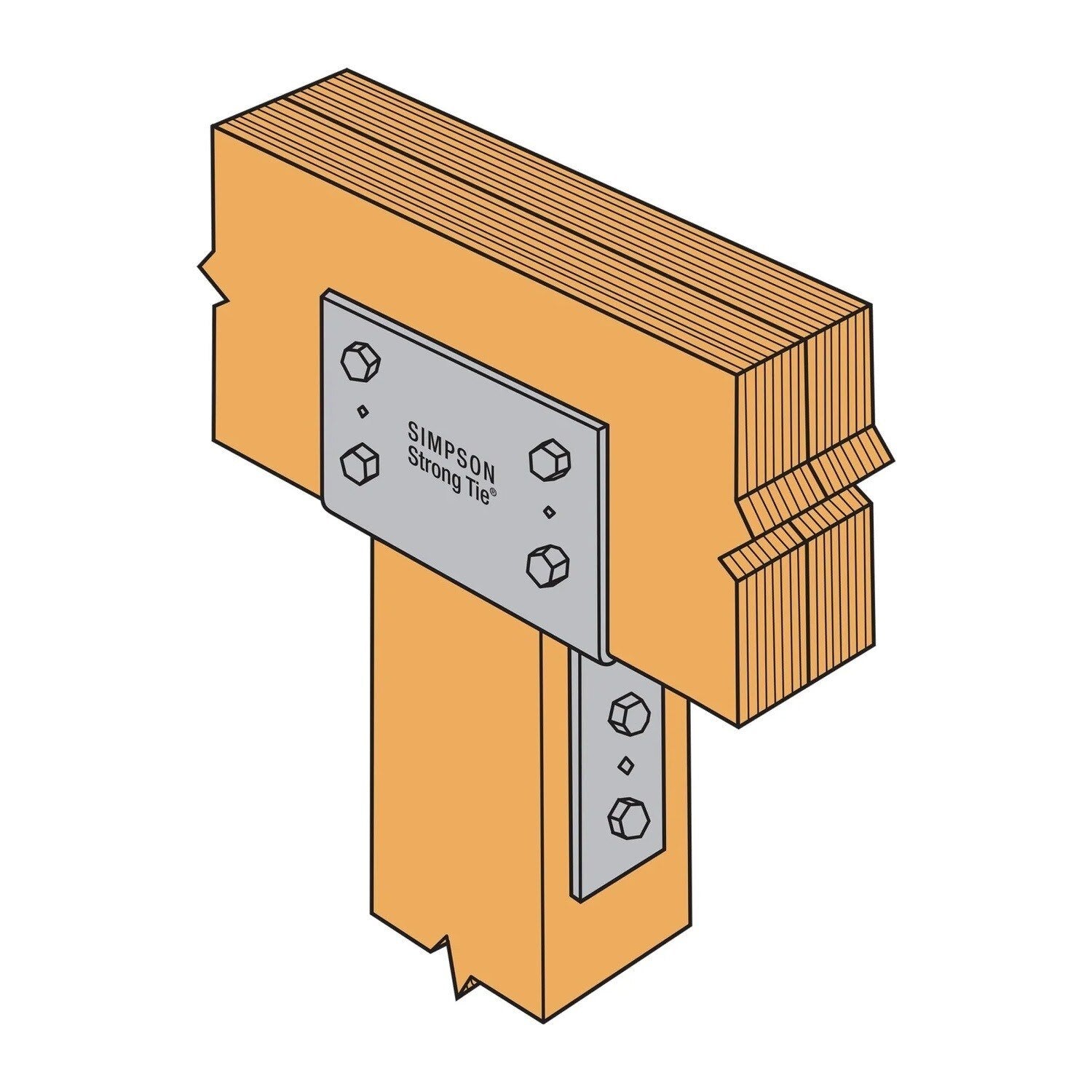

Simpson Strong-Tie CC46 Installation Overview
- Mount to post first, ensuring flush contact
- Secure to beam using specified fasteners
- Use Simpson SDS screws or nails as directed for maximum load capacity
Simpson Strong-Tie CC46 Specifications
| Finish | Gray Paint |
| Material | Heavy Gauge Steel |
| Beam size | 4x |
| Fasteners required | Beam - (4) 5/8" Machine Bolts, Post - (2) 5/8" Machine Bolts |
| For Treated Lumber | No |
| Post size | 6x |
| Thickness | 7 Gauge |
