Simpson Anchors | SKU:
CC46HDG

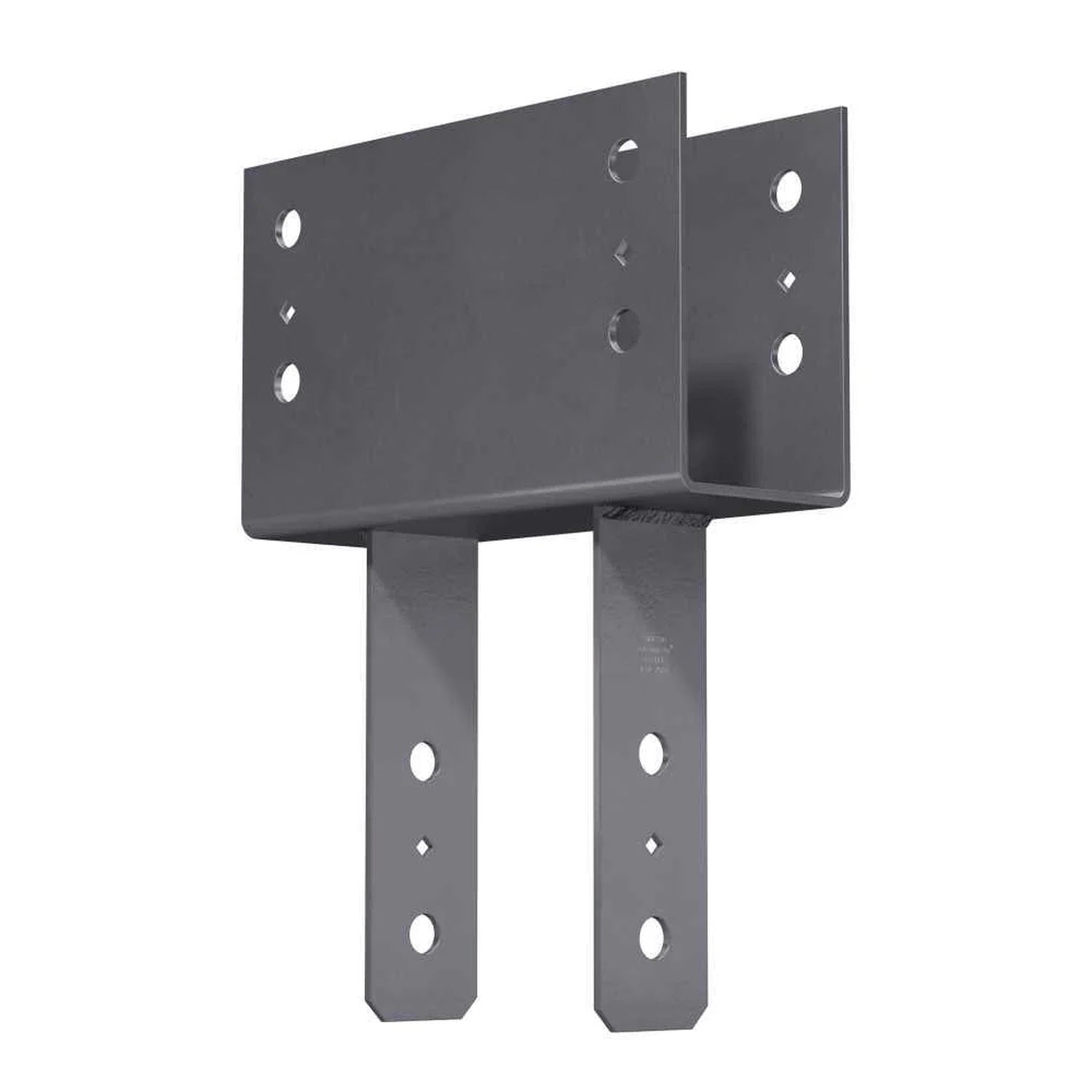

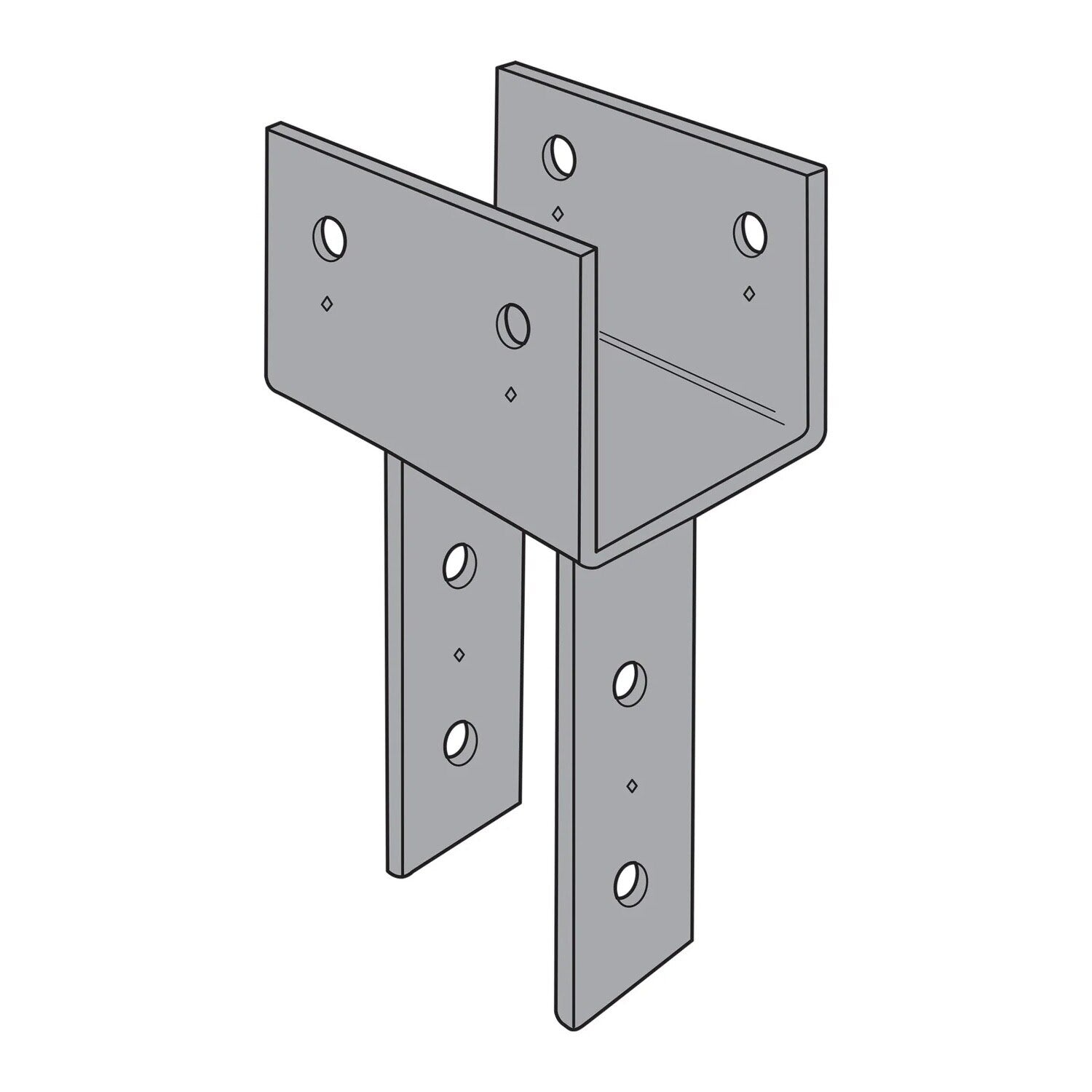

Simpson Strong-Tie CC46HDG Hot-Dip Galvanized Column Cap for 4x Beam, 6x Post
$149.30
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie CC46HDG Description
The Simpson CC46HDG Column Cap enhances the strength and stability of your construction projects, providing durable column-to-beam connections in wood construction.
Simpson Strong-Tie CC46HDG Includes
- (1) Hot-Dip Galvanized Column Cap
Simpson Strong-Tie CC46HDG Features
- Provides strong column-to-beam connection
- Extended column seat for additional surface area and load distribution
- Made from heavy-gauge steel for durability
- Hot-dip galvanized finish for corrosion resistance
- Certified welds for strength and increased uplift loads
- Diamond holes for temporary fastening during installation
- Bolt spacing meets NDS code requirements
Simpson Strong-Tie CC46HDG Applications

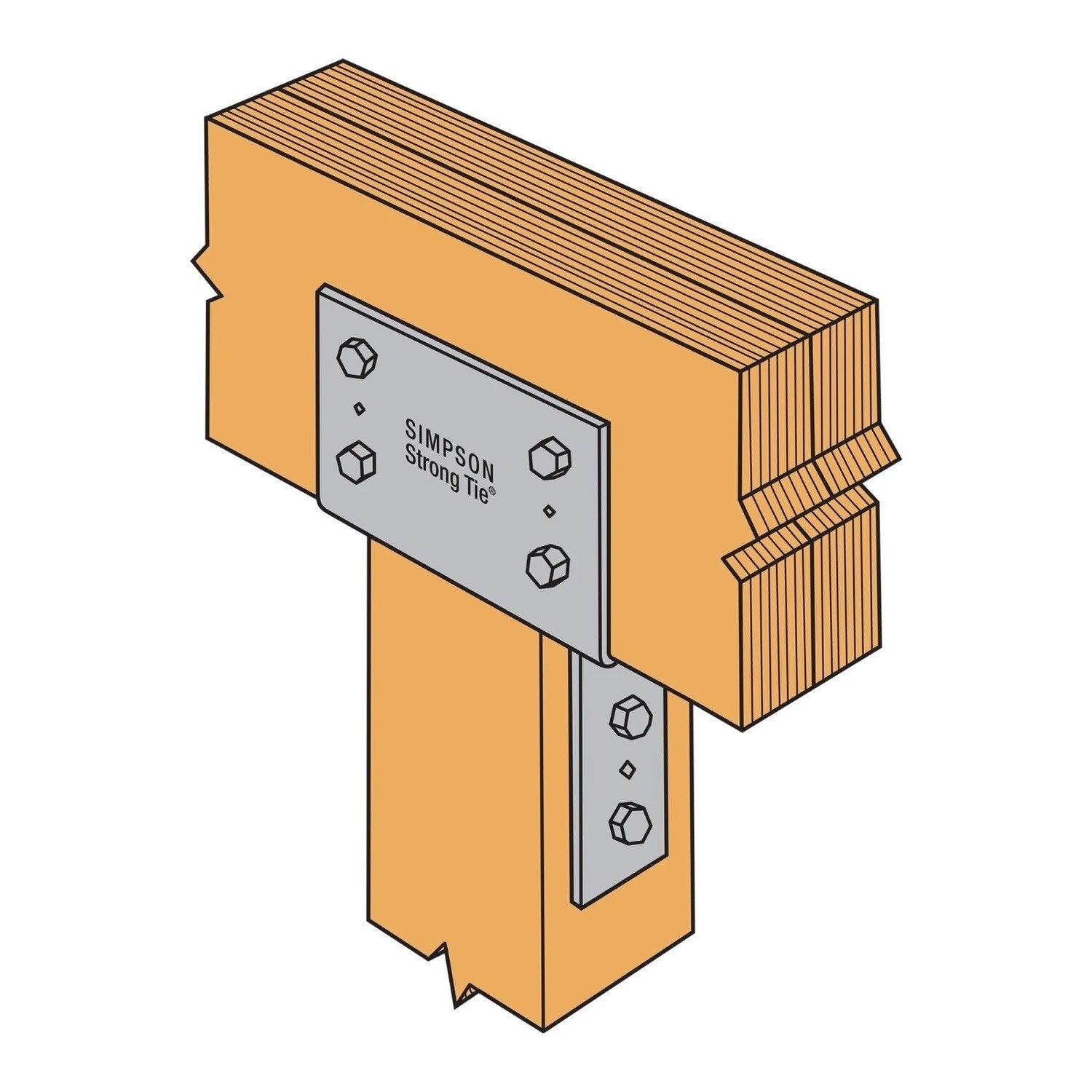

- Column-to-beam connections in wood construction
- Use with 6x posts or columns and 4x beams
- Suitable for earthquake or wind loading scenarios
Simpson Strong-Tie CC46HDG Installation Overview
- Align the column cap with the beam and post
- Secure using the specified machine bolts for beam and post connections
- Ensure bolt spacing complies with NDS code requirements
- Use diamond holes for temporary fastening during installation
Simpson Strong-Tie CC46HDG Specifications
| Finish | Hot Dip Galvanized |
| Material | Heavy Gauge Steel |
| Beam size | 4x |
| Fasteners required | Beam - (4) 5/8" Machine Bolts, Post - (2) 5/8" Machine Bolts |
| For Treated Lumber | Yes |
| Post size | 6x |
| Thickness | 7 Gauge |
NOTE: This item is made to order and is non-returnable.
