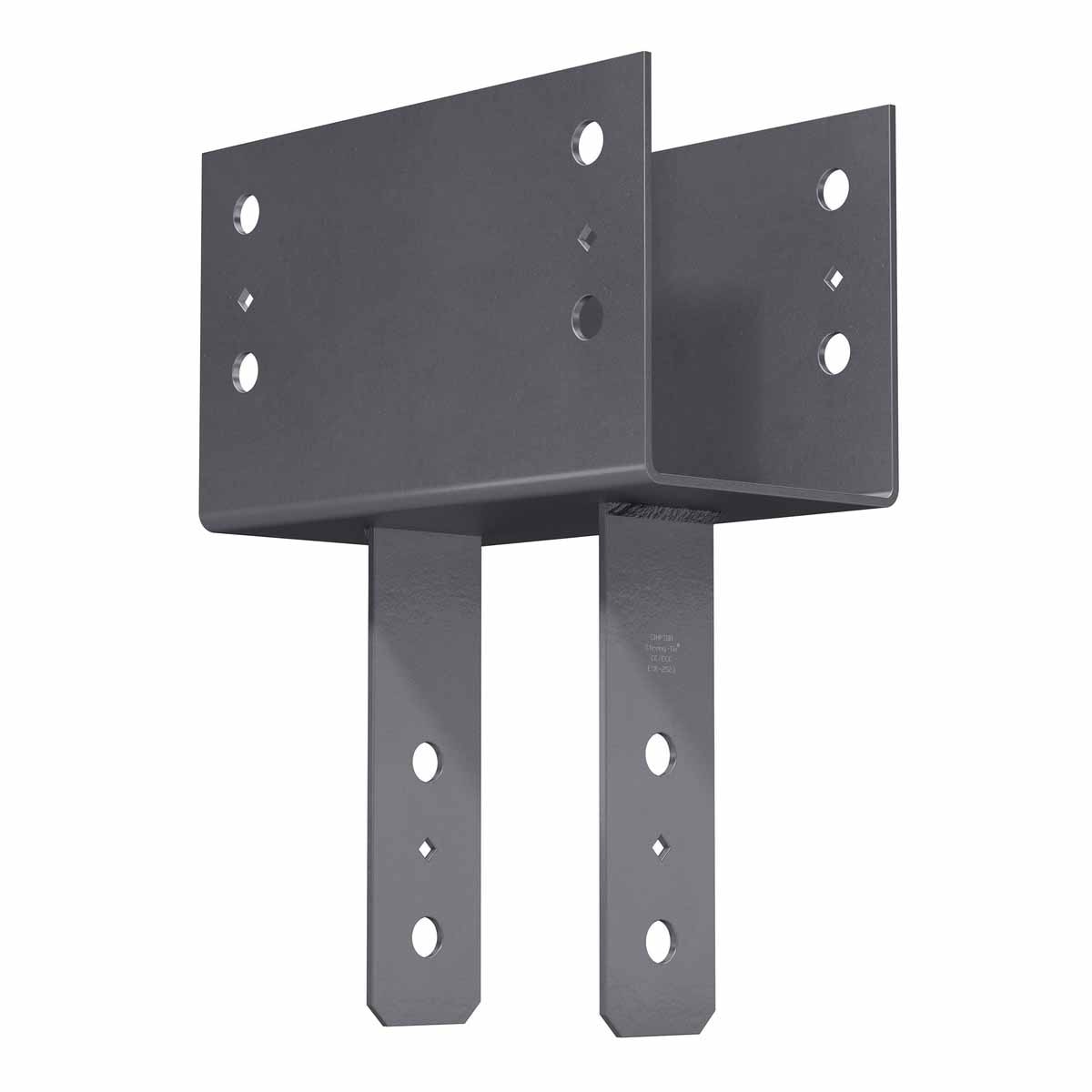

Simpson Strong-Tie CC48 Description
The Simpson CC48 Column Cap enhances the strength and stability of your construction projects, providing a durable and reliable column-to-beam connection.
Simpson Strong-Tie CC48 Includes
- (1) Strong-Tie Heavy-Duty Column Cap for 4x Beam, 8x Post
Simpson Strong-Tie CC48 Features
- Certified welds for strength and loading
- Increased uplift loads for earthquake or wind loading
- Bolt spacing meets NDS code requirements
- Diamond holes for temporary fastening
- Made from heavy-gauge steel with gray paint finish
Simpson Strong-Tie CC48 Applications

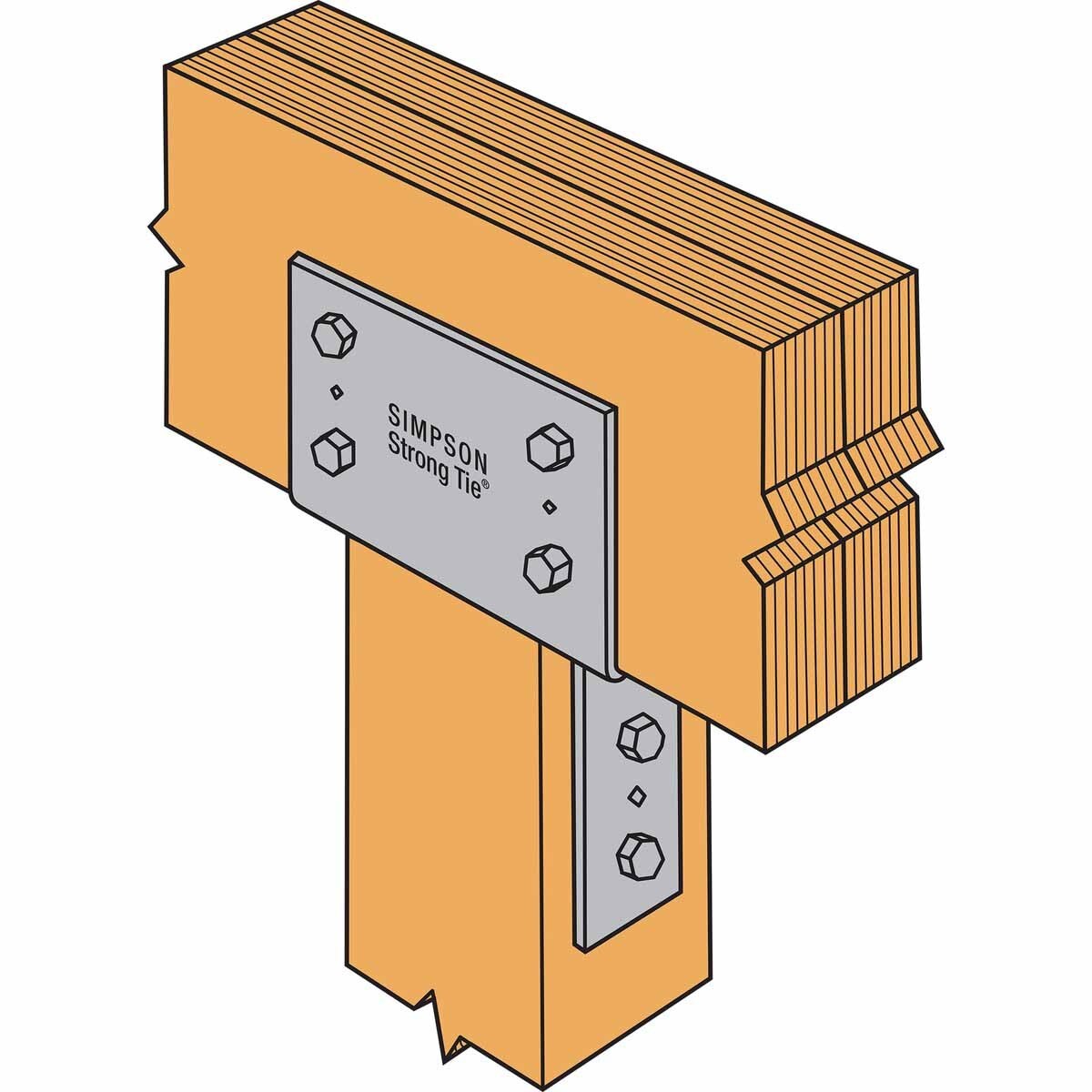

- Wood-to-wood column-to-beam connections
- Structural support in wood construction projects
Simpson Strong-Tie CC48 Installation Overview
- Use all specified fasteners as per guidelines
- Drill bolt holes from one side through the beam to maintain tolerances
- Ensure beam depth matches or exceeds the height of the column cap

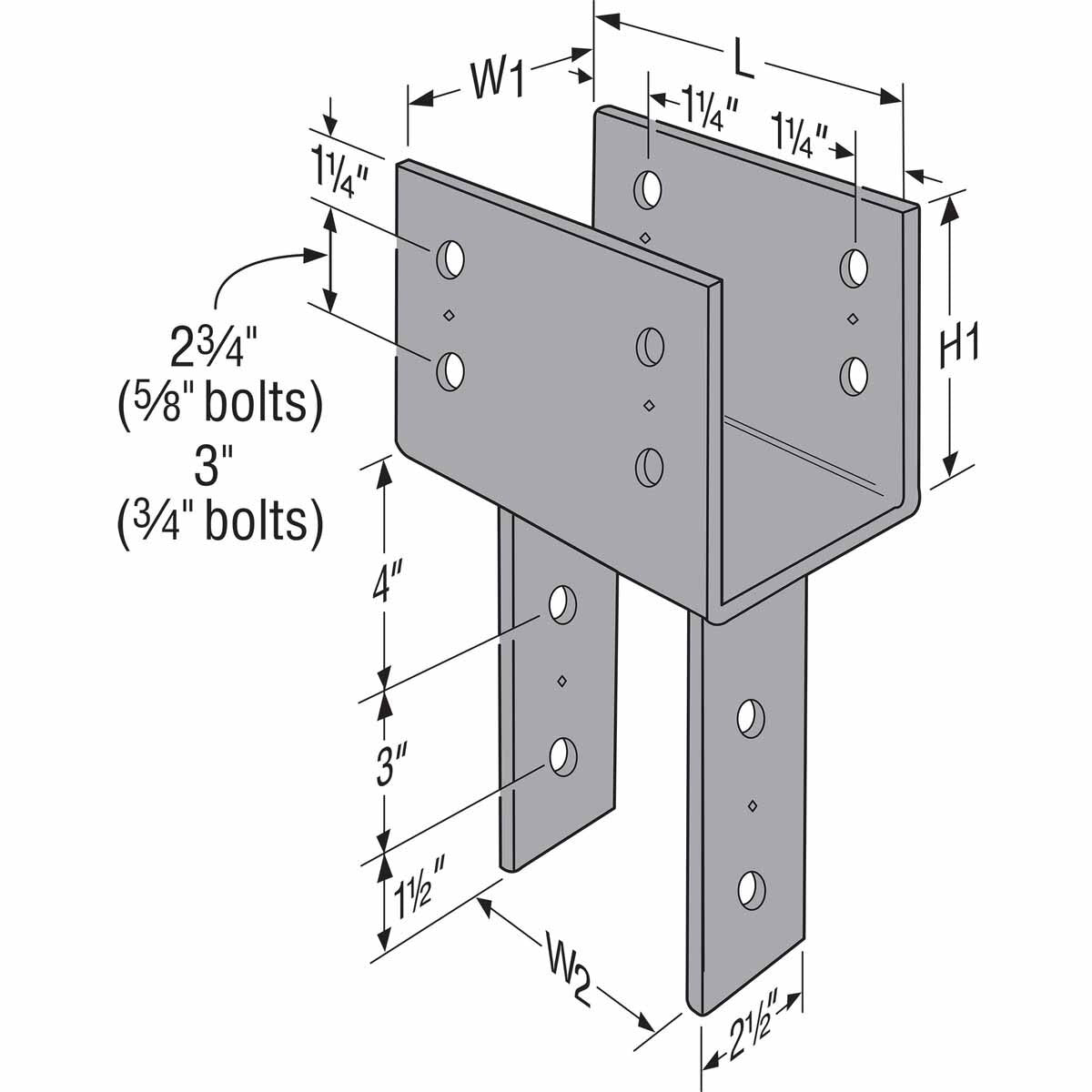

Simpson Strong-Tie CC48 Specifications
| Finish | Gray Paint |
| Material | Heavy Gauge Steel |
| Beam size | 4x |
| Post size | 8x |
| Thickness | 7 Gauge |
| Fasteners required | Beam - (4) 5/8" Machine Bolts, Post - (2) 5/8" Machine Bolts |
Toolup Part # :
248655
