Simpson Anchors | SKU:
CC5 1/4-4
Simpson Strong-Tie CC5 1/4-4 (5-1/8" Beam, 4x Post) Heavy-Duty Column Cap for 5-1/8" Beam and 4x Post - Structural Wood Connector
$161.18
$231.80
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie CC5 1/4-4 Description

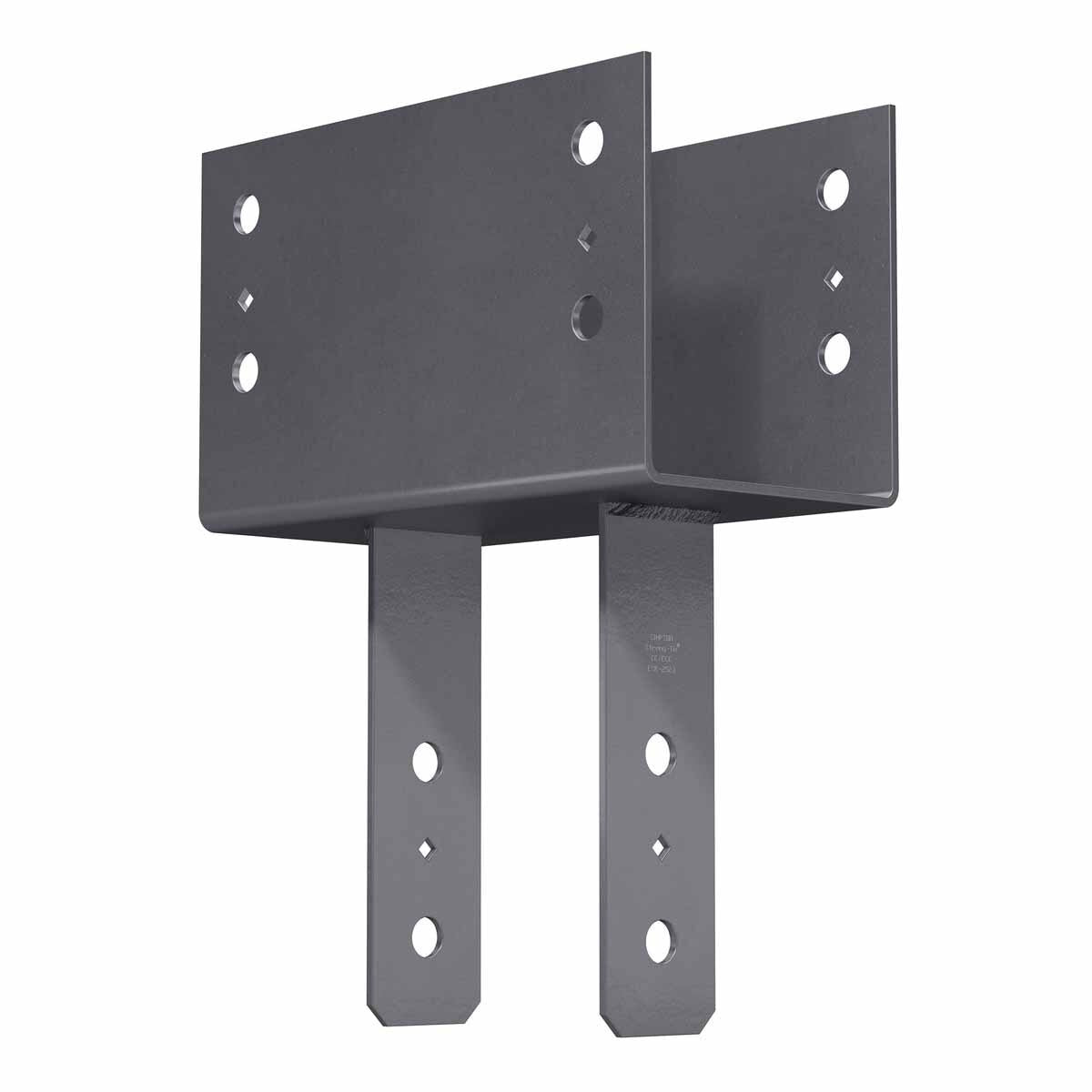

The Simpson CC5 1/4-4 Column Cap enhances the strength and stability of your construction projects. Crafted from durable heavy-gauge steel, this column cap is designed to provide column-to-beam connections in wood construction.
Simpson Strong-Tie CC5 1/4-4 Includes
- (1) Strong-Tie Heavy-Duty Column Cap for 5-1/8" Beam and 4x Post
Simpson Strong-Tie CC5 1/4-4 Features
- Certified welds for confidence in strength and loading
- Uplift loads increased for earthquake or wind loading
- Bolt spacing that meets NDS code requirements to ensure optimal performance
- Diamond holes to provide temporary fastening
Simpson Strong-Tie CC5 1/4-4 Applications
- Fastening wood-to-wood connections in construction projects

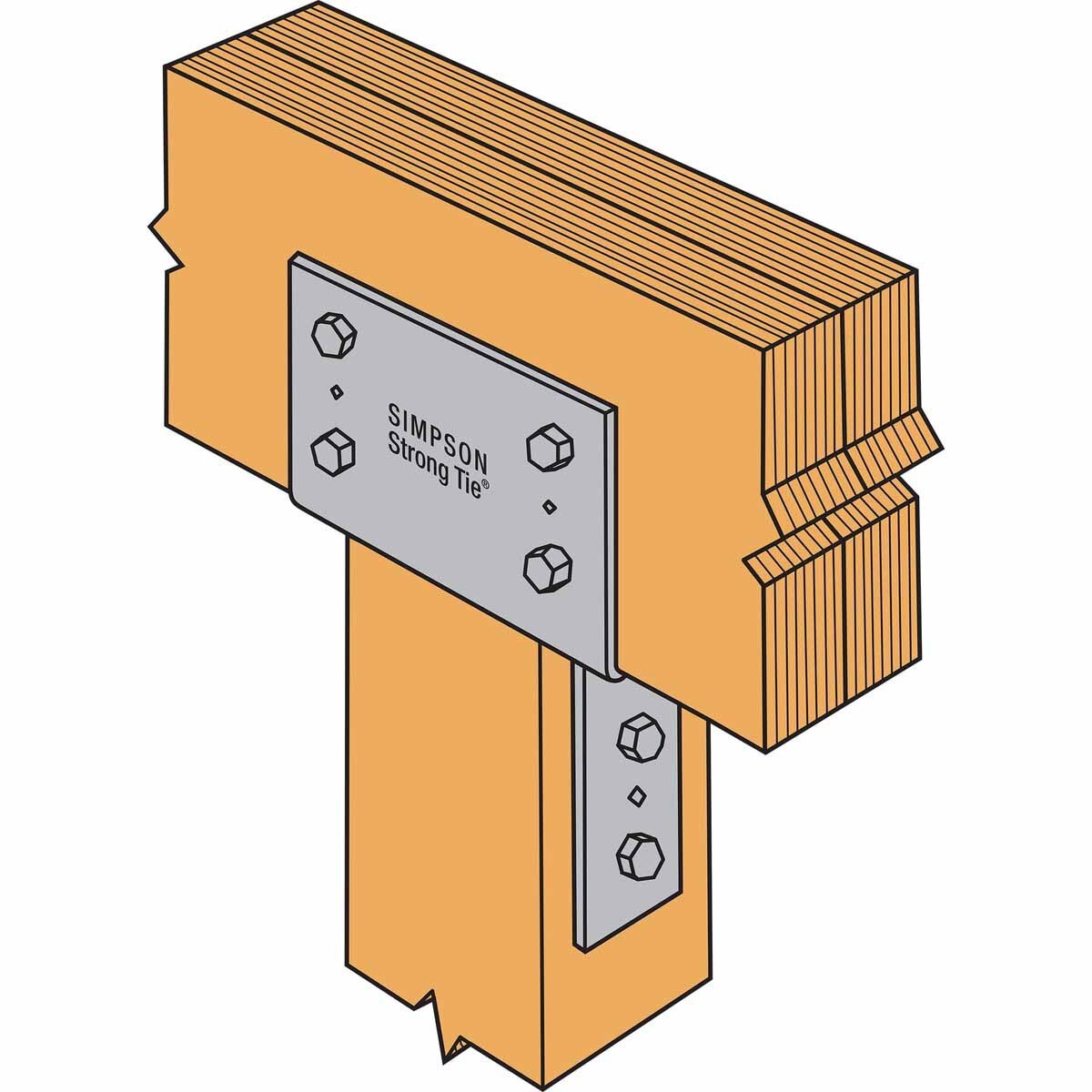

- Providing strong column-to-beam connections
Simpson Strong-Tie CC5 1/4-4 Installation Overview
- Use all specified fasteners as per guidelines
- Drill bolt holes from one side through the beam to maintain tolerances
- Contact engineered wood manufacturers for non-standard connections

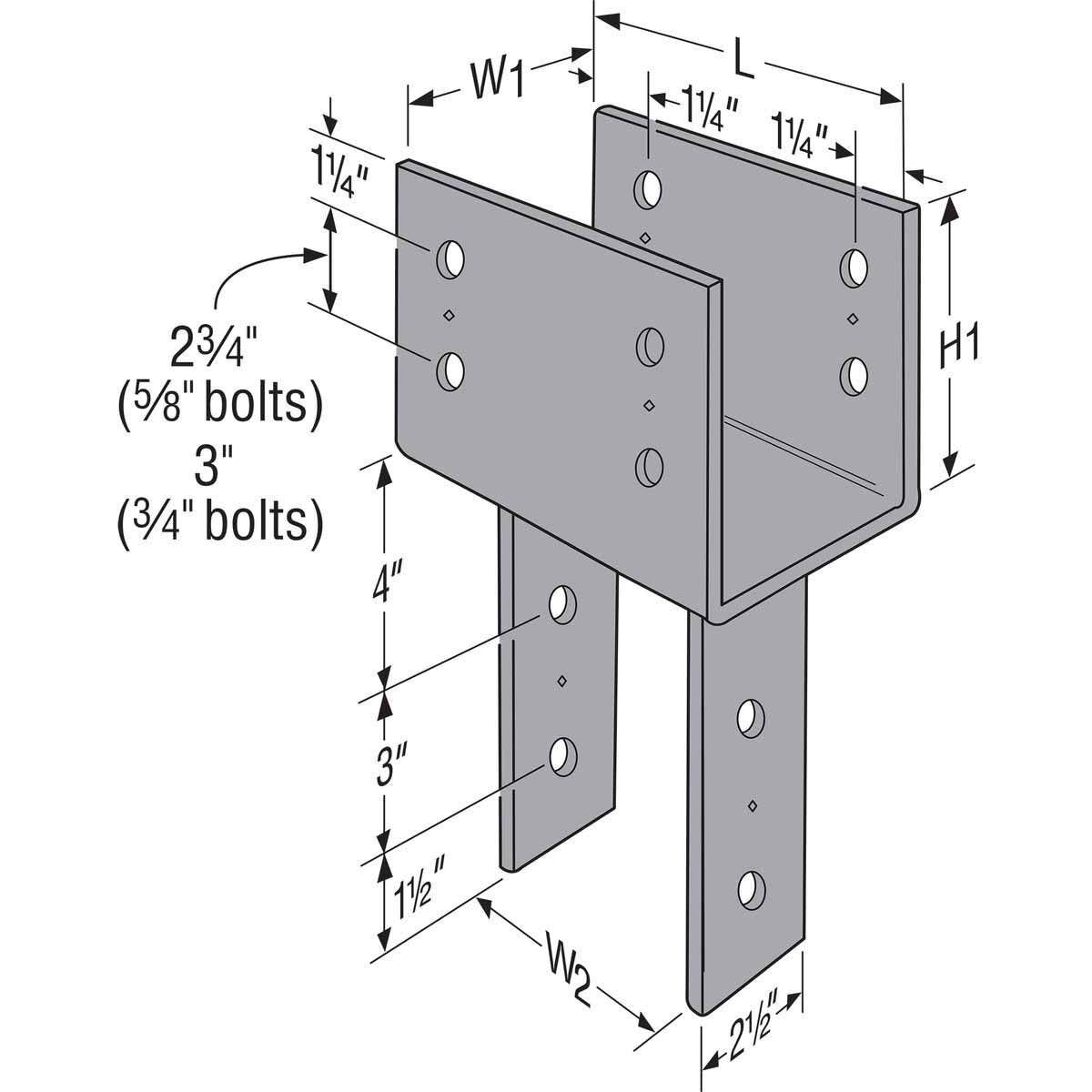

Simpson Strong-Tie CC5 1/4-4 Specifications
| Finish | Gray Paint |
| Material | Heavy Gauge Steel |
| Beam size | 5-1/8x |
| Fasteners required | Beam - (4) 5/8" Machine Bolts, Post - (2) 5/8" Machine Bolts |
| For Treated Lumber | No |
| Post size | 4x |
| Thickness | 3 Gauge |
