Simpson Anchors | SKU:
CC5 1/4-6

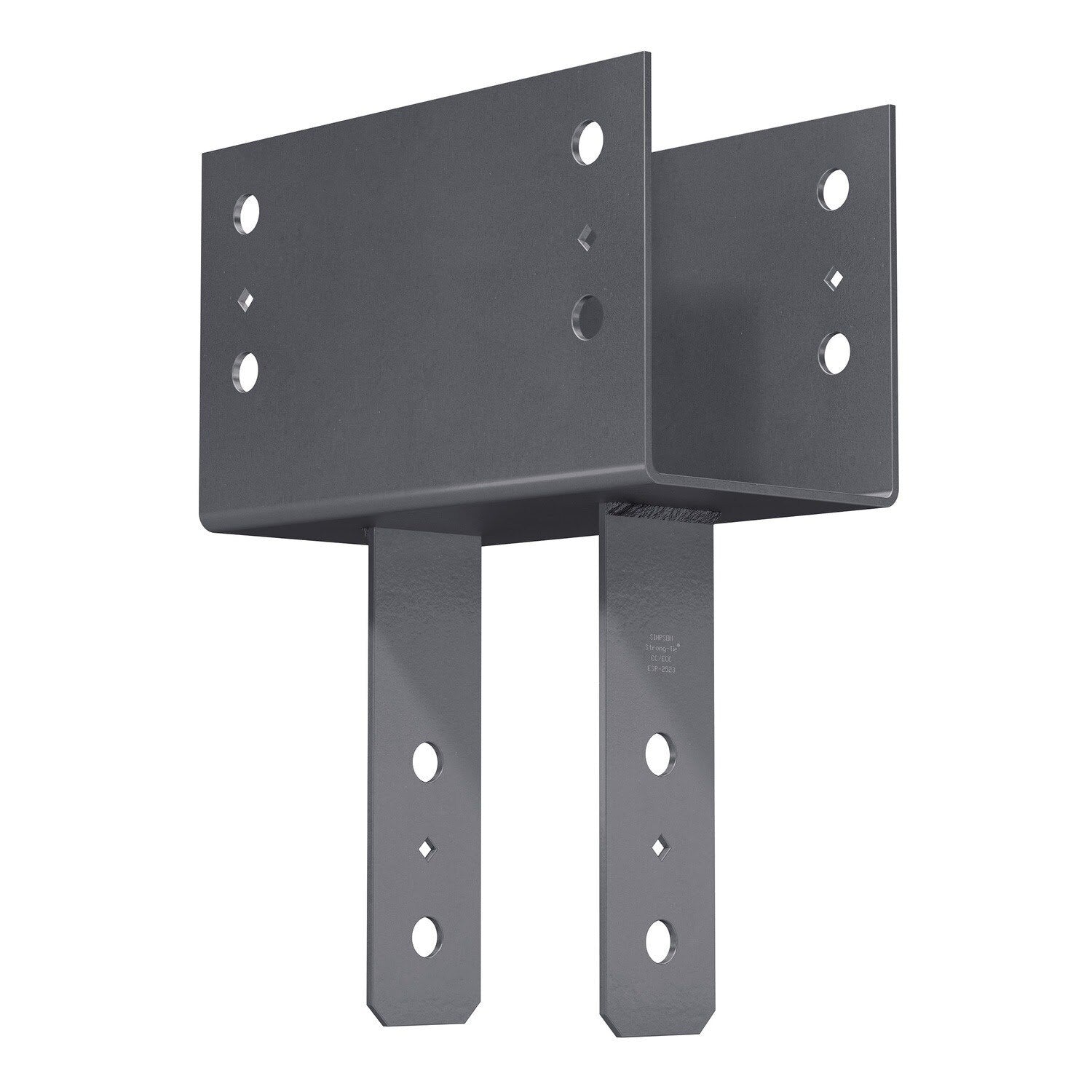

Simpson Strong-Tie CC5 1/4-6 CC Column Cap for 5-1/8" Beam, 6x Post
$156.09
$231.80
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie CC5 1/4-6 Description
The Simpson CC5 1/4-6 Column Cap provides a strong and durable connection for 5-1/8" beams and 6x posts, featuring a heavy gauge steel construction with a gray paint finish.
Simpson Strong-Tie CC5 1/4-6 Includes
- (1) CC5 1/4-6 Column Cap
Simpson Strong-Tie CC5 1/4-6 Features
- Provides strong column-to-beam connection
- Extended column seat for additional load distribution
- Made from heavy gauge steel for durability
- Gray paint finish for corrosion resistance
- Certified welds for enhanced strength and loading
Simpson Strong-Tie CC5 1/4-6 Applications

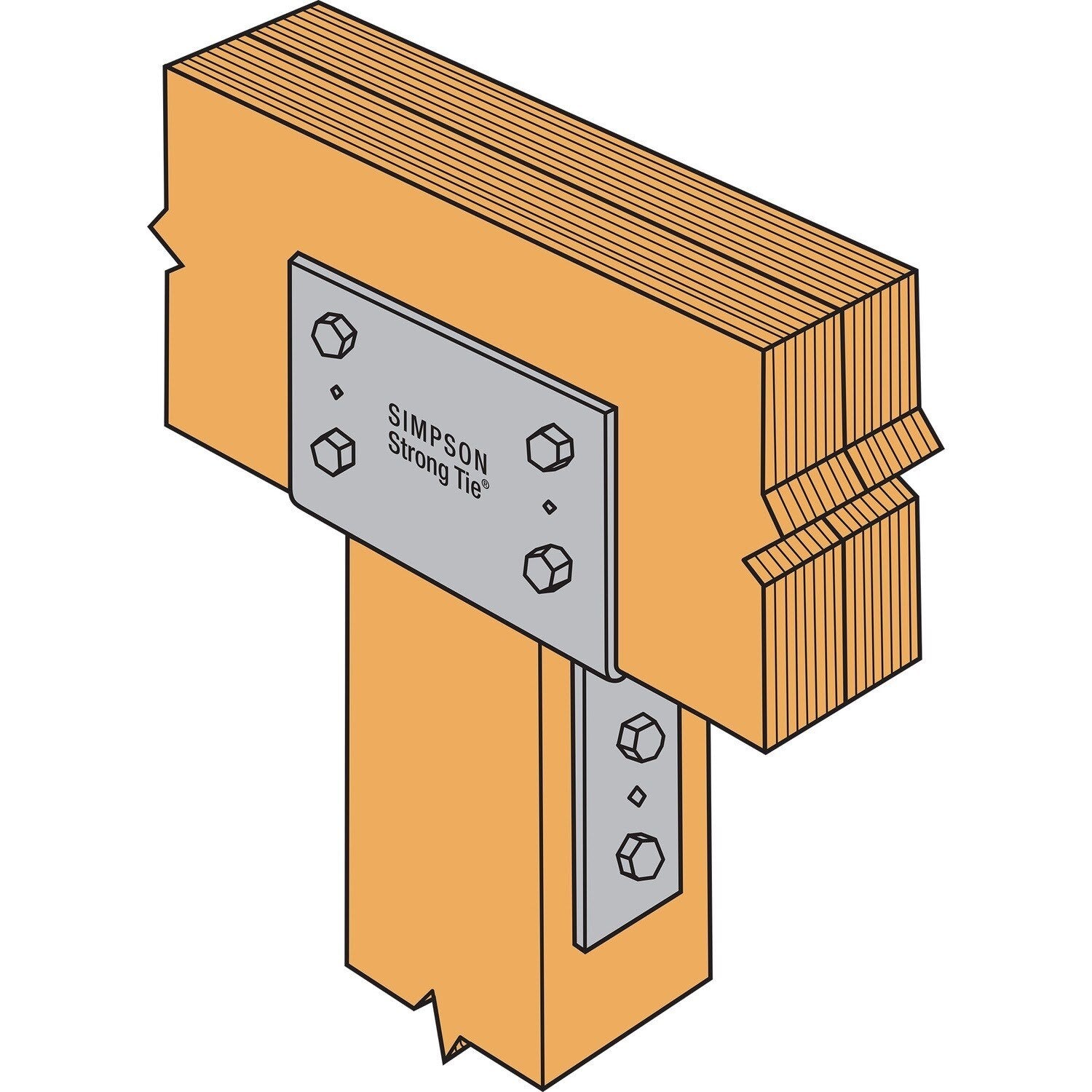

- Column-to-beam connections in wood construction
- Use with 5-1/8" beams and 6x posts
- Suitable for earthquake or wind loading scenarios
Simpson Strong-Tie CC5 1/4-6 Installation Overview
- Use all specified fasteners
- Ensure bolt holes are sized correctly per NDS code
- Contact engineered wood manufacturers for non-standard connections

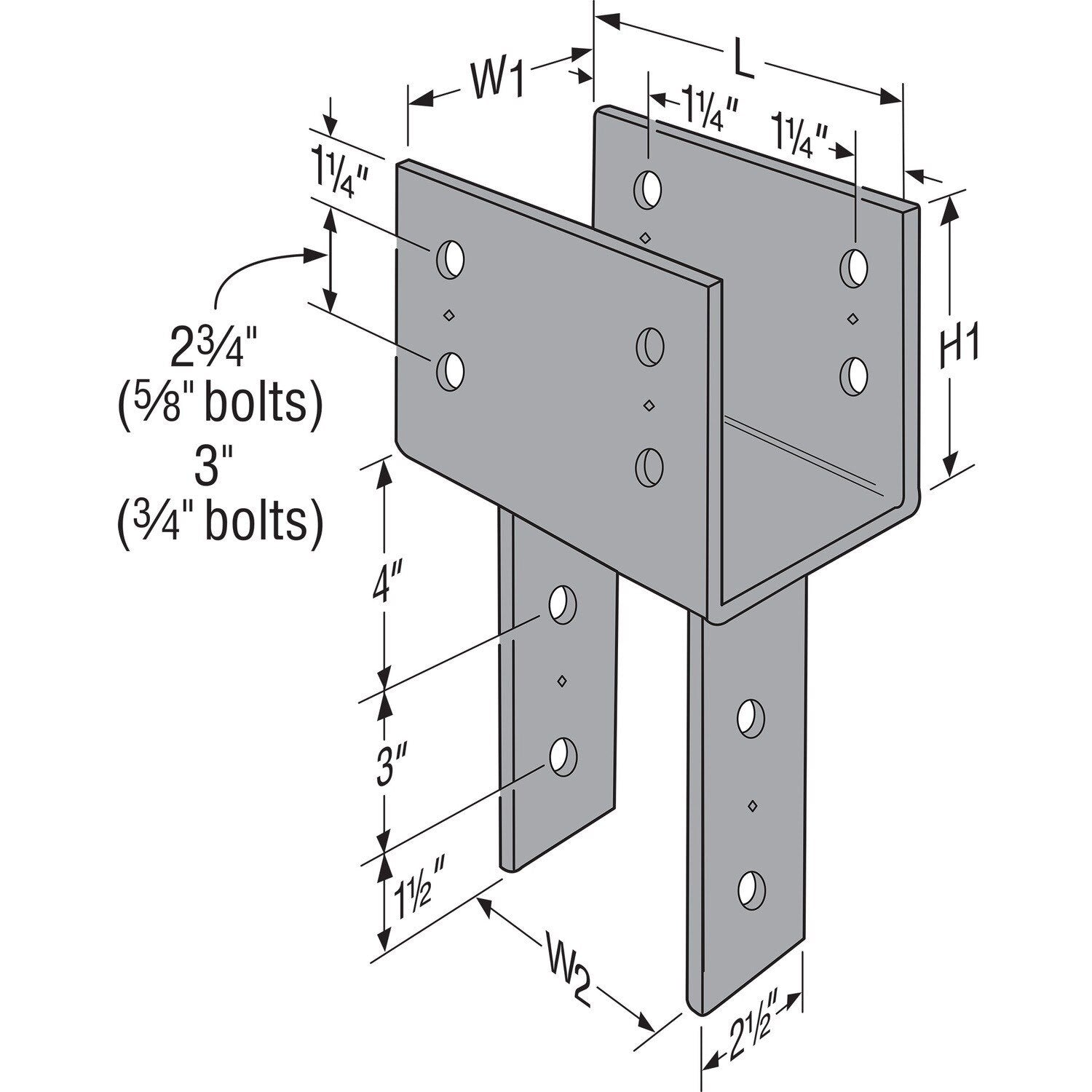

Simpson Strong-Tie CC5 1/4-6 Specifications
| Finish | Gray Paint |
| Material | Heavy Gauge Steel |
| Beam size | 5-1/8" |
| Post size | 6x |
| Thickness | 3 Gauge |
| Fasteners required | Beam - (4) 5/8" Machine Bolts, Post - (2) 5/8" Machine Bolts |
| For Treated Lumber | No |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
