Simpson Anchors | SKU:
CC64

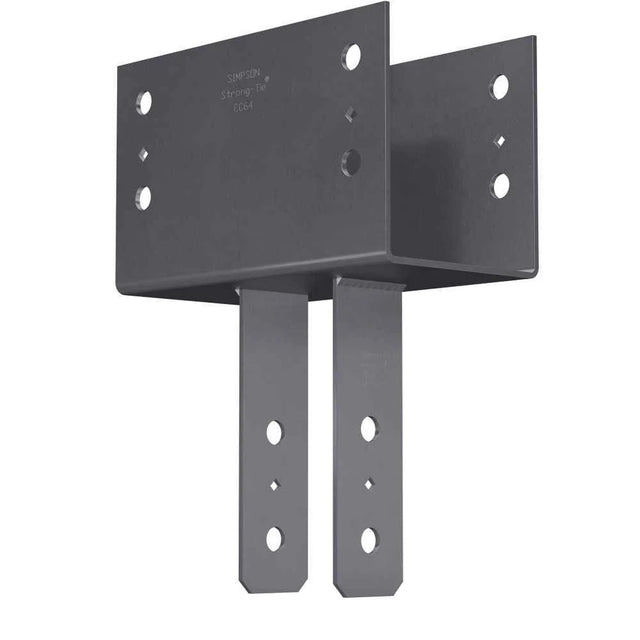

Simpson Strong-Tie CC64 (6x Beam, 4x Post) Heavy-Duty Column Cap for Wood Construction
$110.92
$159.53
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie CC64 Description
The Simpson CC64 Column Cap enhances the strength and stability of your construction projects. Designed for 6x beams and 4x posts, it provides a durable and reliable column-to-beam connection.
Simpson Strong-Tie CC64 Includes
- (1) CC64 Column Cap
Simpson Strong-Tie CC64 Features
- Certified welds for strength and loading
- Increased uplift loads for earthquake or wind loading
- Bolt spacing meets NDS code requirements
- Diamond holes for temporary fastening
Simpson Strong-Tie CC64 Applications

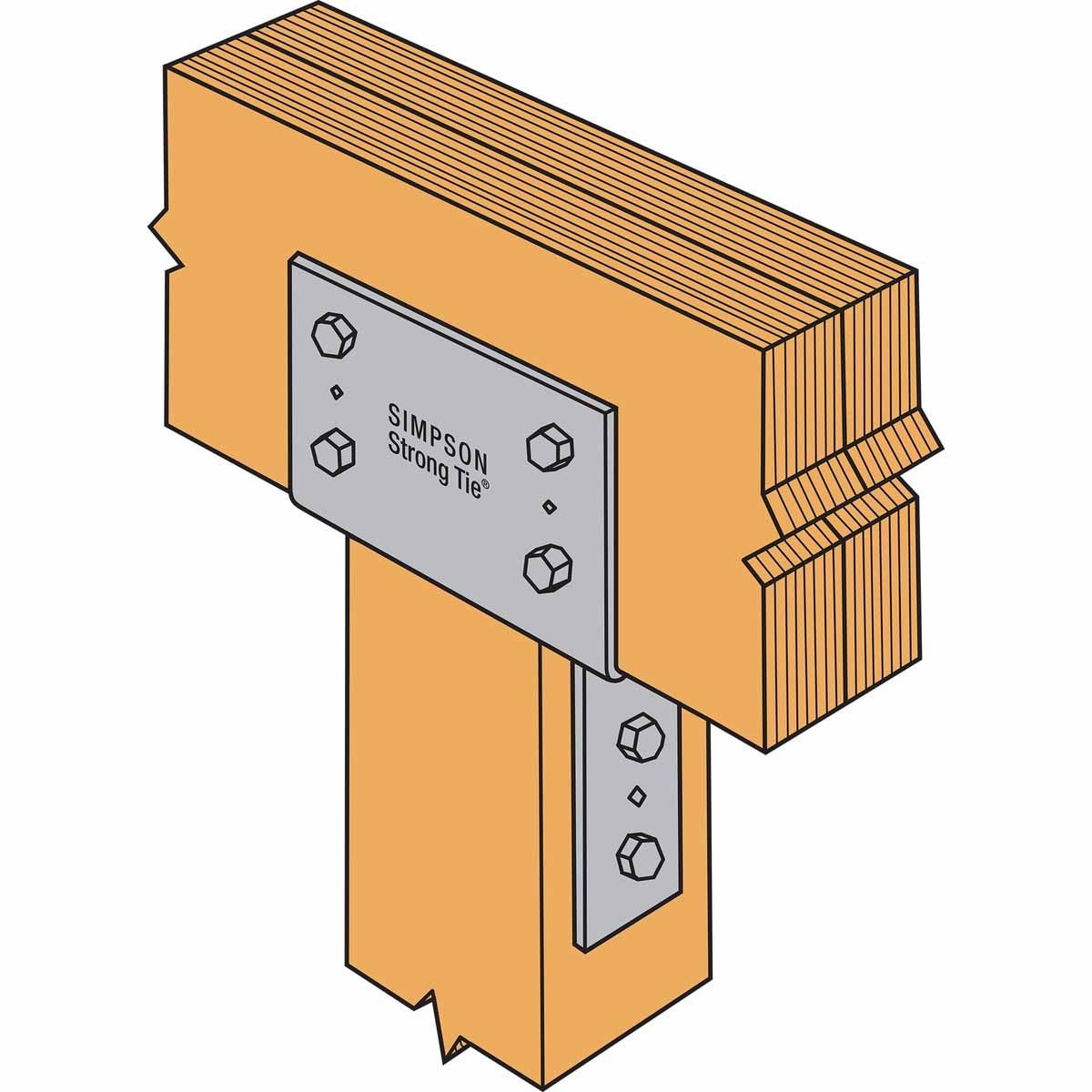

- Wood-to-wood fastening for column-to-beam connections
- Construction projects requiring enhanced load distribution
Simpson Strong-Tie CC64 Installation Overview
- Use all specified fasteners as per guidelines
- Drill bolt holes from one side through the beam to maintain tolerances
- Ensure alignment of column and beam sides in the same vertical plane

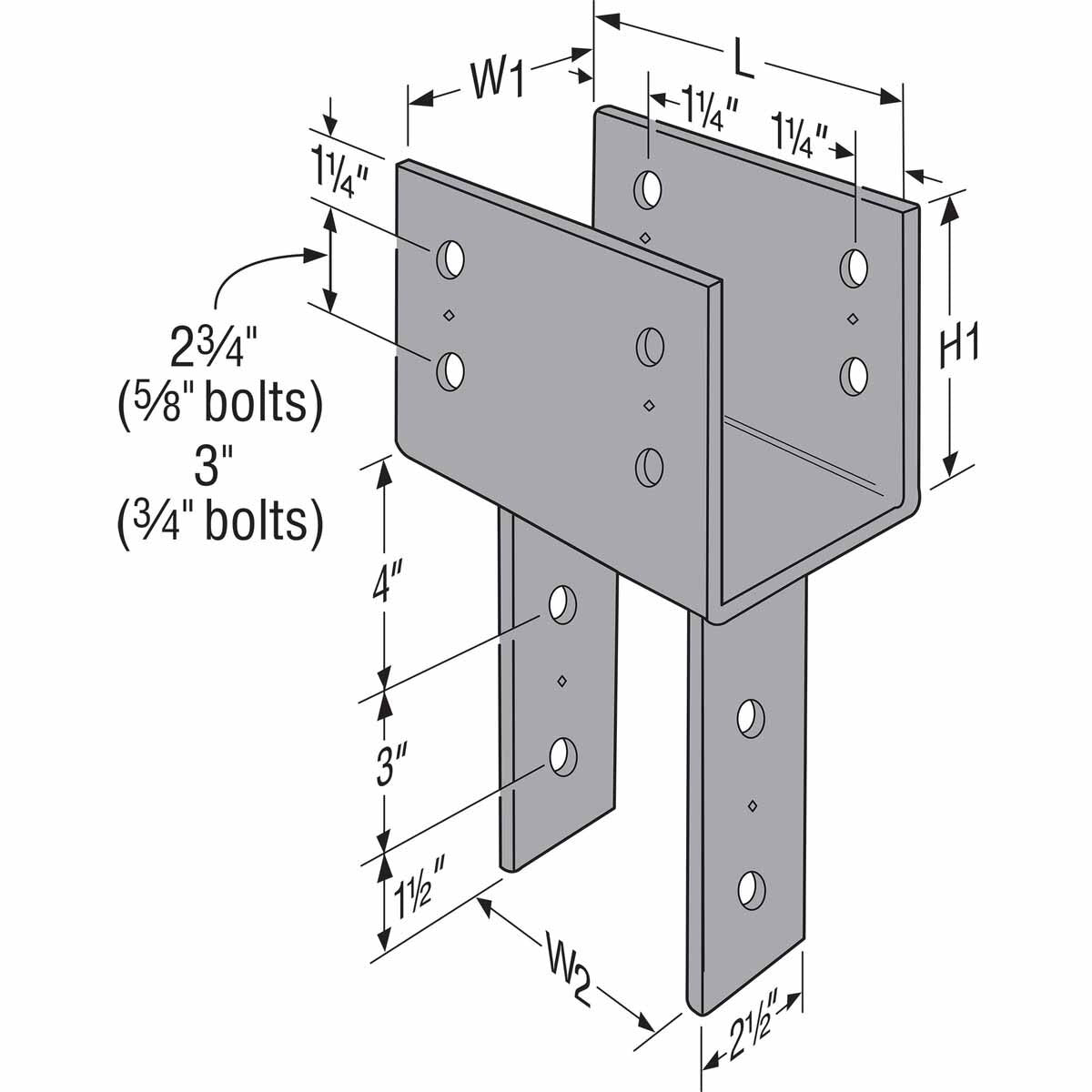

Simpson Strong-Tie CC64 Specifications
| Finish | Gray Paint |
| Material | Heavy Gauge Steel |
| Beam size | 6x |
| Post size | 4x |
| Thickness | 7 Gauge |
| Fasteners required | Beam - (4) 5/8" Machine Bolts, Post - (2) 5/8" Machine Bolts |
