Simpson Anchors | SKU:
CC66

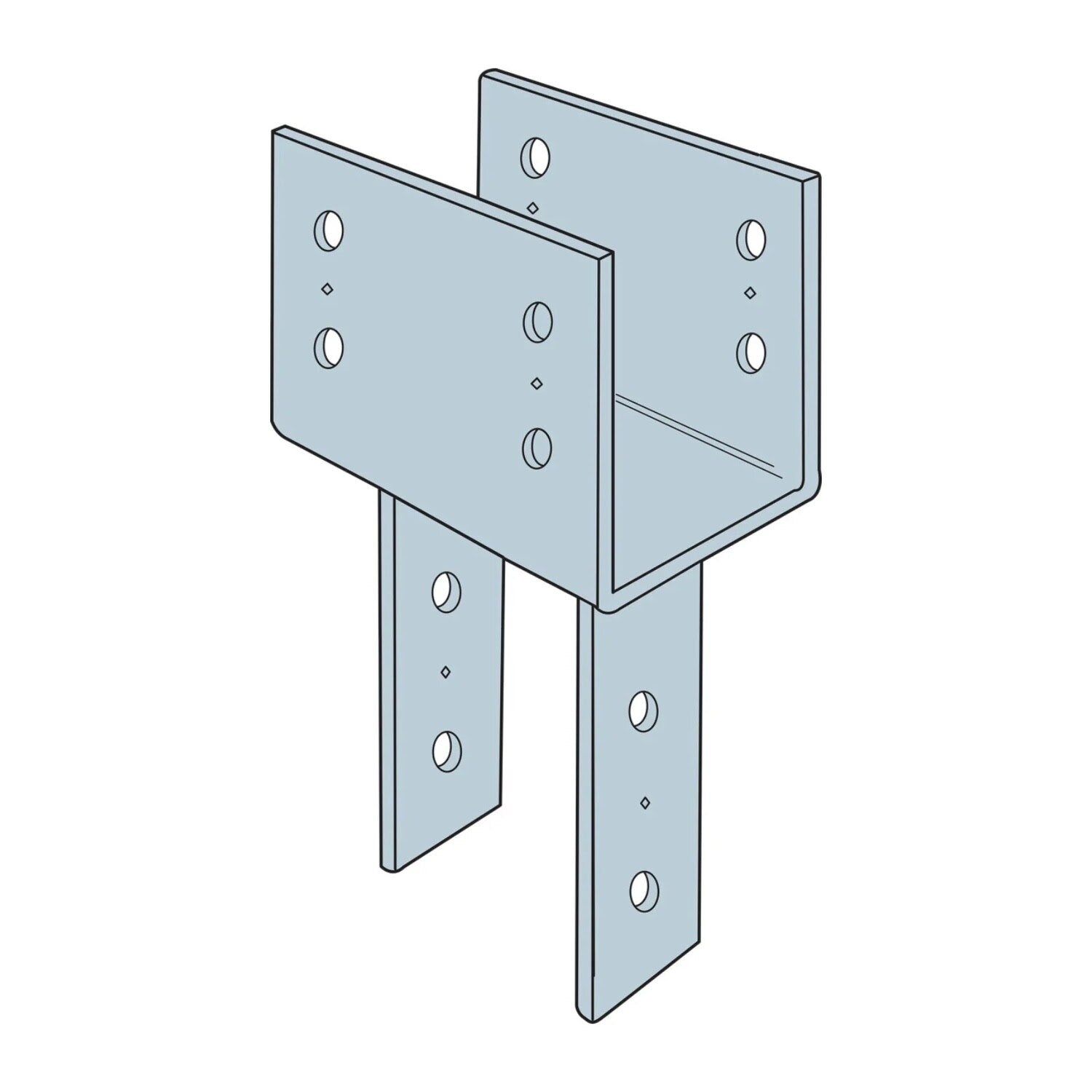

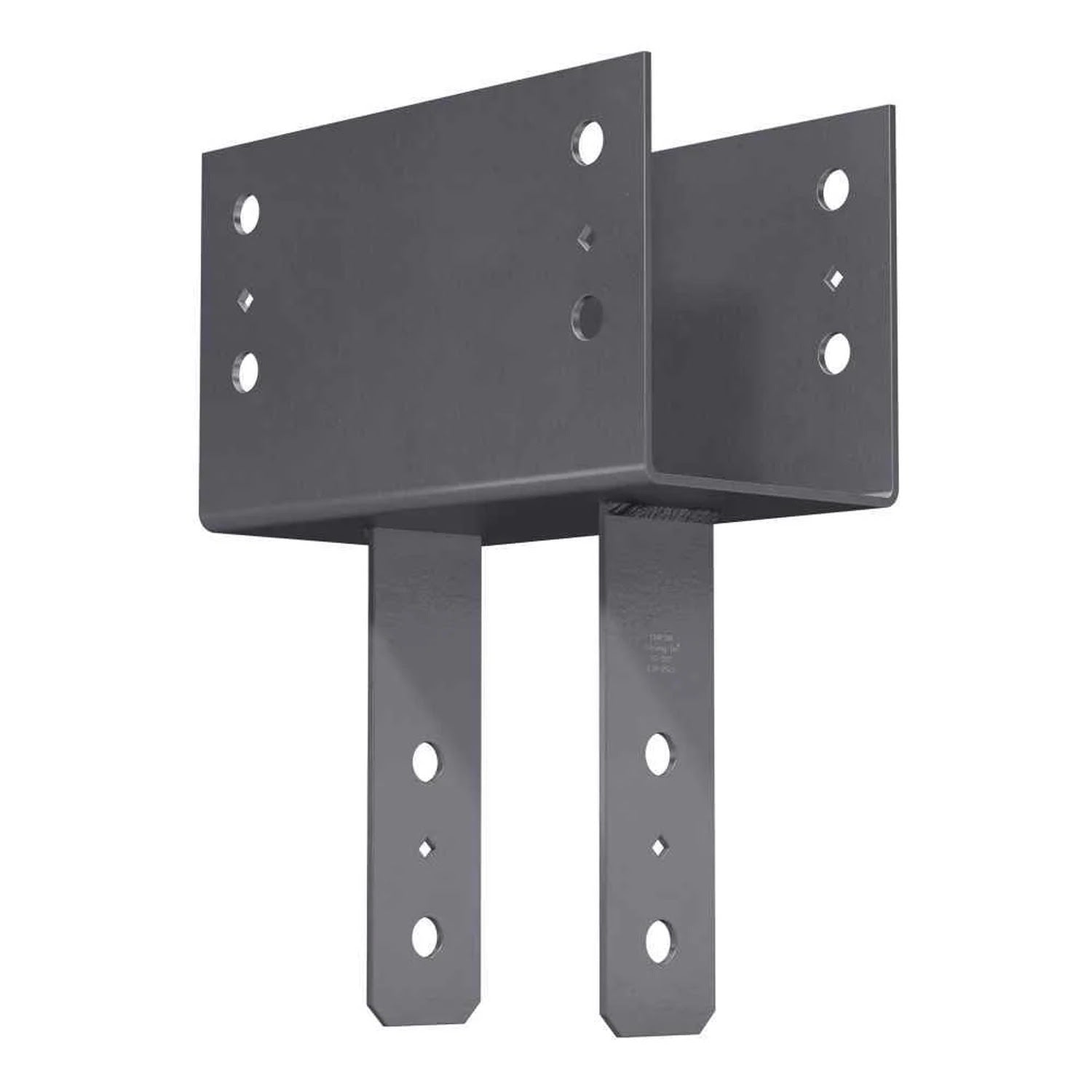

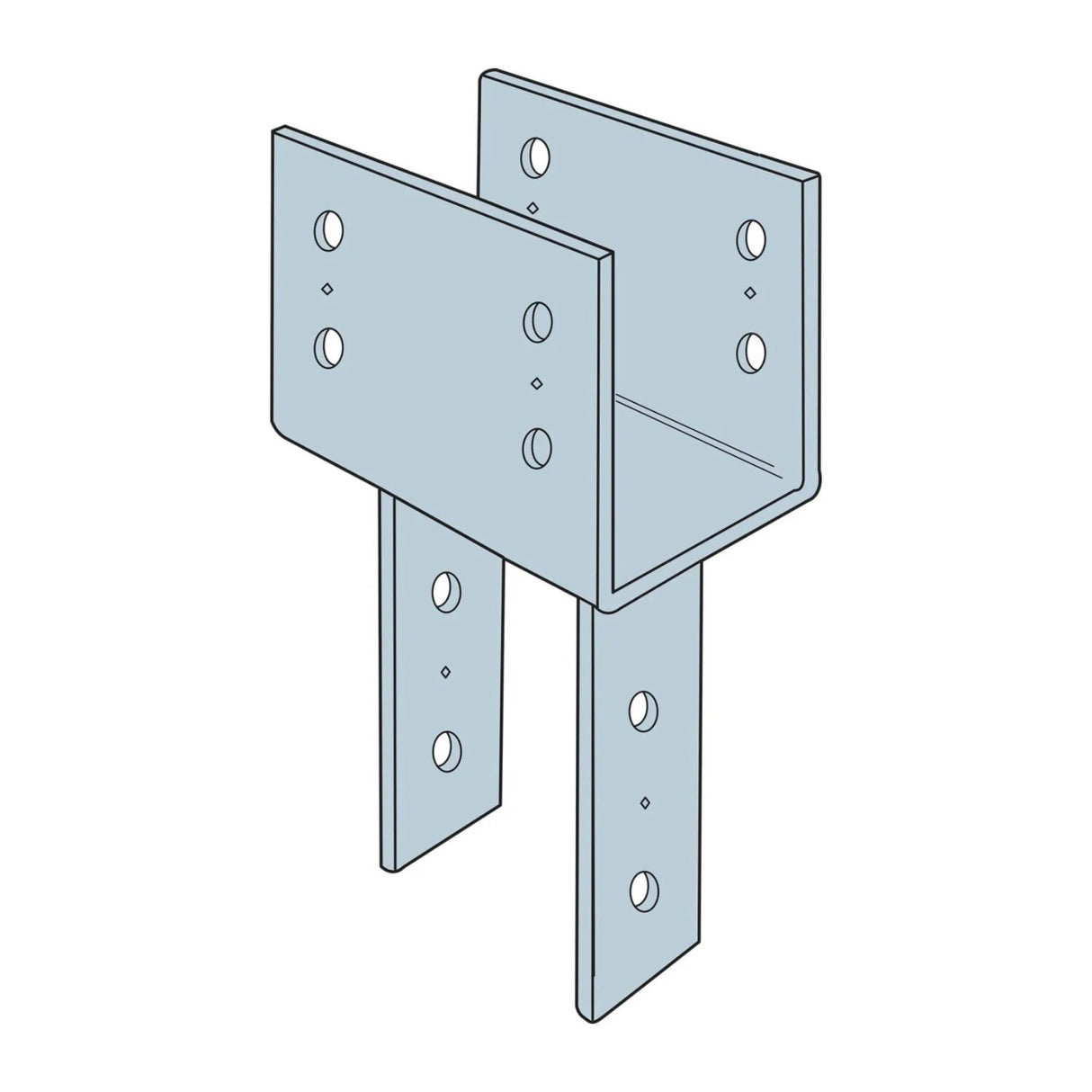

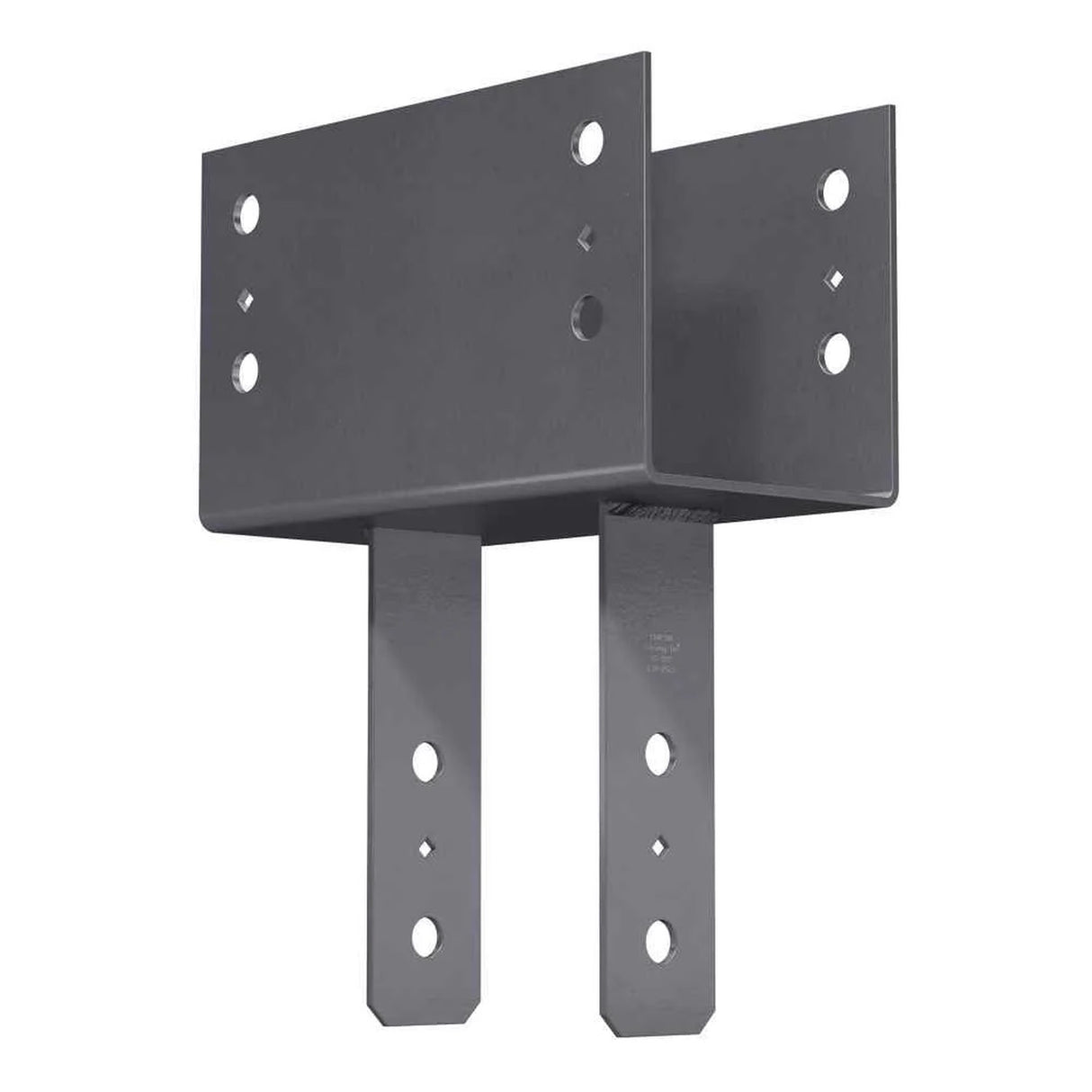

Simpson Strong-Tie CC66 Column Cap for 6x Beam, 6x Post
$107.42
$159.53
Unit price
/
Unavailable
Description
Description
Simpson CC66 Description
The Simpson CC66 Column Cap is designed for secure column-to-beam connections in wood construction, featuring heavy-gauge steel and a gray paint finish.
Simpson CC66 Includes
- (1) Column Cap for 6x Beam, 6x Post
Simpson CC66 Features
- Provides strong column-to-beam connection
- Extended column seat for additional load distribution
- Made from heavy-gauge steel for durability
- Gray paint finish for corrosion resistance
- Certified welds for enhanced strength and loading
- Increased uplift loads for earthquake or wind resistance
- Diamond holes for temporary fastening during installation
- Bolt spacing meets NDS code requirements
Simpson CC66 Applications
- Wood construction requiring column-to-beam connections
- Structural support for 6x beams and 6x posts
- Projects needing enhanced load distribution and stability

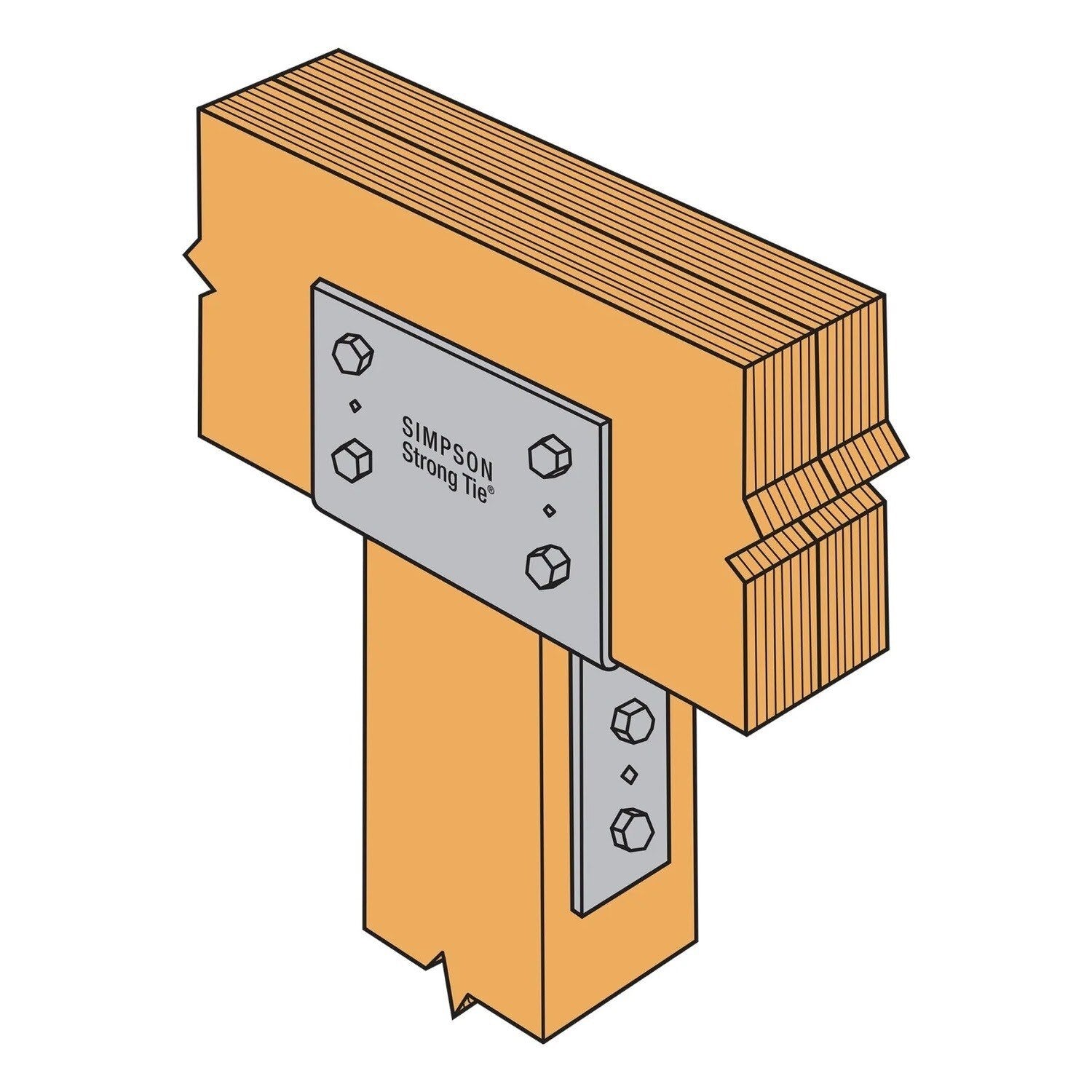

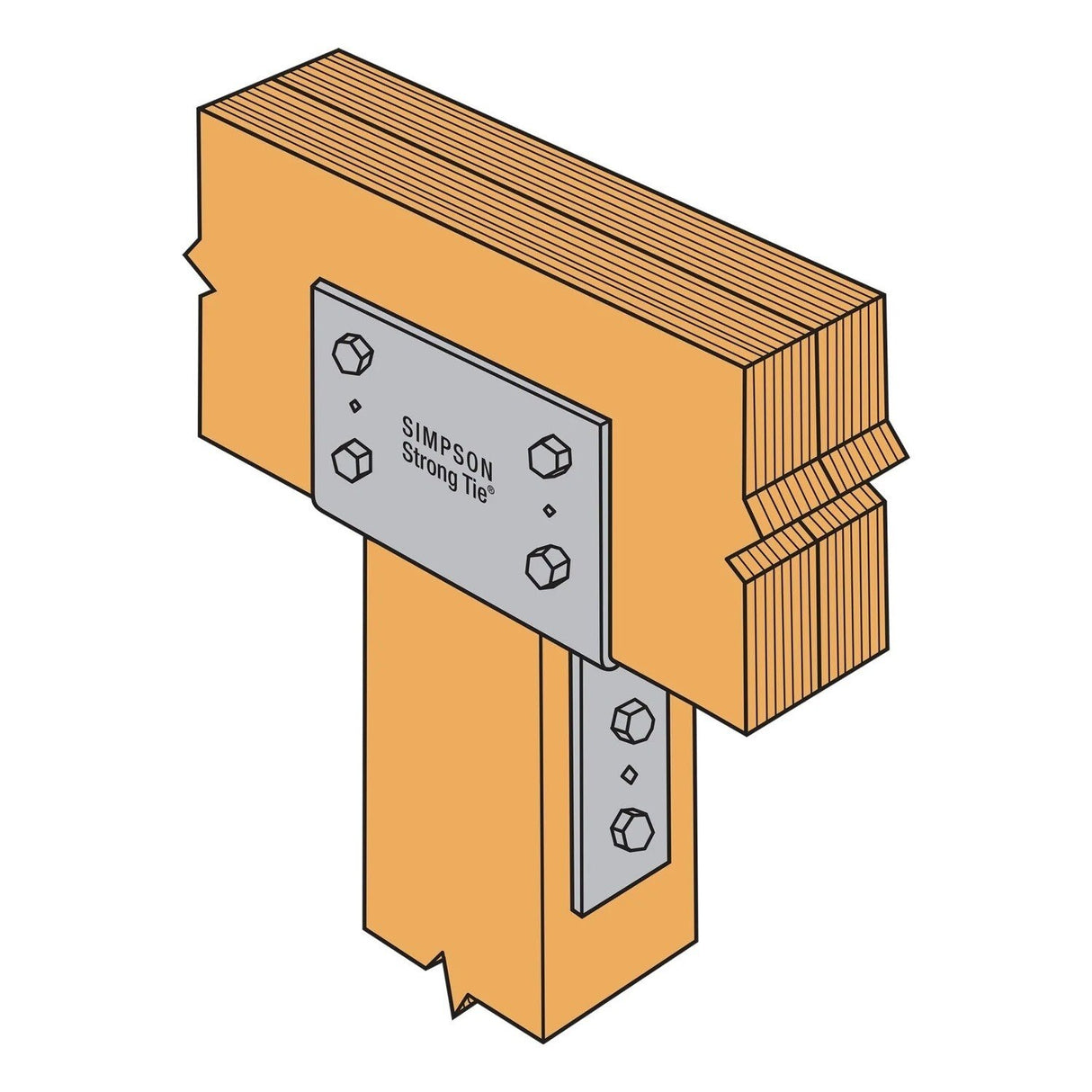

Simpson CC66 Installation Overview
- Align the column cap with the beam and post
- Secure using specified fasteners: Beam - (4) 5/8" Machine Bolts, Post - (2) 5/8" Machine Bolts
- Ensure bolt spacing complies with NDS code requirements
- Verify proper alignment and secure fastening
Simpson CC66 Specifications
| Finish | Gray Paint |
| Material | Heavy Gauge Steel |
| Beam size | 6x |
| Fasteners required | Beam - (4) 5/8" Machine Bolts, Post - (2) 5/8" Machine Bolts |
| For Treated Lumber | No |
| Post size | 6x |
| Thickness | 7 Gauge |
NOTE: Ensure proper installation using specified fasteners to achieve optimal load distribution.
