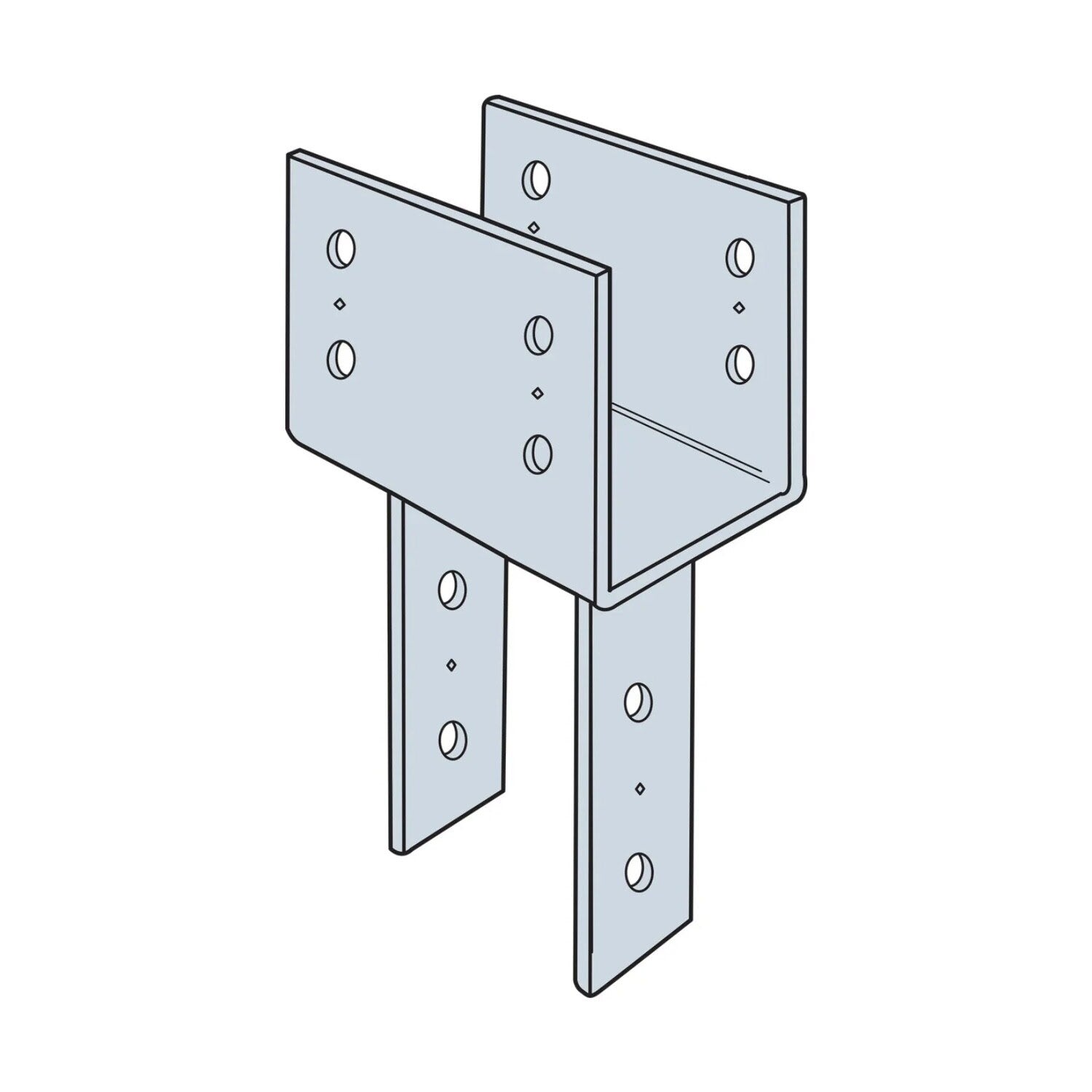

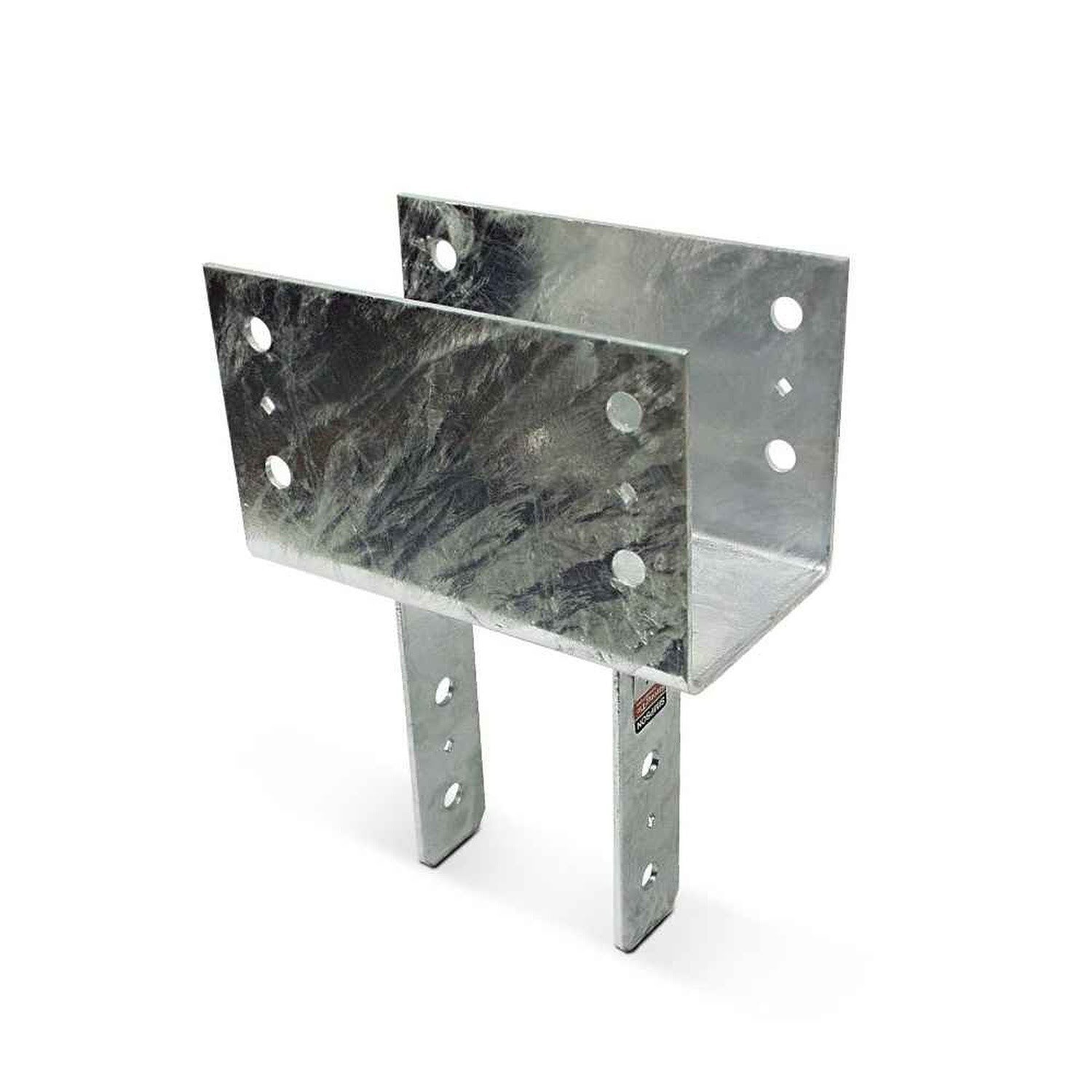

Simpson Strong-Tie CC66HDG Description
The Simpson CC66HDG Column Cap enhances the strength and stability of your construction projects, providing durable column-to-beam connections in wood construction.
Simpson Strong-Tie CC66HDG Includes
- (1) Hot-Dip Galvanized Column Cap for 6x Beam and 6x Post
Simpson Strong-Tie CC66HDG Features
- Provides strong column-to-beam connection
- Extended column seat area for better load distribution
- Made from heavy-gauge steel for durability
- Hot-dip galvanized finish for corrosion resistance
- Certified welds for increased strength and loading
- Diamond holes for temporary fastening during installation
- Bolt spacing meets NDS code requirements
Simpson Strong-Tie CC66HDG Applications

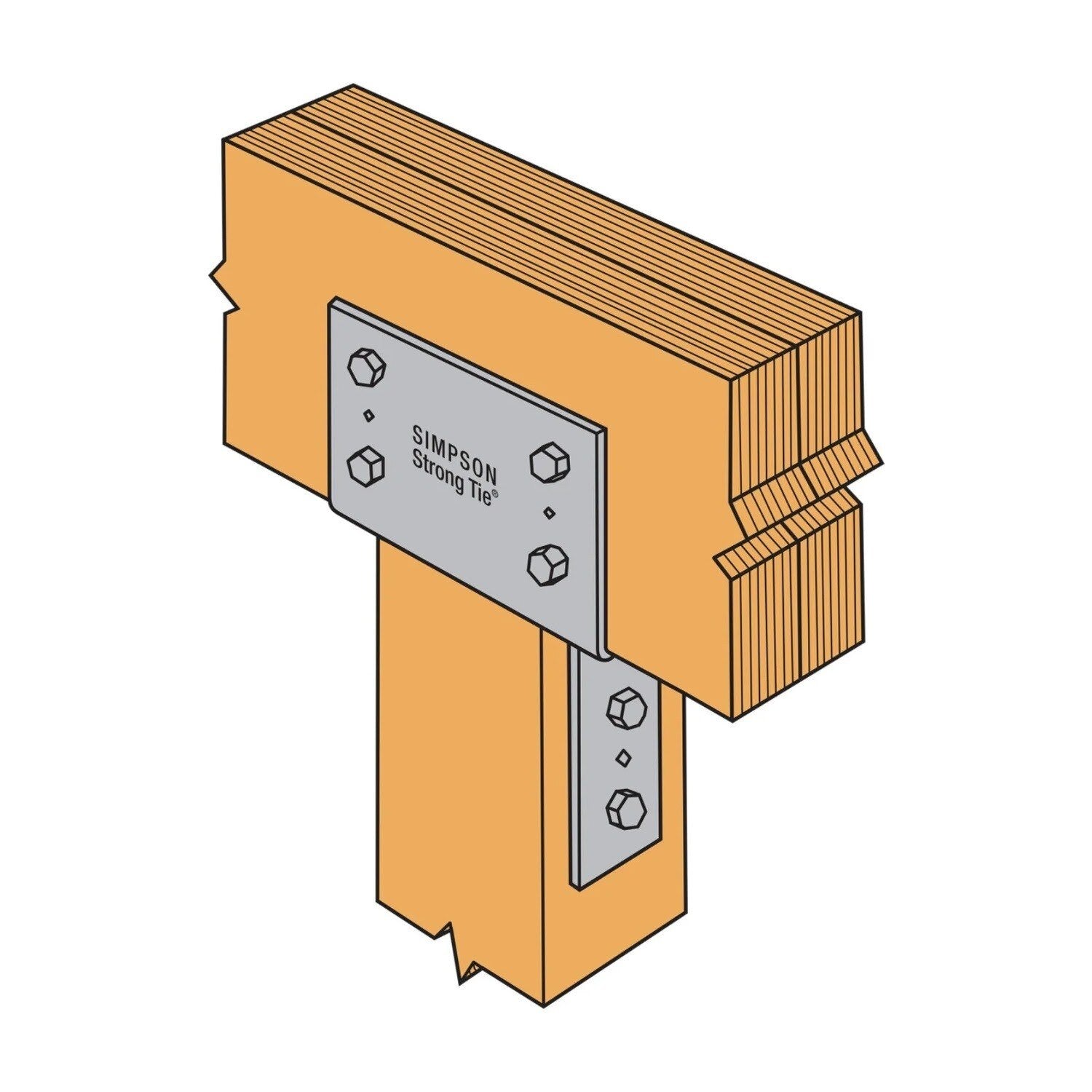

- Column-to-beam connections in wood construction
- Use with 6x beams and 6x posts/columns
- Suitable for earthquake or wind loading scenarios
Simpson Strong-Tie CC66HDG Specifications
| Finish | Hot Dip Galvanized |
| Material | Heavy Gauge Steel |
| Beam size | 6x |
| Fasteners required | Beam - (4) 5/8" Machine Bolts, Post - (2) 5/8" Machine Bolts |
| For Treated Lumber | Yes |
| Post size | 6x |
| Thickness | 7 Gauge |
Toolup Part # :
823648
