Simpson Anchors | SKU:
CC66ROT
Simpson Strong-Tie CC66ROT Rotated Strap Column Cap for 6x Beam and 6x Post, Gray Paint
$107.45
$154.53
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie CC66ROT Description

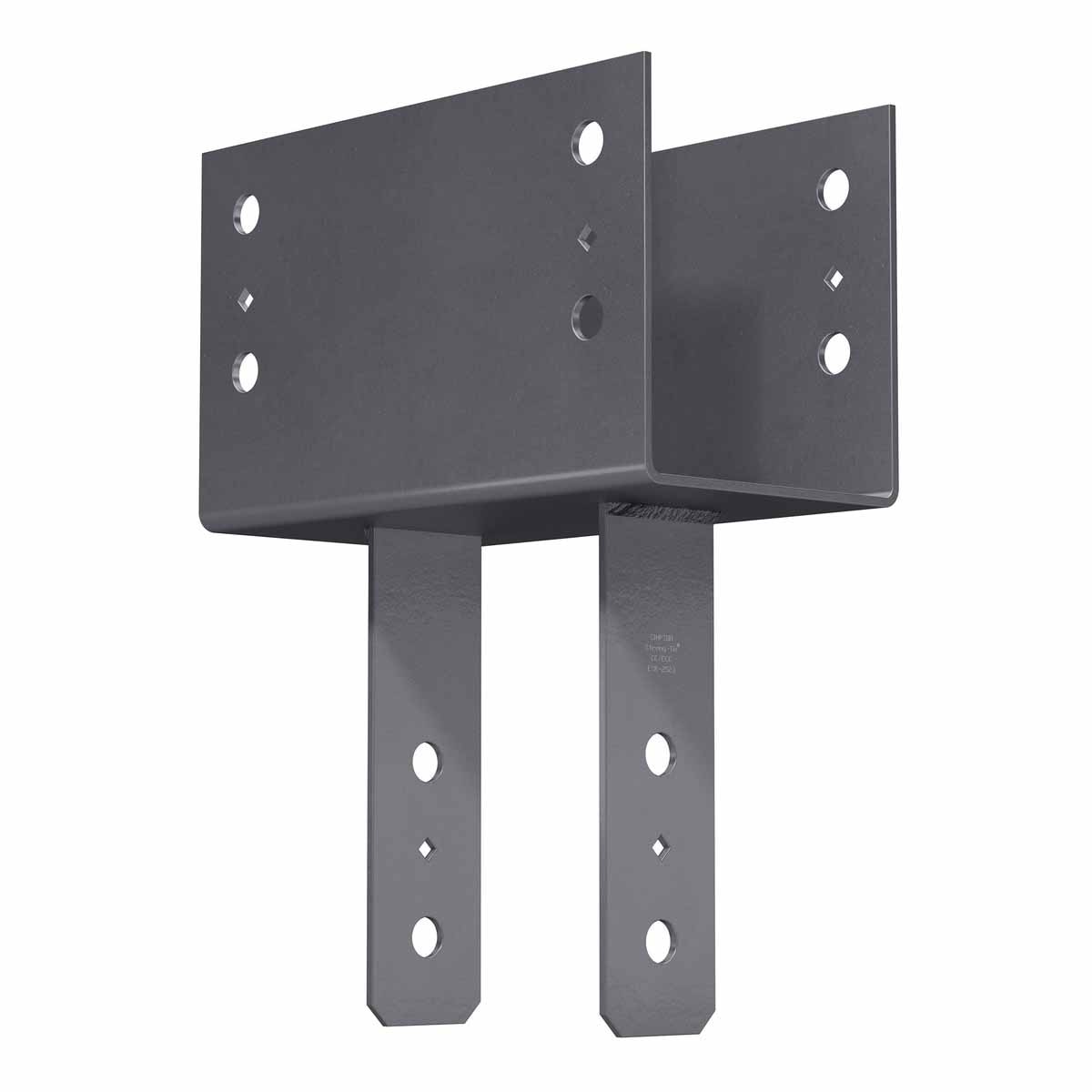

The Simpson CC66ROT Column Cap with rotated straps provides a strong and stable connection for 6x beams and posts, featuring heavy-gauge steel construction and a durable gray paint finish.
Simpson Strong-Tie CC66ROT Includes
- (1) Simpson CC66ROT Column Cap
Simpson Strong-Tie CC66ROT Features
- Provides strong column-to-beam connection with extended bearing surface for load distribution
- Designed for 6x beams and 6x posts/columns
- Constructed from heavy-gauge steel for durability
- Finished with gray paint for corrosion resistance
- Certified welds for enhanced strength and loading
- Diamond holes for temporary fastening during installation
- Bolt spacing meets NDS code requirements
Simpson Strong-Tie CC66ROT Applications
- Column-to-beam connections in wood construction
- Projects requiring enhanced load distribution and stability
- Use in earthquake or wind loading scenarios

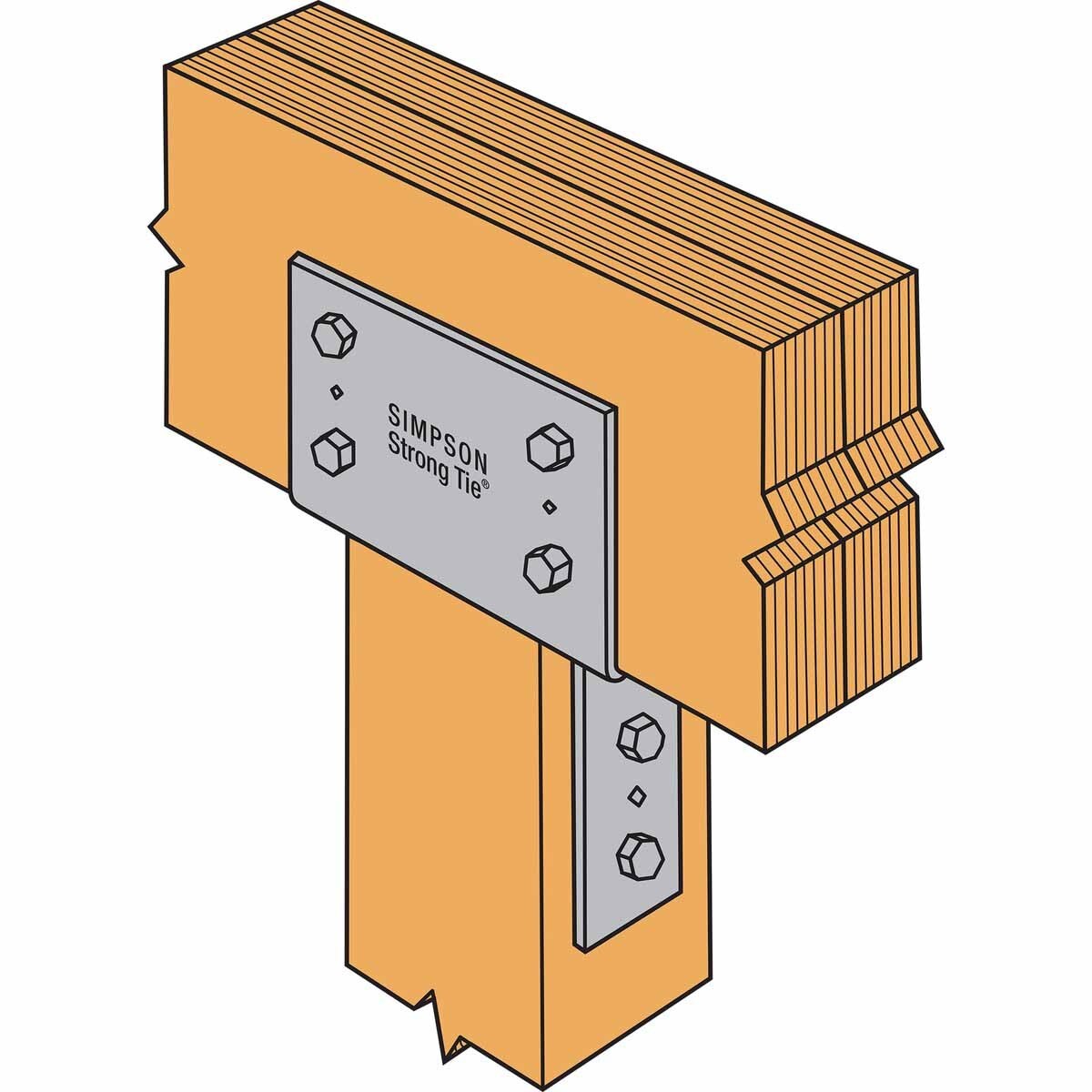

Simpson Strong-Tie CC66ROT Installation Overview
- Align the column cap with the beam and post
- Secure temporarily using the diamond holes
- Fasten using the specified machine bolts for beam and post connections
- Ensure bolt spacing complies with NDS code requirements

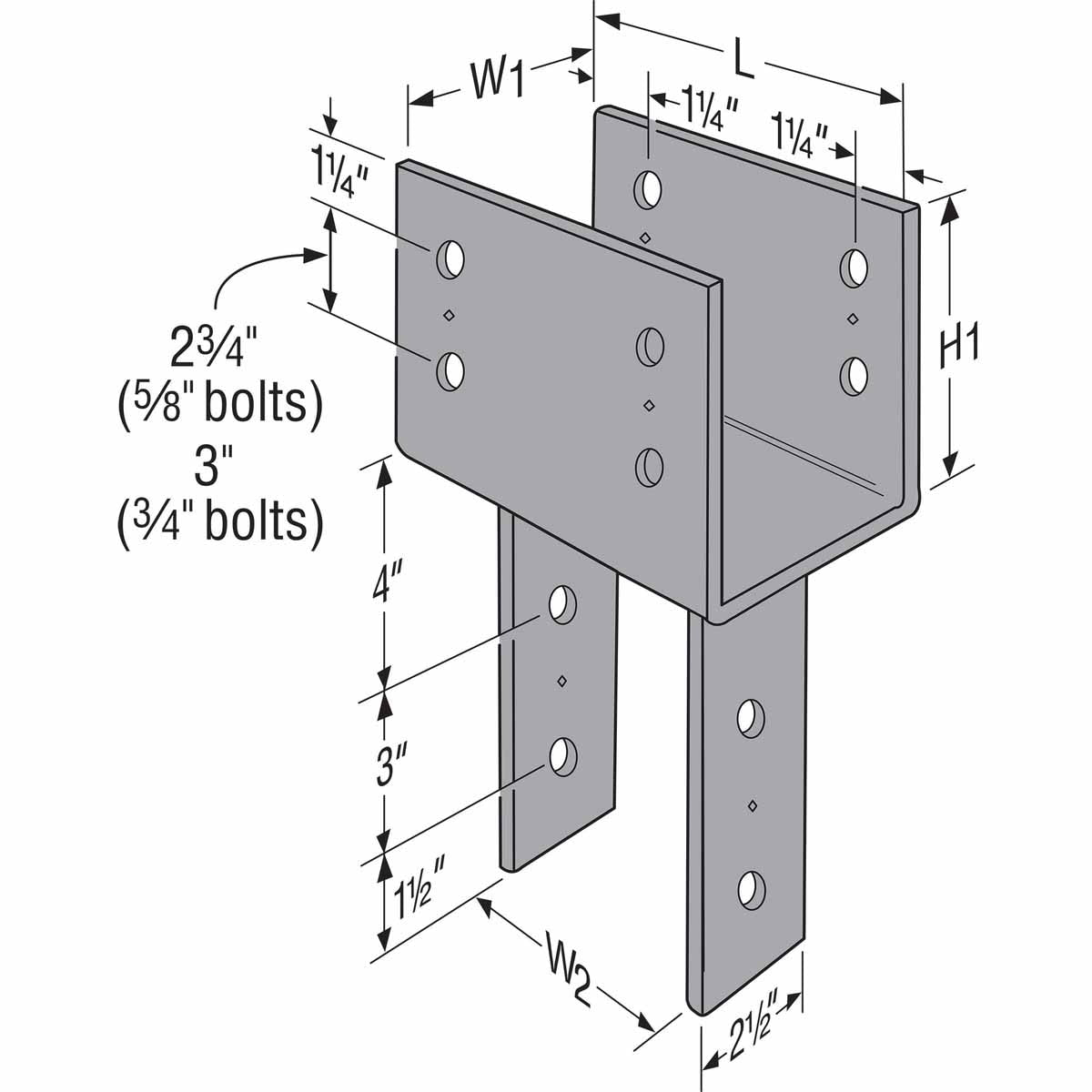

Simpson Strong-Tie CC66ROT Specifications
| Finish | Gray Paint |
| Material | Heavy Gauge Steel |
| Beam size | 6x |
| Fasteners required | Beam - (4) 5/8" Machine Bolts, Post - (2) 5/8" Machine Bolts |
| For Treated Lumber | No |
| Post size | 6x |
| Thickness | 7 Gauge |
