Simpson Anchors | SKU:
CC68

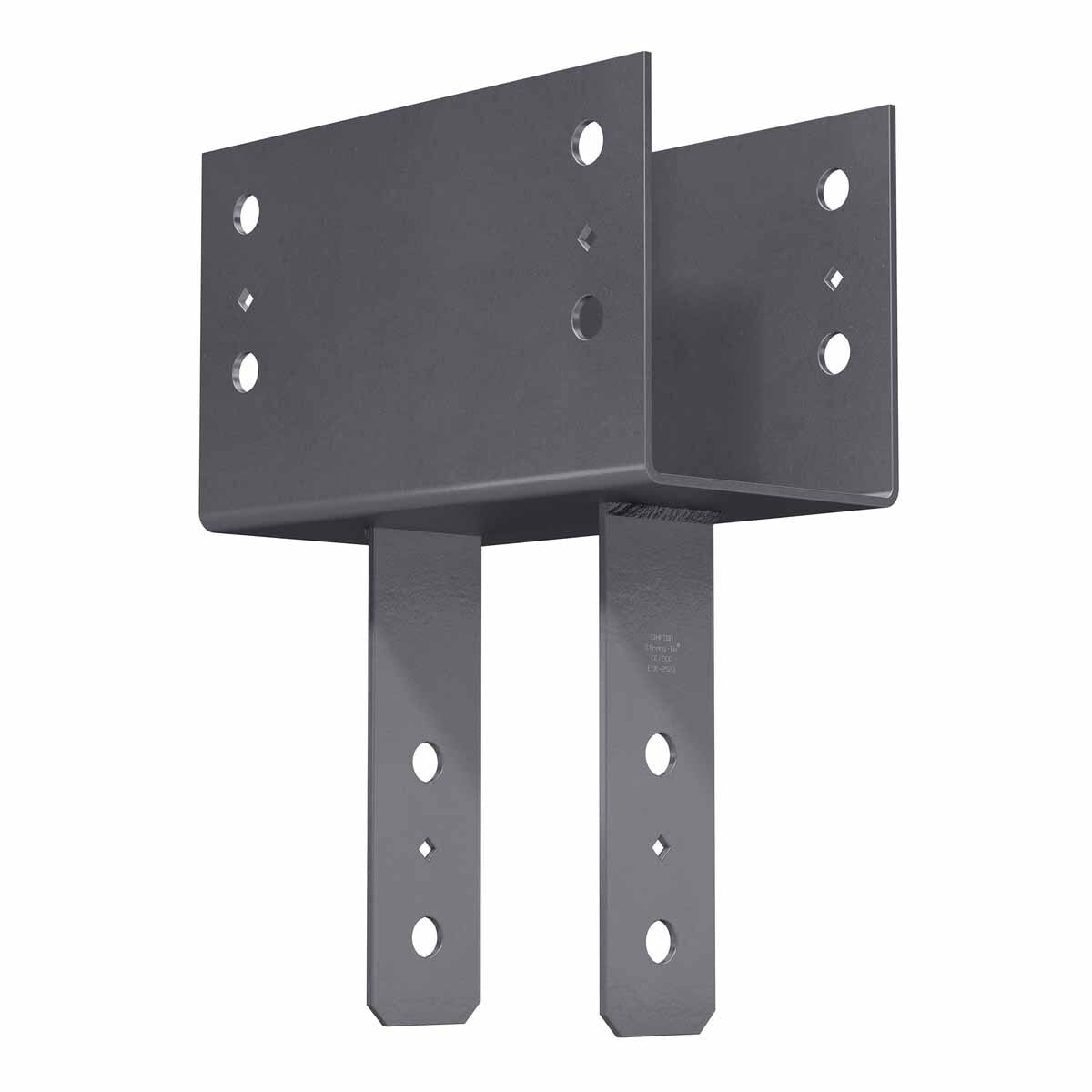

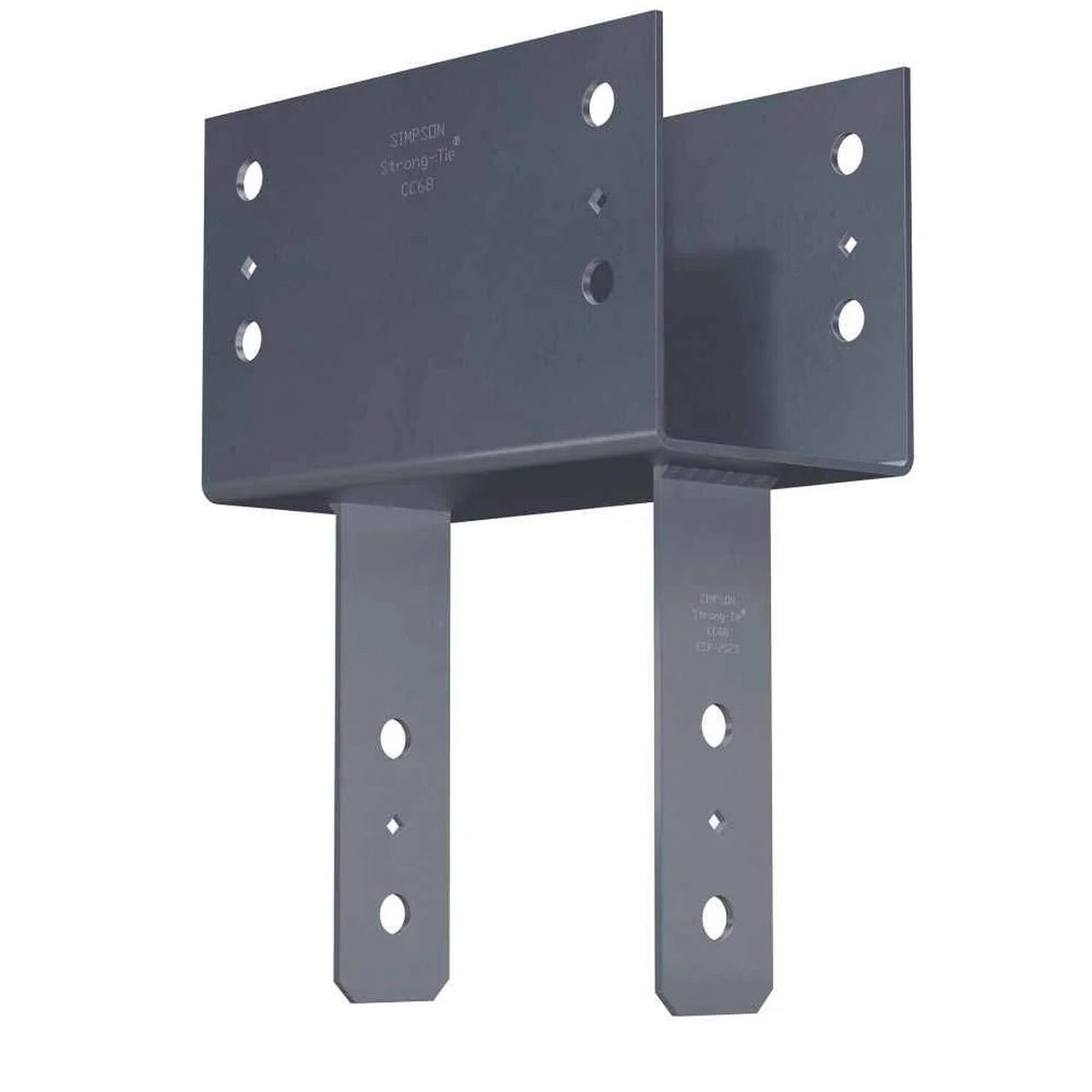

Simpson Strong-Tie CC68 (6x Beam, 8x Post) Heavy-Duty Column Cap for Wood Construction
$110.92
$159.53
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie CC68 Description
The Simpson Strong-Tie CC68 column cap provides a high-capacity connection for 6x beams and 8x posts in wood construction, ensuring structural integrity and durability.
Simpson Strong-Tie CC68 Includes
- (1) Simpson CC68 Column Cap
Simpson Strong-Tie CC68 Features
- Certified welds for confidence in strength and loading
- Uplift loads increased for earthquake or wind loading
- Bolt spacing that meets NDS code requirements to ensure optimal performance
- Diamond holes to provide temporary fastening
Simpson Strong-Tie CC68 Applications
- Fastening wood-to-wood connections in structural applications
- Providing high-capacity connections for column-beam combinations

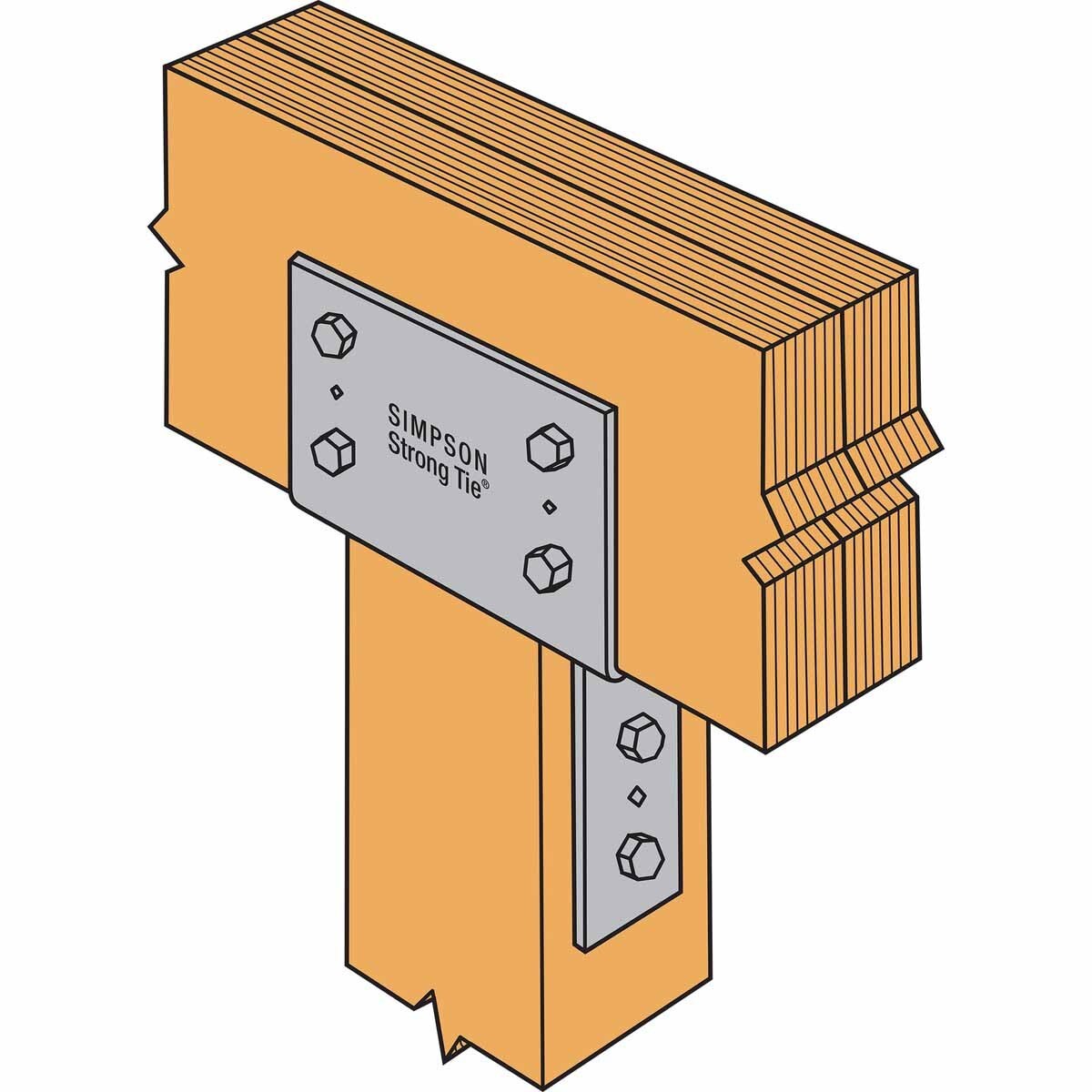

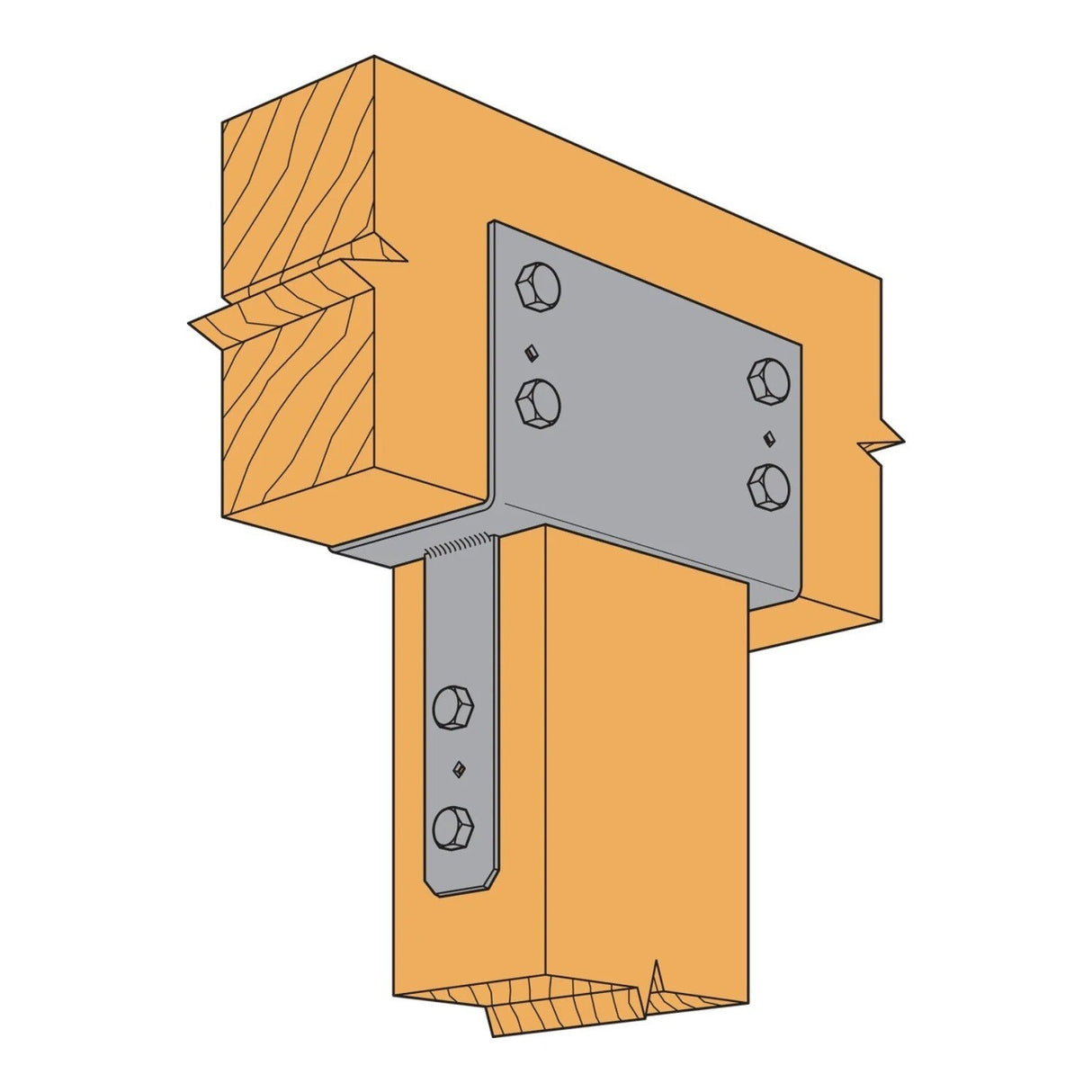

Simpson Strong-Tie CC68 Installation Overview
- Use all specified fasteners as per guidelines
- Ensure bolt holes are drilled to the specified tolerances
- Contact engineered wood manufacturers for non-standard connections

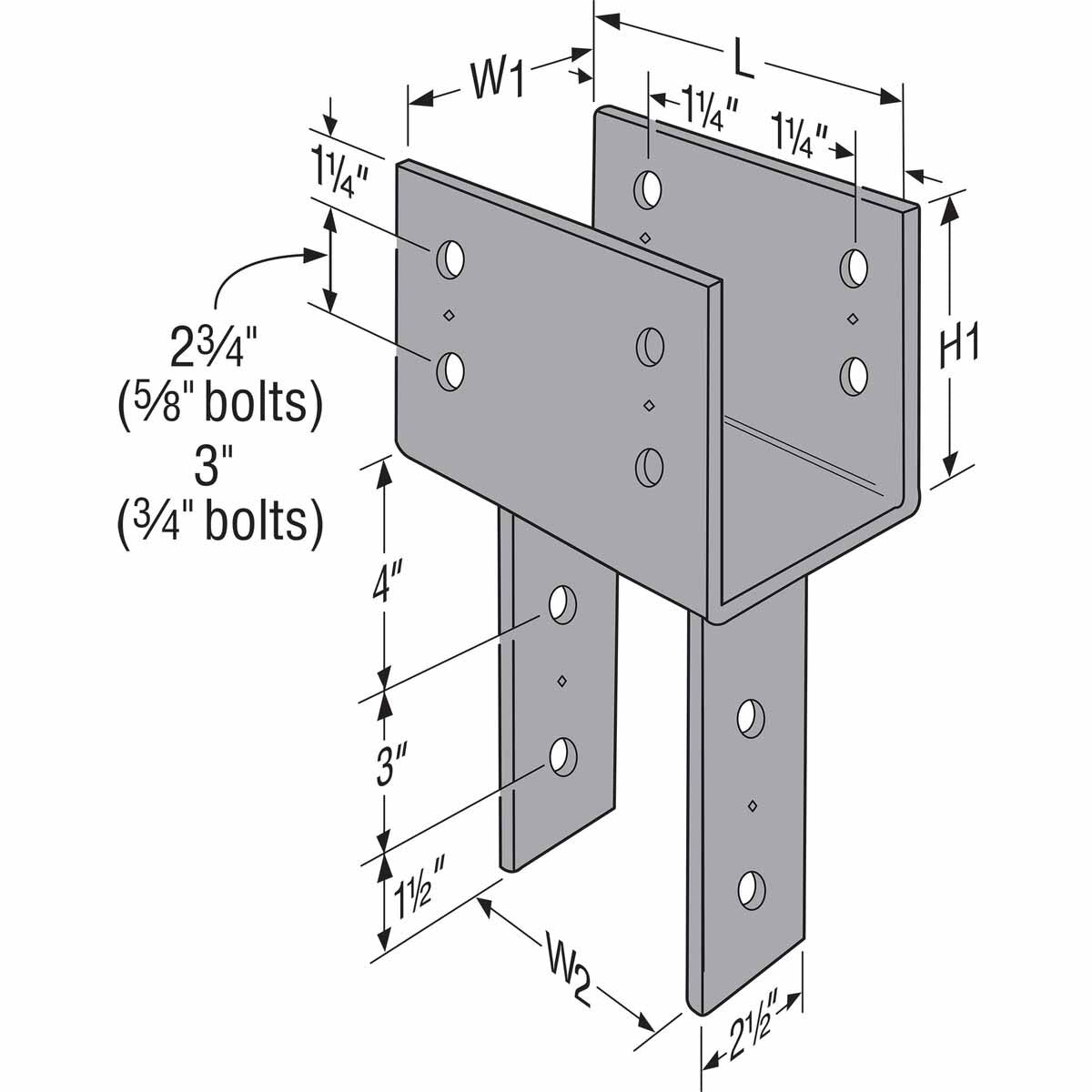

Simpson Strong-Tie CC68 Specifications
| Finish | Black Powder Coated |
| Beam size | 6X |
| Post size | 8X |
| Thickness | 7 Gauge |
| Fasteners required | Beam - (4) 5/8" Machine Bolts, Post - (2) 5/8" Machine Bolts |
| For Treated Lumber | No |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
