Simpson Anchors | SKU:
CC7 1/8-6

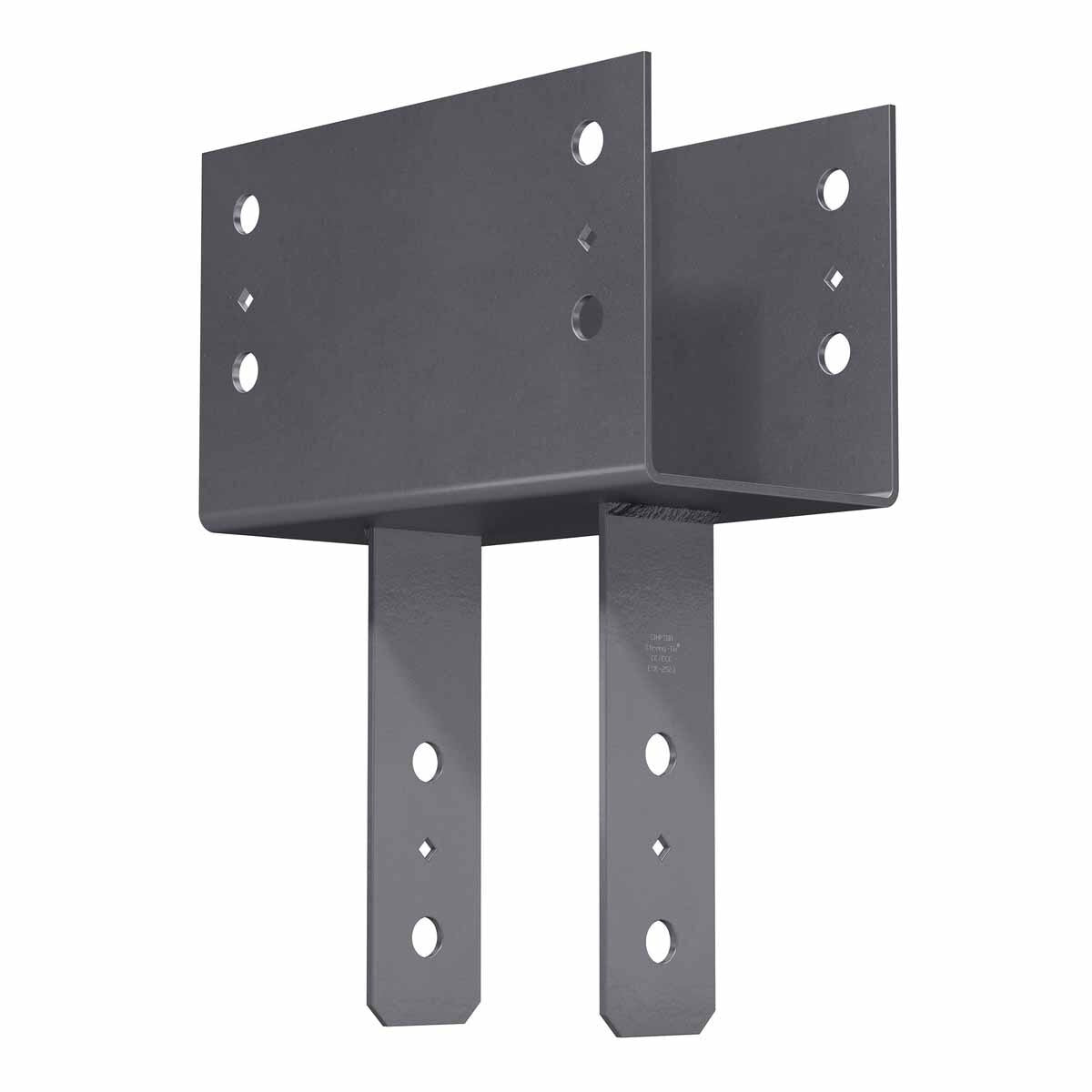

Simpson Strong-Tie CC7 1/8-6 Heavy-Duty Column Cap for 7" Beam and 6x Post - Certified Welds, Gray Paint Finish
$161.68
$232.52
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie CC7 1/8-6 Description
The Simpson CC7 1/8-6 Column Cap enhances the strength and stability of your construction projects. Designed for 7" beams and 6x posts, it features certified welds, a gray paint finish, and heavy-gauge steel construction.
Simpson Strong-Tie CC7 1/8-6 Includes
- (1) Strong-Tie Heavy-Duty Column Cap for 7" Beam and 6x Post
Simpson Strong-Tie CC7 1/8-6 Features
- Certified welds for strength and loading
- Increased uplift loads for earthquake or wind loading
- Bolt spacing meets NDS code requirements
- Diamond holes for temporary fastening
- Heavy-gauge steel construction with gray paint finish
Simpson Strong-Tie CC7 1/8-6 Applications

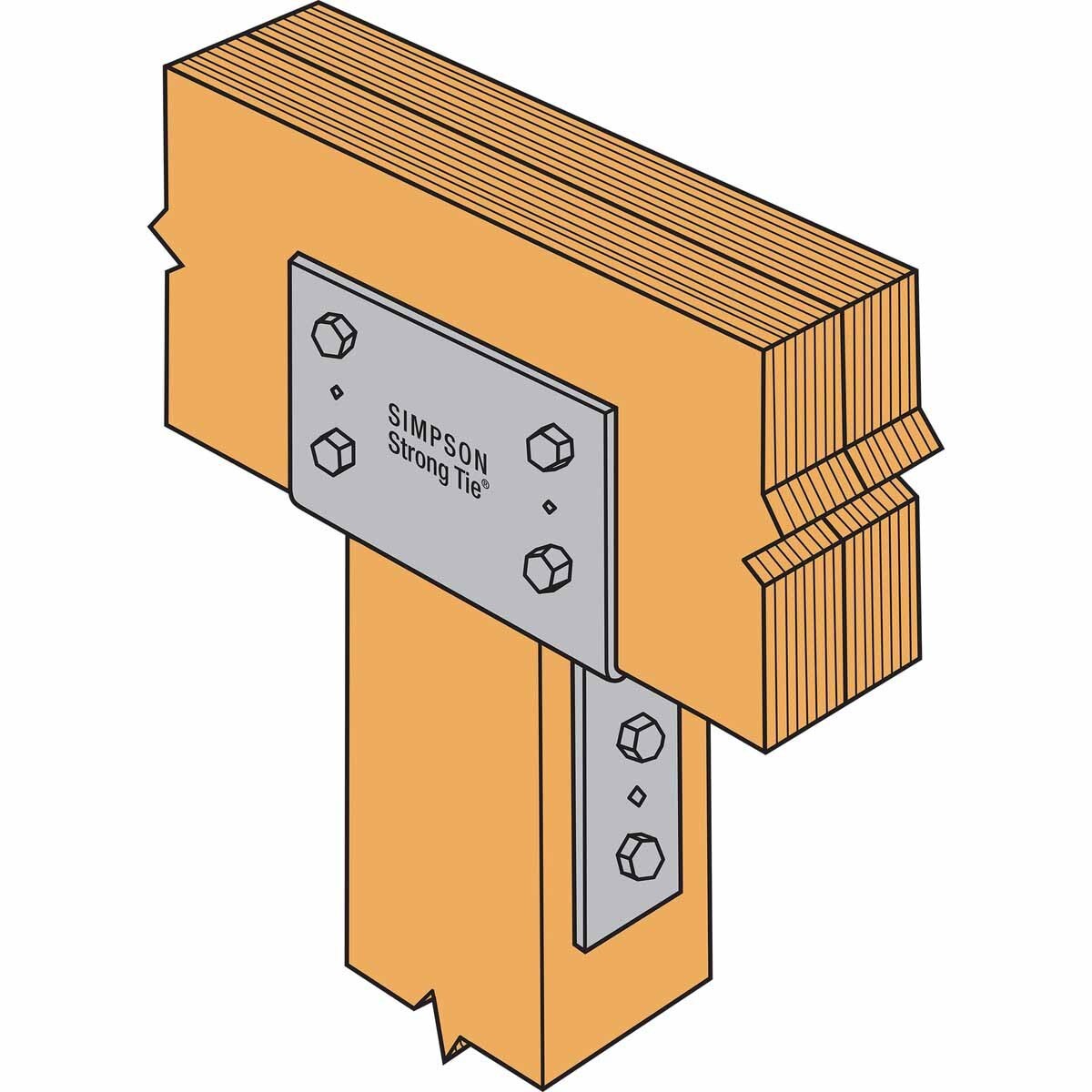

- Column-to-beam connections in wood construction
- Enhancing structural stability in construction projects
Simpson Strong-Tie CC7 1/8-6 Installation Overview
- Use all specified fasteners as per guidelines
- Drill bolt holes from one side through the beam to maintain tolerances
- Ensure beam depth matches or exceeds the height of the column cap

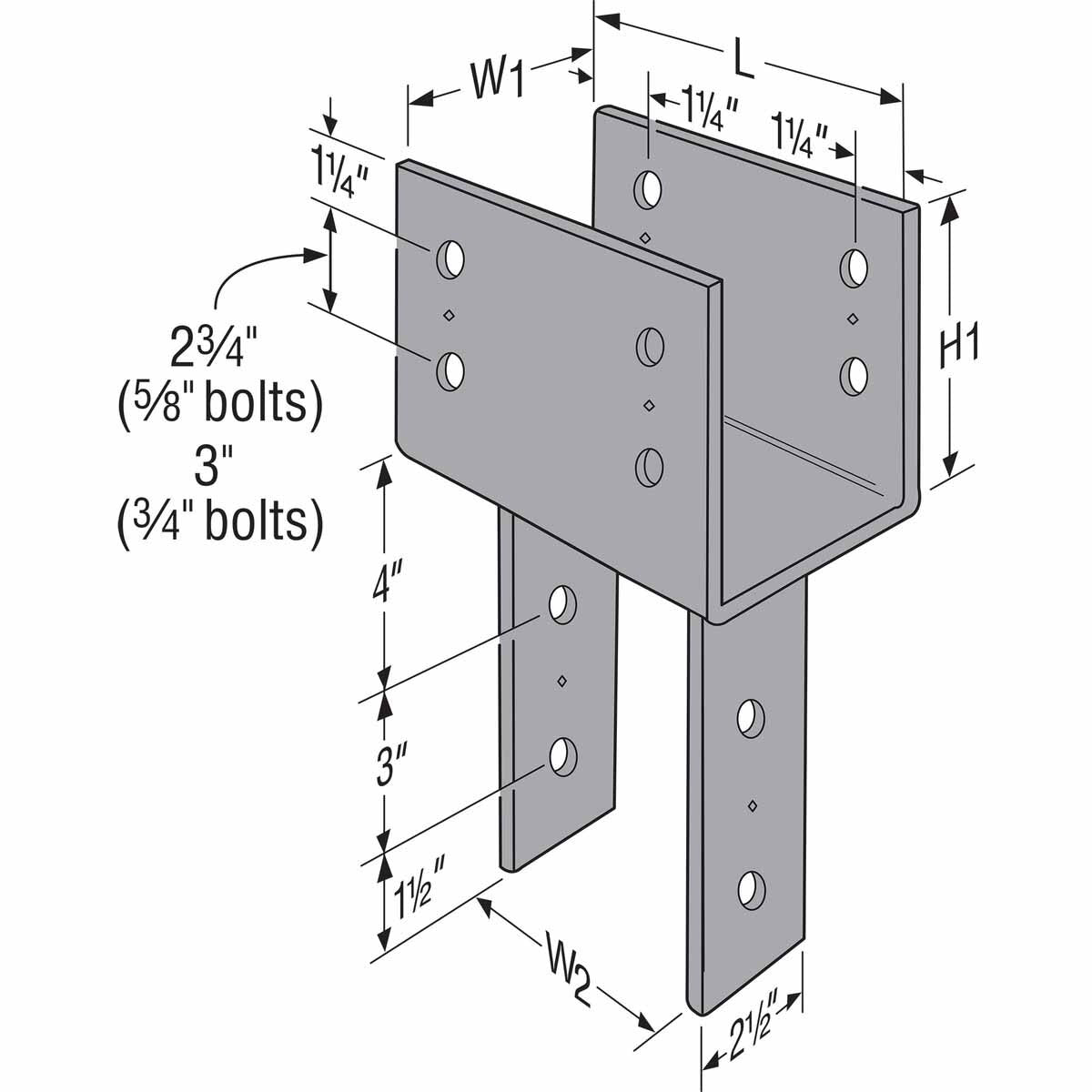

Simpson Strong-Tie CC7 1/8-6 Specifications
| Finish | Gray Paint |
| Material | Heavy Gauge Steel |
| Beam size | 7x |
| Fasteners required | Beam - (4) 3/4" Machine Bolts, Post - (2) 3/4" Machine Bolts |
| For Treated Lumber | No |
| Post size | 6x |
| Thickness | 3 Gauge |
