Simpson Anchors | SKU:
CC74

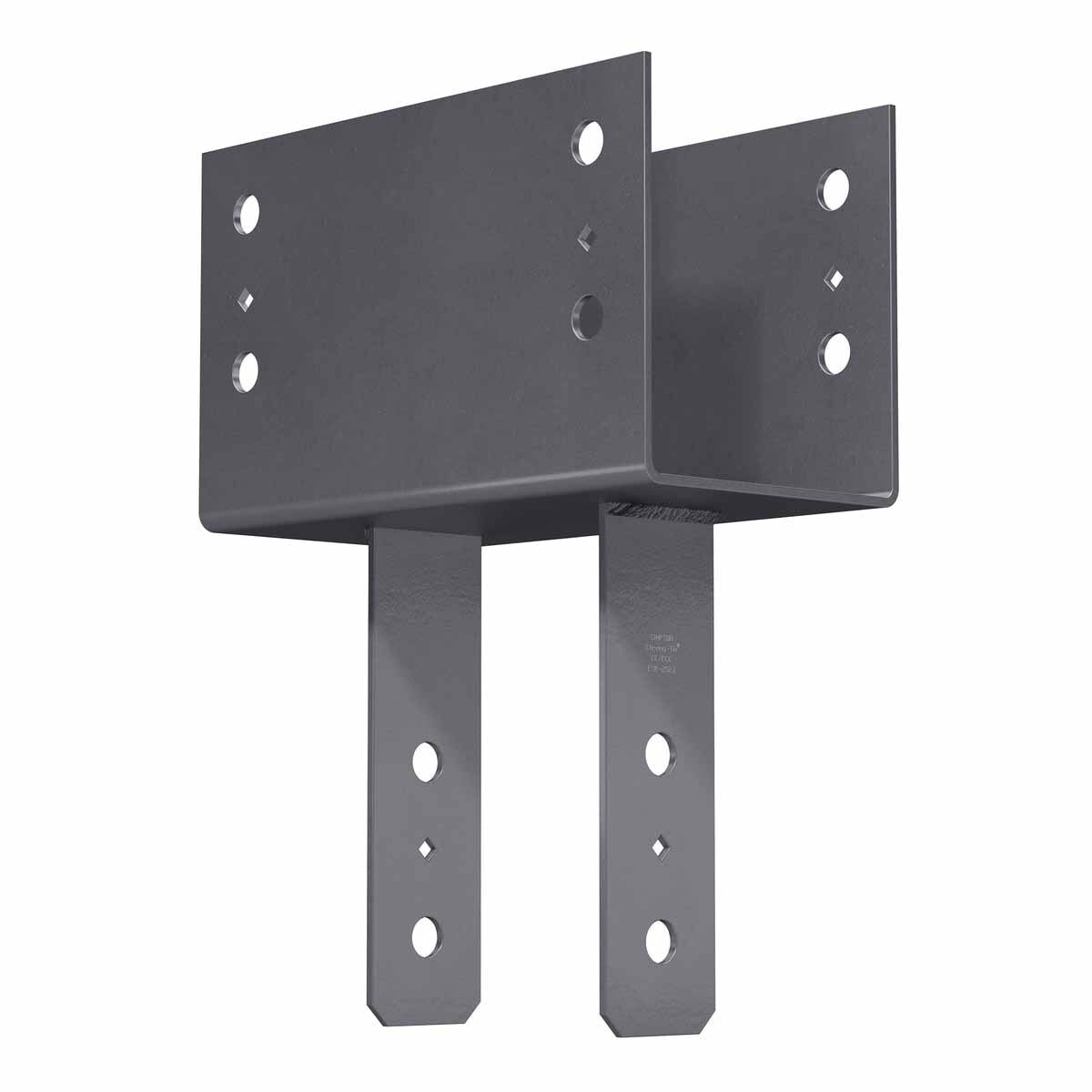

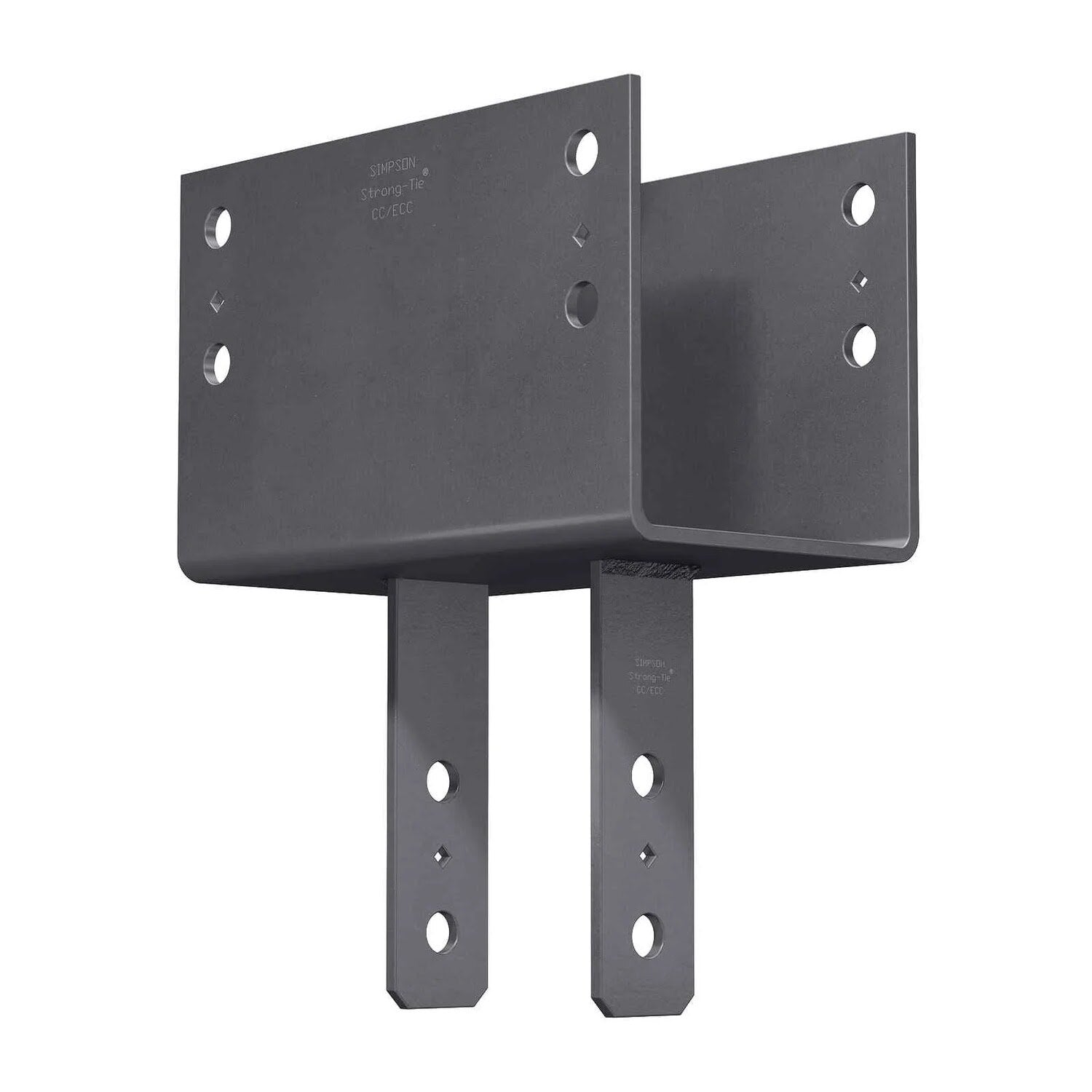

Simpson Strong-Tie CC74 Heavy-Gauge Steel Column Cap for 7x Beam to 4x Post Connections
$164.65
$236.79
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie CC74 Description
The Simpson CC74 Column Cap enhances the strength and stability of your construction projects, providing a durable and reliable column-to-beam connection.
Simpson Strong-Tie CC74 Includes
- (1) Heavy-Gauge Steel Column Cap
Simpson Strong-Tie CC74 Features
- Provides strong column-to-beam connection
- Extended column seat area for better load distribution
- Made from heavy-gauge steel for durability
- Gray paint finish for added protection
- Certified welds for increased strength and loading
- Designed for earthquake or wind loading
- Diamond holes for temporary fastening during installation
- Bolt spacing meets NDS code requirements
Simpson Strong-Tie CC74 Applications

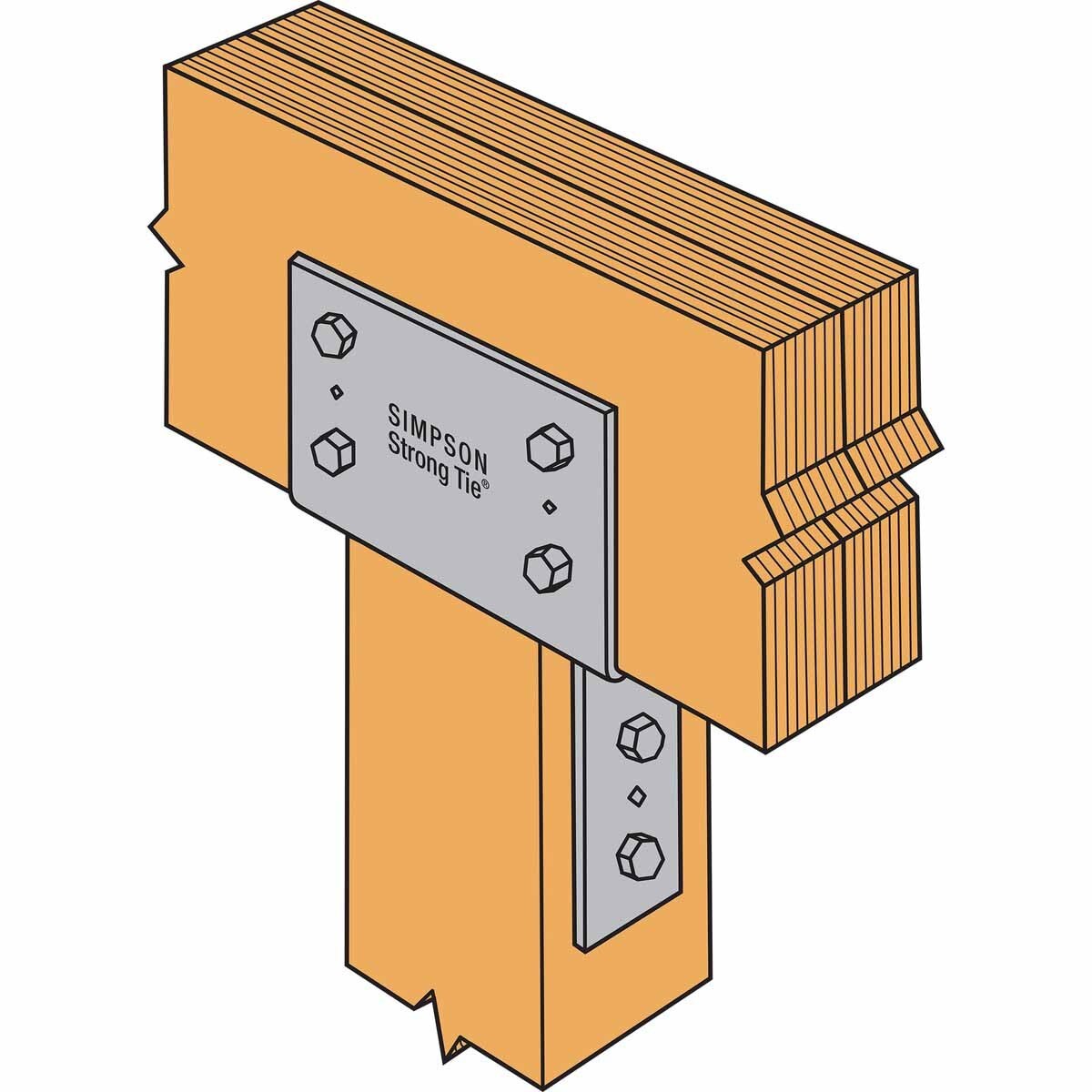

- Column-to-beam connections in wood construction
- Use with 7x beams and 4x posts/columns
- Suitable for earthquake or wind loading scenarios
Simpson Strong-Tie CC74 Installation Overview
- Align the column cap with the beam and post.
- Secure temporarily using the diamond holes.
- Fasten using the specified bolts as per the guidelines.
- Ensure all connections are tight and secure.

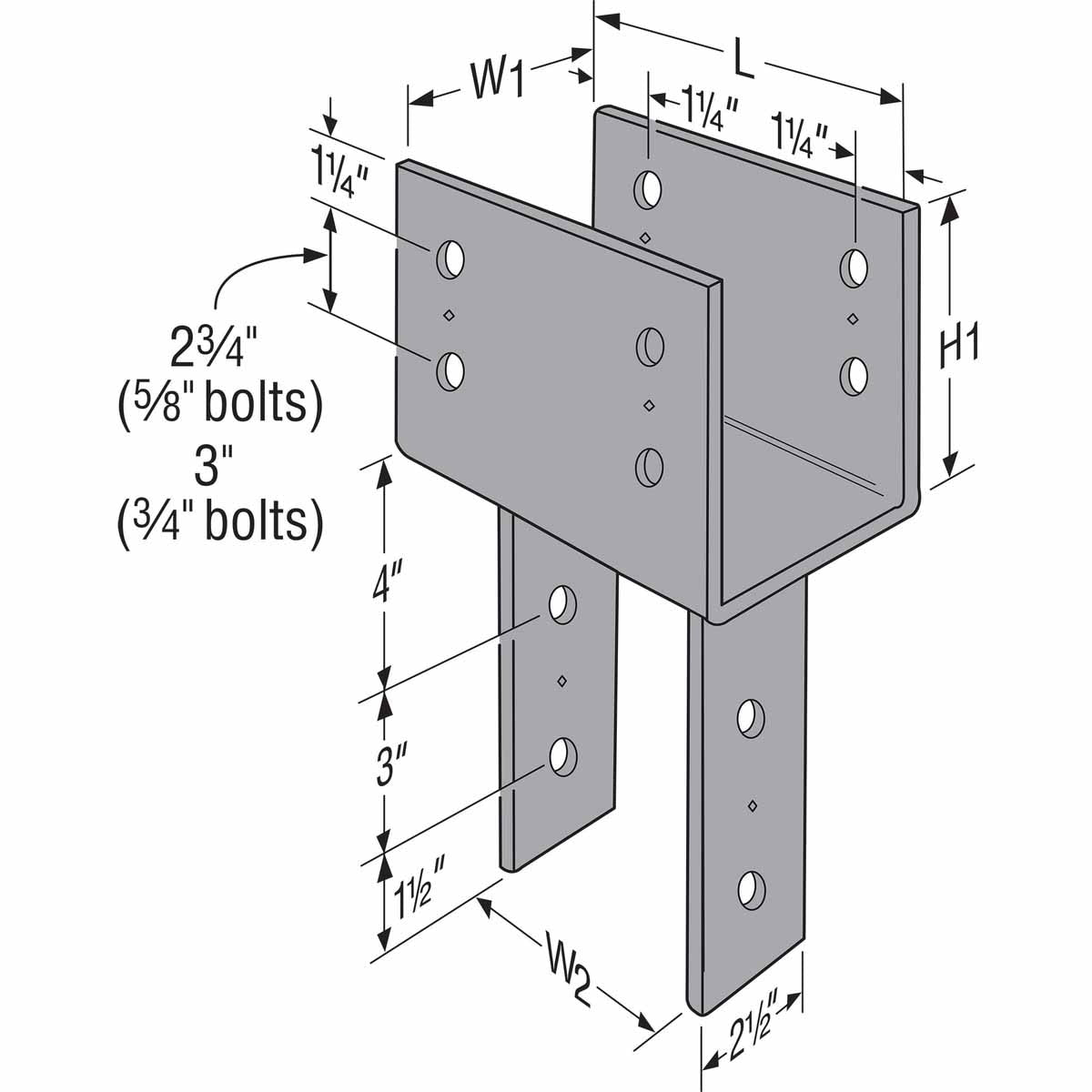

Simpson Strong-Tie CC74 Specifications
| Finish | Gray Paint |
| Length | 13" |
| Material | Heavy Gauge Steel |
| Beam size | 7x |
| Fasteners required | Size 3/4" Bolts - Beam - (4); Post (2) |
| Height | 8" |
| Post size | 4x |
| Thickness | 3 Gauge |
NOTE: This item is made to order and is non-returnable.
