Simpson Anchors | SKU:
CC76
Simpson Strong-Tie CC76 (6-3/4") Heavy-Duty Column Cap for 6-3/4" Beam, 6x Post - Certified Welds, Gray Paint
$164.65
$236.79
Unit price
/
Unavailable
Description
Description

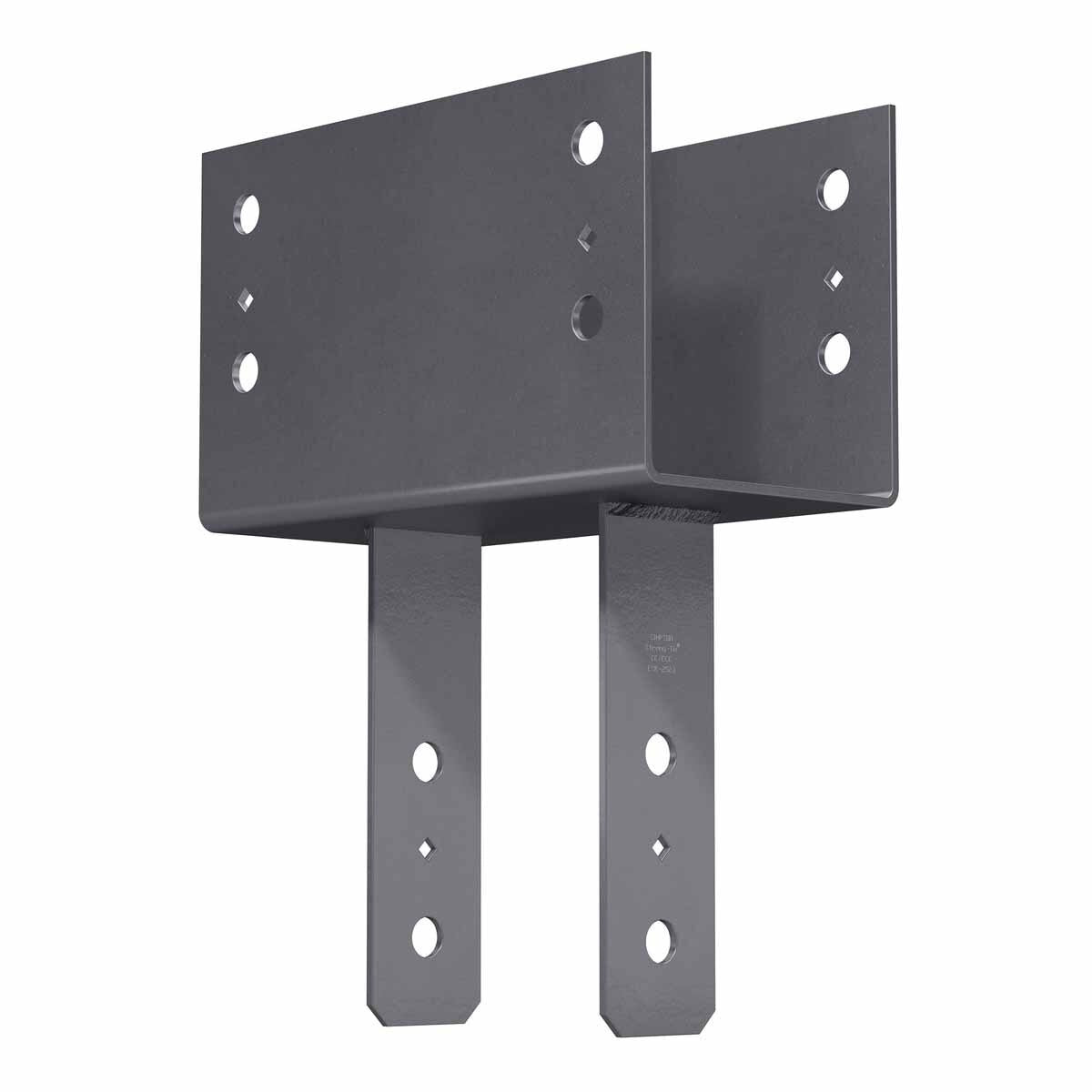

Simpson Strong-Tie CC76 Description
The Simpson CC76 Column Cap enhances the strength and stability of wood construction projects, providing reliable column-to-beam connections.
Simpson Strong-Tie CC76 Includes
- (1) CC76 Column Cap
Simpson Strong-Tie CC76 Features
- Certified welds for strength and loading
- Increased uplift loads for earthquake or wind loading
- Bolt spacing meets NDS code requirements
- Diamond holes for temporary fastening
- Heavy gauge steel construction
- Gray paint finish

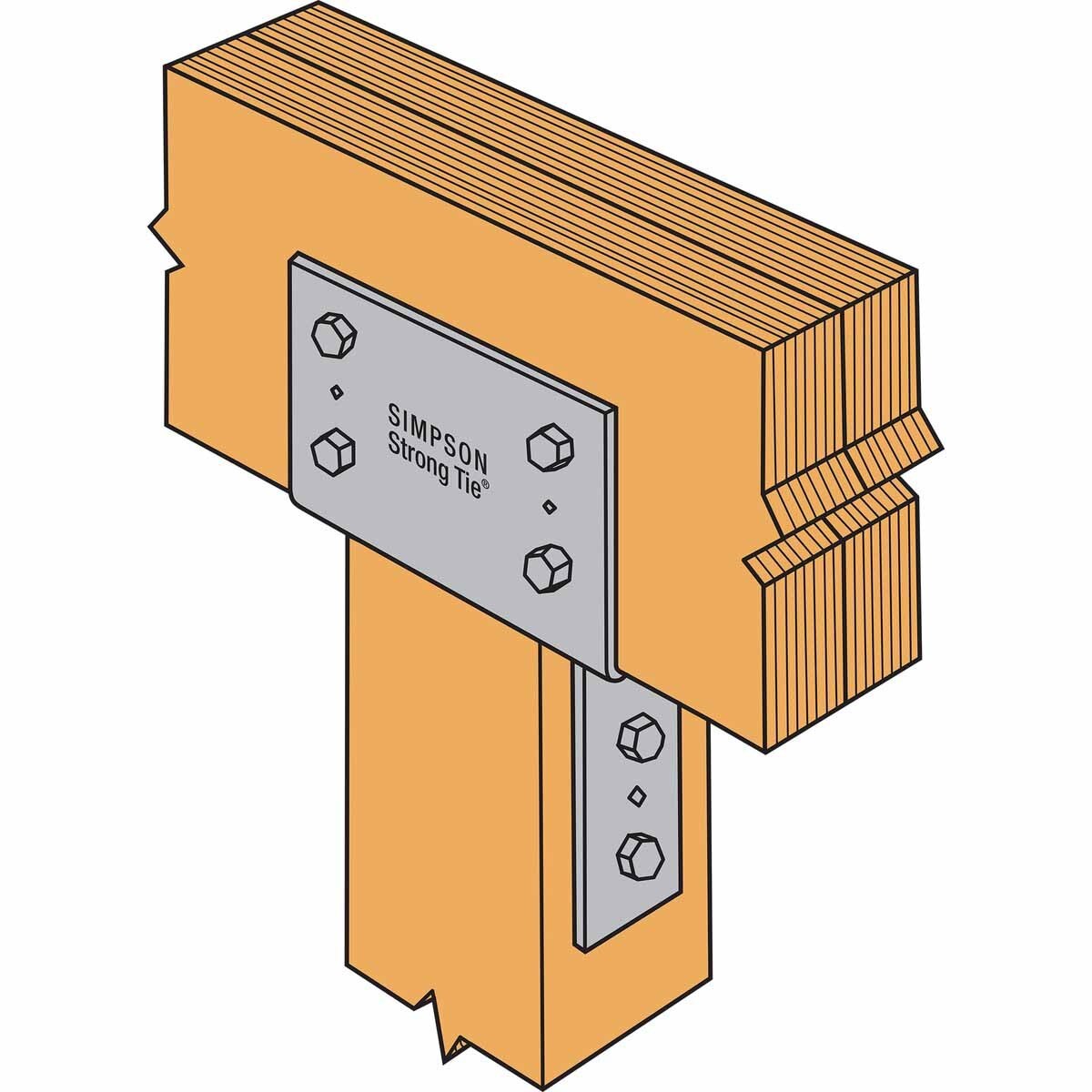

Simpson Strong-Tie CC76 Applications
- Wood construction requiring column-to-beam connections
- Projects needing enhanced load distribution and stability
Simpson Strong-Tie CC76 Installation Overview
- Use all specified fasteners
- Drill bolt holes from one side through the beam to maintain tolerances
- Ensure proper alignment and secure fastening

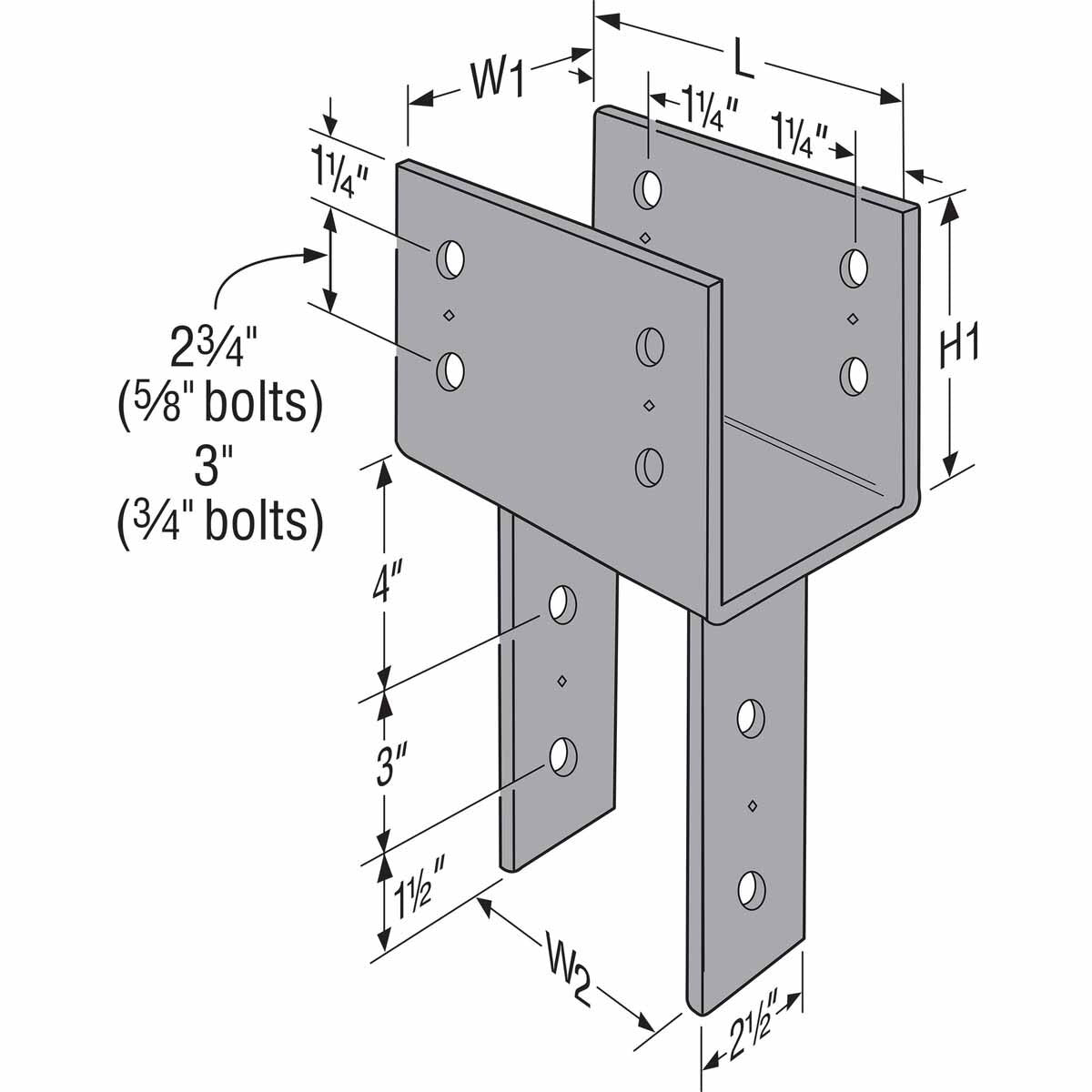

Simpson Strong-Tie CC76 Specifications
| Finish | Gray Paint |
| Material | Heavy Gauge Steel |
| Beam size | 6-3/4" |
| Post size | 6x |
| Thickness | 3 Gauge |
| Fasteners required | Beam - (4) 3/4" Machine Bolts, Post - (2) 3/4" Machine Bolts |
| For Treated Lumber | No |
NOTE: Ensure all specified fasteners are used and bolt holes are drilled from one side through the beam to maintain tolerances.
