Simpson Anchors | SKU:
CC78

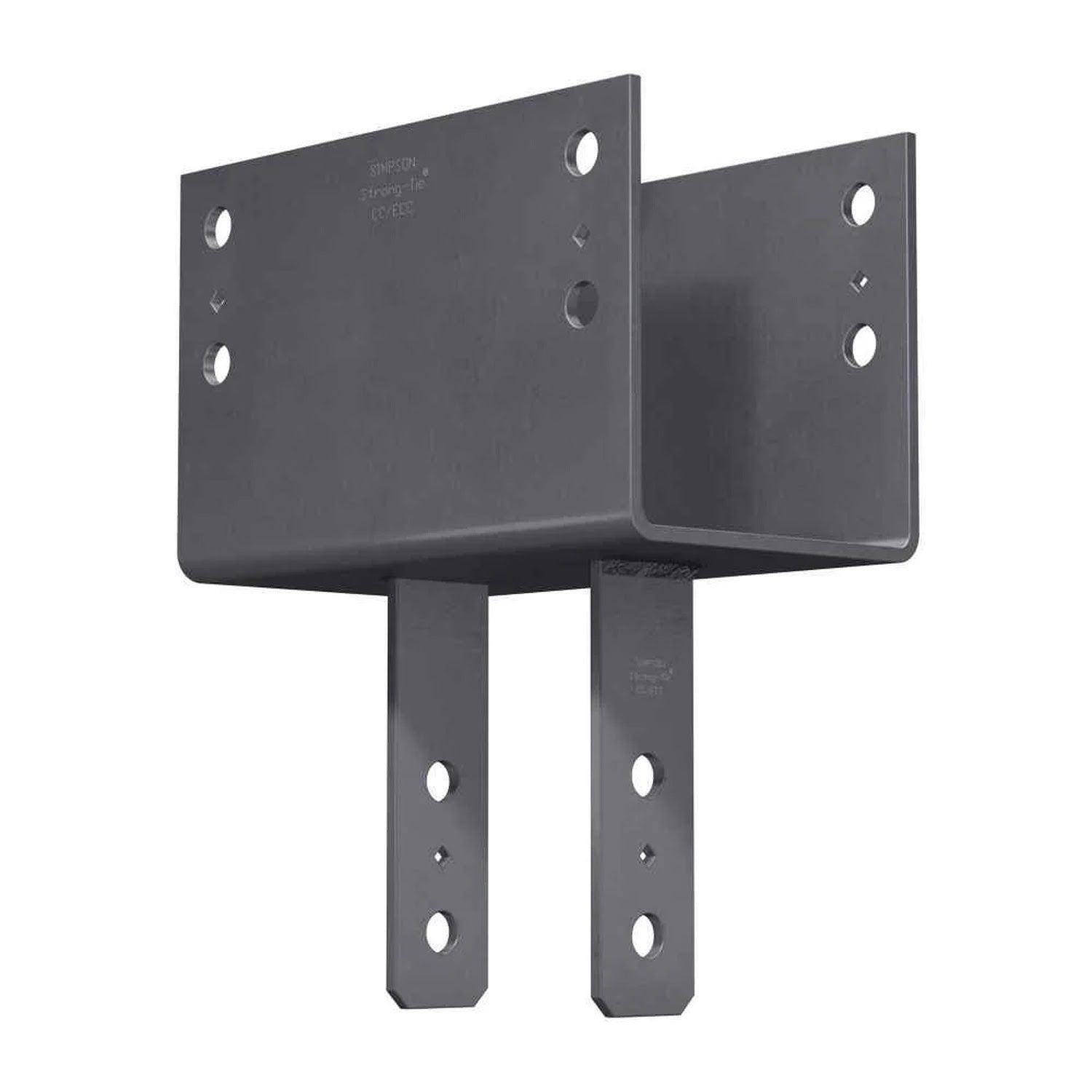

Simpson Strong-Tie CC78 (6-3/4" Beam, 8x Post) Column Cap
$159.45
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie CC78 Description
The Simpson CC78 Column Cap enhances the strength and stability of construction projects, providing a durable column-to-beam connection for 6-3/4" beams and 8x posts.
Simpson Strong-Tie CC78 Includes
- (4) 3/4" Machine Bolts for Beam
- (2) 3/4" Machine Bolts for Post
Simpson Strong-Tie CC78 Features
- Provides strong column-to-beam connection
- Extended column seat area for better load distribution
- Made from heavy gauge steel for durability
- Gray paint finish for added protection
- Certified welds for increased strength and loading
- Diamond holes for temporary fastening during installation
- Bolt spacing meets NDS code requirements
Simpson Strong-Tie CC78 Applications
- Column-to-beam connections in wood construction
- Projects requiring enhanced load distribution and stability
- Use with 6-3/4" beams and 8x posts
Simpson Strong-Tie CC78 Installation Overview
- Align the column cap with the beam and post
- Secure temporarily using the diamond holes
- Fasten using the specified machine bolts for beam and post
- Ensure bolt spacing complies with NDS code requirements
Simpson Strong-Tie CC78 Specifications
| Finish | Gray Paint |
| Material | Heavy Gauge Steel |
| Beam size | 7x |
| Fasteners required | Beam - (4) 3/4" Machine Bolts, Post - (2) 3/4" Machine Bolts |
| For Treated Lumber | No |
| Post size | 8x |
| Thickness | 3 Gauge |
