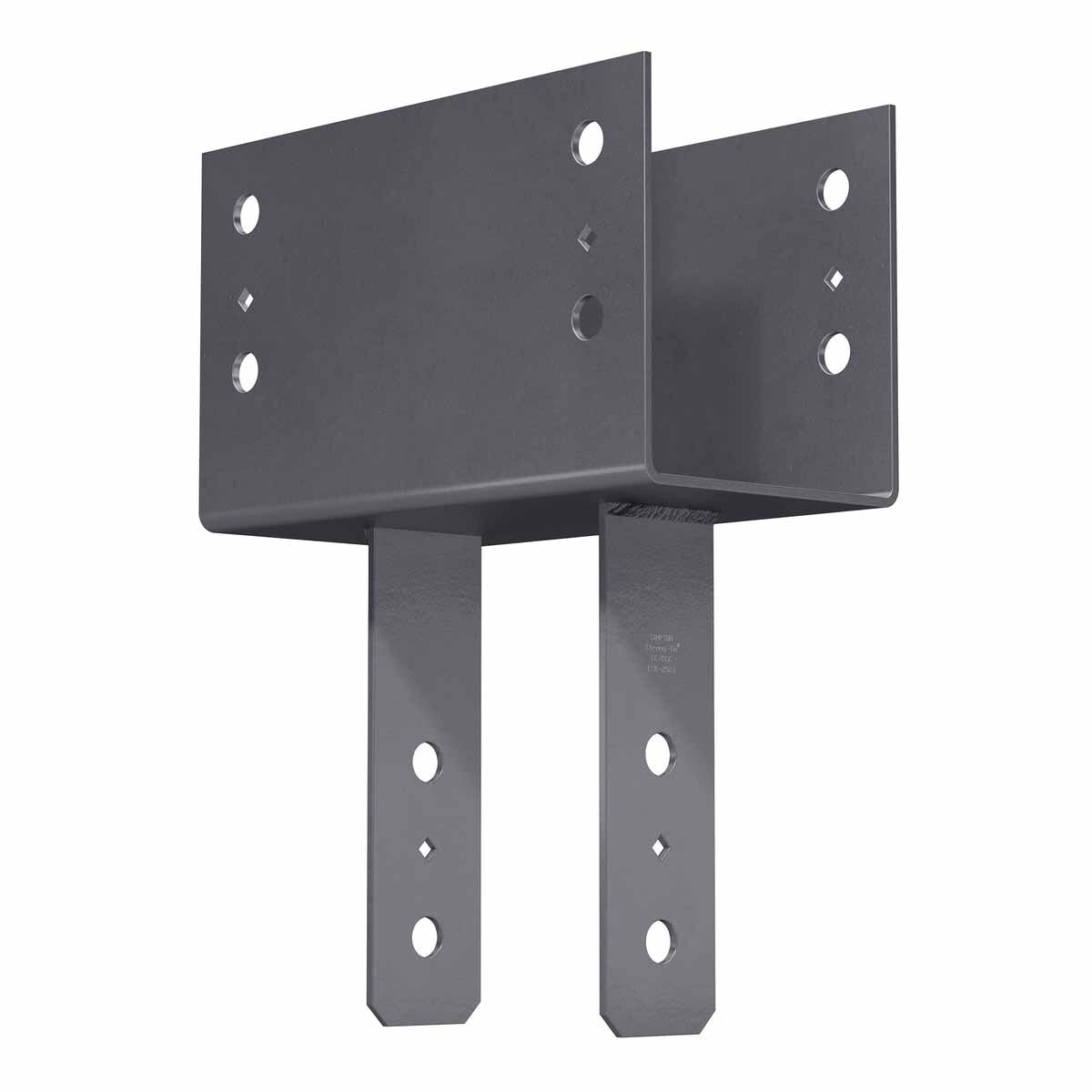

Simpson Strong-Tie CC84 Description
The Simpson CC84 Column Cap enhances the strength and stability of your construction projects, providing a durable column-to-beam connection for wood construction.
Simpson Strong-Tie CC84 Includes
- (1) Simpson CC84 Column Cap
Simpson Strong-Tie CC84 Features
- Provides strong column-to-beam connection
- Extended column seat area for load distribution
- Made from heavy-gauge steel for durability
- Gray paint finish for added protection
- Certified welds for increased strength and loading
- Designed for earthquake and wind loading
- Diamond holes for temporary fastening during installation
- Bolt spacing meets NDS code requirements
Simpson Strong-Tie CC84 Applications
- Column-to-beam connections in wood construction
- Structural support for 8x beams and 4x posts
- Projects requiring enhanced load distribution

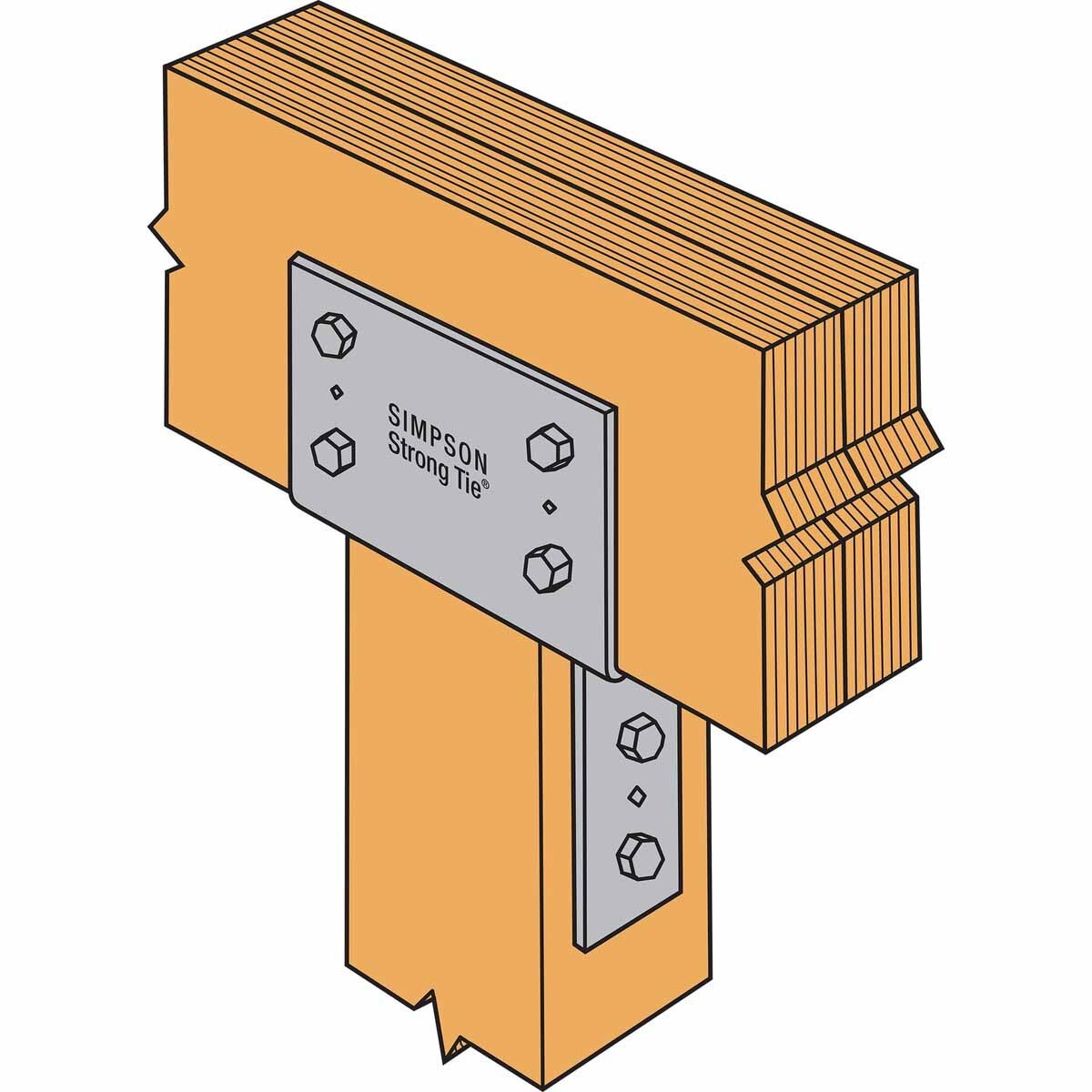

Simpson Strong-Tie CC84 Installation Overview
- Align the column cap with the beam and post
- Secure temporarily using the diamond holes
- Fasten using specified machine bolts for beam and post connections
- Ensure bolt spacing complies with NDS code requirements

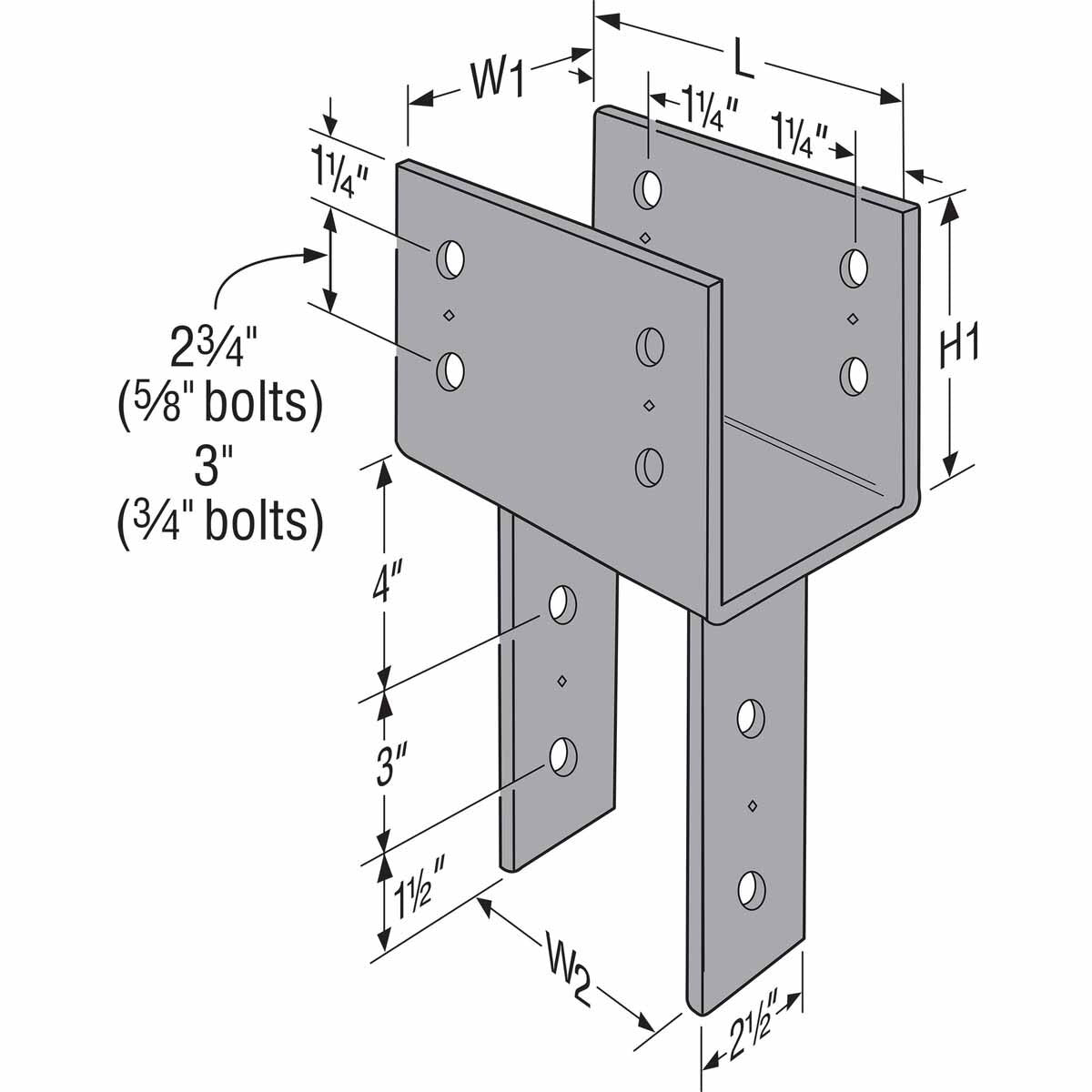

Simpson Strong-Tie CC84 Specifications
| Finish | Gray Paint |
| Material | Heavy Gauge Steel |
| Beam size | 8x |
| Fasteners required | Beam - (4) 3/4" Machine Bolts, Post - (2) 3/4" Machine Bolts |
| For Treated Lumber | No |
| Post size | 4x |
| Thickness | 3 Gauge |
Toolup Part # :
248666
