Simpson Anchors | SKU:
CC86

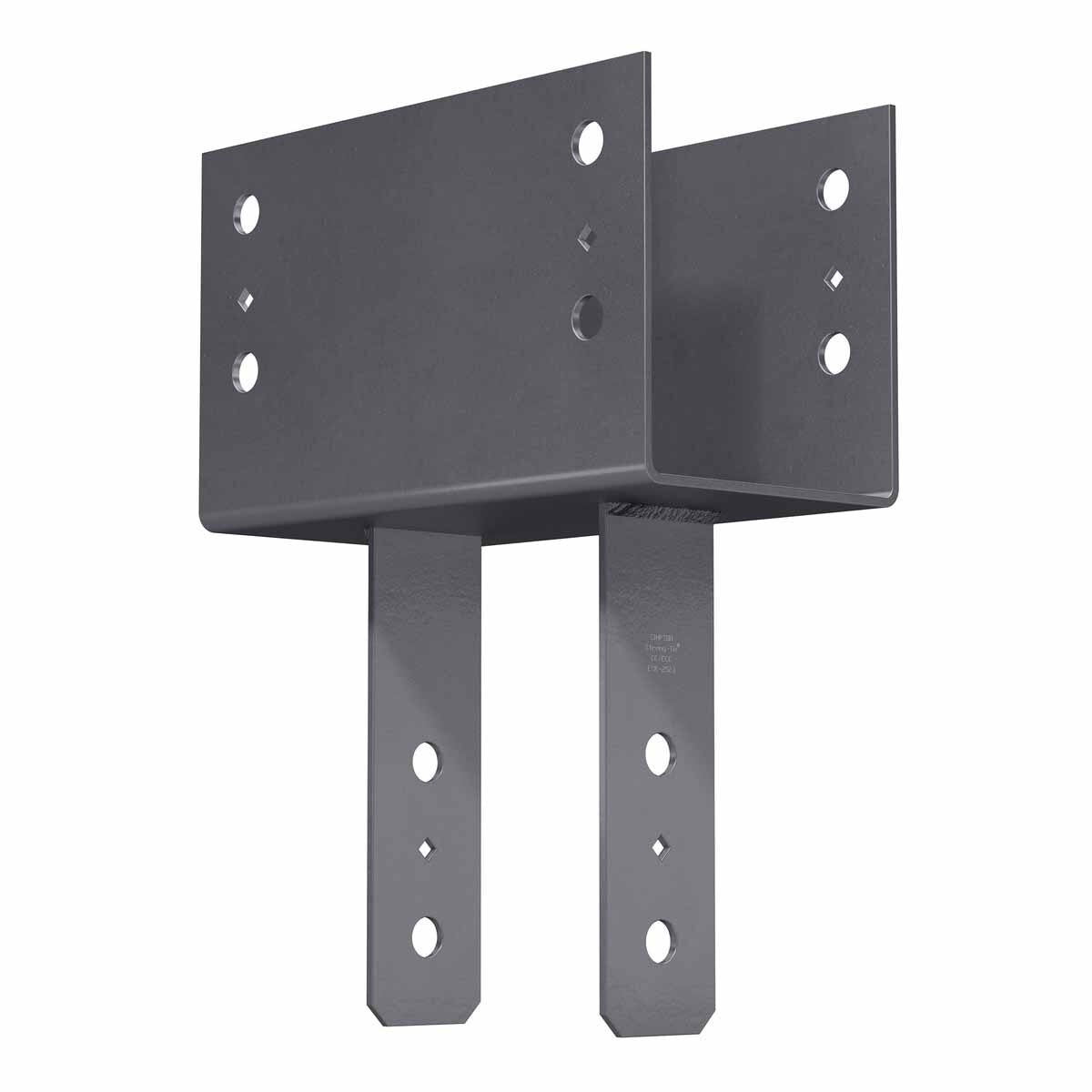

Simpson Strong-Tie CC86 (8x Beam, 6x Post) Heavy-Duty Column Cap for Wood Construction
$174.80
$251.39
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie CC86 Description
The Simpson CC86 Column Cap enhances the strength and stability of your construction projects, providing durable column-to-beam connections in wood construction.
Simpson Strong-Tie CC86 Includes
- (1) Strong-Tie Heavy-Duty 8x Beam 6x Post Column Cap for Wood Construction
Simpson Strong-Tie CC86 Features
- Provides strong column-to-beam connection
- Extended area of the column seat offers additional surface area of bearing to distribute the load
- Made from heavy gauge steel for durability
- Finished with gray paint coating
- Certified welds for strength and loading
- Increased uplift loads for earthquake or wind loading
- Features diamond holes for temporary fastening during installation
- Bolt spacing meets NDS code requirements

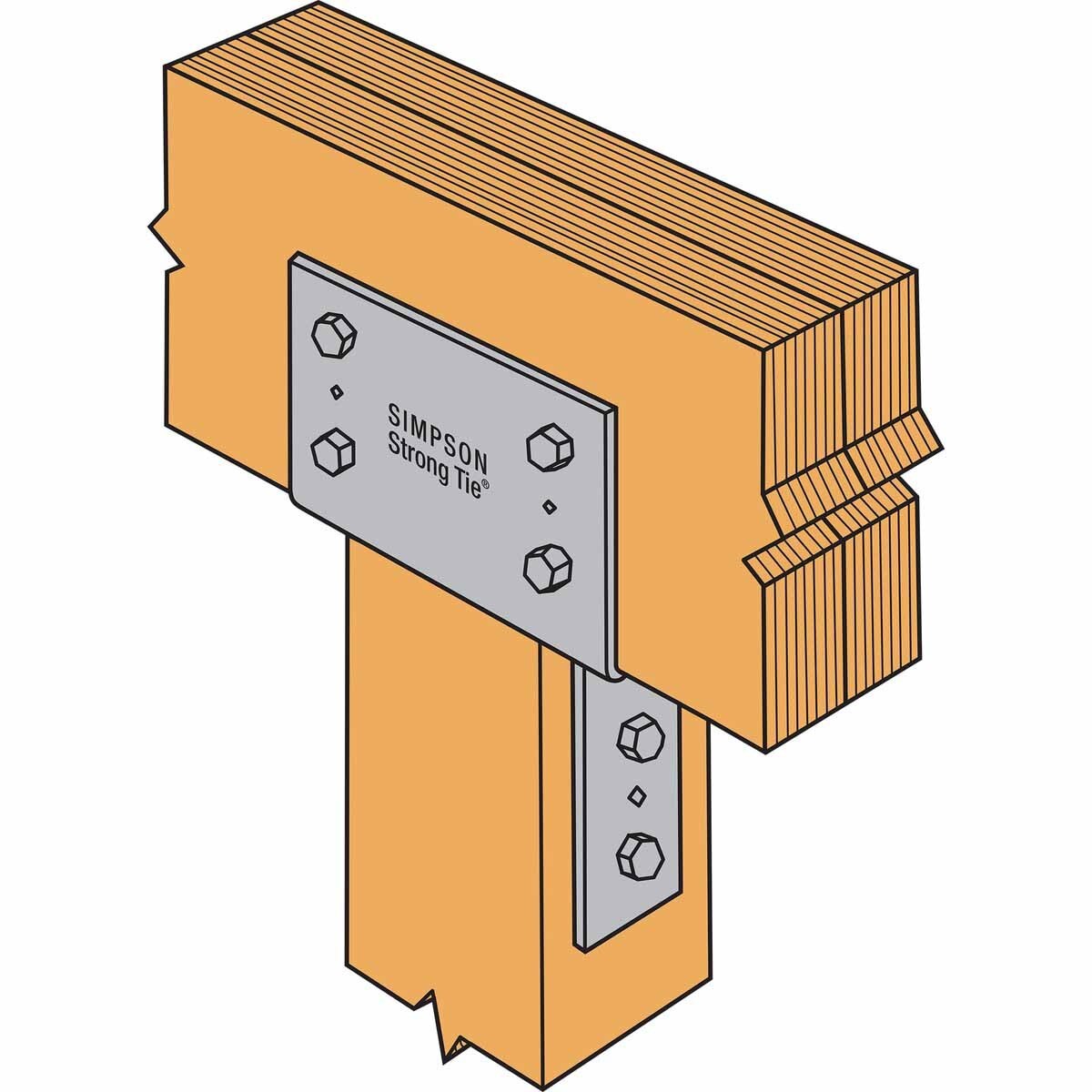

Simpson Strong-Tie CC86 Applications
- Wood construction requiring column-to-beam connections
- Projects needing enhanced load distribution and stability
- Construction involving 6x posts and 8x beams
Simpson Strong-Tie CC86 Installation Overview
- Use all specified fasteners as per guidelines
- Ensure bolt holes are drilled from one side through the beam to maintain tolerances
- Contact engineered wood manufacturers for connections not through the wide face

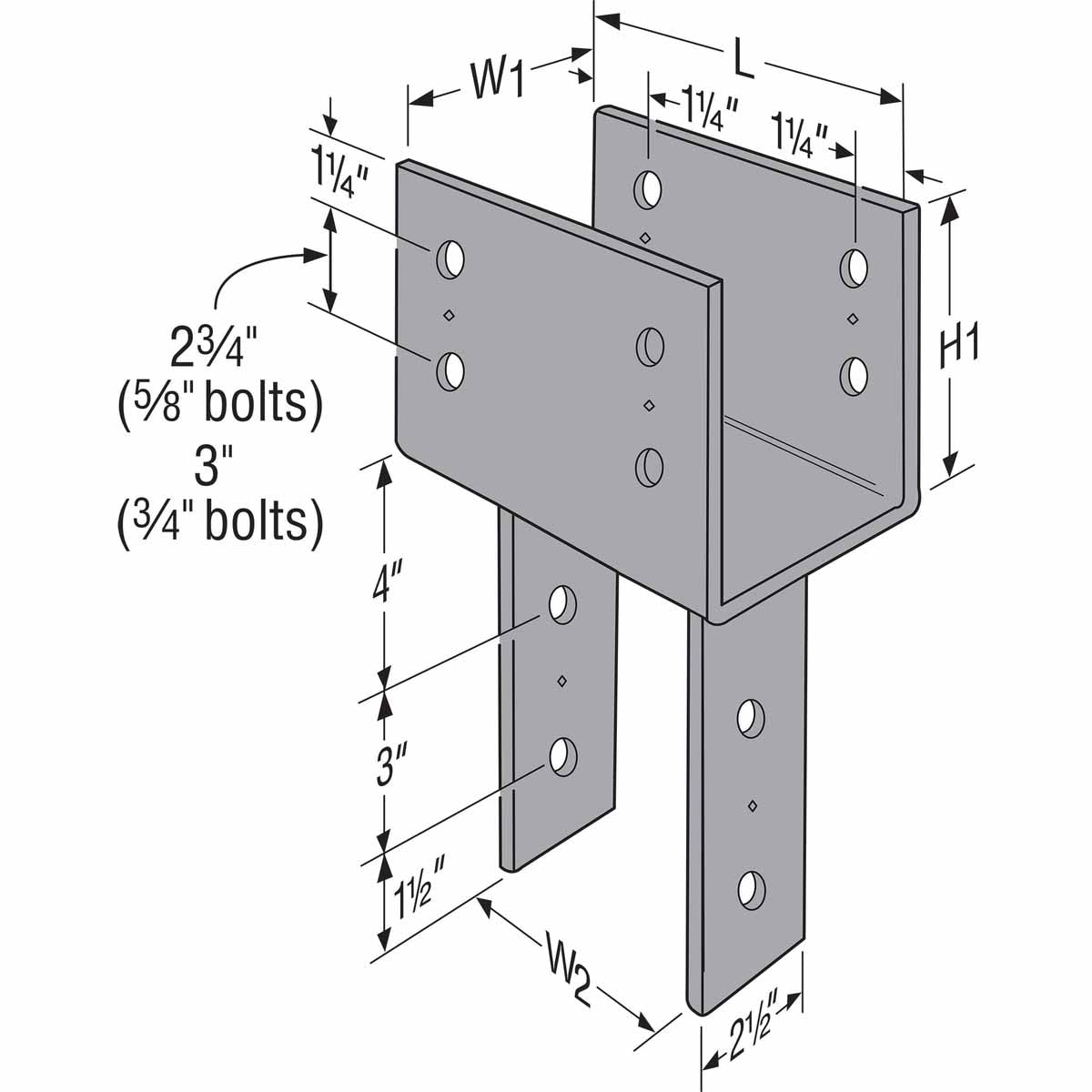

Simpson Strong-Tie CC86 Specifications
| Finish | Gray Paint |
| Material | Heavy Gauge Steel |
| Beam size | 8x |
| Post size | 6x |
| Thickness | 3 Gauge |
| Fasteners required | Beam - (4) 3/4" Machine Bolts, Post - (2) 3/4" Machine Bolts |
| For Treated Lumber | No |
NOTE: This item is made to order and is non-returnable.
