Simpson Anchors | SKU:
CC88

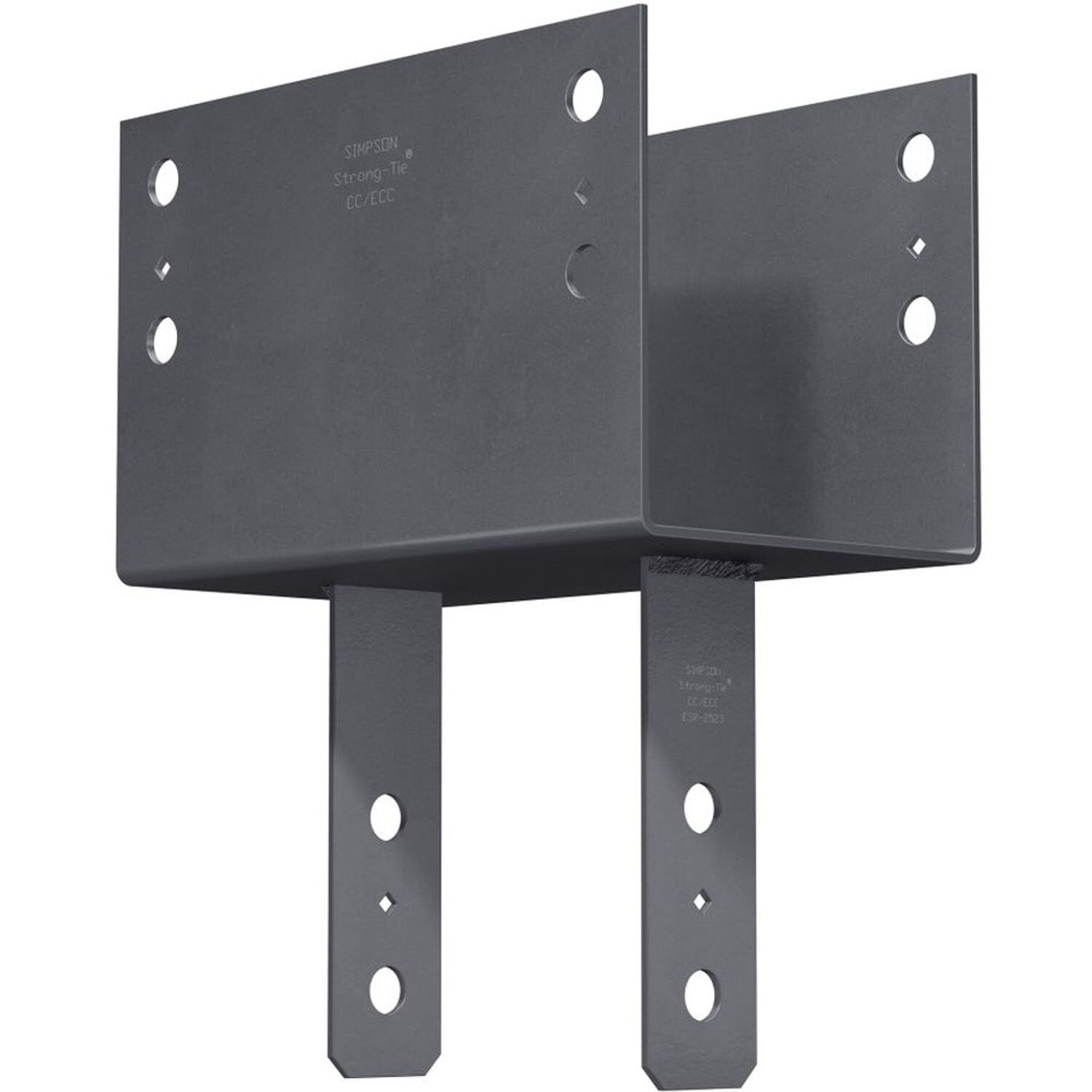

Simpson Strong-Tie CC88 (8x Beam x 8x Post) Heavy-Duty Column Cap for Wood Construction
$164.31
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie CC88 Description
The Simpson CC88 Column Cap enhances the strength and stability of wood construction projects, providing a durable and reliable column-to-beam connection.
Simpson Strong-Tie CC88 Includes
- (1) Strong-Tie Heavy-Duty 8x Beam to 8x Post Column Cap for Wood Construction
Simpson Strong-Tie CC88 Features
- Certified welds for strength and loading
- Increased uplift loads for earthquake or wind loading
- Bolt spacing meets NDS code requirements
- Diamond holes for temporary fastening
- Heavy-gauge steel construction with gray paint finish
Simpson Strong-Tie CC88 Applications

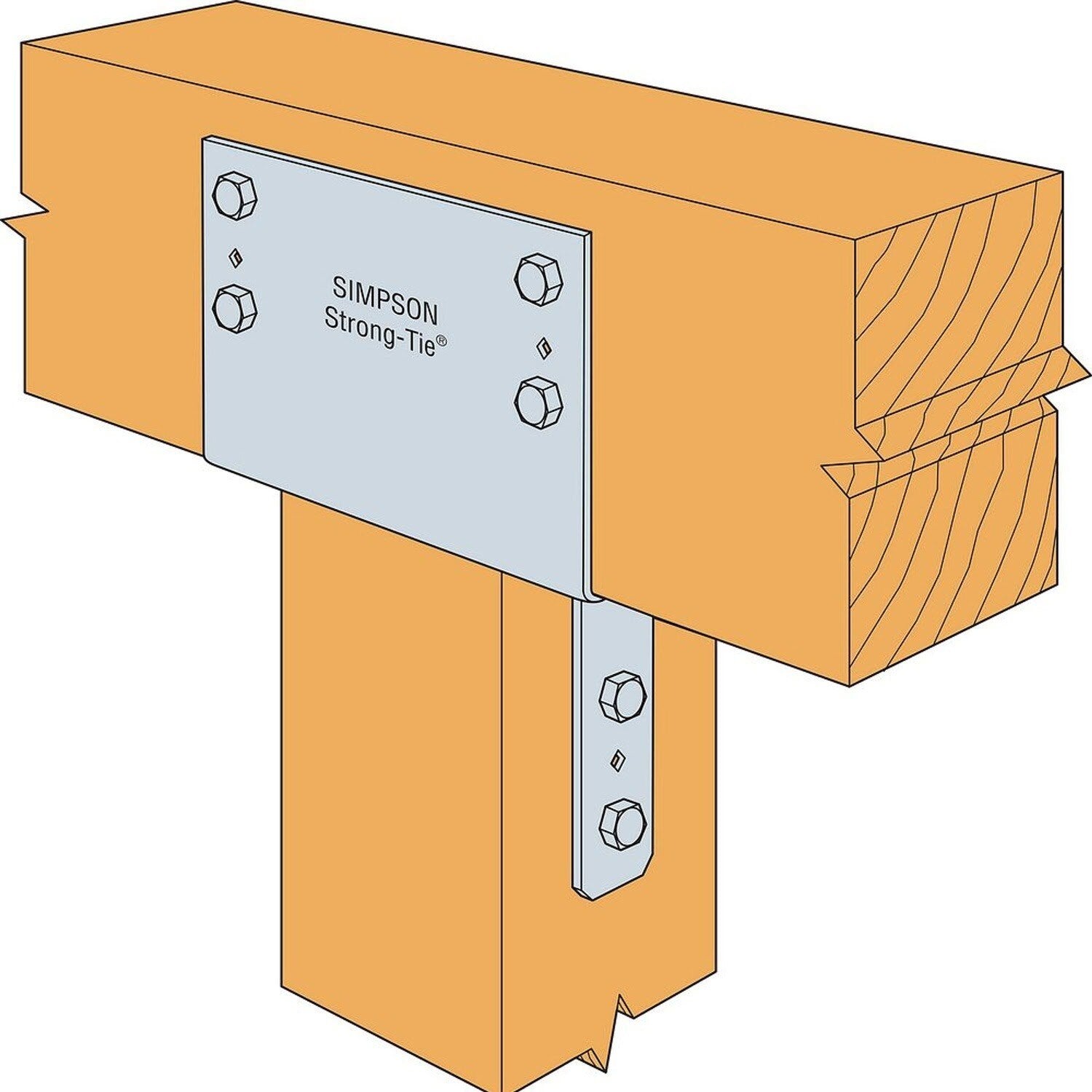

- Wood construction: Provides strong column-to-beam connections
- Structural support: Enhances stability and load distribution
Simpson Strong-Tie CC88 Installation Overview
- Use all specified fasteners as per guidelines
- Drill bolt holes from one side through the beam to maintain tolerances
- Ensure alignment of column and beam sides in the same vertical plane
Simpson Strong-Tie CC88 Specifications
| Finish | Gray Paint |
| Material | Heavy Gauge Steel |
| Beam size | 8x |
| Fasteners required | Beam - (4) 3/4" Machine Bolts, Post - (2) 3/4" Machine Bolts |
| For Treated Lumber | No |
| Post size | 8x |
| Thickness | 3 Gauge |
