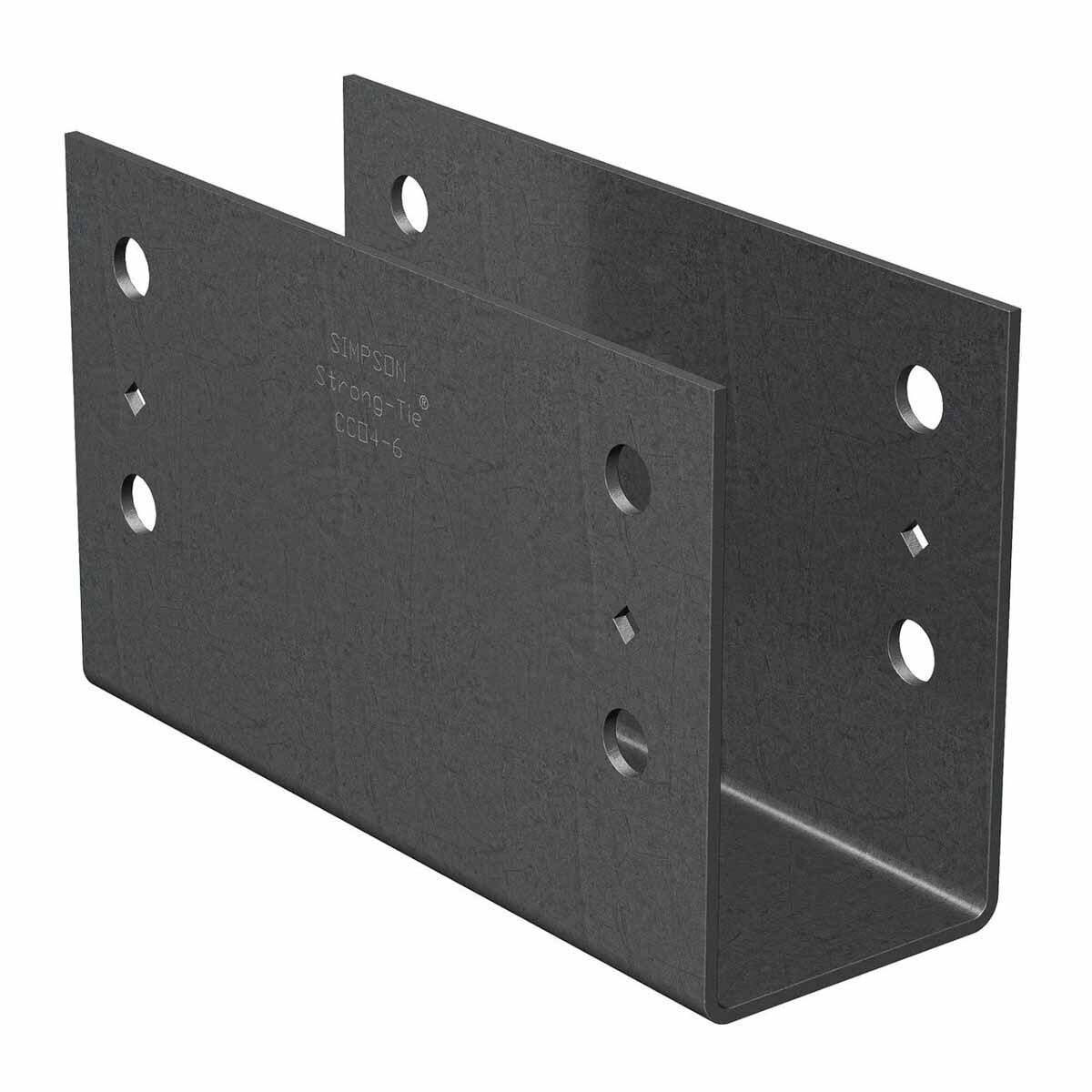

Simpson Strong-Tie CCO4/6 Description
The Simpson CCO4/6 Column Cap enhances the strength and stability of your construction projects, providing a durable column-to-beam connection for wood construction.
Simpson Strong-Tie CCO4/6 Includes
- (1) Strong-Tie Heavy-Duty Column Cap for 4x Beam, 7 Gauge, No Coating
Simpson Strong-Tie CCO4/6 Features
- Provides strong column-to-beam connection
- Strapless design for field welding to steel columns
- Made from heavy-gauge steel for durability
- Extended surface area for additional bearing distribution
- Intended for use with 4x beams
Simpson Strong-Tie CCO4/6 Applications
- Column-to-beam connections in wood construction
- Field welding to steel columns

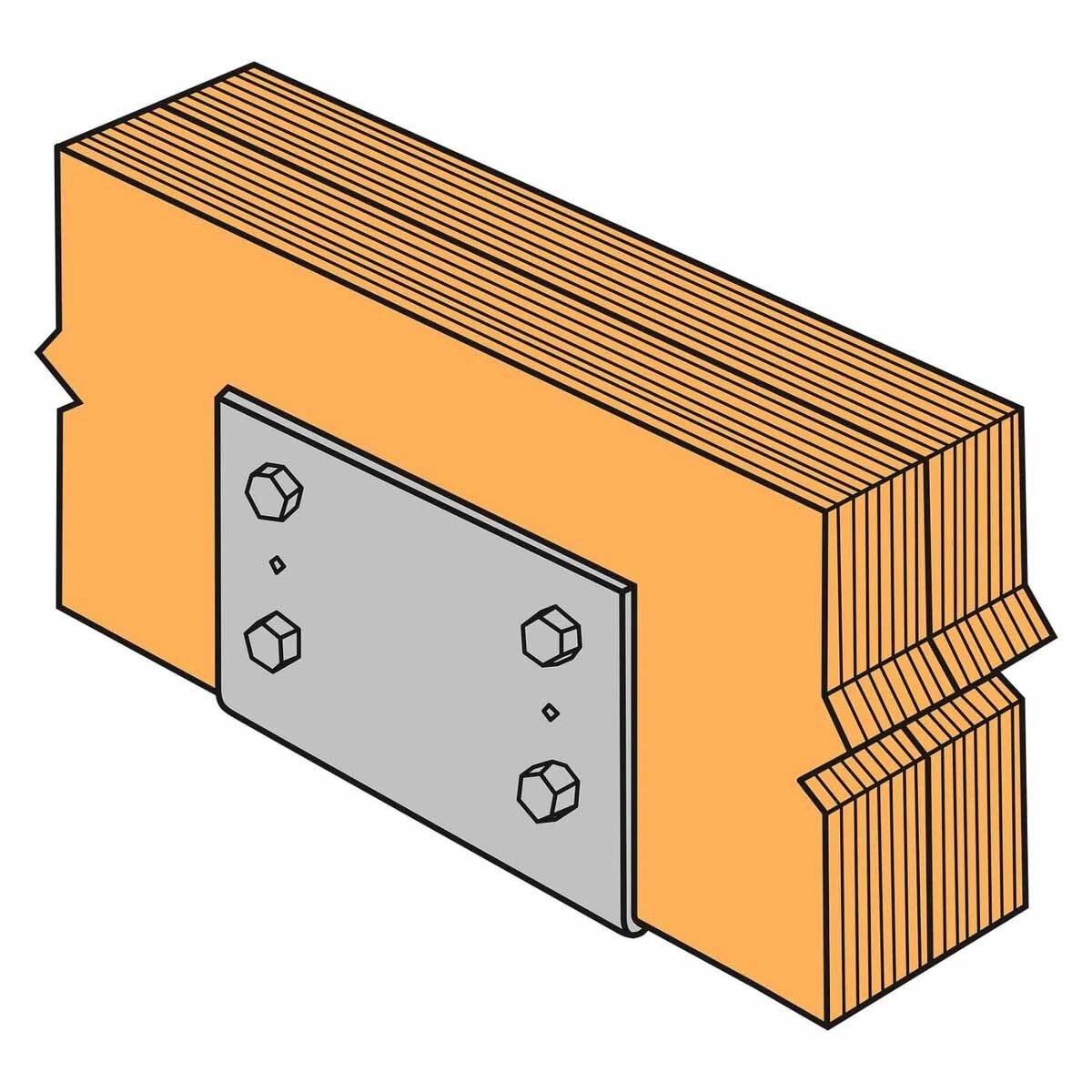

Simpson Strong-Tie CCO4/6 Installation Overview
- Use all specified fasteners as per guidelines
- Weld by designer
- Drill bolt holes from one side through the beam to maintain tolerances
- Contact engineered wood manufacturers for non-standard connections
Simpson Strong-Tie CCO4/6 Specifications
| Material | Heavy Gauge Steel |
| Beam size | 4x |
| Thickness | 7 Gauge |
| Width | Beam 3-1/2" |
| Height | 6-1/2" |
| Length | 11" |
Toolup Part # :
248669
