Simpson Anchors | SKU:
CCO4

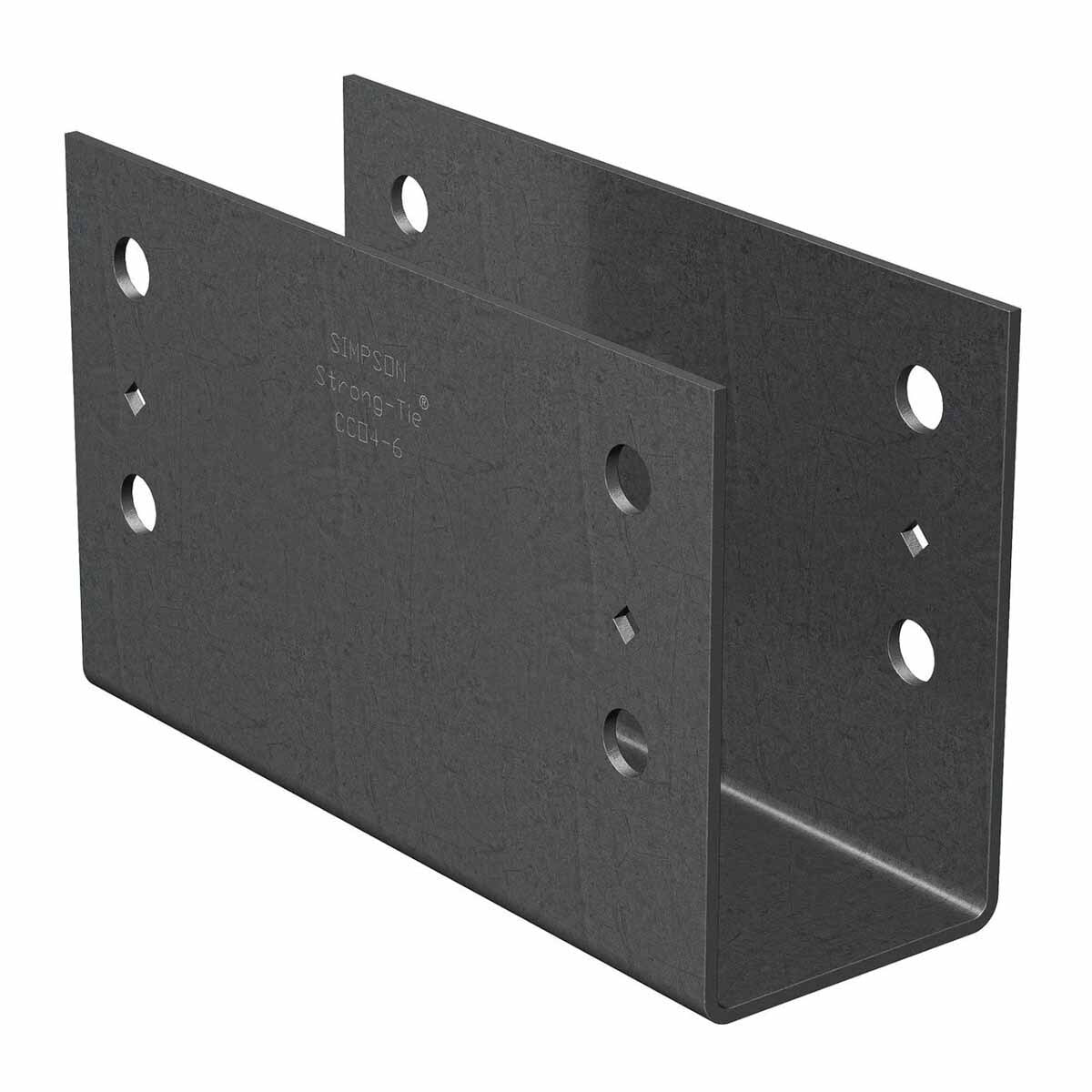

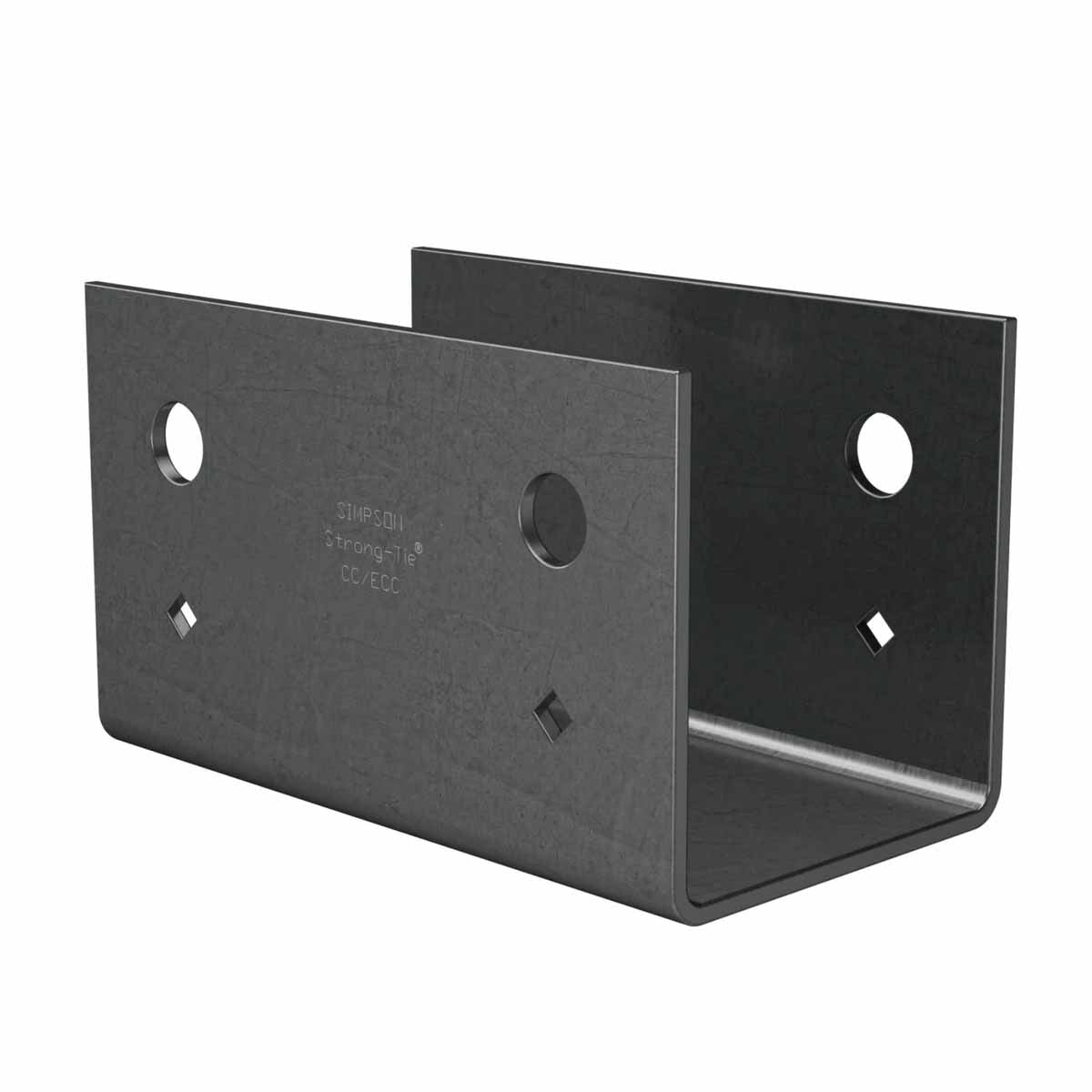

Simpson Strong-Tie CCO4 (4") Column Cap for 4x Beam, 4" Height - Heavy-Duty Steel, Strapless Design
$43.82
$63.02
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie CCO4 Description

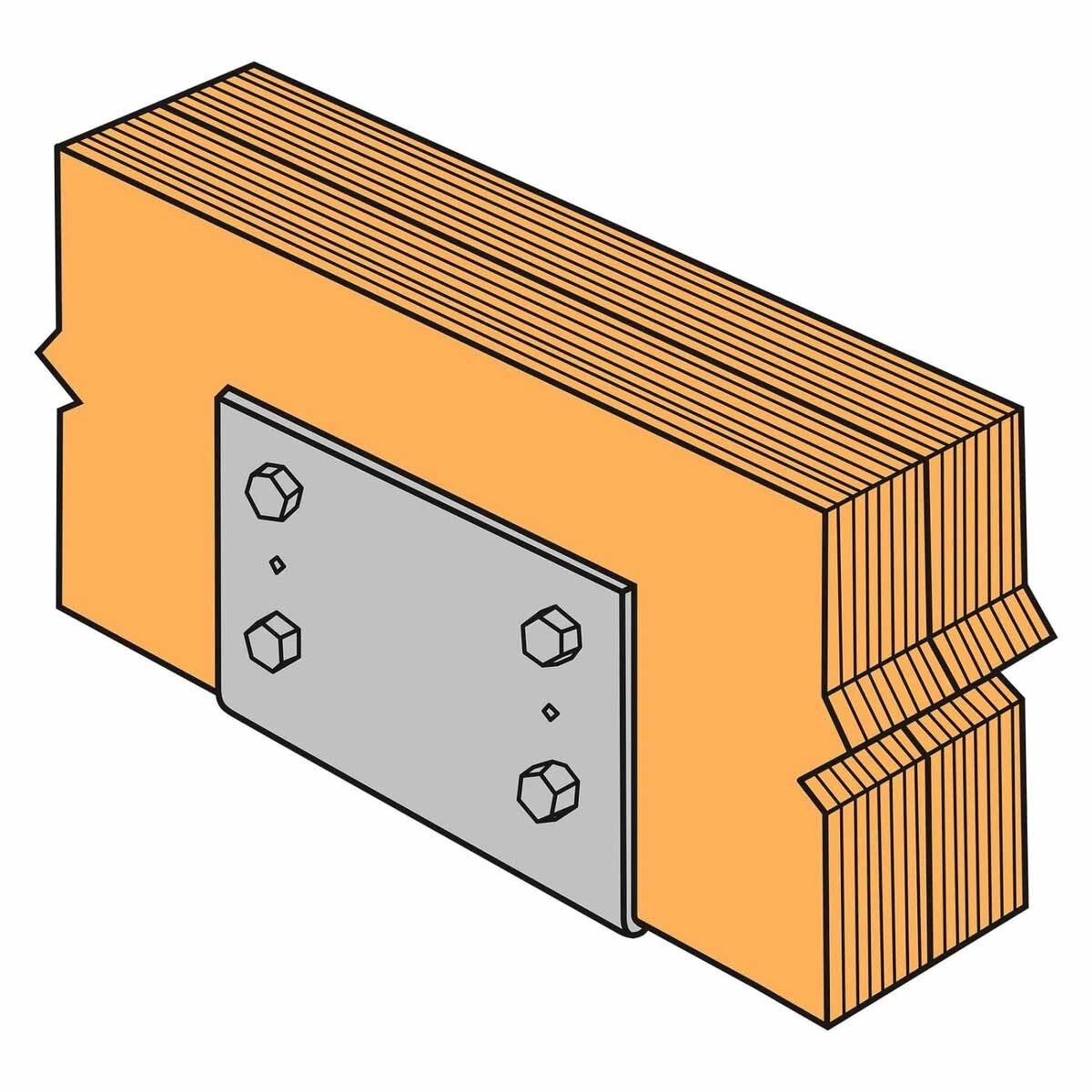

The Simpson CCO4 Column Cap enhances the strength and stability of construction projects, providing a durable column-to-beam connection with a strapless design for field welding.
Simpson Strong-Tie CCO4 Includes
- (1) Strong-Tie Column Cap for 4x Beam, 4" Height - Heavy-Duty Steel, Strapless Design
Simpson Strong-Tie CCO4 Features
- Provides strong column-to-beam connection

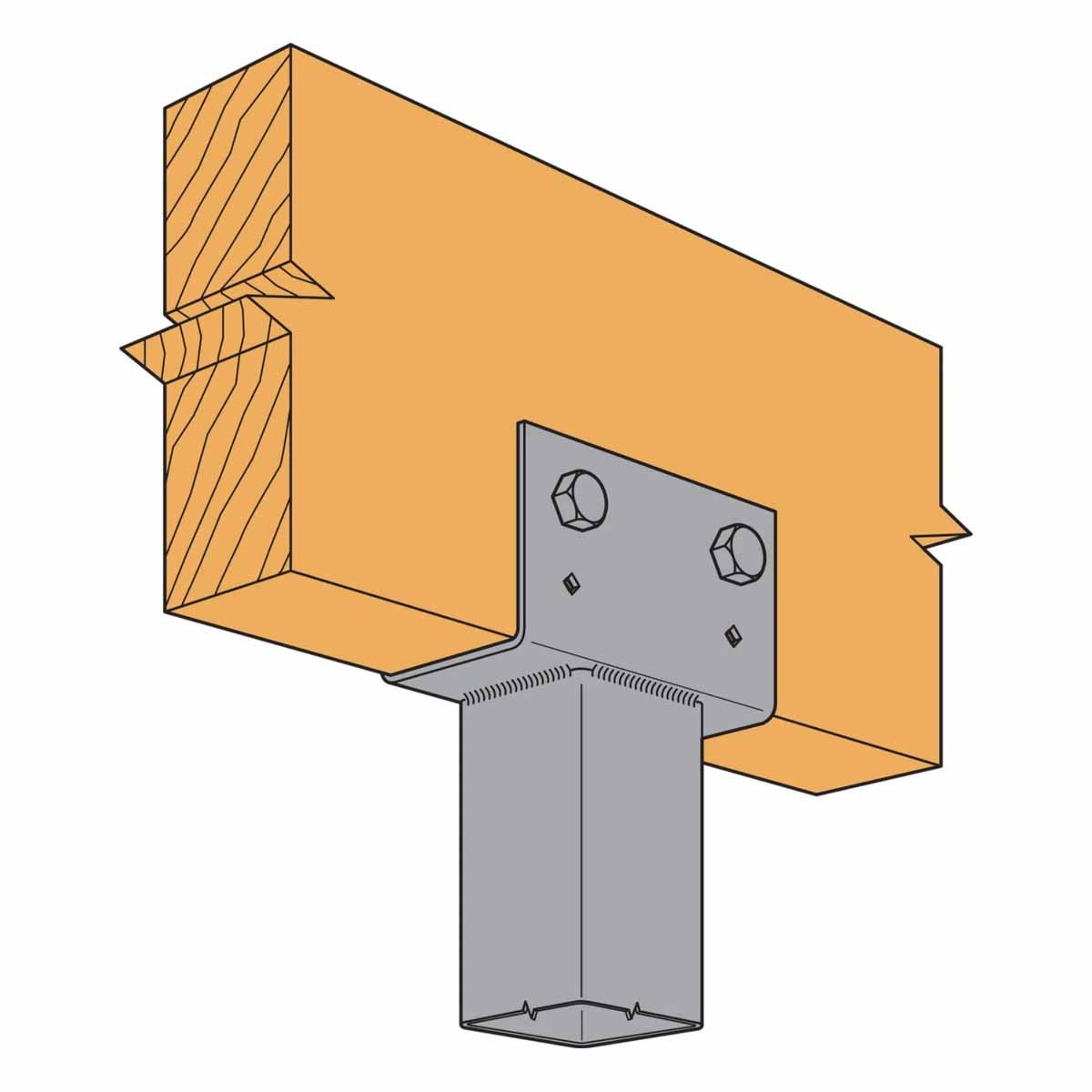

- Strapless design for field welding to steel columns
- Made from heavy-gauge steel for durability
- Extended surface area for additional load distribution
Simpson Strong-Tie CCO4 Applications
- Column-to-beam connections in wood construction
- Field welding to steel columns
Simpson Strong-Tie CCO4 Installation Overview
- Use all specified fasteners as per guidelines
- Weld by designer
- Drill bolt holes from one side through the beam to maintain tolerances
- Contact engineered wood manufacturers for non-standard connections

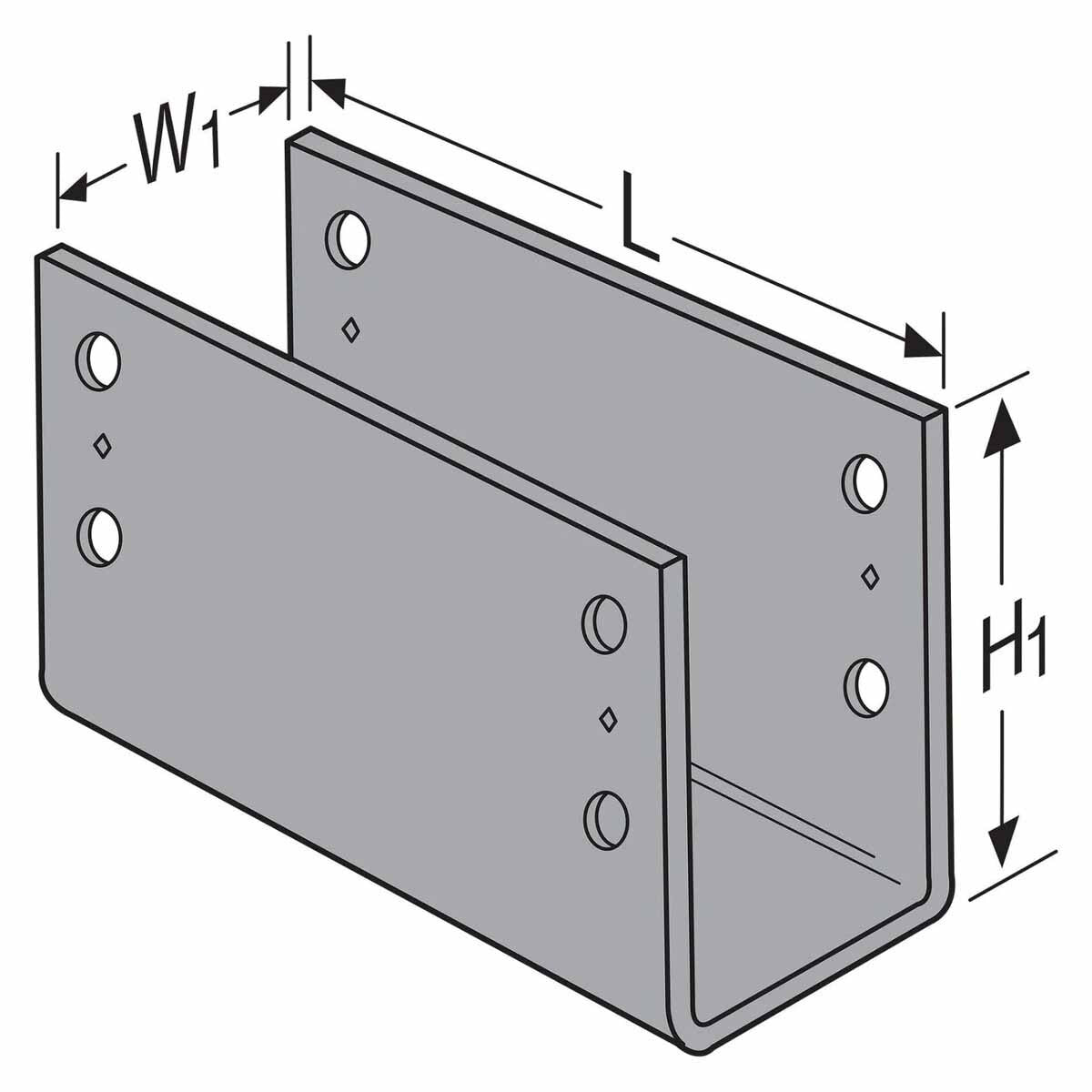

Simpson Strong-Tie CCO4 Specifications
| Material | Heavy Gauge Steel |
| Beam size | 4x |
| Height | 4" |
| Width | Beam 3-1/2" |
| Thickness | 7 Gauge |
| Length | 7" |
