Simpson Anchors | SKU:
CCOQ9-SDS2.5

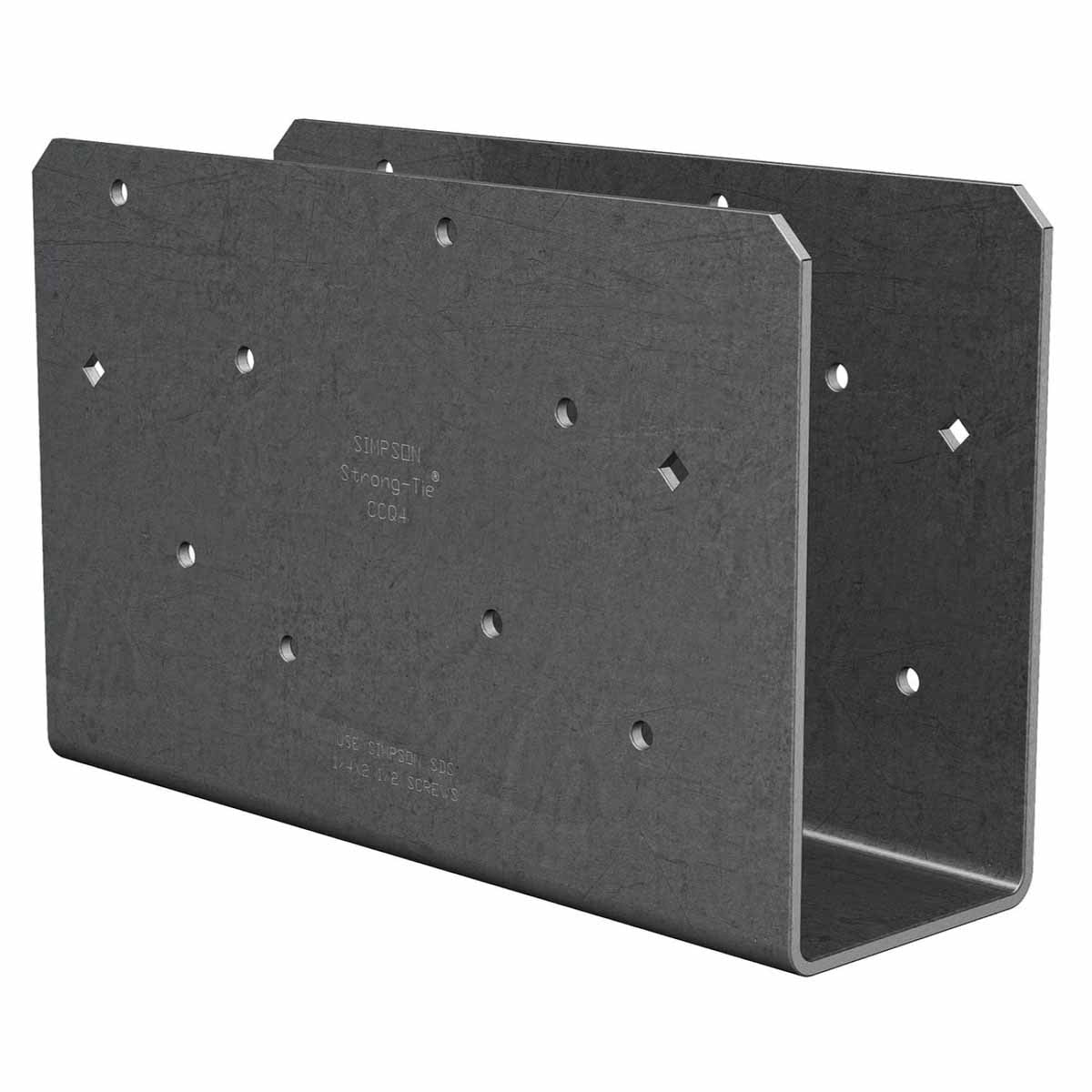

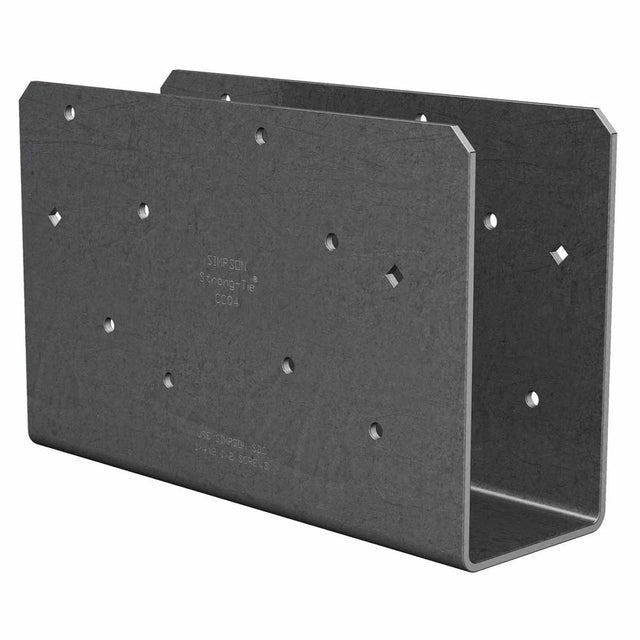

Simpson Strong-Tie CCOQ9-SDS2.5 (8-3/4") 3Ga Quick Install Column Cap Only - Uncoated Steel
Free Shipping
$214.92
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie CCOQ9-SDS2.5 Description
The Simpson CCOQ9-SDS2.5 Column Cap enhances the strength and stability of your construction projects, providing durable column-to-beam connections in wood construction.
Simpson Strong-Tie CCOQ9-SDS2.5 Includes
- (1) Column Cap
- (16) 1/4" x 2 1/2" Strong-Drive SDS Heavy-Duty Connector screws
Simpson Strong-Tie CCOQ9-SDS2.5 Features
- Provides strong column-to-beam connection
- Strapless design for field welding to steel columns
- Made from durable heavy-gauge steel
- Extended surface area for additional bearing distribution
- Includes necessary SDS screws for quick installation
Simpson Strong-Tie CCOQ9-SDS2.5 Applications
- Wood construction projects requiring column-to-beam connections
- Field welding to steel columns

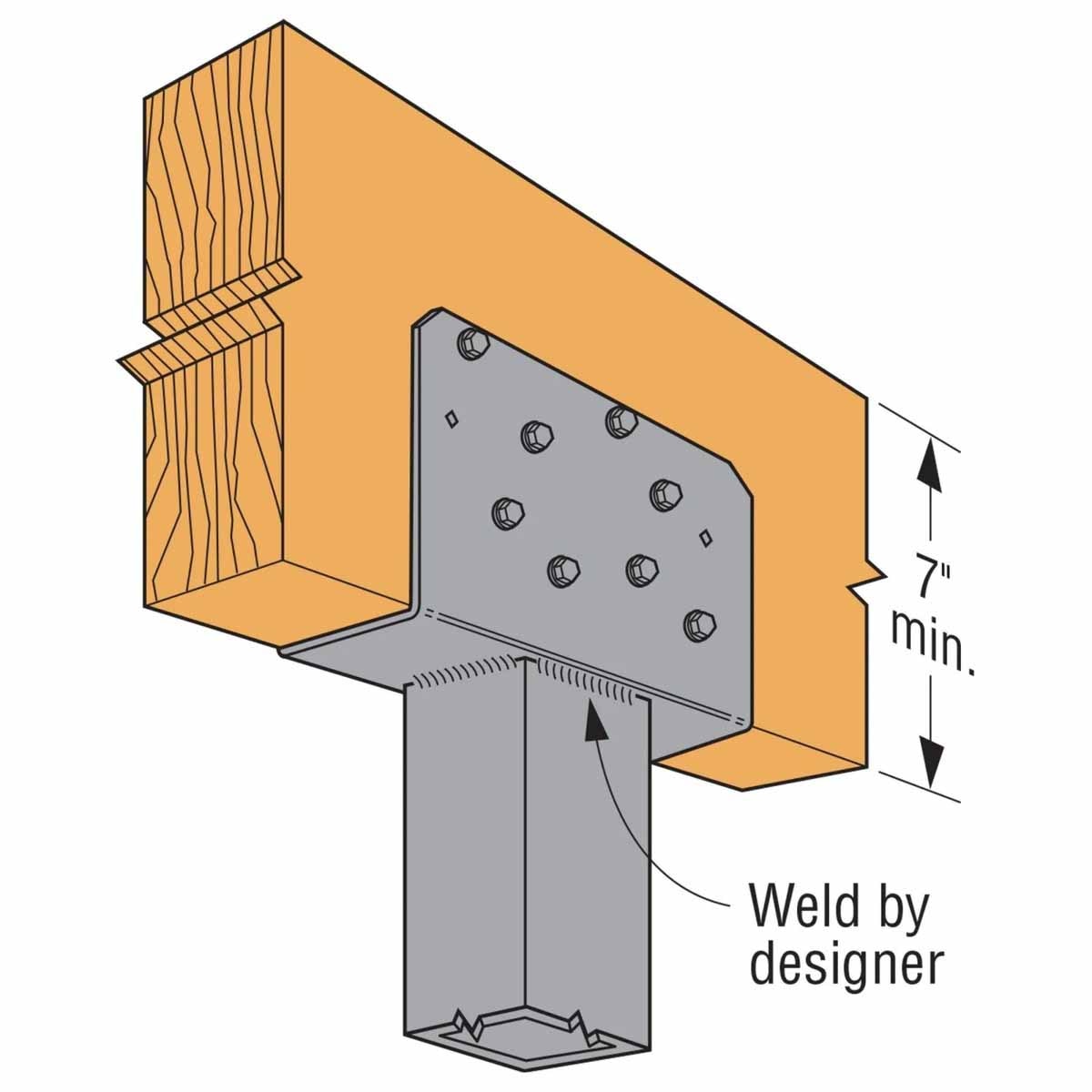

Simpson Strong-Tie CCOQ9-SDS2.5 Installation Overview
- Fasten with 1/4" x 2 1/2" Strong-Drive SDS Heavy-Duty Connector screws provided with the column cap
- Use stainless-steel Strong-Drive screws with stainless-steel connectors
- May be ordered for field welding to pipe or other columns
Simpson Strong-Tie CCOQ9-SDS2.5 Specifications
| Material | Steel |
| Thickness | 3 Gauge |
| Beam size | 9x |
| Width | 8-3/4" |
| Height | 7" |
| Length | 11" |
| Fasteners required | 1/4" x 2 1/2" Strong-Drive SDS Heavy-Duty Connector screws |
