Simpson Anchors | SKU:
CCQ106SDS2.5

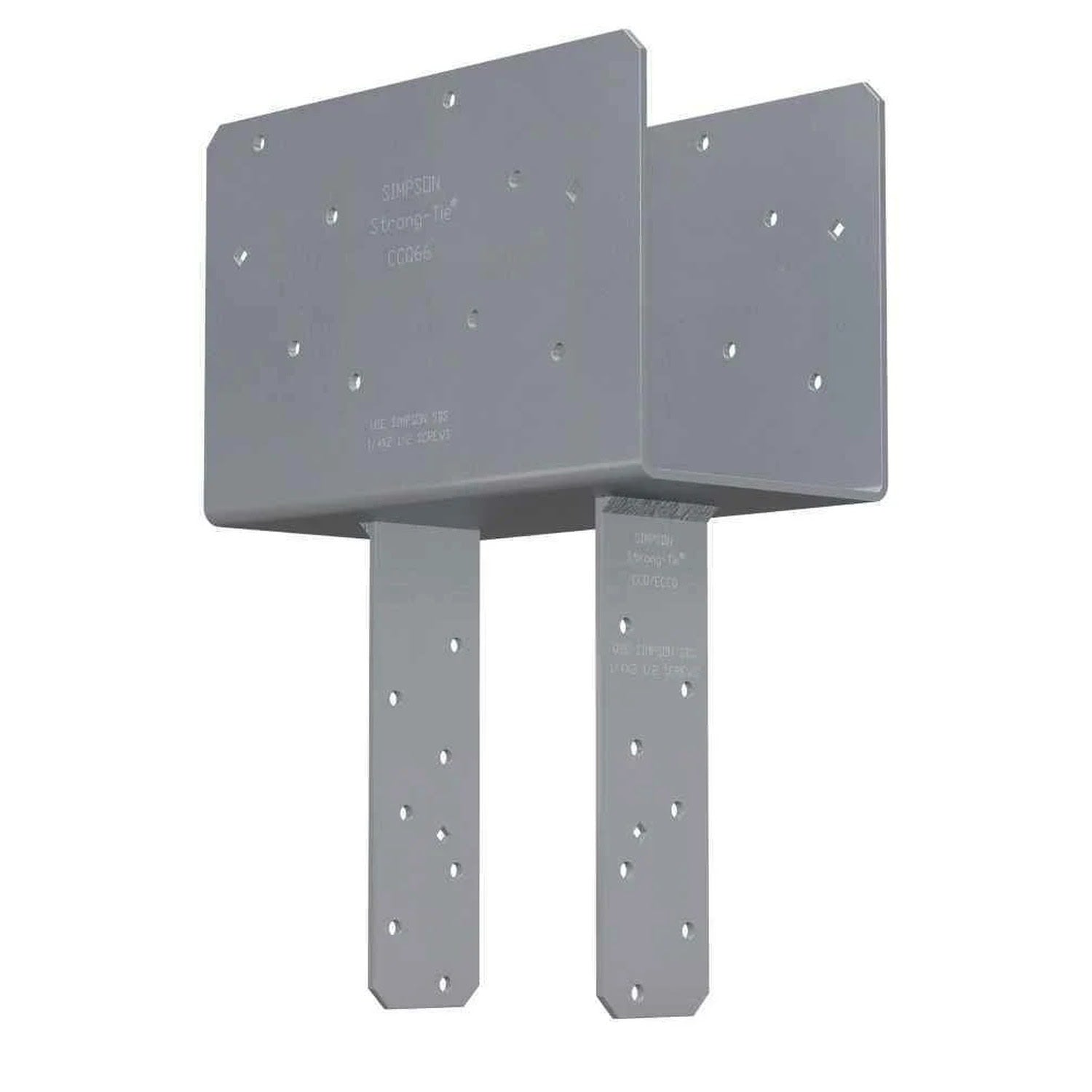

Simpson Strong-Tie CCQ106SDS2.5 Heavy-Duty Column Cap with SDS Screws for 10x Beam to 6x Post Connections
Free Shipping
$280.93
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie CCQ106SDS2.5 Description

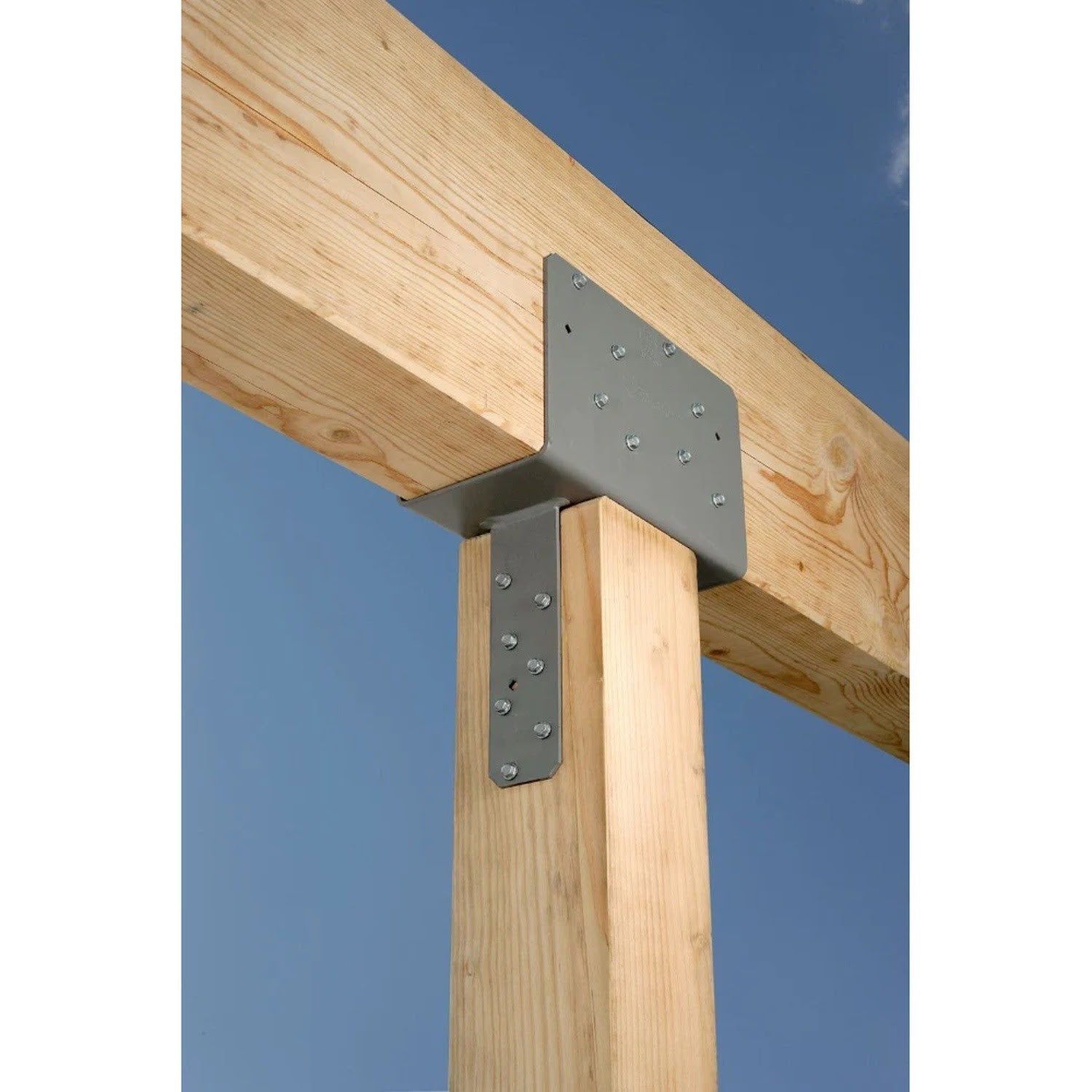

The Simpson CCQ106SDS2.5 Column Cap enhances the strength and stability of construction projects, providing durable column-to-beam connections in wood construction.
Simpson Strong-Tie CCQ106SDS2.5 Includes
- (1) Column Cap
- (16) 1/4" x 2 1/2" SDS Heavy-Duty Connector screws
Simpson Strong-Tie CCQ106SDS2.5 Features
- Provides strong column-to-beam connection
- Extended area of the column seat offers additional surface area of bearing to distribute the load
- Made from heavy-gauge steel for durability
- Finished with Gray Paint coating
- Certified welds for strength and loading
- Increased uplift loads for earthquake or wind loading
- Features diamond holes for temporary fastening during installation
- Bolt spacing meets NDS code requirements
Simpson Strong-Tie CCQ106SDS2.5 Applications
- Wood construction requiring column-to-beam connections
- Projects involving 10x beams and 6x posts
- Structural support in residential and commercial buildings
Simpson Strong-Tie CCQ106SDS2.5 Installation Overview
- Fasten with 1/4" x 2 1/2" Strong-Drive SDS Heavy-Duty Connector screws provided with the column cap
- Use stainless-steel Strong-Drive screws with stainless-steel connectors
- Provide dimensions for rough-cut lumber sizes
- Ensure straps are rotated 90° where applicable
Simpson Strong-Tie CCQ106SDS2.5 Specifications
| Finish | Gray Paint |
| Material | Steel |
| Beam size | 10x |
| Post size | 6x |
| Thickness | 3 Gauge |
| For Treated Lumber | No |
NOTE: This item is made to order and is non-returnable.
