Simpson Anchors | SKU:
CCQ44SDS2.5-R

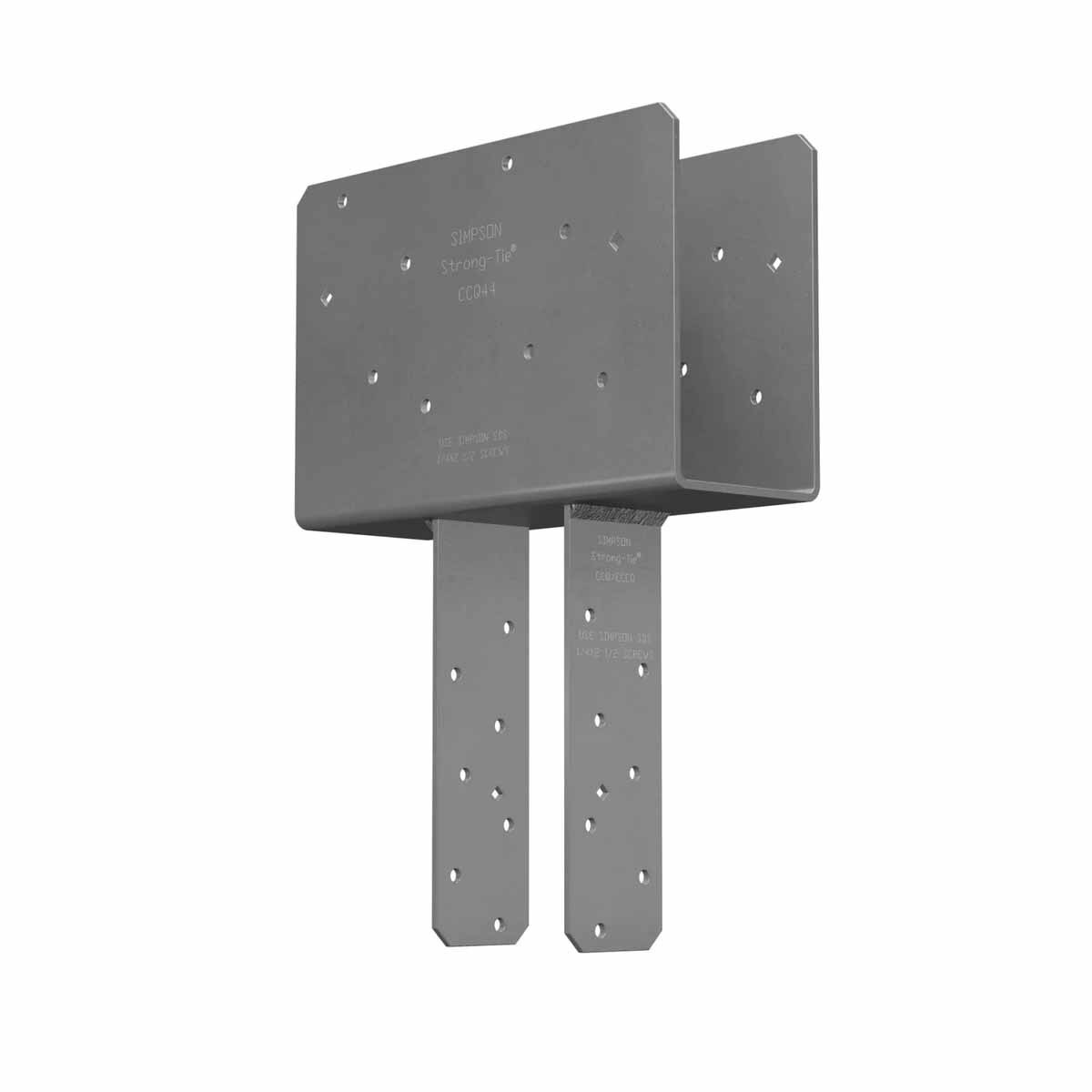

Simpson Strong-Tie CCQ44SDS2.5-R (4x Beam, 4x Post) Quick-Install Column Cap with SDS Screws
$128.79
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie CCQ44SDS2.5-R Description
The CCQ44SDS2.5-R Column Cap is designed to provide strong column-to-beam connections for 4x beams and posts, featuring SDS screws for secure and efficient installation.
Simpson Strong-Tie CCQ44SDS2.5-R Includes
- (1) CCQ44SDS2.5-R Column Cap
- (1) Set of Strong-Drive SDS Heavy-Duty Connector screws
Simpson Strong-Tie CCQ44SDS2.5-R Features
- Simpson Strong-Tie gray paint finish
- Screws configured for high uplift design values
- Certified welds for strength and loading
- Diamond holes for temporary fastening
- Includes Strong-Drive SDS Heavy-Duty Connector screws for installation
- Available in widths up to 8 inches
Simpson Strong-Tie CCQ44SDS2.5-R Applications

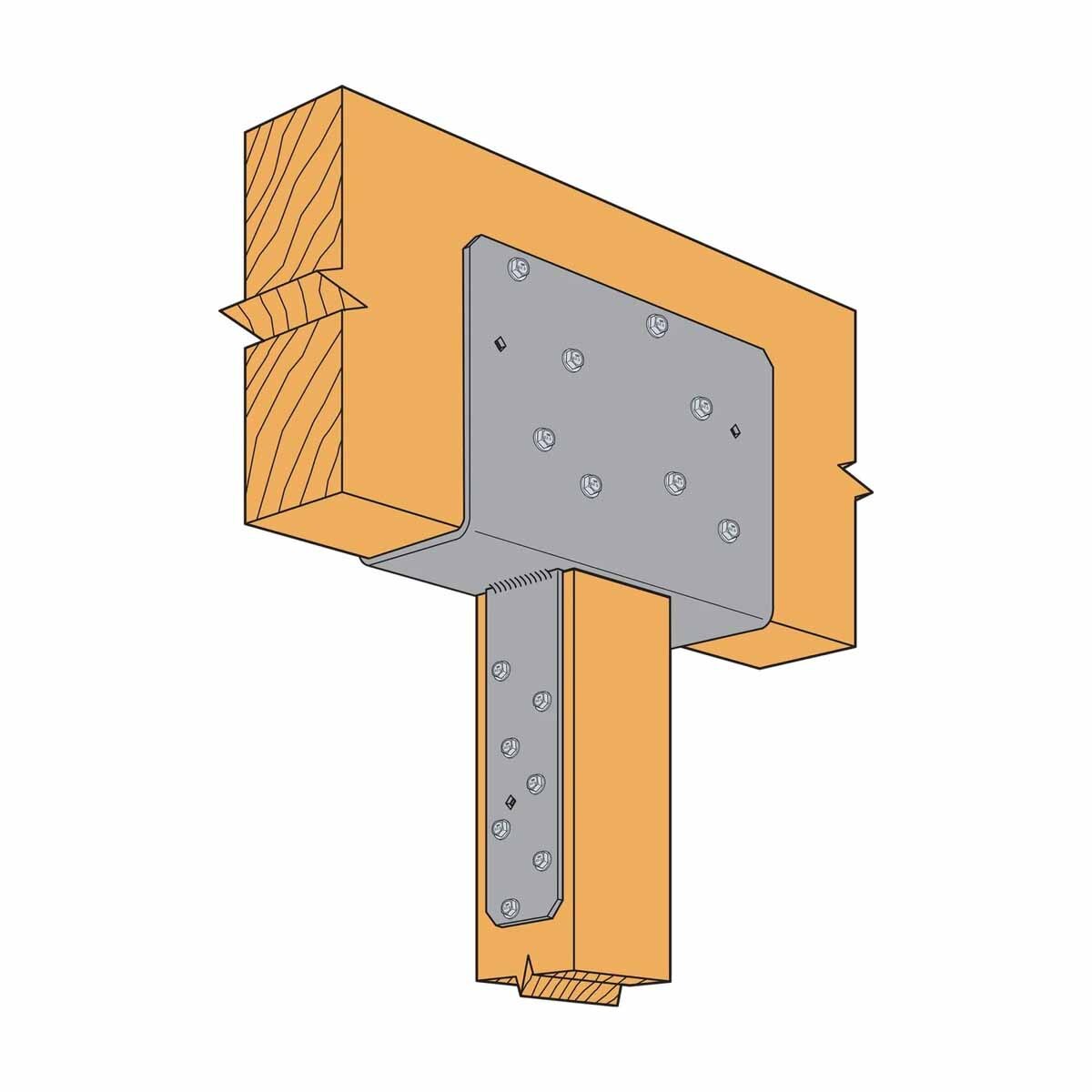

- Column-to-beam connections in wood construction
- Support for intersecting beams on a column
- Structural applications requiring high uplift resistance
Simpson Strong-Tie CCQ44SDS2.5-R Installation Overview
- Install the column cap on the column top.
- Align the beams with the cap.
- Secure the beams using the provided SDS screws in all round holes.
- Ensure all screws are properly tightened.

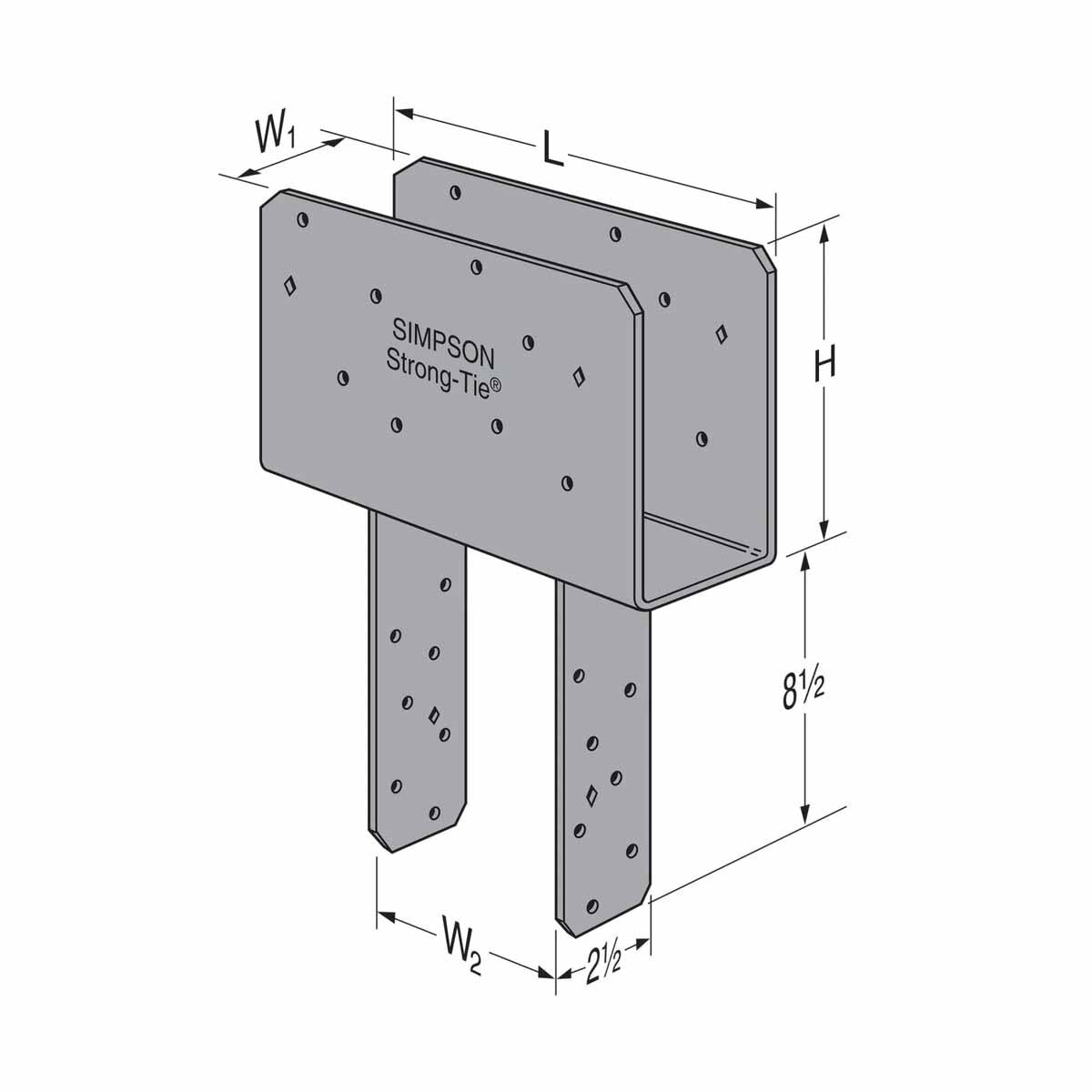

Simpson Strong-Tie CCQ44SDS2.5-R Specifications
| Finish | Gray Paint |
| Beam size | 4X |
| Thickness | 7 Gauge |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
