Simpson Anchors | SKU:
CCQ44SDS2.5
Simpson Strong-Tie CCQ44SDS2.5 Strong-Drive (4x Beam, 4x Post) Column Cap with SDS Screws
$123.23
$182.99
Unit price
/
Unavailable
Description
Description
Simpson CCQ44SDS2.5 Description

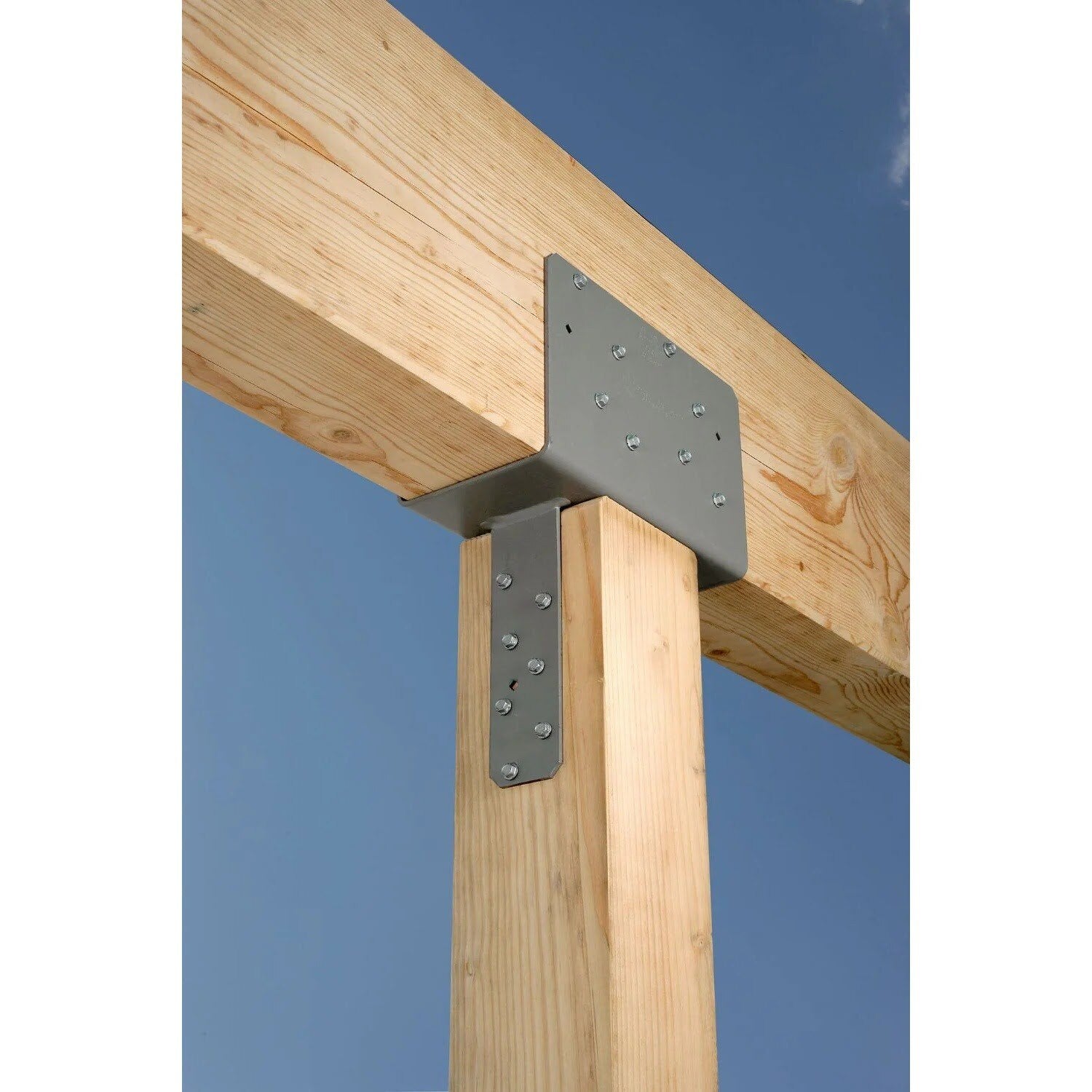

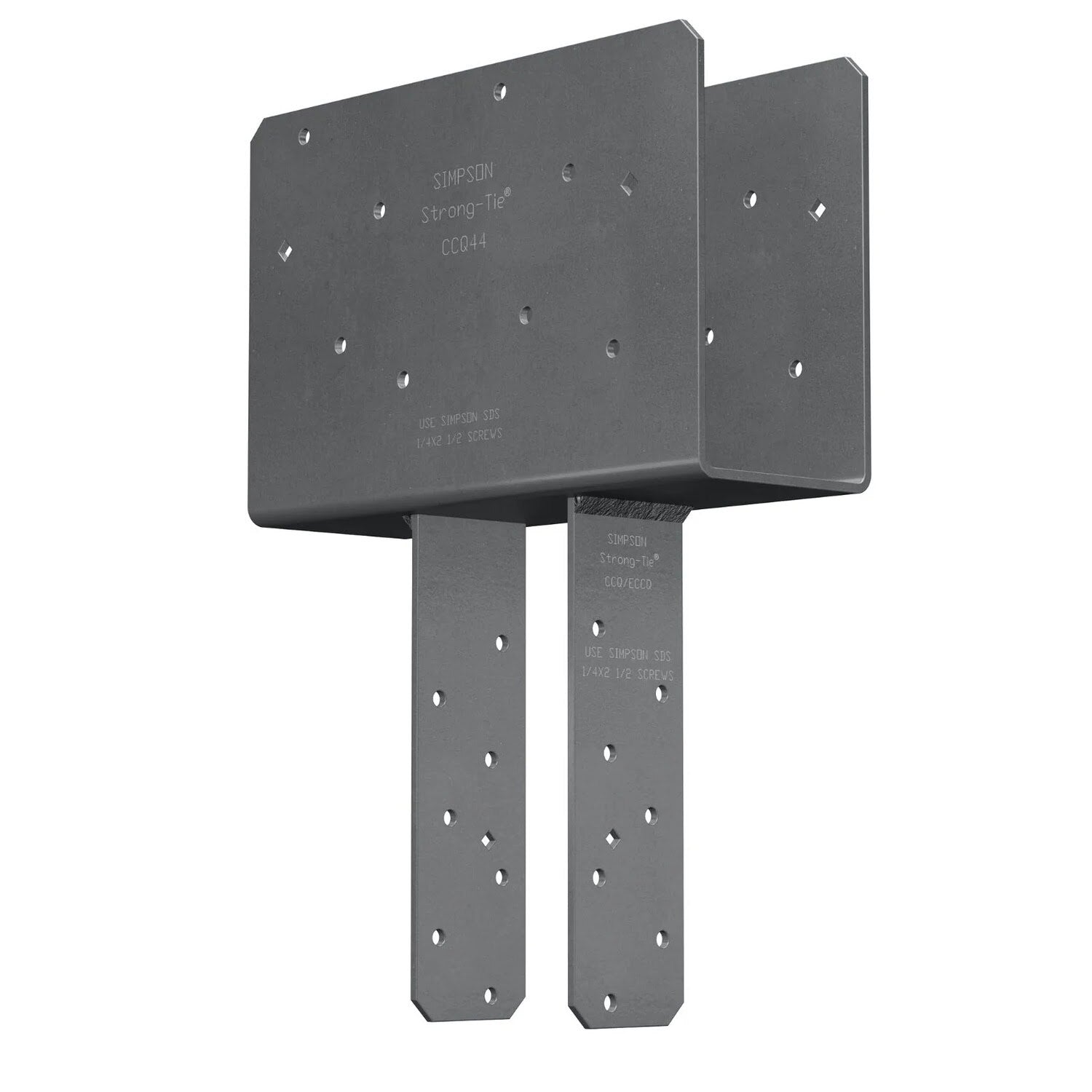

The Simpson CCQ44SDS2.5 Column Cap with SDS Screws provides robust column-to-beam connections for wood construction, featuring heavy-gauge steel and gray paint finish.
Simpson CCQ44SDS2.5 Includes
- (1) Column Cap
- (1) Set of SDS Screws
Simpson CCQ44SDS2.5 Features
- Provides strong column-to-beam connection
- Extended column seat for additional load distribution
- Made from durable heavy-gauge steel
- Finished with gray paint for corrosion resistance
- Includes SDS screws for quick installation
- Certified welds for enhanced strength and loading
- Designed for earthquake and wind uplift loads
- Diamond holes for temporary fastening during installation
- Bolt spacing meets NDS code requirements
Simpson CCQ44SDS2.5 Applications
- Wood construction requiring column-to-beam connections
- Projects using 4x beams and 4x posts
- Structures needing enhanced load distribution and stability
- Earthquake or wind-resistant construction
Simpson CCQ44SDS2.5 Installation Overview
- Align the column cap with the beam and post
- Secure temporarily using diamond holes
- Fasten using the included SDS screws
- Ensure bolt spacing complies with NDS code requirements
- Verify stability and load distribution
Simpson CCQ44SDS2.5 Specifications
| Finish | Gray Paint |
| Material | Steel |
| Beam size | 4x |
| For Treated Lumber | No |
| Post size | 4x |
| Thickness | 7 Gauge |
NOTE: Ensure proper installation using the included SDS screws to achieve optimal load distribution and stability.
