Simpson Anchors | SKU:
CCQ48-SDS2.5HDG

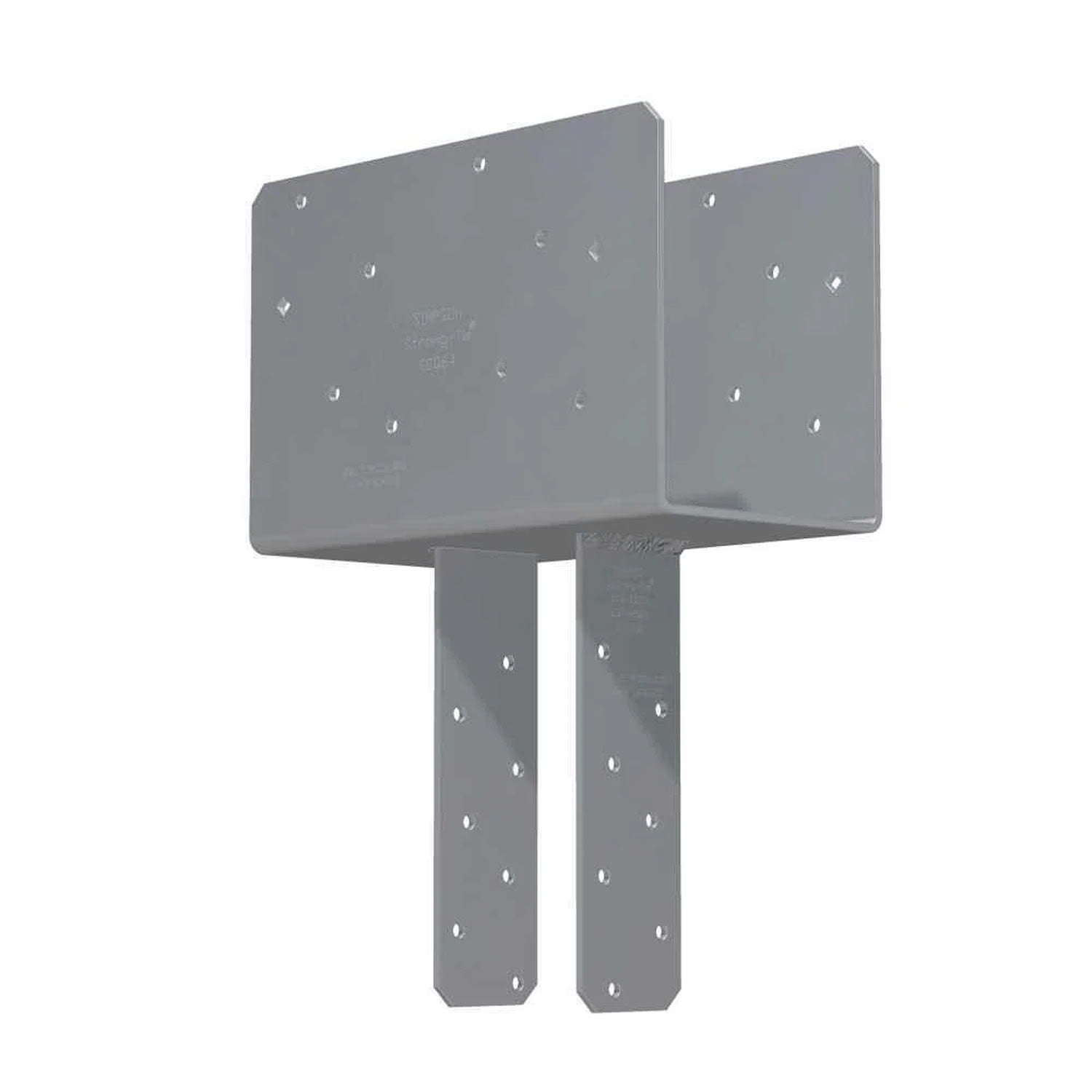

Simpson Strong-Tie CCQ48-SDS2.5HDG Quick-Install HDG Column Cap with SDS Screws for 4x Beam to 8x Post Connections
$165.21
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie CCQ48-SDS2.5HDG Description
The Simpson CCQ48-SDS2.5HDG Column Cap enhances the strength and stability of your construction projects, providing strong column-to-beam connections with durable steel construction and hot-dip galvanized finish.
Simpson Strong-Tie CCQ48-SDS2.5HDG Includes
- (1) Column Cap
- (1) Set of SDS Screws
Simpson Strong-Tie CCQ48-SDS2.5HDG Features
- Provides strong column-to-beam connection
- Extended column seat area for additional load distribution
- Made from durable steel with hot-dip galvanized finish
- Certified welds for strength and increased uplift loads
- Diamond holes for temporary fastening during installation
Simpson Strong-Tie CCQ48-SDS2.5HDG Applications

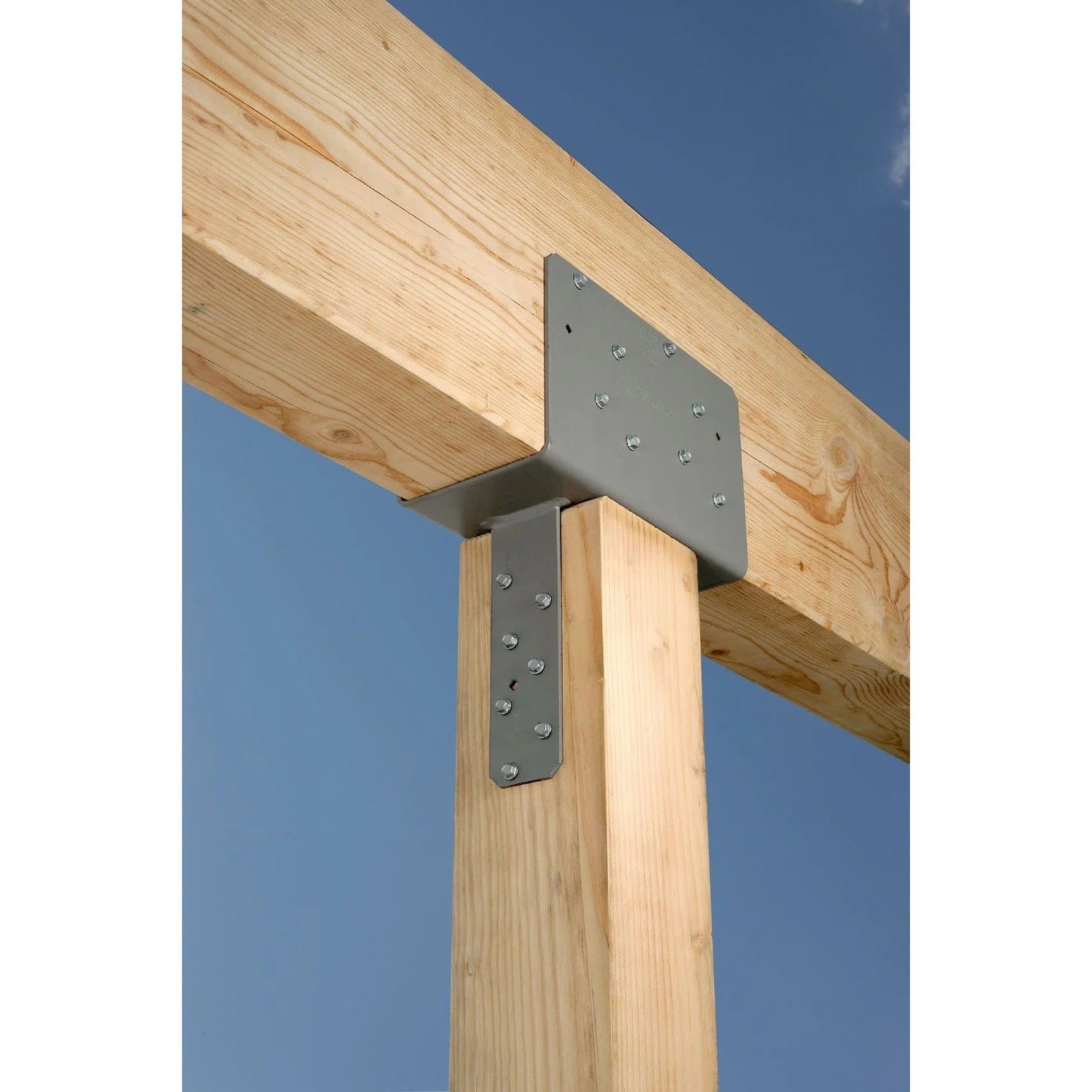

- Column-to-beam connections in wood construction
- Use with 4x beams and 8x posts/columns
- Suitable for earthquake or wind loading scenarios
Simpson Strong-Tie CCQ48-SDS2.5HDG Installation Overview
- Align the column cap with the beam and post.
- Secure temporarily using the diamond holes.
- Fasten using the included SDS screws.
- Ensure bolt spacing meets NDS code requirements.
Simpson Strong-Tie CCQ48-SDS2.5HDG Specifications
| Finish | Hot Dip Galvanized |
| Length | 11" |
| Material | Steel |
| Beam size | 4x |
| For Treated Lumber | Yes |
| Post size | 8x |
| Thickness | 7 Gauge |
NOTE: This item is made to order and is non-returnable.
