Simpson Anchors | SKU:
CCQ66-SDS2.5HDG
Simpson Strong-Tie CCQ66-SDS2.5HDG (6x Beam, 6x Post) Column Cap with SDS Screws
$191.82
Unit price
/
Unavailable
Description
Description
Simpson CCQ66-SDS2.5HDG Description

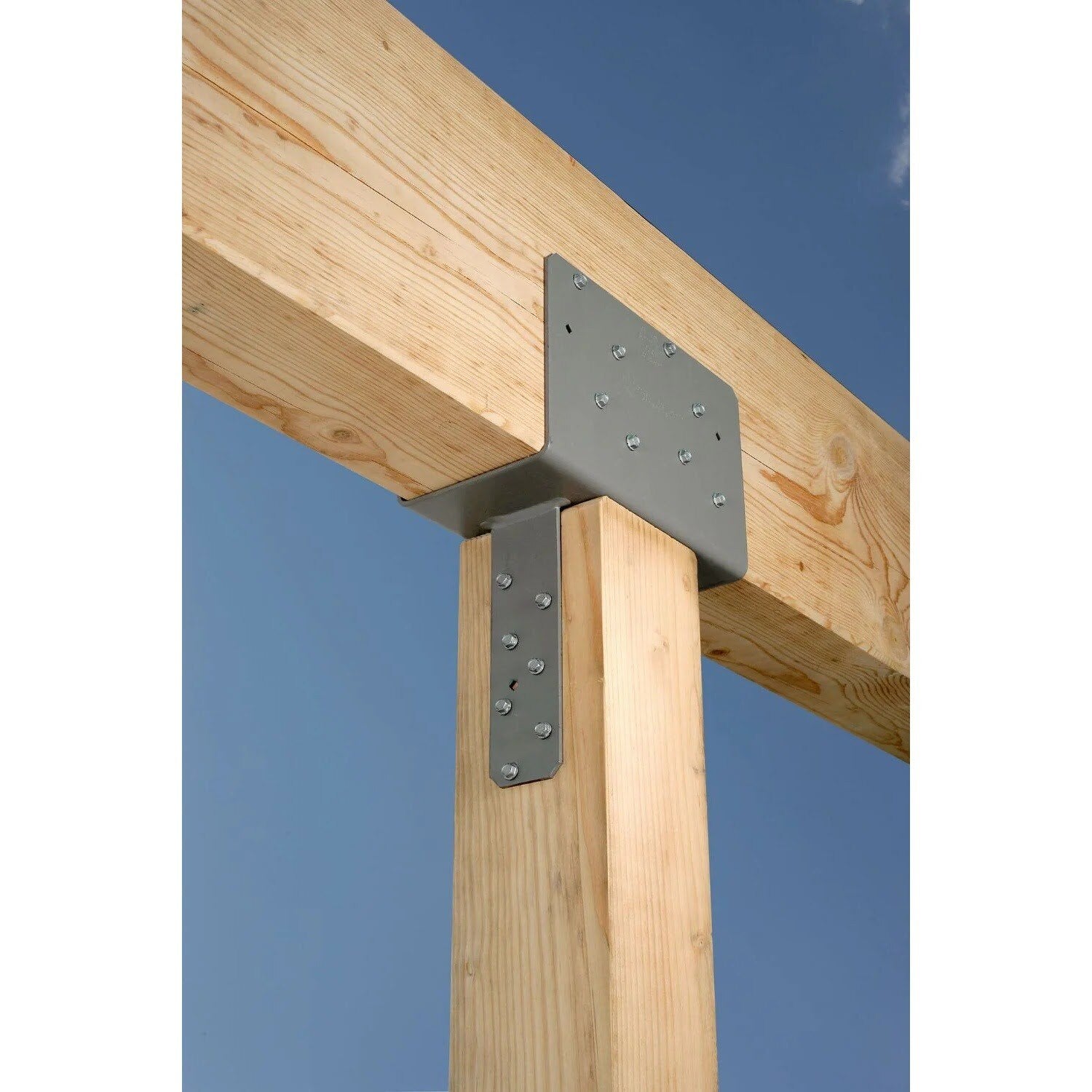

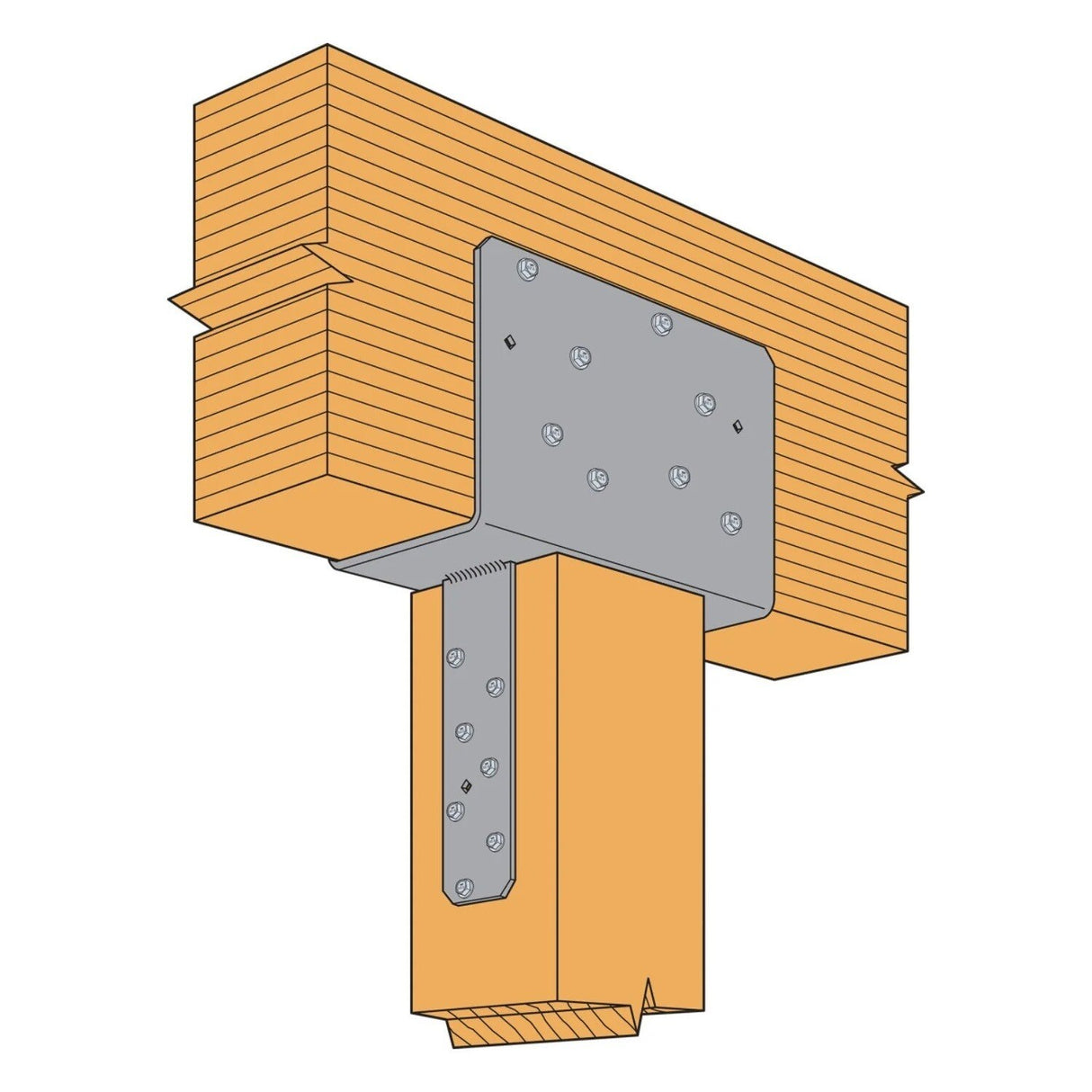

The Simpson CCQ66-SDS2.5HDG Column Cap with SDS Screws provides strong column-to-beam connections for wood construction, featuring durable galvanized steel and certified welds for enhanced stability.

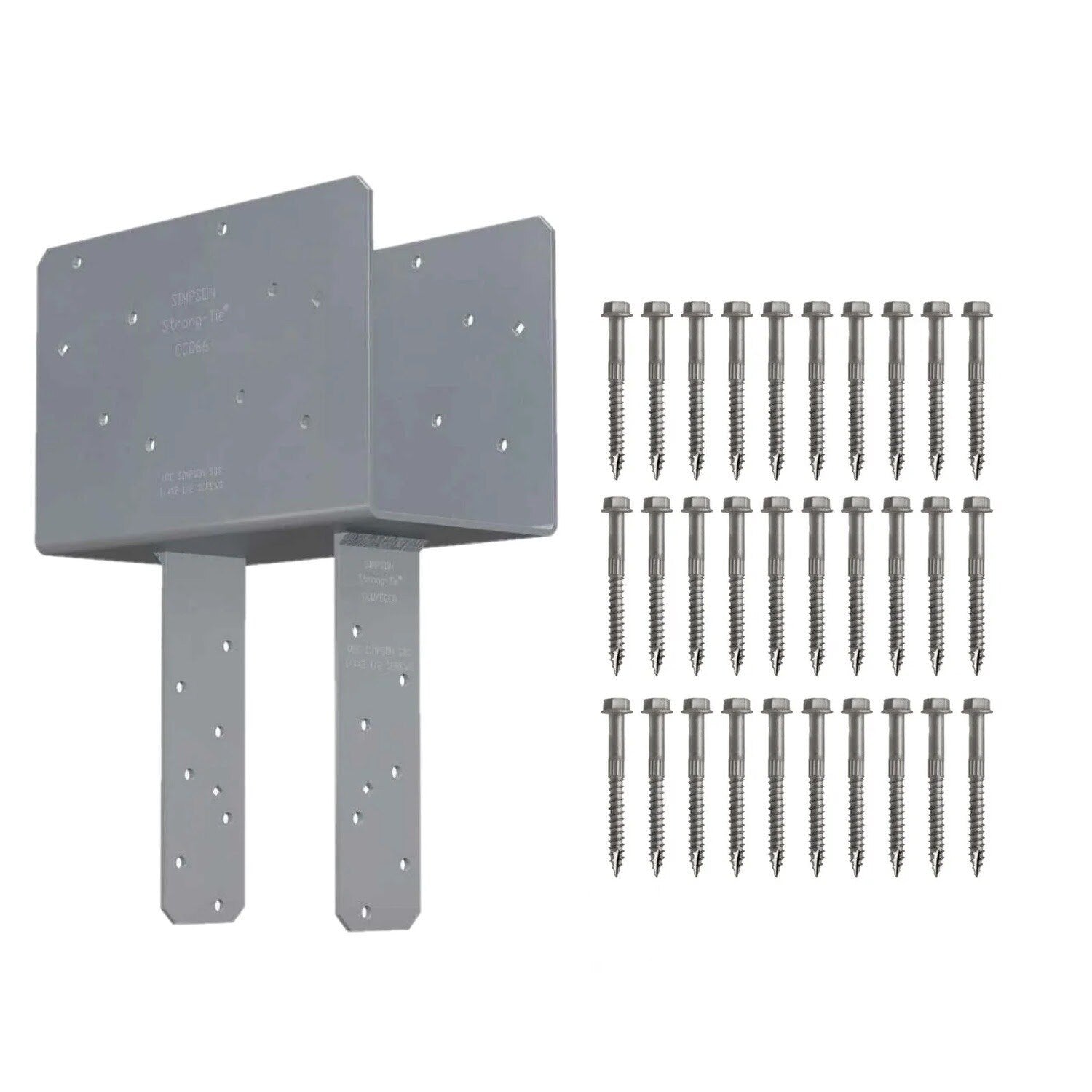

Simpson CCQ66-SDS2.5HDG Includes

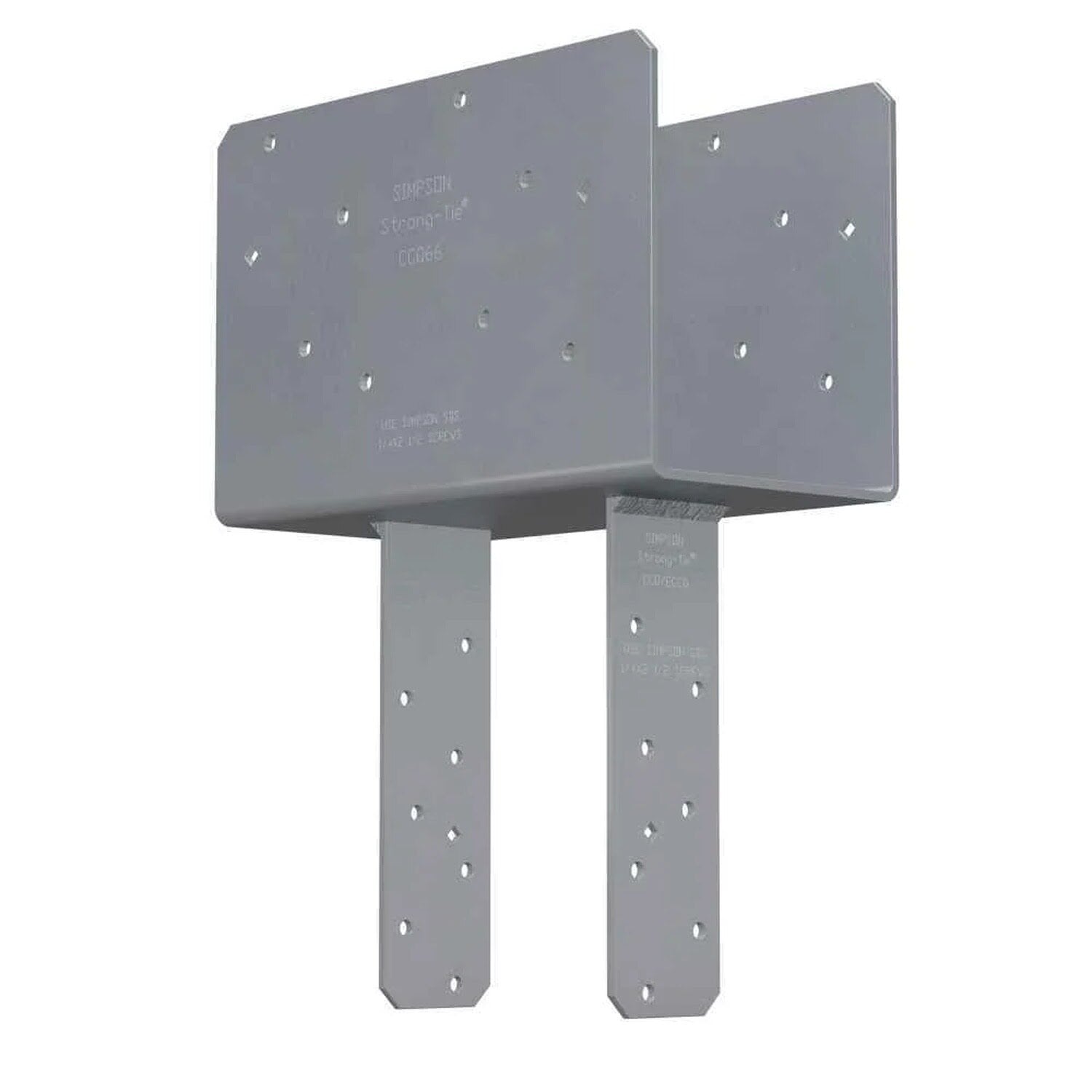

- (1) Column Cap
- (1) Set of SDS Screws
Simpson CCQ66-SDS2.5HDG Features
- Provides strong column-to-beam connections
- Extended column seat for additional load distribution
- Made from galvanized steel for durability
- Hot Dip Galvanized finish for corrosion resistance
- Includes SDS screws for quick installation
- Certified welds for increased strength and loading
- Diamond holes for temporary fastening during installation
- Bolt spacing meets NDS code requirements
Simpson CCQ66-SDS2.5HDG Applications
- Wood construction requiring column-to-beam connections
- Projects using 6x beams and posts
- Structures needing enhanced load distribution
- Earthquake or wind loading scenarios
Simpson CCQ66-SDS2.5HDG Installation Overview
- Align the column cap with the beam and post
- Secure temporarily using diamond holes
- Fasten with included SDS screws
- Ensure bolt spacing meets NDS code requirements
- Verify stability and load distribution
Simpson CCQ66-SDS2.5HDG Specifications
| Finish | Hot Dip Galvanized |
| Material | Galvanized Steel |
| Beam size | 6x |
| For Treated Lumber | Yes |
| Post size | 6x |
| Thickness | 7 Gauge |
NOTE: Ensure the correct fasteners are installed in the correct position to achieve published load values
