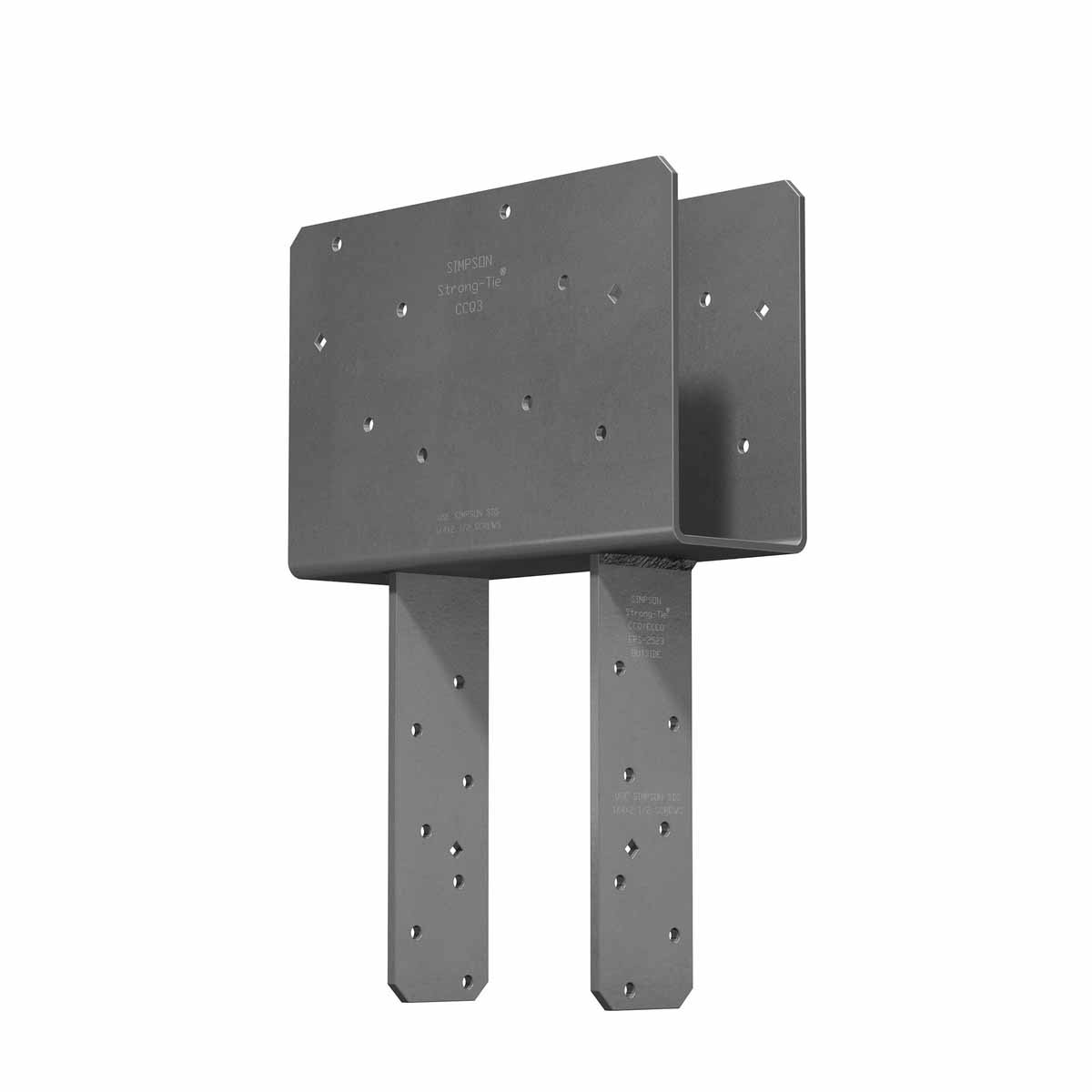

Simpson Strong-Tie CCQ76SDS2.5 Description
The Simpson Strong-Tie CCQ76SDS2.5 Column Cap is designed for robust column-to-beam connections in wood construction, featuring durable steel construction and a gray paint finish.
Simpson Strong-Tie CCQ76SDS2.5 Includes
- (1) Column Cap
- (16) 1/4" x 2-1/2" SDS Heavy-Duty Connector Screws
Simpson Strong-Tie CCQ76SDS2.5 Features
- Provides strong column-to-beam connections
- Extended column seat for additional bearing surface
- Made from heavy-gauge steel for durability
- Gray paint finish for corrosion resistance
- Includes SDS screws for quick installation
- Certified welds for strength and loading
- Increased uplift loads for earthquake or wind loading
- Diamond holes for temporary fastening
Simpson Strong-Tie CCQ76SDS2.5 Applications
- Wood construction requiring column-to-beam connections
- Residential and commercial framing projects
- Structures needing enhanced load distribution
Simpson Strong-Tie CCQ76SDS2.5 Installation Overview
- Fasten with provided SDS screws for secure connections
- Ensure proper alignment of column and beam
- Use diamond holes for temporary fastening during installation
- Follow NDS code requirements for bolt spacing
Simpson Strong-Tie CCQ76SDS2.5 Specifications
| Finish | Gray Paint |
| Material | Steel |
| Beam size | 7x |
| Post size | 6x |
| Thickness | 3 Gauge |
| Weight | 19.5 lb |
NOTE: Ensure proper installation using the provided SDS screws to achieve the specified load values.
Toolup Part # :
248681
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
