Simpson Anchors | SKU:
CCQ86SDS2.5

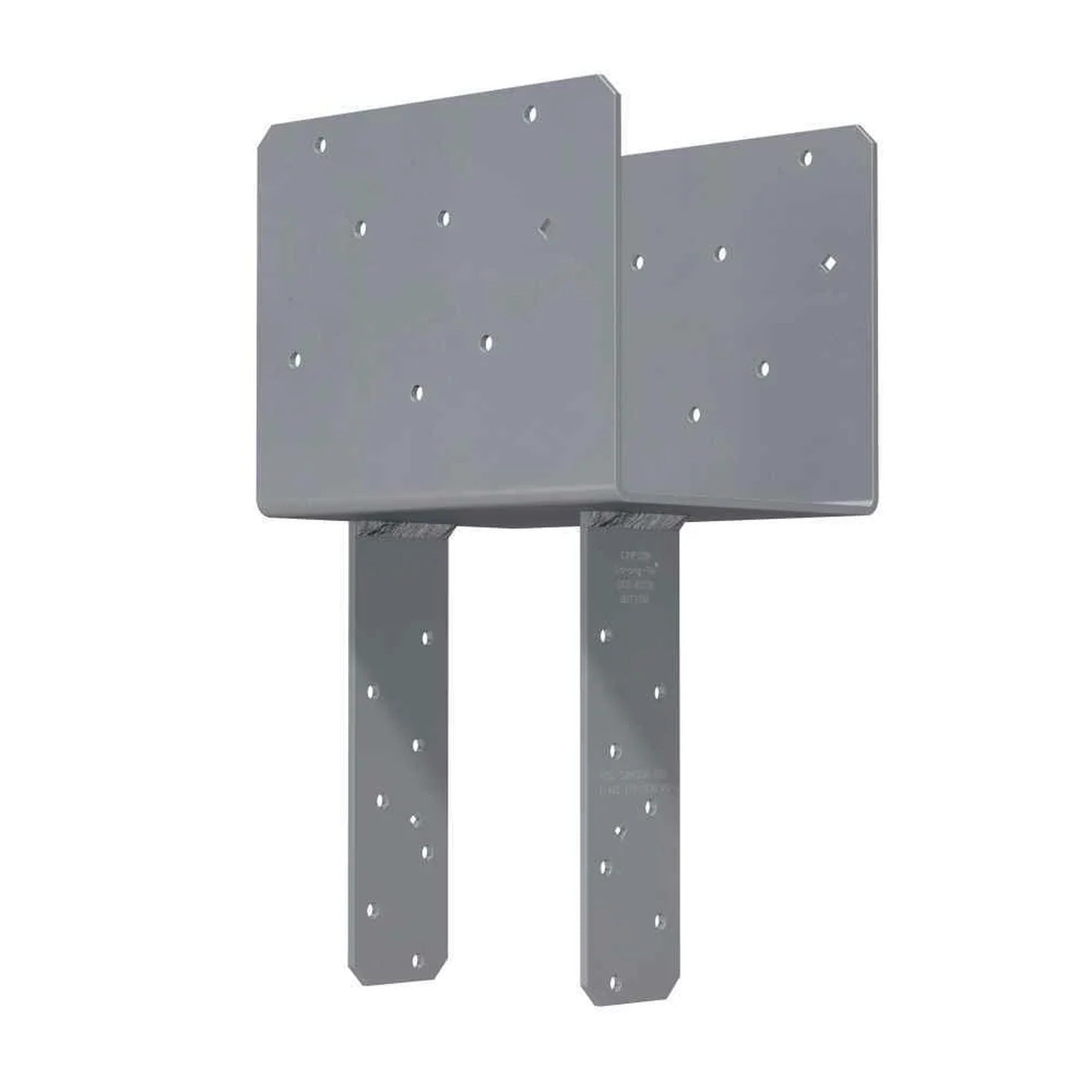

Simpson Strong-Tie CCQ86SDS2.5 Heavy-Gauge Steel Column Cap with SDS Screws for 8x Beam to 6x Post Connections
$194.92
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie CCQ86SDS2.5 Description
The Simpson CCQ86SDS2.5 Column Cap is a heavy-gauge steel connector designed for 8x beam to 6x post connections, providing enhanced strength and stability for wood construction projects.
Simpson Strong-Tie CCQ86SDS2.5 Includes
- (1) Column Cap
- (1) Set of SDS Screws
Simpson Strong-Tie CCQ86SDS2.5 Features
- Provides strong end-of-beam connection for column-to-beams
- Extended column seat offers additional surface area for load distribution
- Made from durable heavy-gauge steel
- Finished with Gray Paint for corrosion resistance
- Certified welds for increased strength and loading
- Includes Simpson Strong-Drive SDS connector screws for fast installation
Simpson Strong-Tie CCQ86SDS2.5 Applications
- Wood construction projects requiring 8x beam to 6x post connections
- End-of-beam applications for enhanced structural support
- Projects needing increased uplift loads for earthquake or wind resistance
Simpson Strong-Tie CCQ86SDS2.5 Installation Overview
- Align the column cap with the beam and post as per the design specifications.
- Secure the cap using the included SDS screws.
- Ensure bolt spacing meets NDS code requirements.
- Use diamond holes for temporary fastening during installation.
Simpson Strong-Tie CCQ86SDS2.5 Specifications
| Finish | Gray Paint |
| Material | Steel |
| Beam size | 8x |
| Fasteners required | All Fasteners Included |
| For Treated Lumber | No |
| Post size | 6x |
| Thickness | 3 Gauge |
