Simpson Anchors  |  SKU: CD18200M  |  Barcode: 707392513636

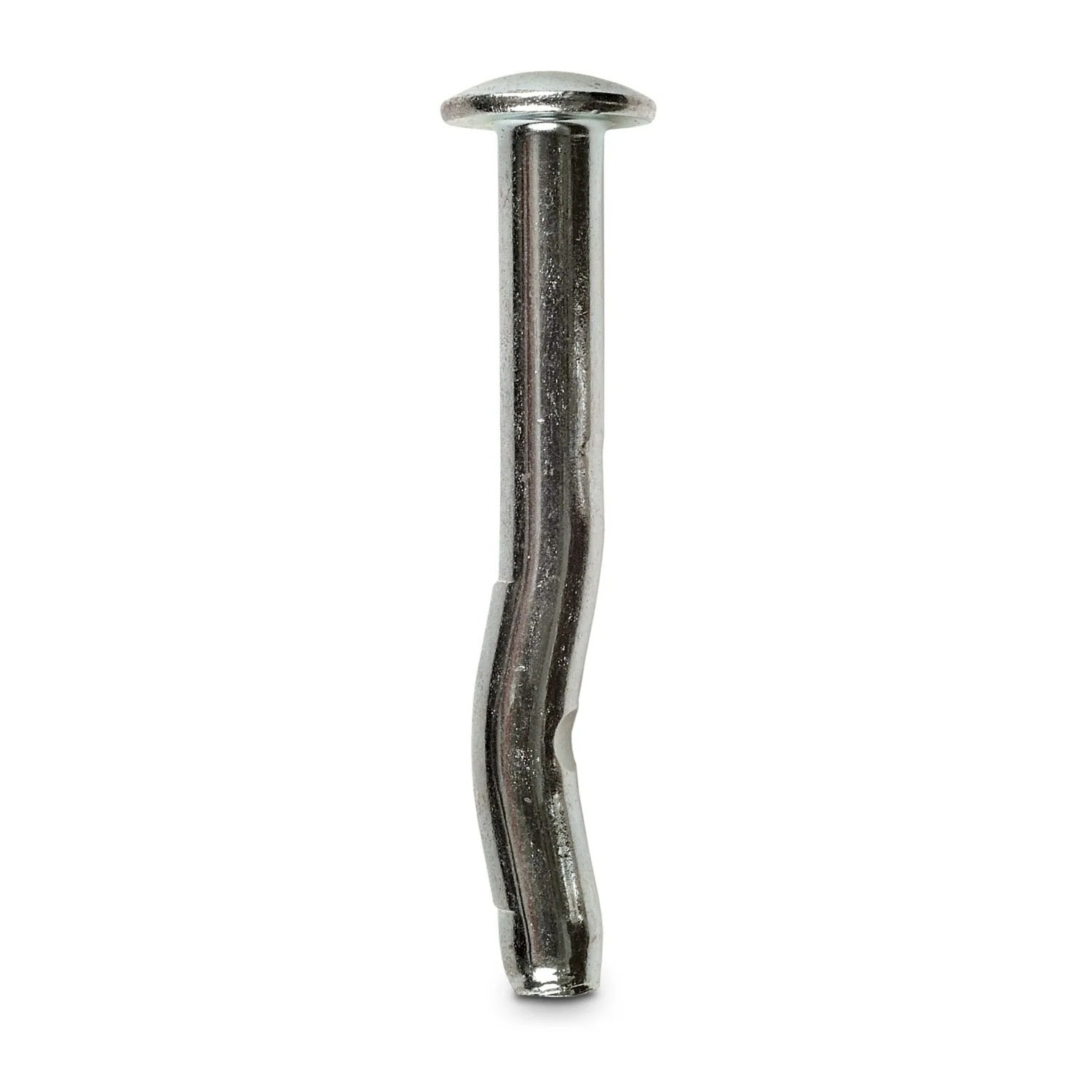

Simpson Strong-Tie CD18200M (3/16" x 2") Crimp Drive Anchor Zinc-Plated Mushroom Head (100 Pack)

$24.46 $27.49

Description

Simpson Strong-Tie CD18200M Description

The Simpson Strong-Tie Crimp Drive anchor is an easy-to-install expansion anchor for use in concrete and grout-filled block.

Simpson Strong-Tie CD18200M Includes

  • (100) Crimp Drive Anchor Zinc-Plated Mushroom Head

Simpson Strong-Tie CD18200M Features

  • Unique curved shaft design that speeds up anchor installation and reduces overall project cost
  • Ideal for a variety of applications
  • Available in five different head styles

Simpson Strong-Tie CD18200M Applications

  • Attaching wood or light-gauge steel to concrete and grout-filled block
  • Providing tamper-proof solutions with mushroom head
  • Offering zero-profile solutions with countersunk head
  • Threaded rod attachments with rod-coupler head
  • Suspended ceiling applications with tie-wire head
  • Temporary applications with duplex head

Simpson Strong-Tie CD18200M Installation Overview

  1. Drill a hole using the specified diameter carbide bit into the base material to a depth of at least 1/2" deeper than the required embedment.
  2. Blow the hole clean of dust and debris using compressed air.
  3. Drive the anchor through the fixture into the hole until the head sits flush against the fixture.
  4. Ensure the anchor is driven to the required embedment depth.

Simpson Strong-Tie CD18200M Specifications

Diameter 3/16"
Length 2"
Material Carbon Steel
Drill bit size 3/16"
Fixture hole size 1/4"
Head type Mushroom Head
Minimum embedment depth 1-1/4"
Quantity 100

NOTE: Use these products in dry, interior, and non-corrosive environments only.
