Simpson Anchors | SKU:
CD25100M

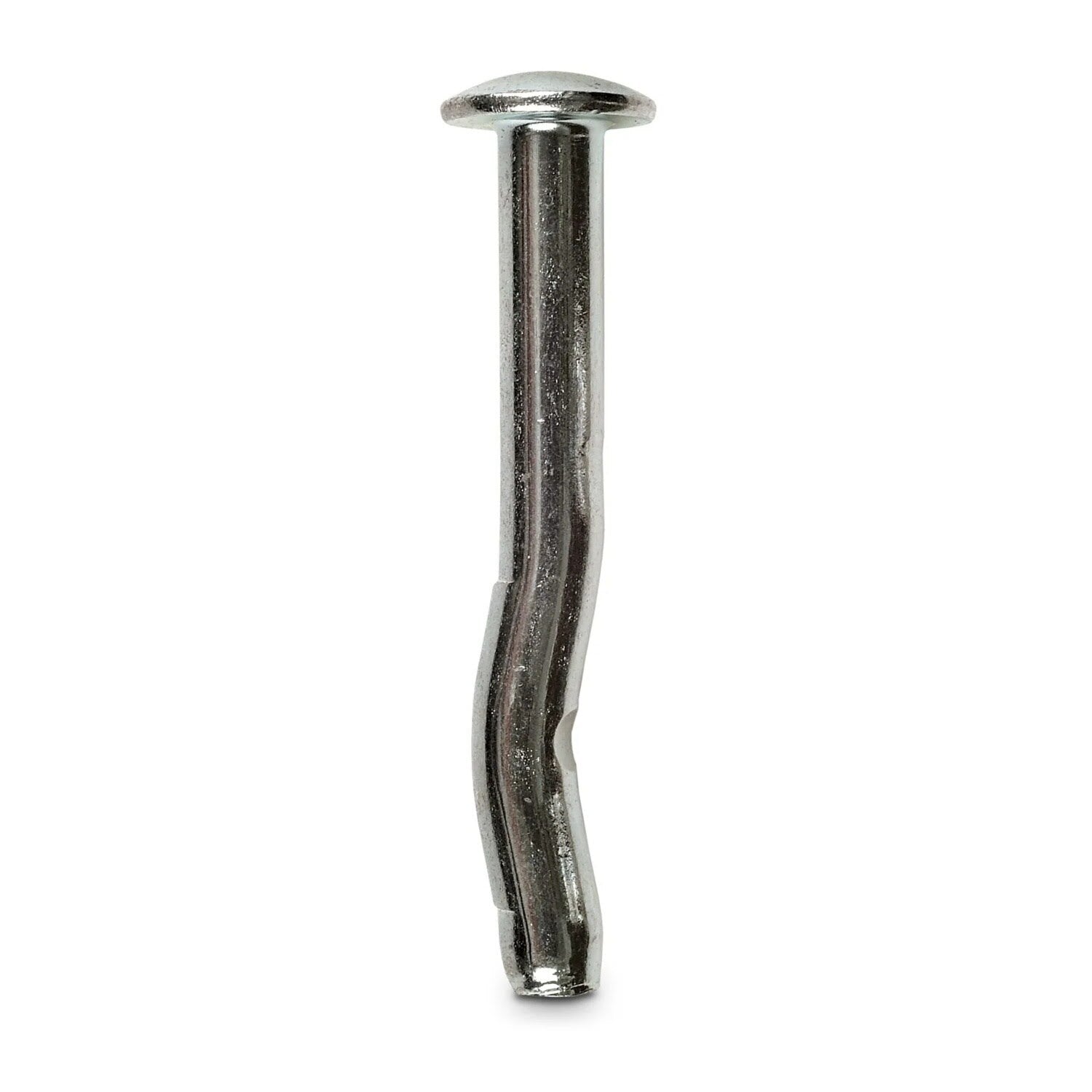

Simpson Strong-Tie CD25100M (1/4" x 1") Crimp Drive Zinc-Plated Mushroom Head Anchor (100 Pack)
$27.21
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie CD25100M Description
The Simpson Strong-Tie Crimp Drive anchor is an easy-to-install expansion anchor designed for concrete and grout-filled block applications. Featuring a mushroom head and zinc-plated finish, it ensures secure attachment and durability.
Simpson Strong-Tie CD25100M Includes
- (100) Crimp Drive Anchor Zinc-Plated Mushroom Head
Simpson Strong-Tie CD25100M Features
- Easy-to-install expansion anchor
- Pre-formed curvature for secure placement
- Eliminates secondary tightening procedure
- Low profile mushroom head for versatile attachment
- Zinc-plated finish for durability
Simpson Strong-Tie CD25100M Applications
- Attaching wood to concrete
- Securing light-gauge steel to grout-filled block
- General concrete anchoring applications
Simpson Strong-Tie CD25100M Installation Overview
- Drill a hole using the specified diameter carbide bit into the base material to a depth of at least 1/2" deeper than the required embedment.
- Blow the hole clean of dust and debris using compressed air.
- Drive the anchor through the fixture into the hole until the head sits flush against the fixture.
- Ensure the anchor is driven to the required embedment depth.
Simpson Strong-Tie CD25100M Specifications
| Diameter | 1/4" |
| Length | 1" |
| Material | Carbon Steel |
| Drill bit size | 1/4" |
| Fixture hole size | 5/16" |
| Head type | Mushroom Head |
| Minimum embedment depth | 7/8" |
| Quantity | 100 |
NOTE: Use these products in dry, interior, and non-corrosive environments only.
