Simpson Anchors | SKU:
CD25112C
Simpson Strong-Tie CD25112C (1/4" x 1-1/2") Crimp Drive Anchor Zinc-Plated Countersunk Head (100 Pack)
$28.92
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie CD25112C Description

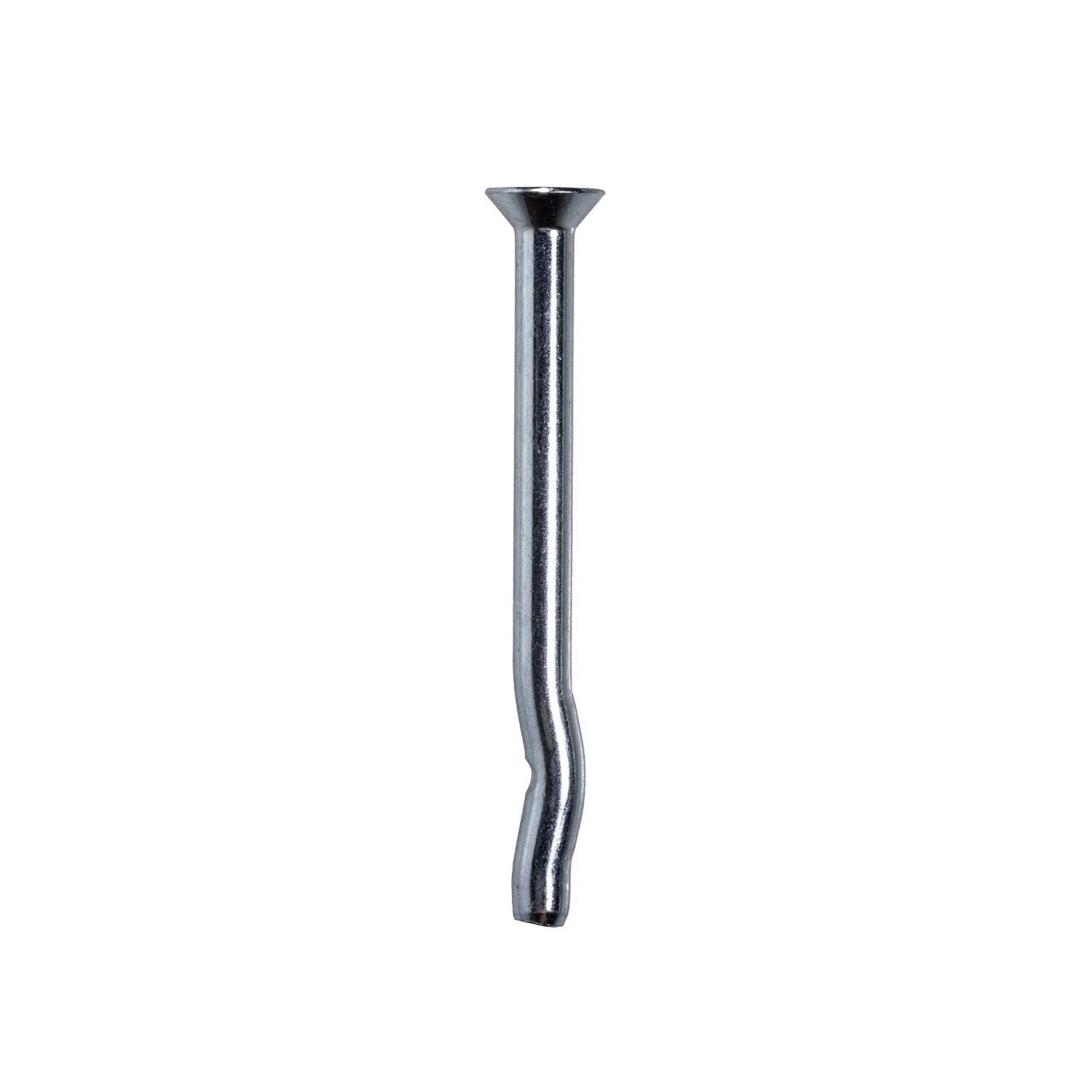

The Simpson Strong-Tie Crimp Drive anchor is an easy-to-install expansion anchor for use in concrete and grout-filled block. The pre-formed curvature along the shaft creates an expansion mechanism that secures the anchor in place and eliminates the need for a secondary tightening procedure.
Simpson Strong-Tie CD25112C Includes
- (100) Crimp Drive Anchor Zinc-Plated Countersunk Head 1/4 in. x 1-1/2 in.
Simpson Strong-Tie CD25112C Features
- Unique curved shaft design that speeds up anchor installation and reduces overall project cost
- Countersunk head allows for a smooth surface when attaching wood or light gauge steel to concrete and grout-filled block
- Available in five different head styles
Simpson Strong-Tie CD25112C Applications
- Attaching wood or light gauge steel to concrete and grout-filled block
- General purpose anchoring in dry, interior, and non-corrosive environments
Simpson Strong-Tie CD25112C Installation Overview
- Drill a hole using the specified diameter carbide bit into the base material to a depth of at least 1/2" deeper than the required embedment.
- Blow the hole clean of dust and debris using compressed air.
- Drive the anchor through the fixture into the hole until the head sits flush against the fixture.
- Ensure the anchor is driven to the required embedment depth.
Simpson Strong-Tie CD25112C Specifications
| Material | Carbon Steel |
| Finish | Zinc Plated |
| Diameter | 1/4 in. |
| Length | 1-1/2 in. |
| Drill Bit Size | 1/4 in. |
| Fixture Hole Size | 5/16 in. |
| Minimum Embedment Depth | 1-1/4 in. |
| Quantity | 100 |
NOTE: Use these products in dry, interior, and non-corrosive environments only.
