Simpson Anchors | SKU:
CD25112M

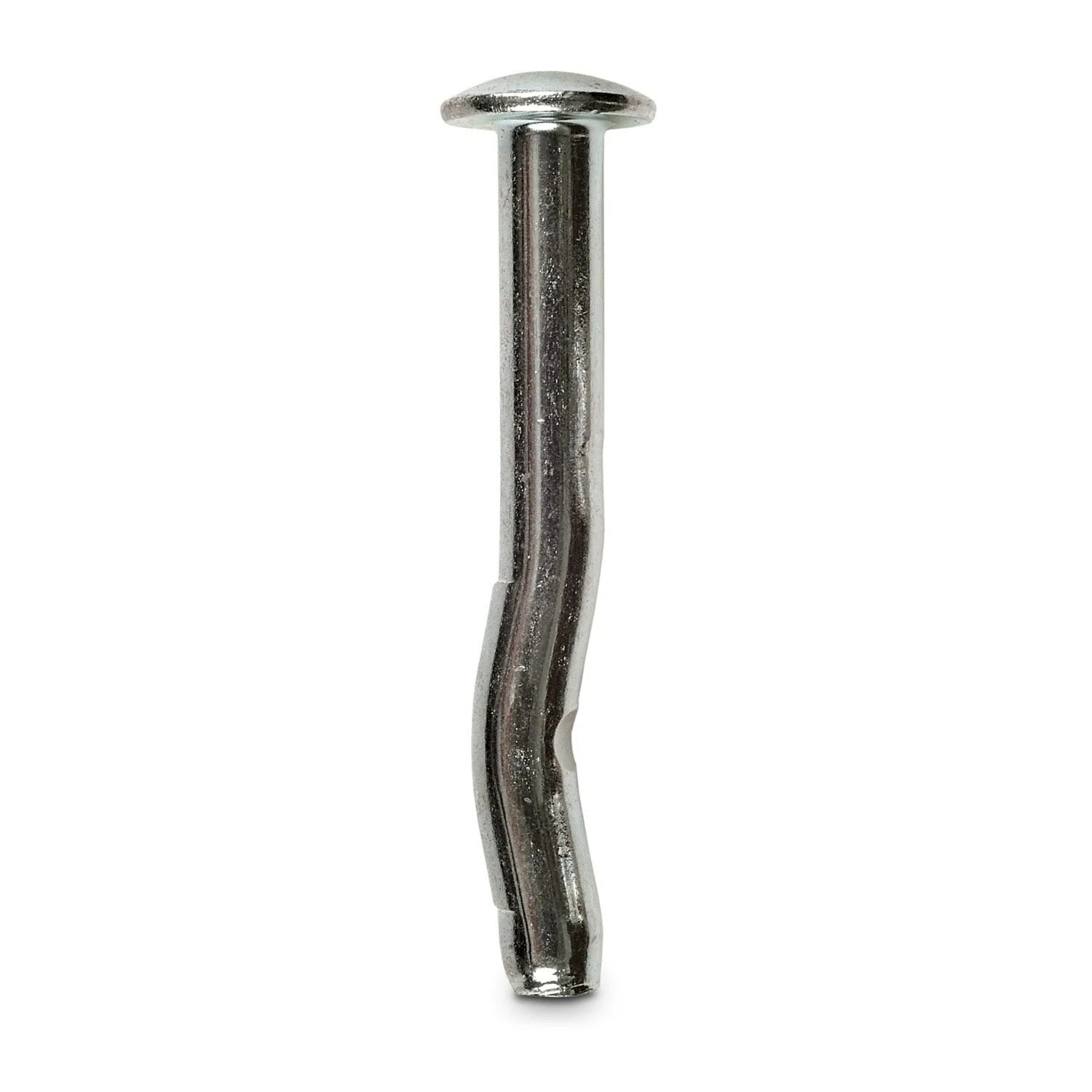

Simpson Strong-Tie CD25112M (1/4" x 1-1/2") Crimp Drive Anchor Zinc-Plated Mushroom Head (100 Pack)
$27.70
$30.97
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie CD25112M Description
The Simpson Strong-Tie Crimp Drive anchor is an easy-to-install expansion anchor for use in concrete and grout-filled block. The pre-formed curvature along the shaft creates an expansion mechanism that secures the anchor in place and eliminates the need for a secondary tightening procedure.
Simpson Strong-Tie CD25112M Includes
- (100) 1/4" x 1-1/2" Mushroom Head Crimp Drive Anchor
Simpson Strong-Tie CD25112M Features
- Unique curved shaft design that speeds up anchor installation and reduces overall project cost
- Ideal for a variety of applications
- Available in five different head styles
Simpson Strong-Tie CD25112M Applications
- Mushroom head provides a tamper-proof solution
- Countersunk head provides a zero-profile solution
- Rod-coupler head allows for threaded rod attachments
- Tie-wire head for suspended ceiling applications
- Duplex head allows for easy removal in temporary applications
Simpson Strong-Tie CD25112M Installation Overview
- Drill a hole using the specified diameter carbide bit into the base material to a depth of at least 1/2" deeper than the required embedment.
- Blow the hole clean of dust and debris using compressed air. Overhead application need not be blown clean.
- Where a fixture is used, drive the anchor through the fixture into the hole until the head sits flush against the fixture.
- Be sure the anchor is driven to the required embedment depth. The rod coupler and tie-wire models should be driven in until the head is seated against the surface of the base material.
Simpson Strong-Tie CD25112M Specifications
| Material | Carbon Steel |
| Finish | Zinc Plated |
| Head Type | Mushroom Head |
| Diameter | 1/4" |
| Length | 1-1/2" |
| Drill Bit Size | 1/4" |
| Fixture Hole Size | 5/16" |
| Minimum Embedment Depth | 1-1/4" |
| Quantity | 100 |
NOTE: Industry studies show that hardened fasteners can experience performance problems in wet or corrosive environments. Accordingly, with the exception of the duplex anchor, use these products in dry, interior and non-corrosive environments only.
