Simpson Strong-Tie CD25114M Description

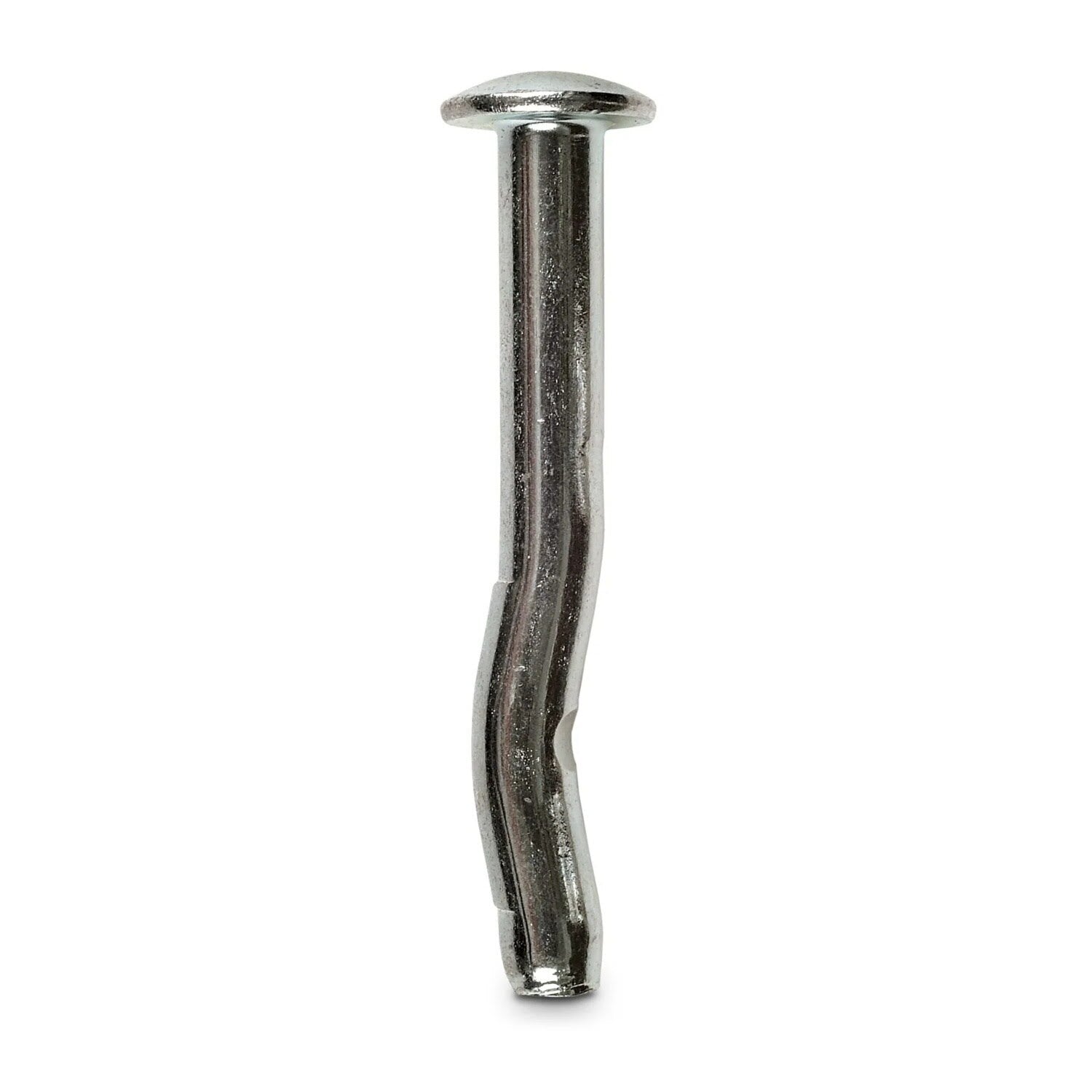

The Simpson Strong-Tie Crimp Drive anchor is an easy-to-install expansion anchor for use in concrete and grout-filled block. It features a pre-formed curvature along the shaft for secure anchoring and a low-profile mushroom head for versatile applications.
Simpson Strong-Tie CD25114M Includes
- (100) 1/4 in. x 1-1/4 in. Crimp Drive Anchors
Simpson Strong-Tie CD25114M Features
- Unique curved shaft design for quick installation
- Low-profile mushroom head for versatile applications
- Zinc-plated for durability
- Made from carbon steel
Simpson Strong-Tie CD25114M Applications
- Attaching wood or light-gauge steel to concrete
- Use in grout-filled block
Simpson Strong-Tie CD25114M Installation Overview
- Drill a hole using a 1/4 in. carbide bit to a depth of at least 1/2 in. deeper than the required embedment.
- Blow the hole clean of dust and debris using compressed air.
- Drive the anchor through the fixture into the hole until the head sits flush against the fixture.
- Ensure the anchor is driven to the required embedment depth.
Simpson Strong-Tie CD25114M Specifications
| Material | Carbon Steel |
| Finish | Zinc Plated |
| Head Type | Mushroom Head |
| Diameter | 1/4 in. |
| Length | 1-1/4 in. |
| Drill Bit Size | 1/4 in. |
| Fixture Hole Size | 5/16 in. |
| Minimum Embedment Depth | 7/8 in. |
| Quantity | 100 |
NOTE: Use these products in dry, interior, and non-corrosive environments only.
